2023 Sany SY205C

1/9
Buy Sany SY205C Used Excavator / 1
Buy Sany SY205C Used Excavator / 2

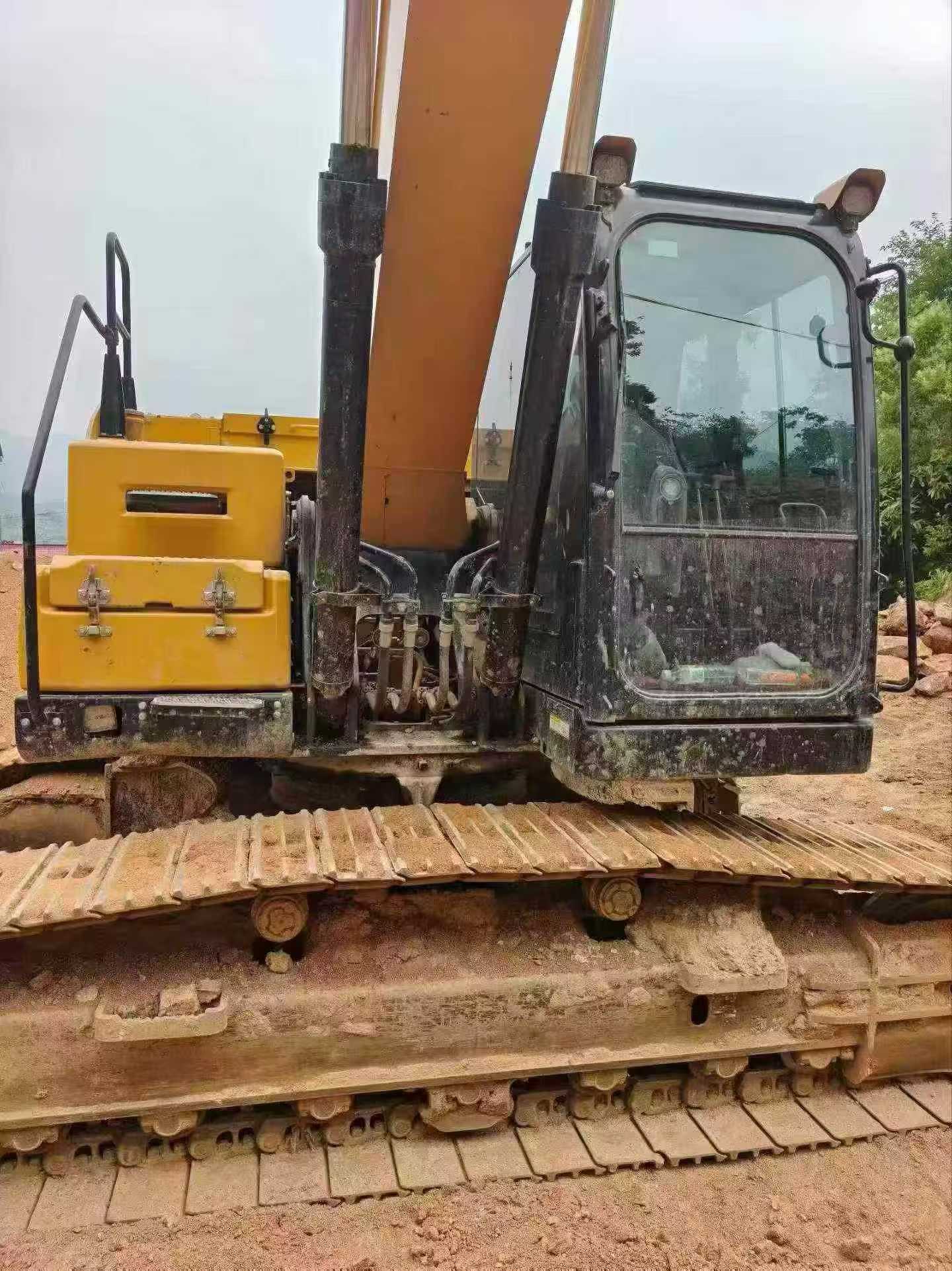

Buy Sany SY205C Used Excavator / 3

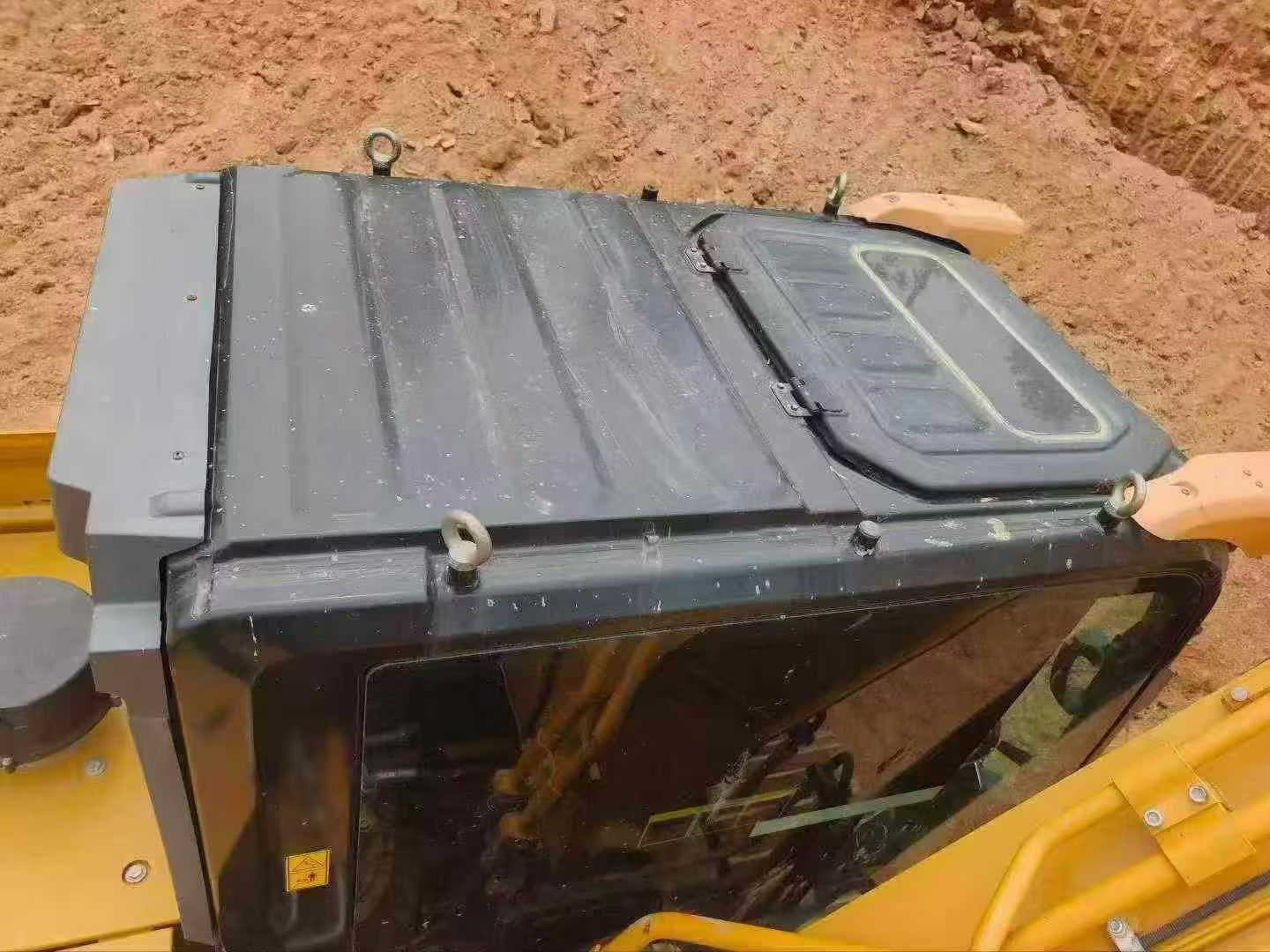

Buy Sany SY205C Used Excavator / 4

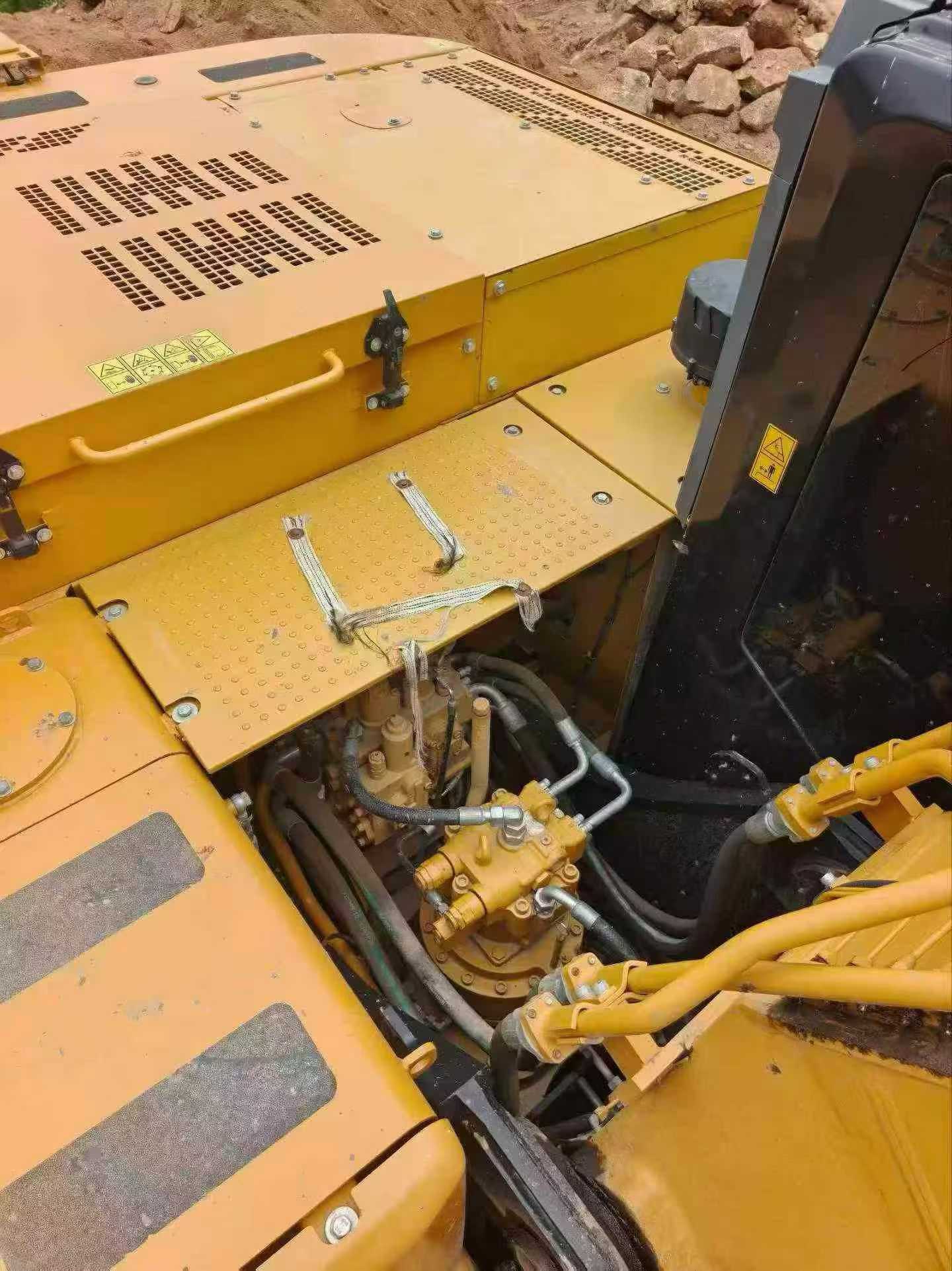

Buy Sany SY205C Used Excavator / 5

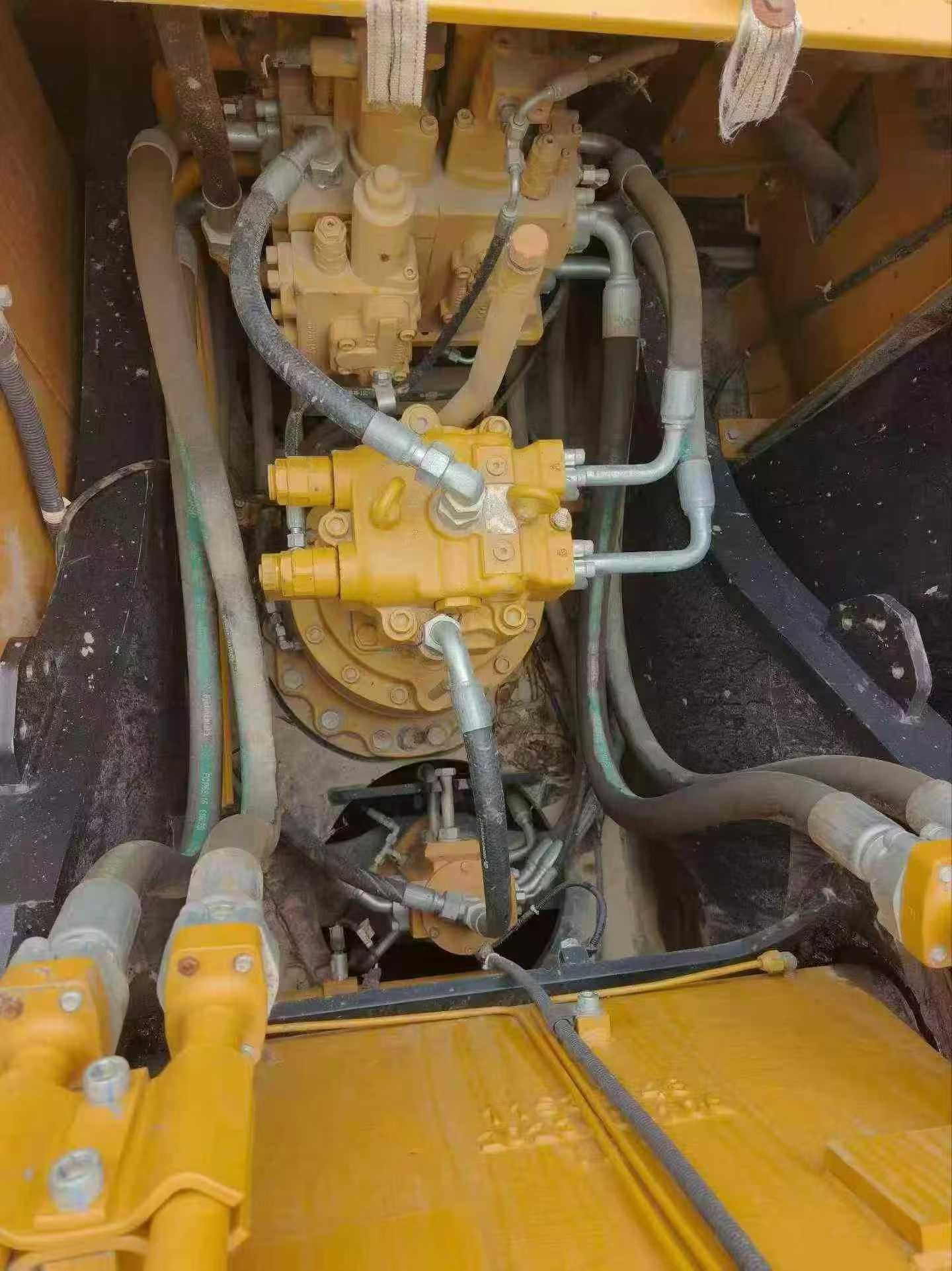

Buy Sany SY205C Used Excavator / 6

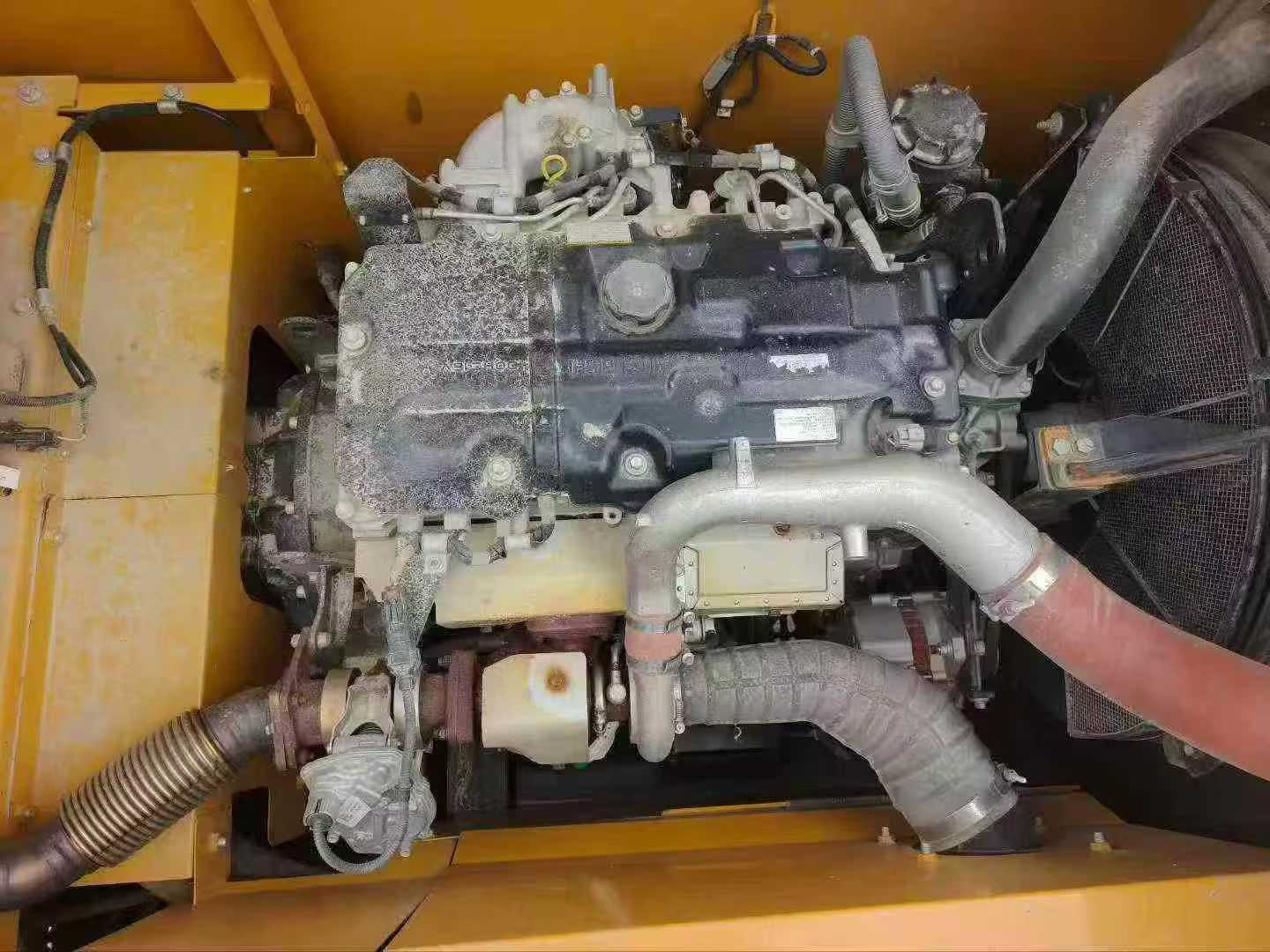

Buy Sany SY205C Used Excavator / 7

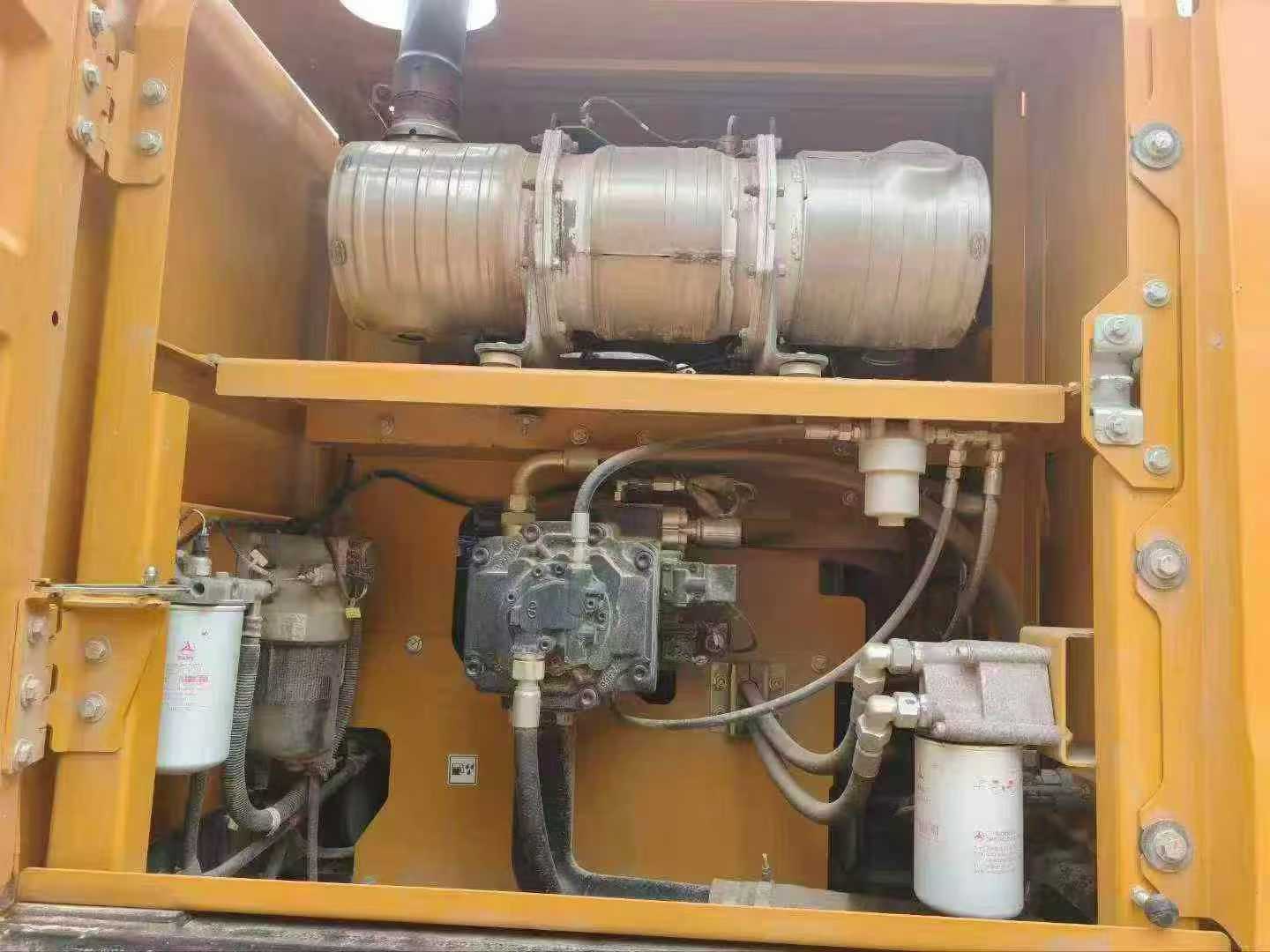

Buy Sany SY205C Used Excavator / 8

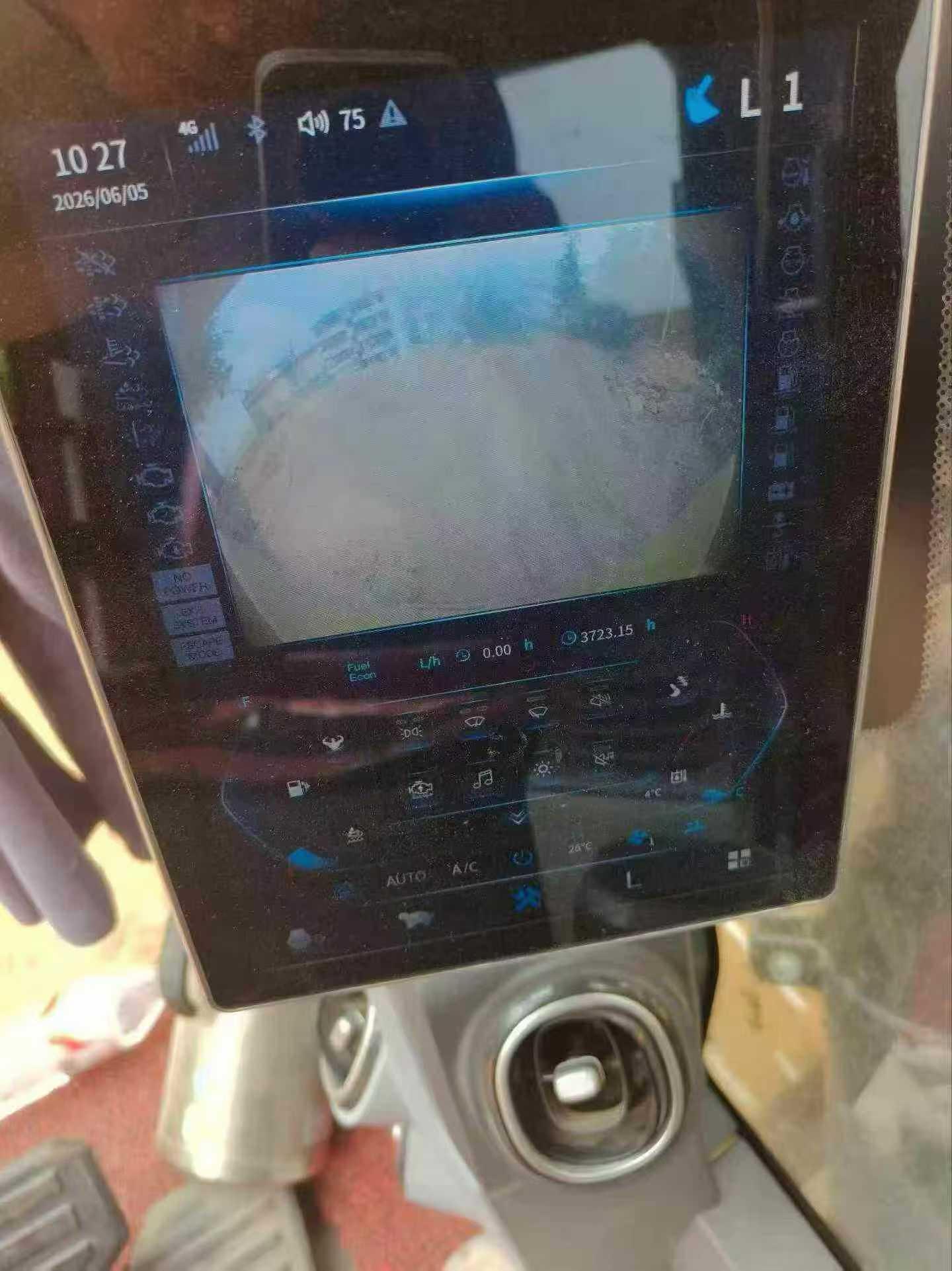

Buy Sany SY205C Used Excavator / 9

Product Description

Well-maintained 2023 Sany SY205C hydraulic excavator available from Yunnan, China. This mid-size crawler excavator has accumulated approximately 3,700 operating hours since new, indicating light usage over its service life. The SY205C is recognized in the construction and earthmoving sectors for its 20-ton operating weight class, combining productive digging performance with fuel efficiency.

Key features of the Sany SY205C include:

  • Robust hydraulic system designed for demanding excavation applications
  • Spacious operator cabin with ergonomic controls
  • Reliable engine performance suitable for various job site conditions
  • Durable undercarriage built for extended service intervals
  • Versatile attachment compatibility for trenching, grading, and material handling

This unit represents a cost-effective solution for contractors seeking dependable excavation equipment with recent model year advantages and minimal wear. Ideal for civil construction, mining support operations, and infrastructure development projects throughout Asia-Pacific markets.

SpecificationsValue
No.1080391
Tonnage (tons)20
Working weight (kg)21500
Bucket capacity (m³)0.9~1.1(1.0)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)118/2000
Ground specific pressure (Kpa)47.3
Rotation speed (rpm)11
Climbing ability (%)70% / 35 °
Bucket digging force (kN)138
Rod digging force (kN)109
Travel speed (km/h)5.4/3.3
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4160
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3360
Maximum height at minimum turning radius (mm)7680
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
see more

Overview

No.1080391

Brand Name:

Sany

Model Number:

SY205C

Year:

2023

Location:

Yunnan China

Pub Date
