2014 Sany SY215C-8

1/8
Buy Sany SY215C-8 Used Excavator / 1
Buy Sany SY215C-8 Used Excavator / 2
Buy Sany SY215C-8 Used Excavator / 3
Buy Sany SY215C-8 Used Excavator / 4
Buy Sany SY215C-8 Used Excavator / 5
Buy Sany SY215C-8 Used Excavator / 6
Buy Sany SY215C-8 Used Excavator / 7
Buy Sany SY215C-8 Used Excavator / 8

Product Description

This 2014 Sany SY215C-8 crawler excavator represents a dependable solution for mid-range earthmoving operations. As part of Sany's proven C-series lineup, this 21-ton class machine combines practical performance with established reliability for contractors and equipment operators.

Currently located in Yunnan, China, this excavator has completed over a decade of service while maintaining functional capability. The SY215C-8 features a standard boom and arm configuration suitable for general excavation, trenching, and material handling applications.

  • Operating weight: Approximately 21,500 kg
  • Bucket capacity range: 0.8-1.0 m³
  • Hydraulic system designed for efficient cycle times

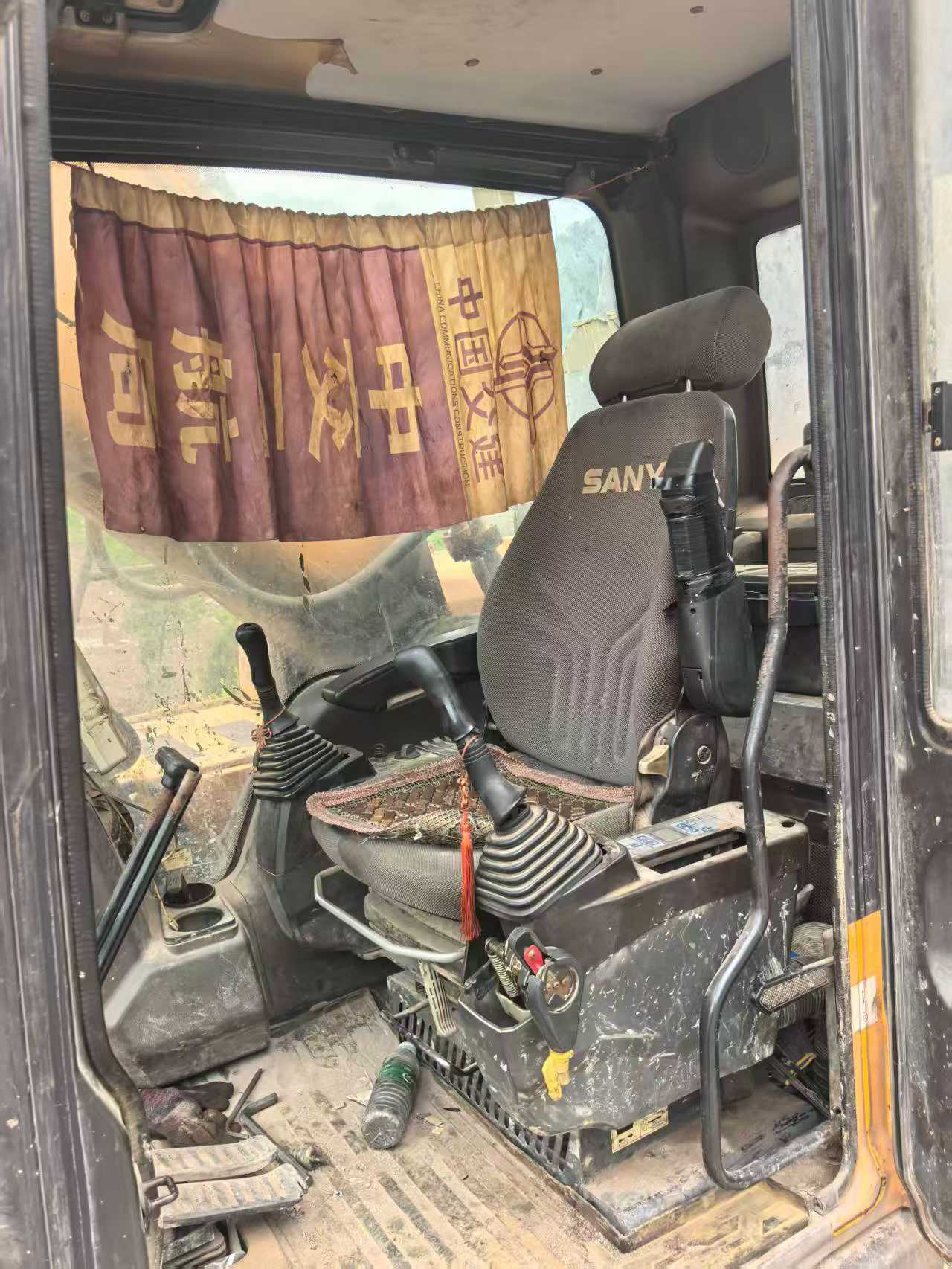

  • Cab with standard operator controls

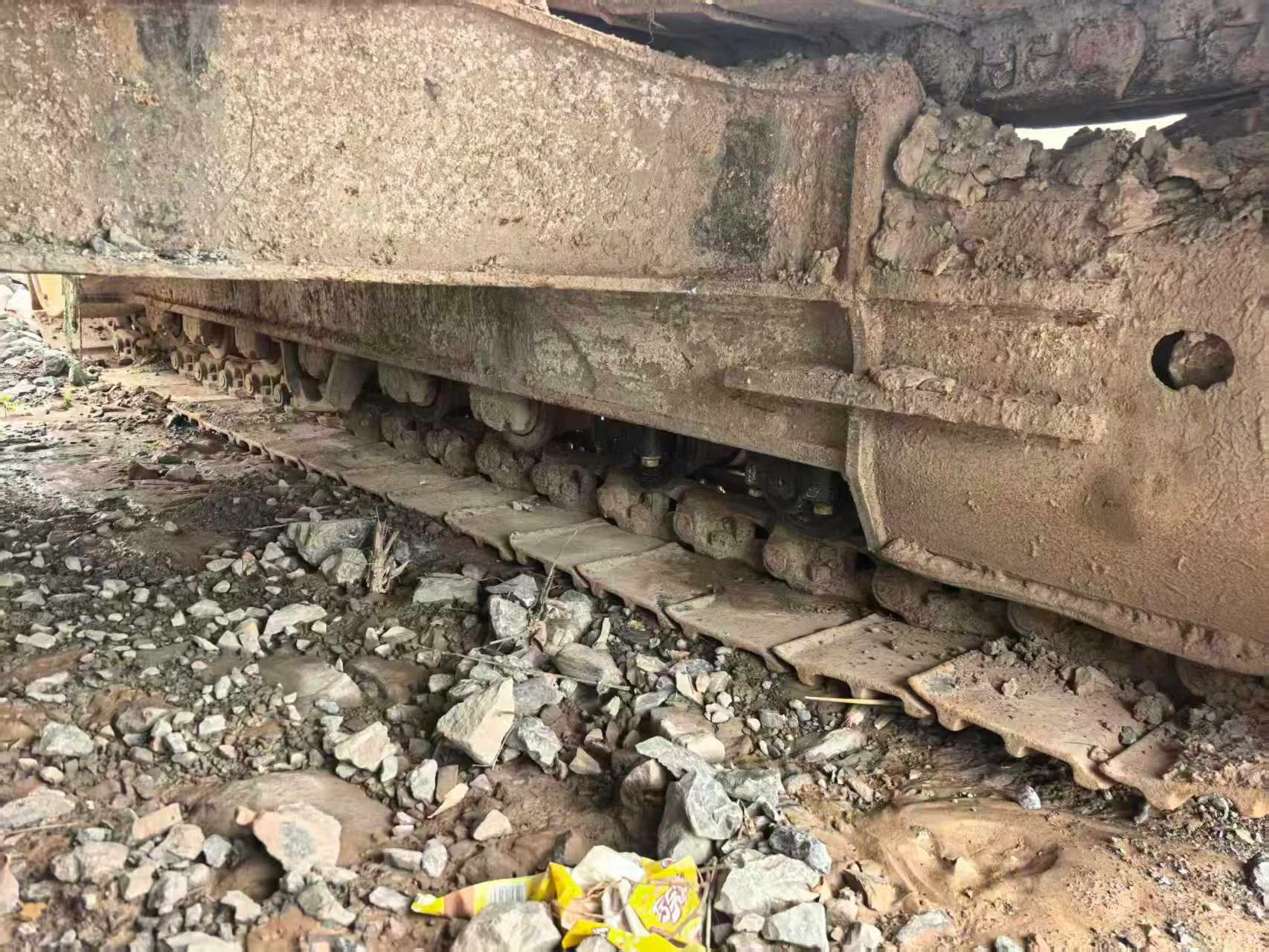

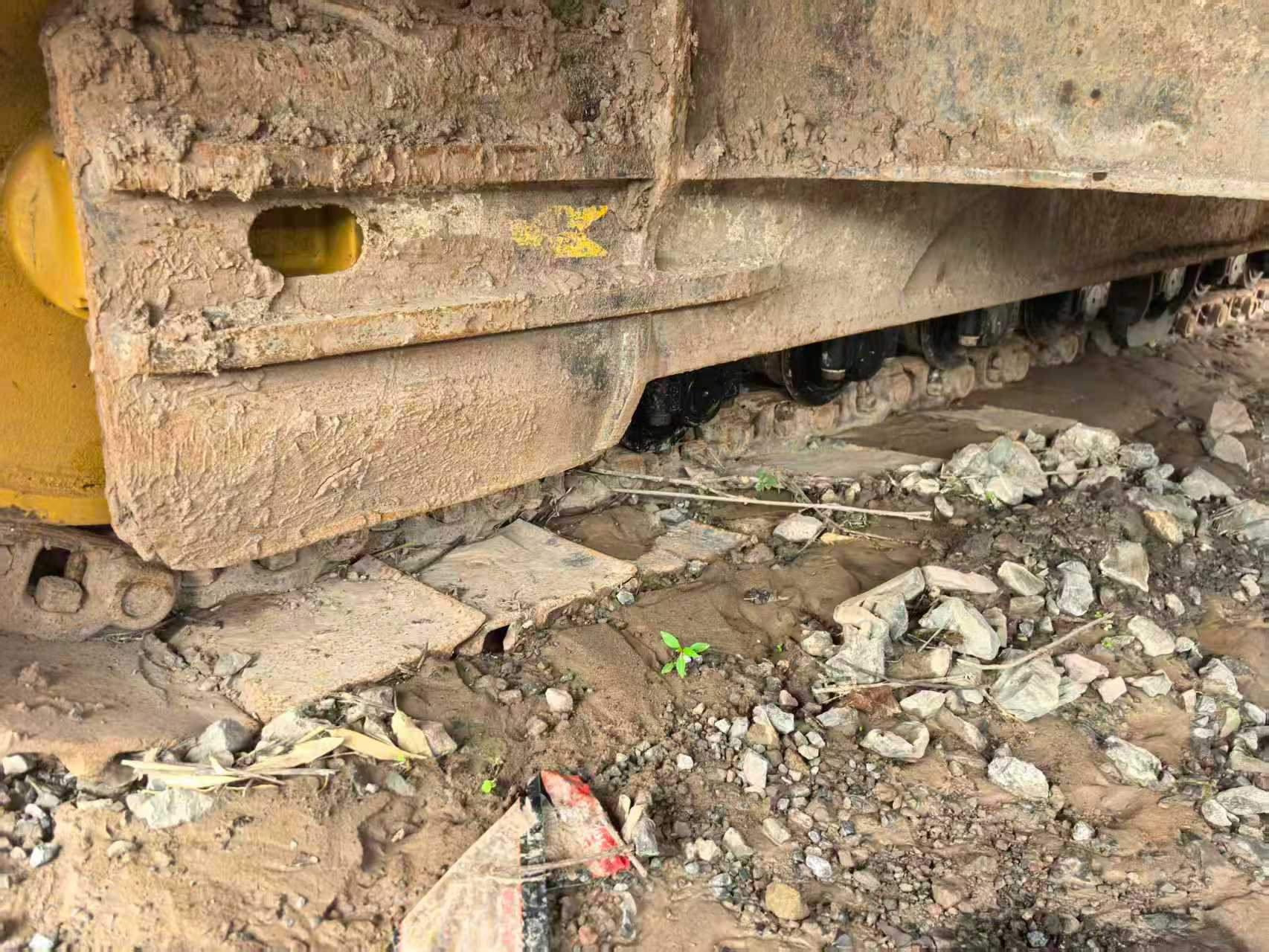

  • Undercarriage with track assembly

Available for inspection in Yunnan. Contact us for current pricing, detailed condition assessment, and export documentation assistance.

SpecificationsValue
No.1080693
Tonnage (tons)21
Working weight (kg)20900
Bucket capacity (m³)0.93
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe

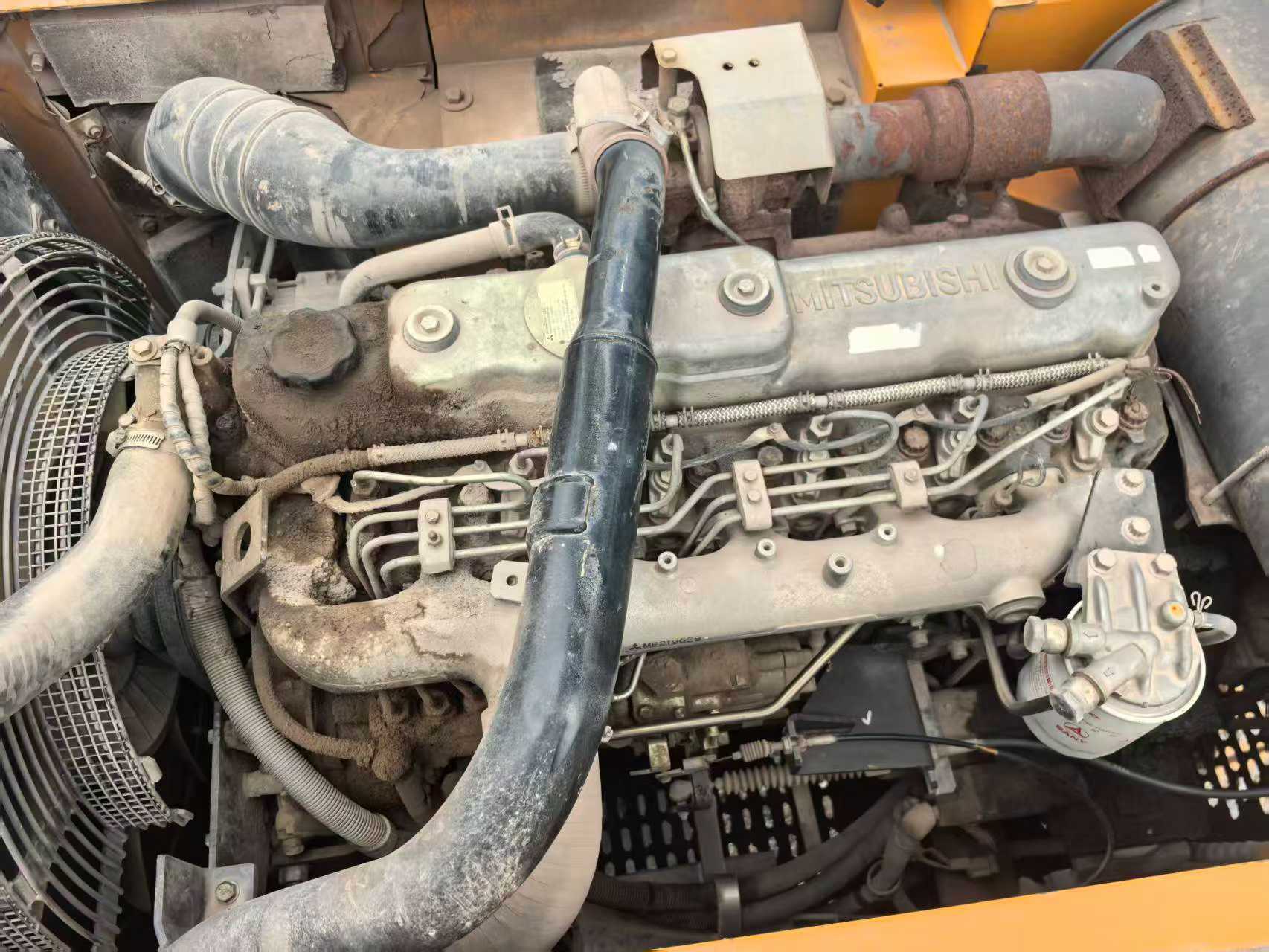

Engine typeMitsubishi 6D34-TL
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)45
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Travel speed (km/h)3.2/5.5
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9397
Total transport width (mm)2980
Total transport height (mm)2956
Full cab height (mm)2930
Minimum ground clearance (mm)440
Back end turning radius (mm)2750
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2980
Track ground length (mm)3445
Maximum digging radius (mm)9885
Maximum digging depth (mm)6630
Maximum excavation height (mm)9305
Maximum unloading height (mm)6475
Maximum vertical digging depth (mm)5980
Bulldozer lift or depth (mm)There is no
see more

Overview

No.1080693

Brand Name:

Sany

Model Number:

SY215C-8

Year:

2014

Location:

Yunnan China
