2020 Sany SY75C-8

1/9
Buy Sany SY75C-8 Used Excavator / 1

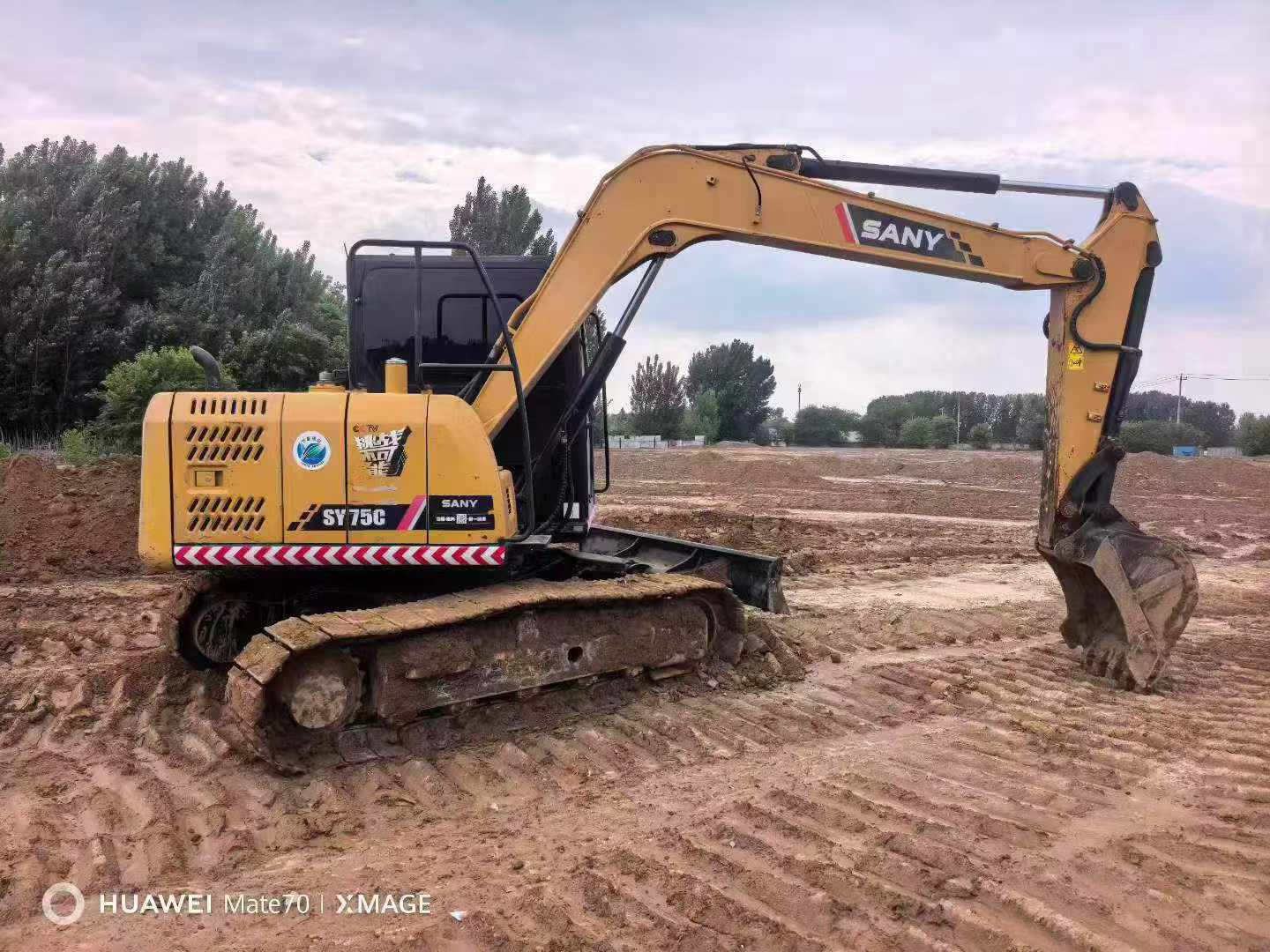

Buy Sany SY75C-8 Used Excavator / 2
Buy Sany SY75C-8 Used Excavator / 3
Buy Sany SY75C-8 Used Excavator / 4
Buy Sany SY75C-8 Used Excavator / 5
Buy Sany SY75C-8 Used Excavator / 6
Buy Sany SY75C-8 Used Excavator / 7
Buy Sany SY75C-8 Used Excavator / 8
Buy Sany SY75C-8 Used Excavator / 9

Product Description

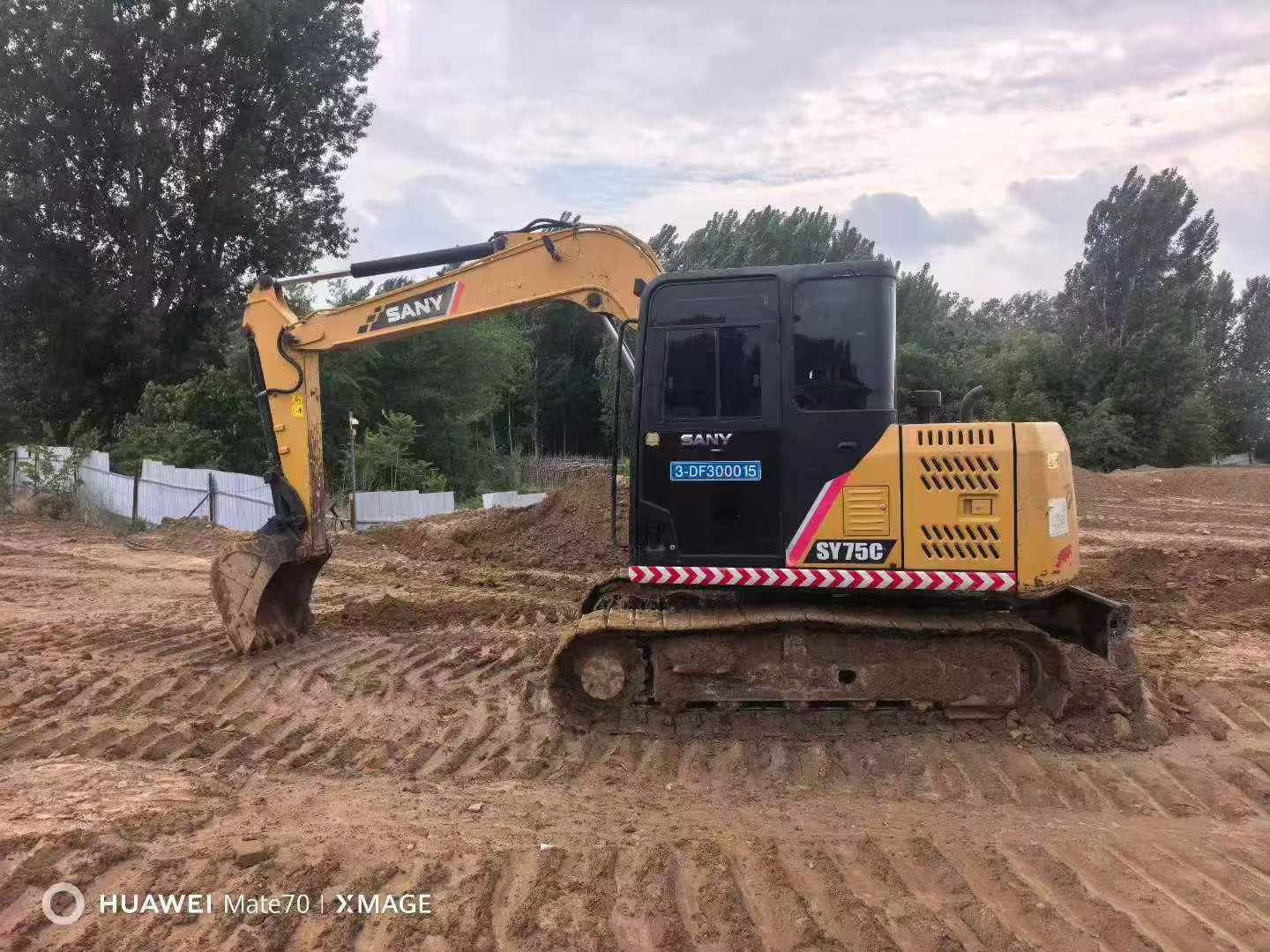

This 2020 Sany SY75C-8 midi excavator delivers reliable performance for earthmoving operations. Currently located in Beijing, China, this machine features clean major components with no oil leakage, indicating proper maintenance throughout its service life. The unit has recently completed a comprehensive service and is ready for immediate deployment.

Key highlights include:

  • Original factory paint and bodywork in excellent condition

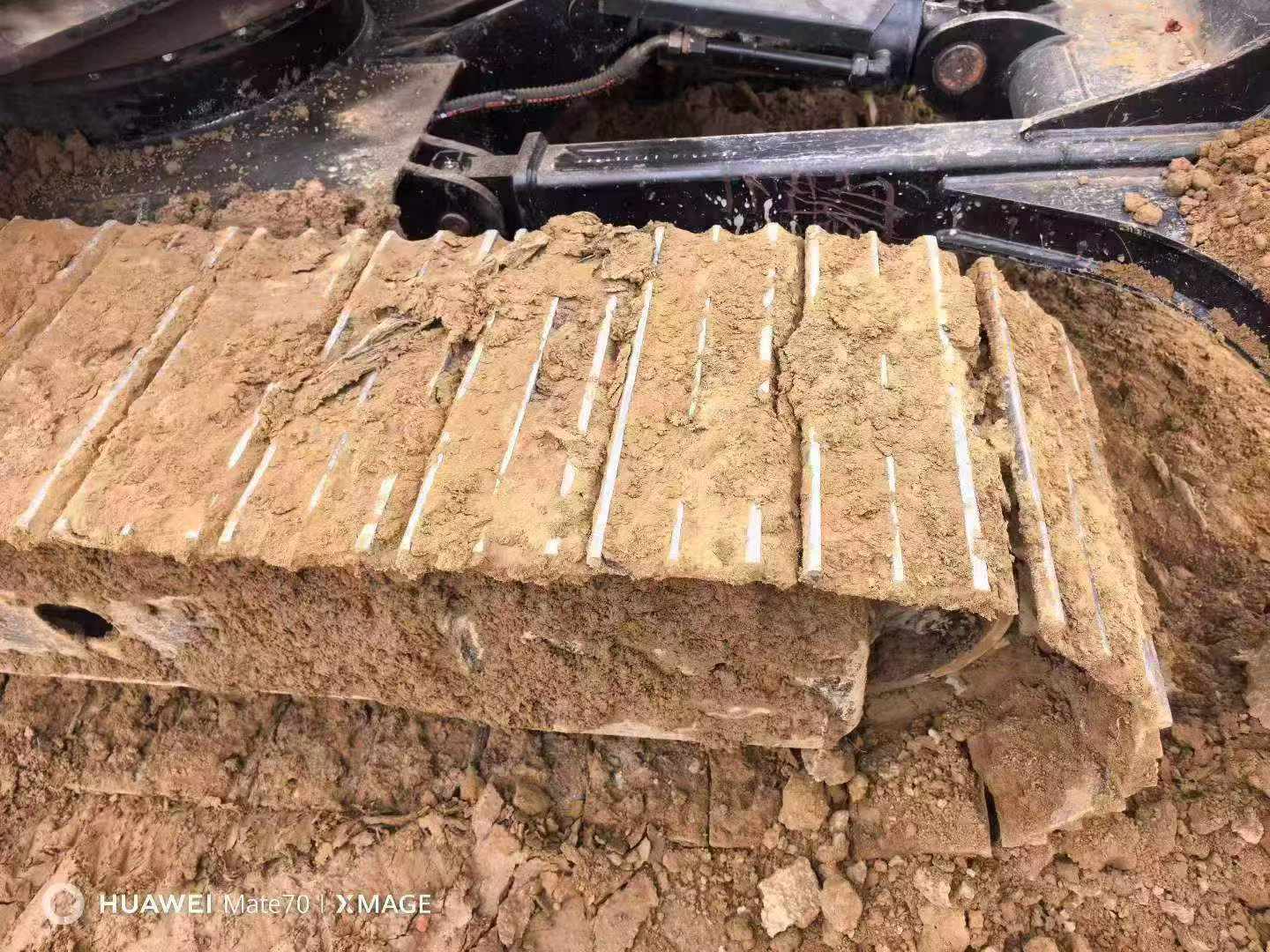

  • Track pads showing approximately 95% remaining life
  • Primary application: earthmoving and excavation work
  • All major assemblies verified clean and leak-free
  • Recently serviced and work-ready

The SY75C-8 represents Sany's proven midi excavator platform, combining operational efficiency with manageable transport dimensions. This unit's documented earthmoving history and maintained condition make it suitable for contractors requiring dependable excavation capacity. Available for inspection in Beijing.

SpecificationsValue
No.1081318
Tonnage (tons)7
Working weight (kg)6800
Bucket capacity (m³)0.28
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu CC-4JG1PAC
Rated power (kw/rpm)40/2100
Cooling modewater-cooling
Ground specific pressure (Kpa)28
Rotation speed (rpm)10.9
Climbing ability (%)70% / 35 °
Bucket digging force (kN)49
Rod digging force (kN)35
Travel speed (km/h)2.6-4.2
Maximum flow of main pump (l/min)149
Traveling Hydraulic Circuit (Mpa)26
Rotary Hydraulic Circuit (Mpa)21.6
Control Hydraulic Circuit (Mpa)3.6
Hydraulic crushing pipeline is standardno
Total transport length (mm)6000
Total transport width (mm)2220
Total transport height (mm)2620
Full cab height (mm)2620
Minimum ground clearance (mm)355
Back end turning radius (mm)1720
Total track length (mm)2710
Track gauge (mm)1750
Track plate width (mm)450
Total track width (mm)2220
Track ground length (mm)2170
Maximum digging radius (mm)6250
Maximum digging depth (mm)4060
Maximum excavation height (mm)7070
Maximum unloading height (mm)5110
Maximum vertical digging depth (mm)3410
Bulldozer lift or depth (mm)390
see more

Overview

No.1081318

Brand Name:

Sany

Model Number:

SY75C-8

Year:

2020

Location:

Peking China
