2022 XCMG XE135B

1/7

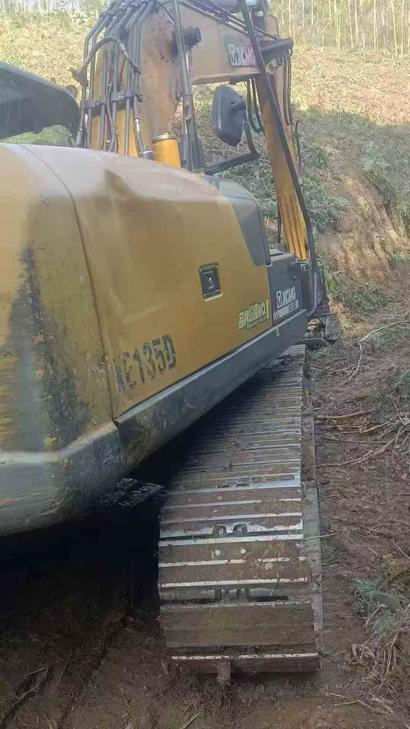

Buy XCMG XE135B Used Excavator / 1
Buy XCMG XE135B Used Excavator / 2
Buy XCMG XE135B Used Excavator / 3
Buy XCMG XE135B Used Excavator / 4
Buy XCMG XE135B Used Excavator / 5
Buy XCMG XE135B Used Excavator / 6
Buy XCMG XE135B Used Excavator / 7

Product Description

This 2022 XCMG XE135B excavator represents a reliable mid-size solution for diverse earthmoving operations. Manufactured by one of China's leading heavy equipment producers, this 13.5-ton class machine combines proven hydraulic technology with operator-focused design. Currently located in Guangxi, China, this unit comes complete with full standard equipment and attachments, making it ready for immediate deployment on construction, mining, or infrastructure projects.

Key features include:

  • Low operating hours for a 2022 model year
  • Complete equipment package included
  • XCMG's reliable hydraulic system and powertrain
  • Suitable for medium-duty excavation and loading tasks
  • Well-maintained condition from Chinese market

This excavator offers competitive value for contractors seeking dependable performance in the 13-ton class. Available for international export from Guangxi province.

SpecificationsValue
No.1080992
Tonnage (tons)13
Working weight (kg)13800
Bucket capacity (m³)0.4-0.52
Boom length (mm)4600
Rod length (mm)2510
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeISUZU BB-4BG1TRP
Rated power (kw/rpm)69.6/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)4.329
Working formturbocharging
Ground specific pressure (Kpa)42
Rotation speed (rpm)12.3
Climbing ability (%)35 °
Bucket digging force (kN)85
Rod digging force (kN)65
Travel speed (km/h)5.16/3.03
Main overflow set pressure (Mpa)31.4/34.3
Maximum flow of main pump (l/min)2*123
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)250
Hydraulic Tank (L)130
Engine Oil changes (L)14
Total transport length (mm)7770
Total transport width (mm)2512
Total transport height (mm)2880
Counterweight ground clearance (mm)964
Minimum ground clearance (mm)478
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2294
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2910
Maximum digging radius (mm)8296
Maximum digging depth (mm)5538
Maximum excavation height (mm)8641
Maximum unloading height (mm)6181
Maximum vertical digging depth (mm)4727
see more

Overview

No.1080992

Brand Name:

XCMG

Model Number:

XE135B

Year:

2022

Location:

Guangxi China

Pub Date
