Product Description
Equipped with a powerful ISUZU AU-4LE2X (Tie3) engine, this 2016 Case CX75 excavator delivers 40 kW at 2000 rpm, ensuring robust performance. Featuring a working weight of 7950 kg and an 8-ton capacity, it excels in diverse construction environments. The hydraulics are powered by two variable axial piston pumps, each providing a maximum flow of 68 l/min, which enhances efficiency and control. With a bucket capacity ranging from 0.28 to 0.40 m³, and a boom length of 3870 mm, this excavator is designed for precision and versatility. The hydraulic system, including a quantitative axial piston motor for rotation and a variable axial piston motor for walking, ensures smooth and reliable operation. Engineered in Shanghai, the CX75 combines traditional power with advanced engineering, making it a reliable choice for demanding projects.

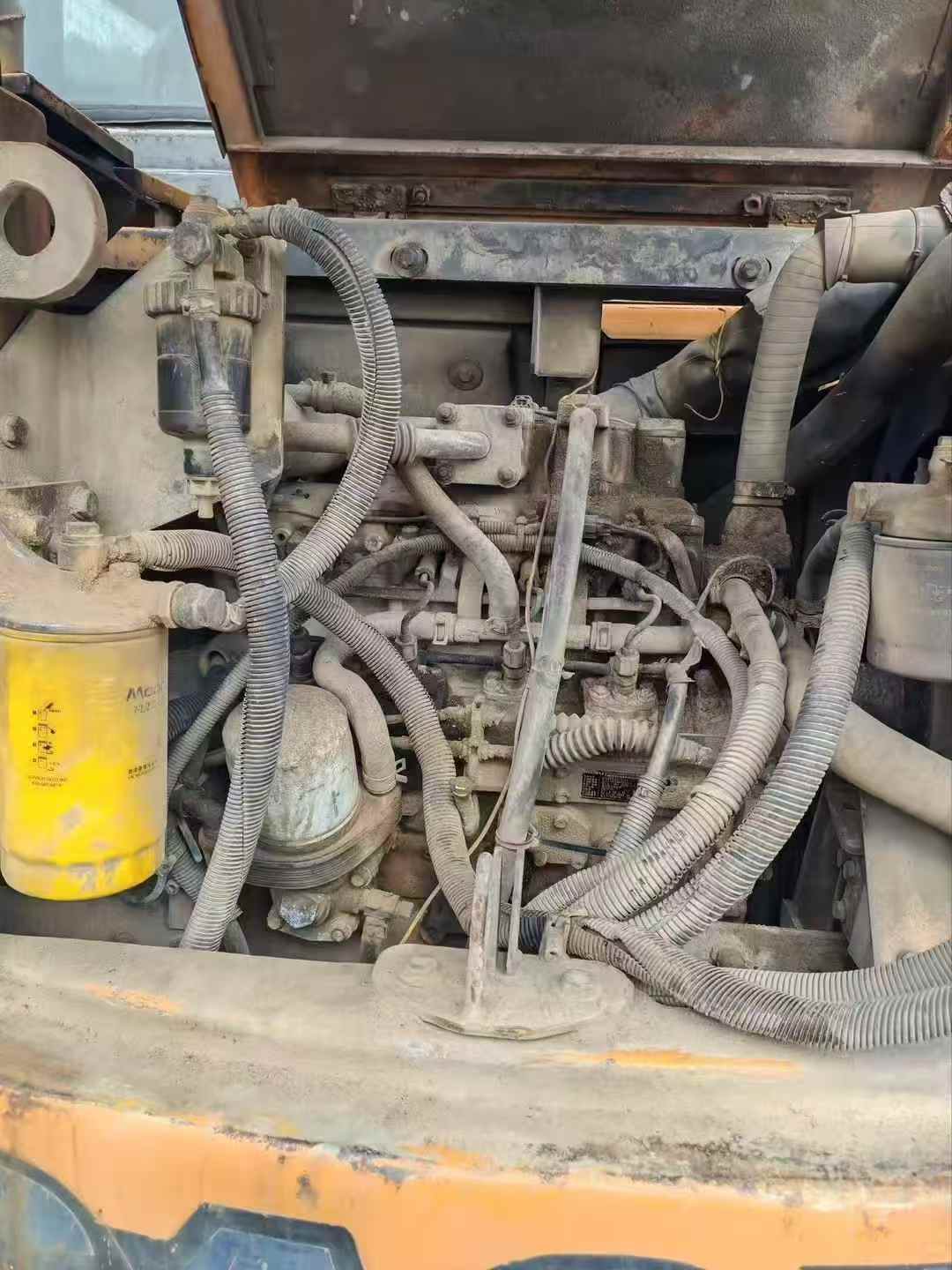

- Engine: ISUZU AU-4LE2X (Tie3), 4-cylinder, 2.179 L displacement

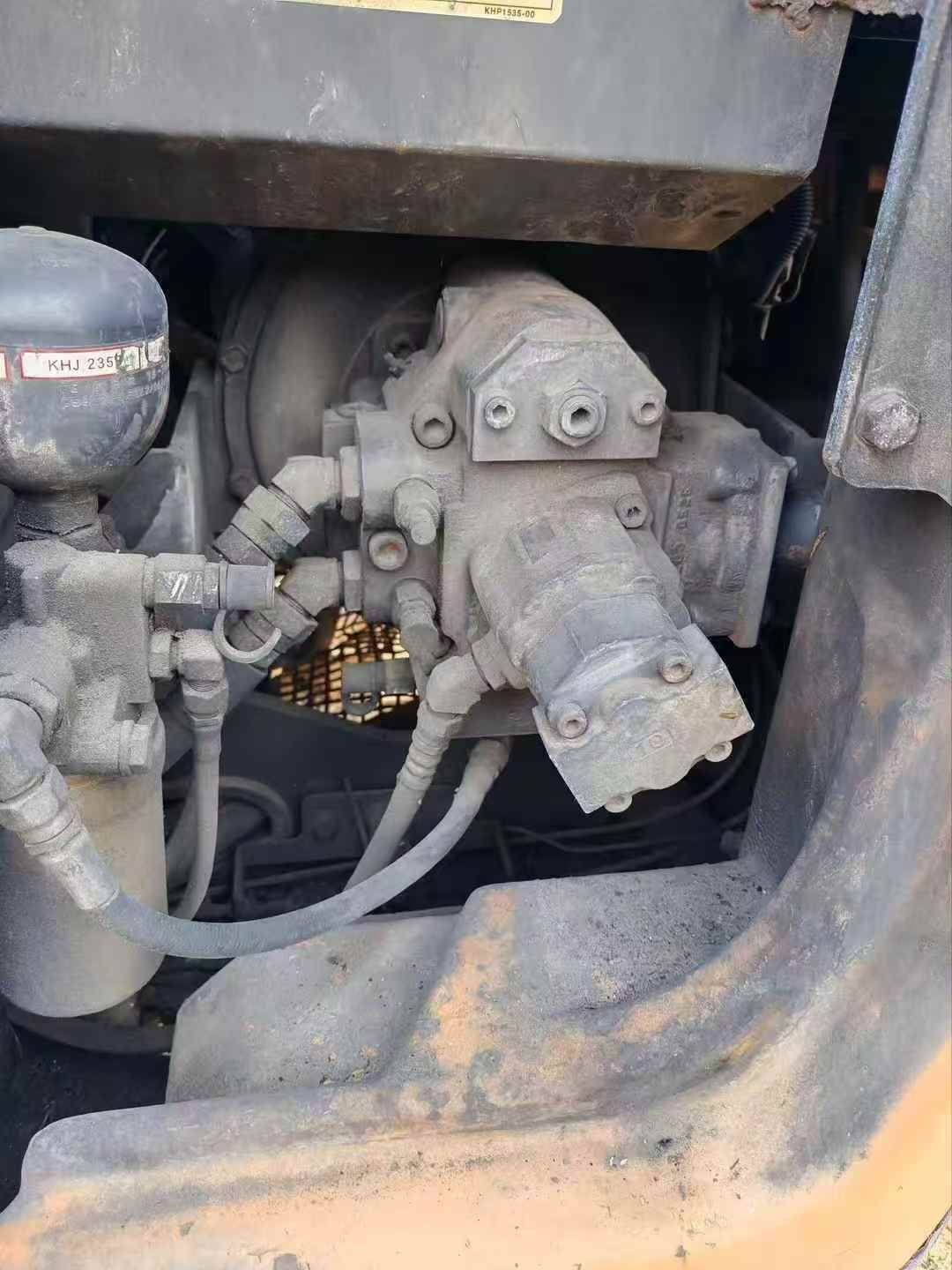

- Hydraulic System: Variable axial piston pump ×2, adjustable, 68 l/min each
- Maximum digging force: 60 kN (bucket), 41 kN (rod)
- Travel speed: 3.3/5.1 km/h
- Total transport dimensions: 5915 mm (length) x 2320 mm (width) x 2700 mm (height)
| Specifications | Value |
|---|---|
| No. | 990670 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7950 |
| Bucket capacity (m³) | 0.28-0.40 |
| Boom length (mm) | 3870 |
| Rod length (mm) | 1710 |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU-4LE2X (Tie3) |
| Rated power (kw/rpm) | 40/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Working form | Four-stroke, direct injection, turbocharged and air-cooled diesel engine |
| Ground specific pressure (Kpa) | 35 |
| Rotation speed (rpm) | 9.5 |
| Bucket digging force (kN) | 60 |
| Rod digging force (kN) | 41 |
| Travel speed (km/h) | 3.3/5.1 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 68 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 29.4 |
| Rotary Hydraulic Circuit (Mpa) | 22.6 |
| Control Hydraulic Circuit (Mpa) | 4.2 |
| Main pump type | Variable axial piston pump ×2, adjustable |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-85 x 665 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-95 x 797 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-110 x 911 |
| Fuel Tank (L) | 100 |
| Hydraulic Tank (L) | 50 |
| Engine Oil changes (L) | 9 |
| Coolant (L) | 10.2 |
| Hydraulic System (L) | 97.3 |
| Total transport length (mm) | 5915 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2700 |
| Full cab height (mm) | 2700 |
| Counterweight ground clearance (mm) | 745 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1785 |
| Back end turning radius (mm) | 1235 |
| Total track length (mm) | 2850 |
| Track gauge (mm) | 1870 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 6520 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7330 |
| Maximum unloading height (mm) | 5250 |
| Maximum vertical digging depth (mm) | 3640 |
| Maximum excavation radius of stop surface (mm) | 6390 |
| Maximum effective digging depth (mm) | 3805 |
