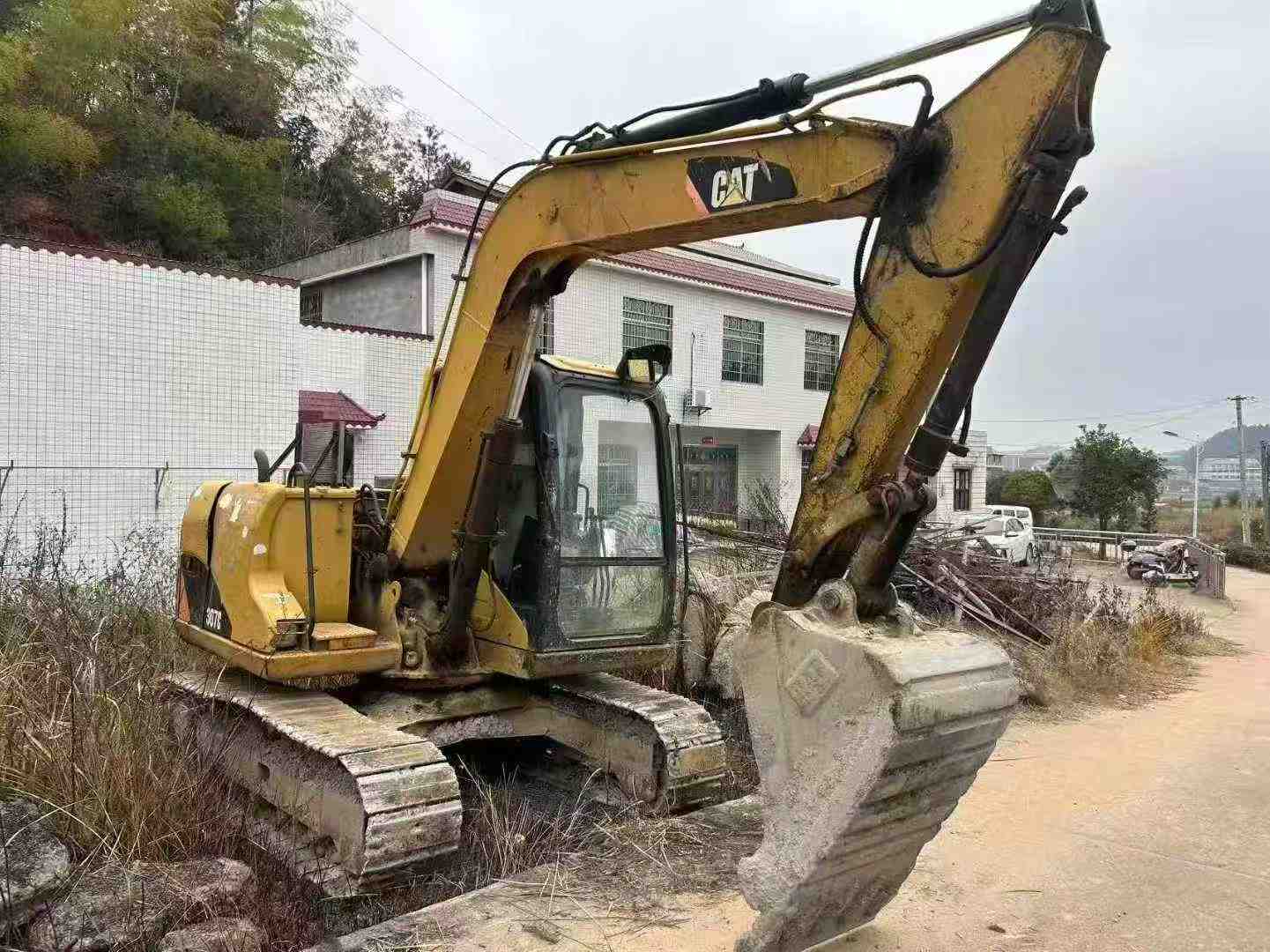

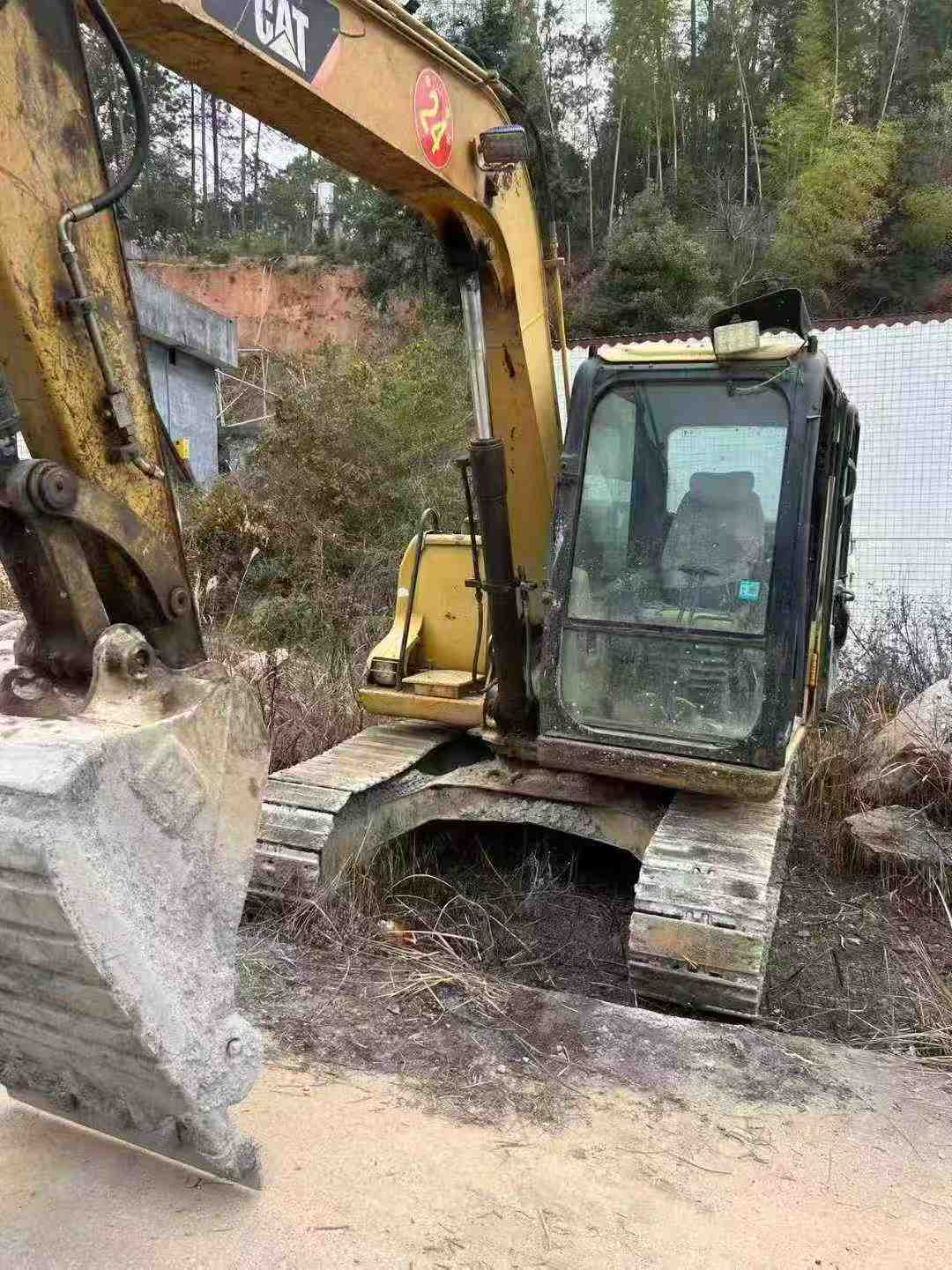

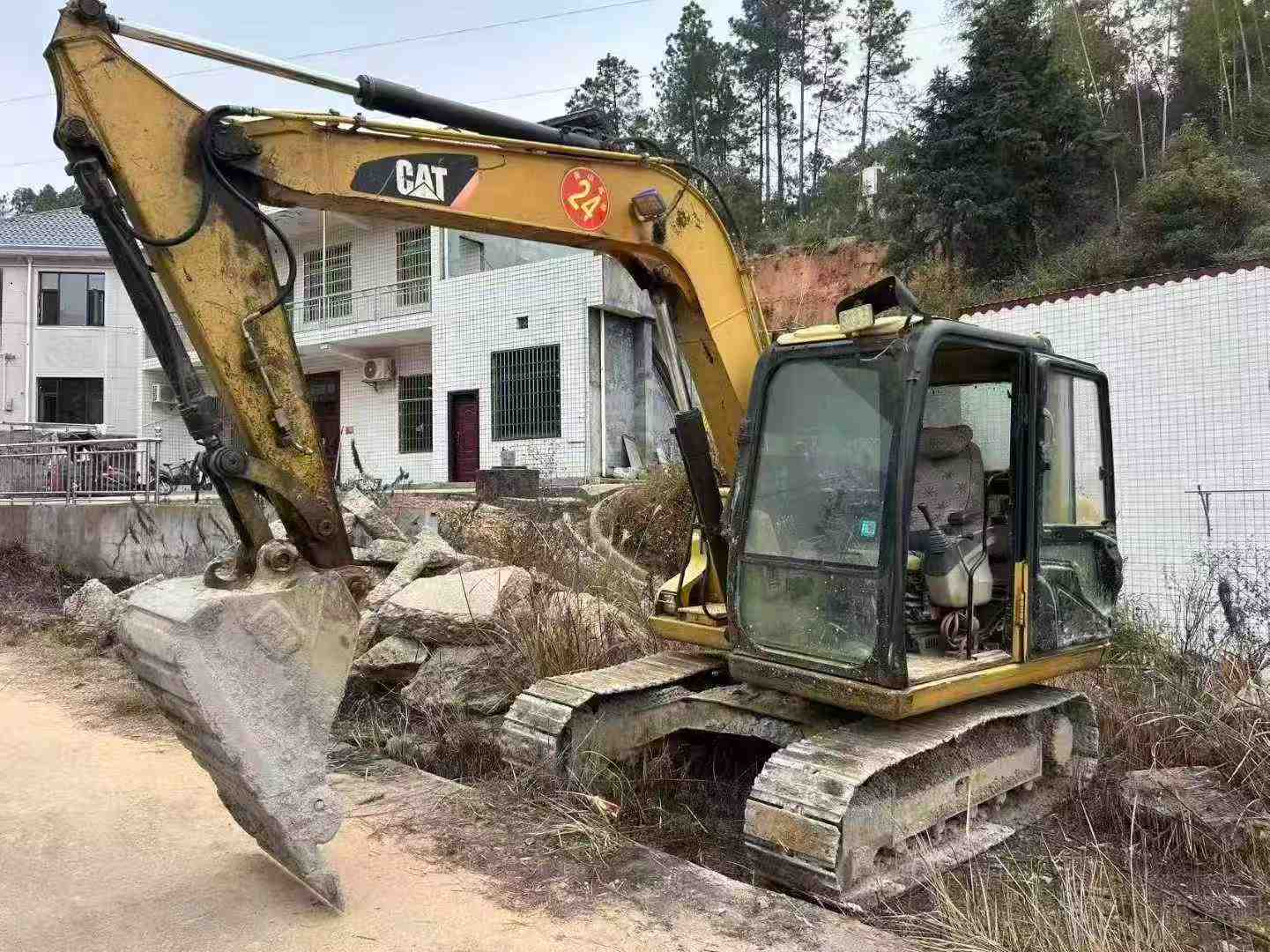

2016 Caterpillar 307C
Product Description
Built for precision and reliability, this 2016 Caterpillar 307C compact excavator delivers exceptional performance in tight working conditions. Weighing 7,210 kg with a 0.31 m³ bucket capacity, this machine combines maneuverability with substantial digging power across diverse job sites.
Operators benefit from superior cabin visibility and intuitive controls that enhance productivity throughout extended work shifts. With its 41 kW Mitsubishi engine and robust hydraulic system generating 50.6 kN bucket digging force, this excavator handles demanding excavation tasks with consistent reliability. Advanced hydraulic circuits operating at optimized pressures ensure smooth, responsive operation while maintaining fuel efficiency.
- Compact 2,290mm width fits through standard gates
- Maximum digging depth of 4,110mm for versatile applications
- 70% climbing ability tackles challenging terrain
- Dual-speed travel system (3.3/5.2 km/h) optimizes site mobility
- 135L fuel tank minimizes downtime between refueling
Located in Jiangsu Province, this well-maintained unit represents proven Caterpillar engineering backed by comprehensive service documentation.
| Specifications | Value |
|---|---|
| No. | 988904 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7210 |

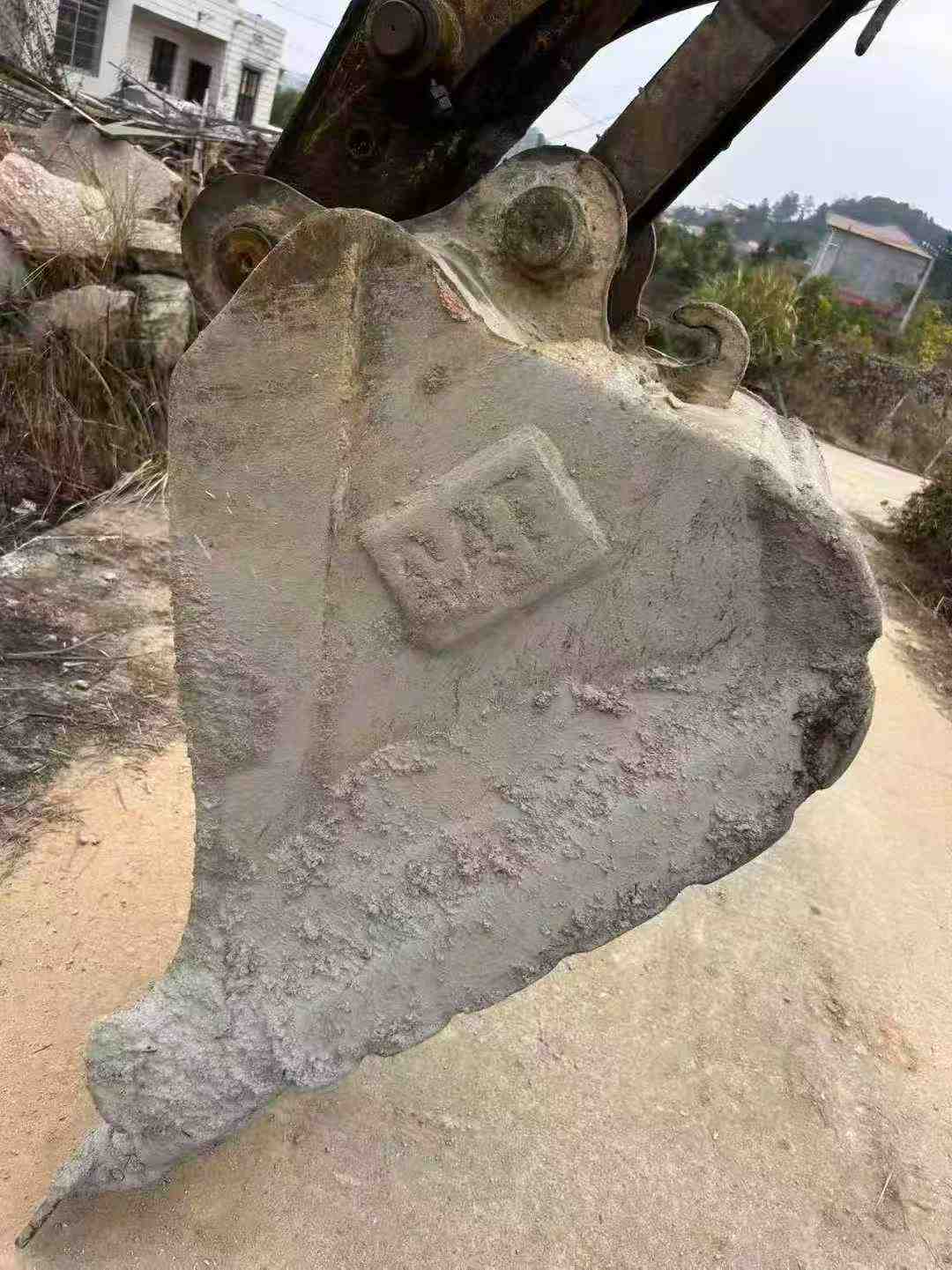

| Bucket capacity (m³) | 0.31 |
| Rod length (mm) | 1665 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

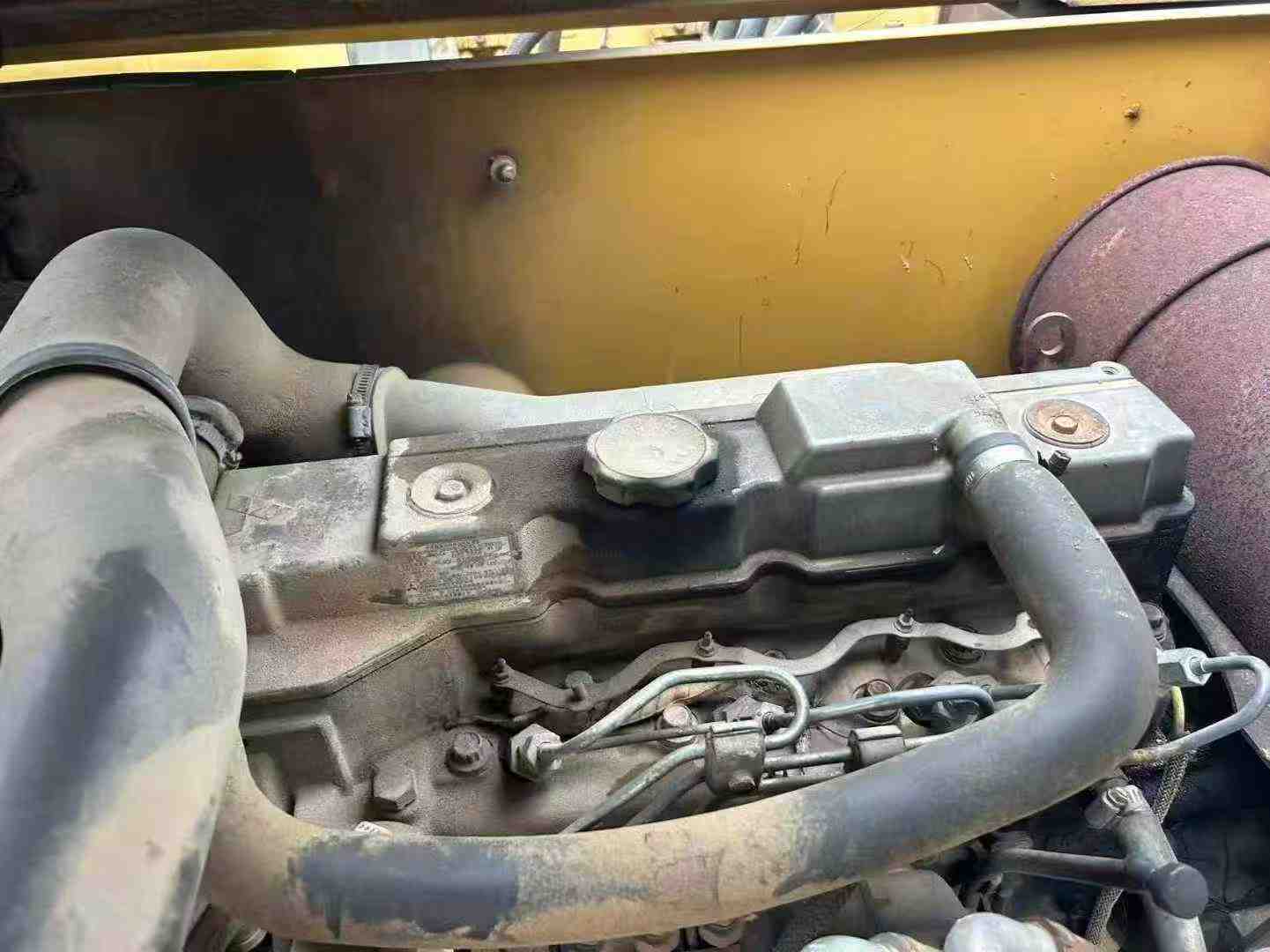

| Engine type | Mitsubishi 4M40E1 |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95 x 100 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.84 |
| Working form | Meet US Tier2 and EU StageII emission requirements |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 50.6 |
| Rod digging force (kN) | 37.1 |
| Travel speed (km/h) | 3.3/5.2 |
| Maximum flow of main pump (l/min) | 64 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 31.38 |
| Rotary Hydraulic Circuit (Mpa) | 19.61 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 27.46 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 90 x 932 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 998 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 57 |
| Engine Oil changes (L) | 11.2 |
| Coolant (L) | 15.5 |
| Hydraulic System (L) | 94(including fuel tank) |
| Total transport length (mm) | 6070 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2760 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2290 |
| Maximum digging radius (mm) | 6340 |
| Maximum digging depth (mm) | 4110 |
| Maximum excavation height (mm) | 7290 |
| Maximum unloading height (mm) | 5150 |
| Maximum vertical digging depth (mm) | 3640 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 6200 |
Overview
No.988904
Brand Name：
CaterpillarModel Number：
307CYear：
2016
Location：
Jiangsu China
