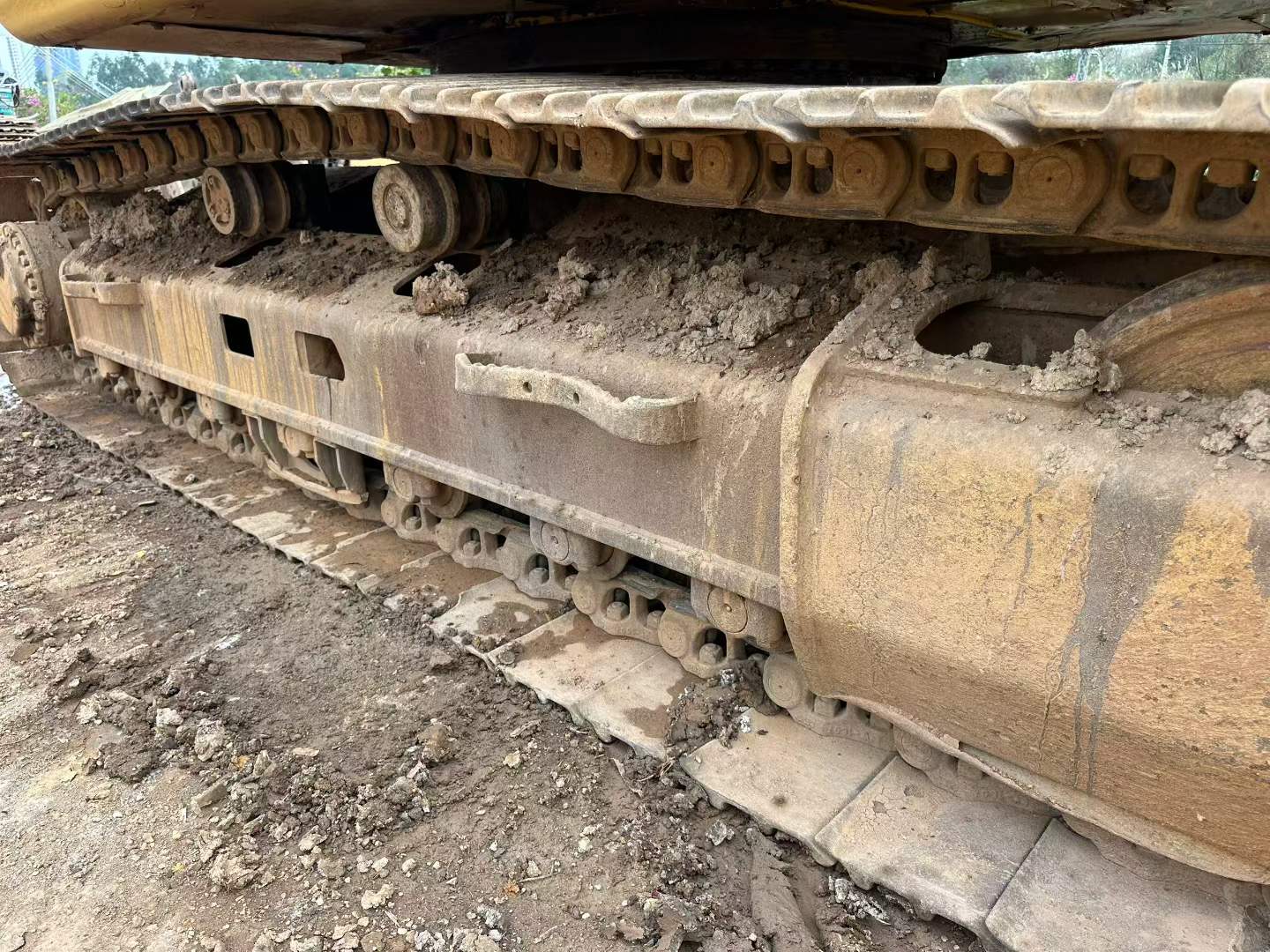

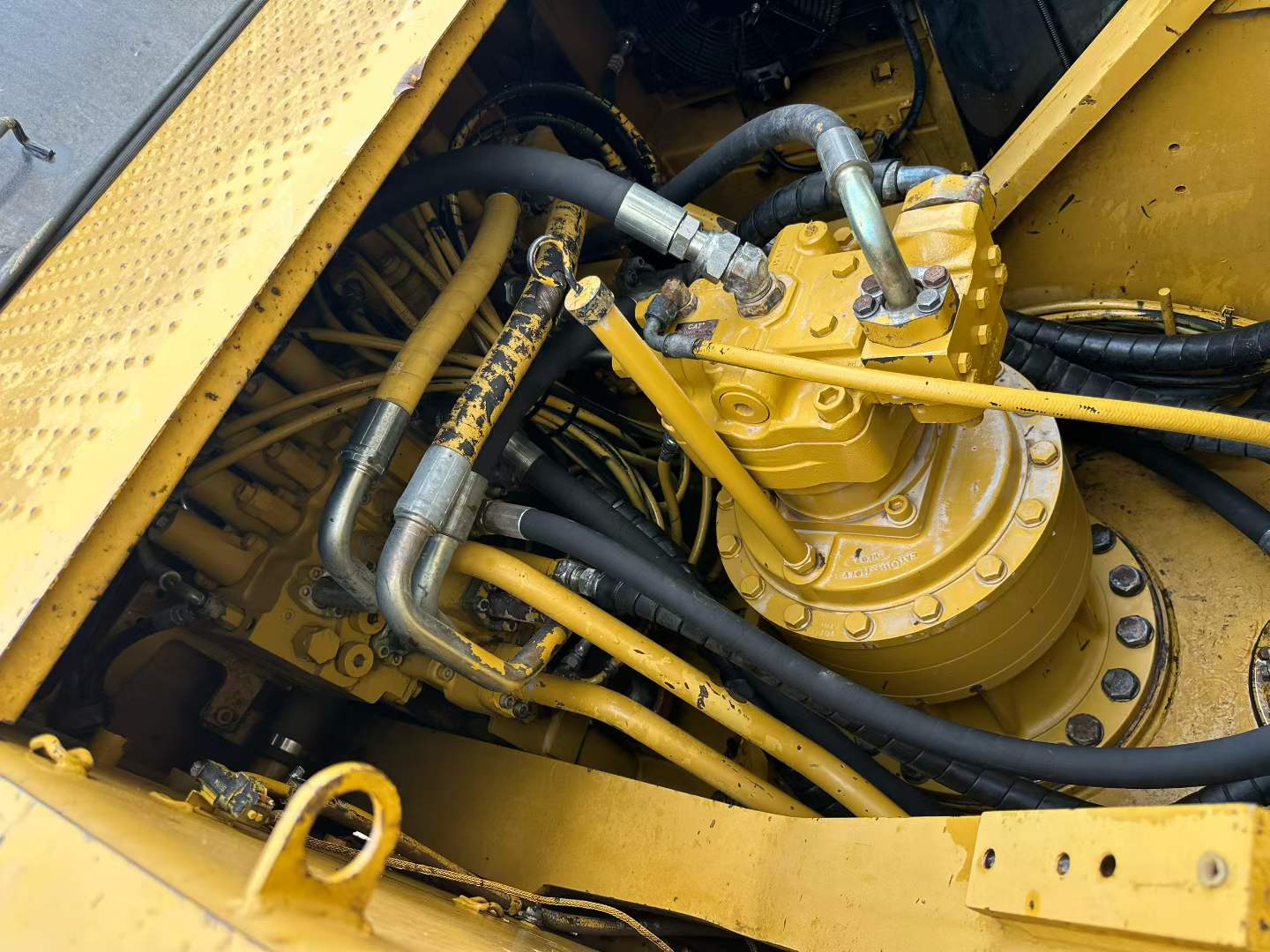

2013 Caterpillar 329D
Product Description
Skip the factory lead times with this proven 2013 Caterpillar 329D excavator, available now in 广西南宁 for immediate deployment to your site. Built in Japan with Caterpillar's renowned engineering standards, this 29-ton workhorse delivers reliable performance where you need it most.

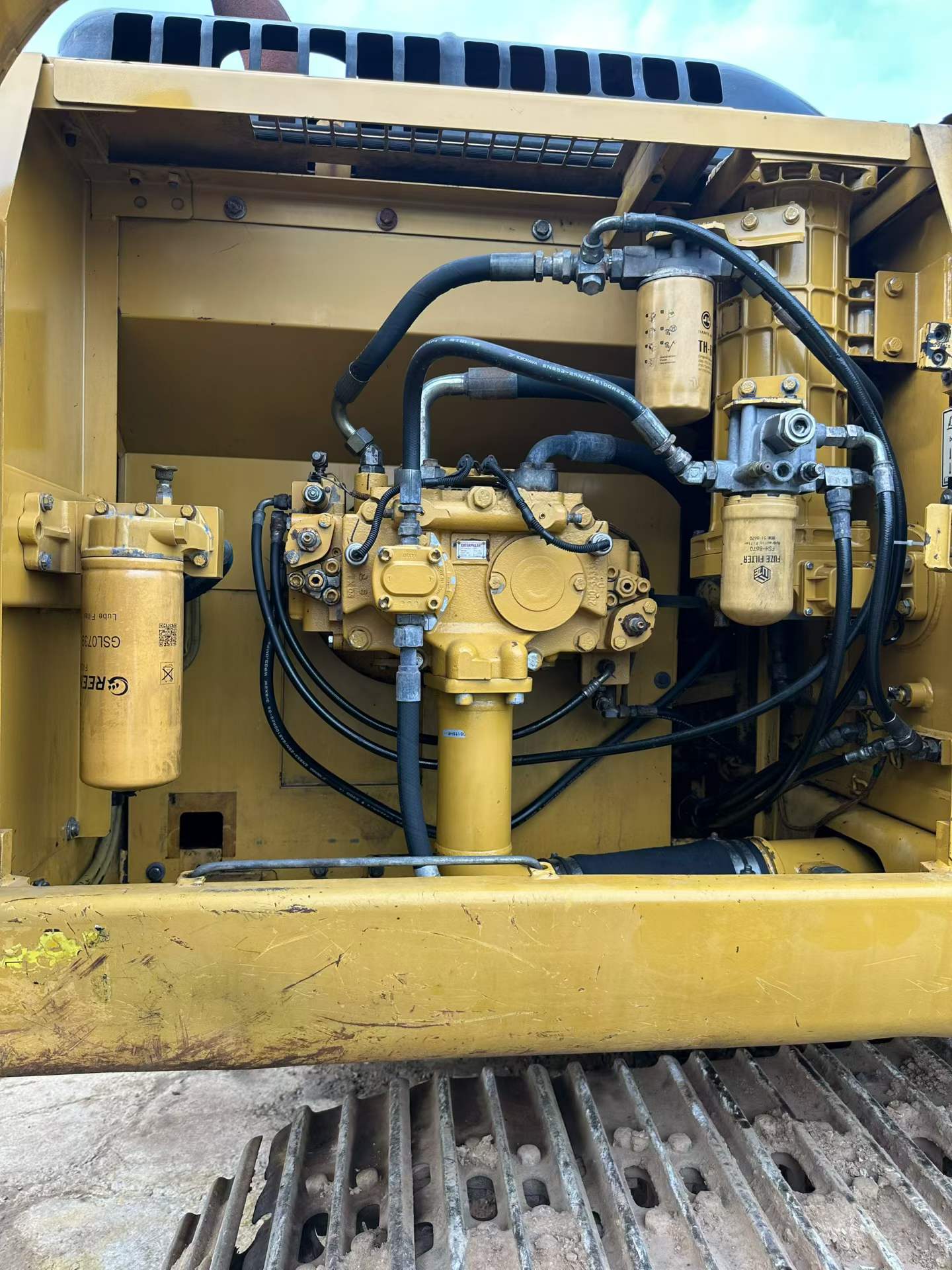

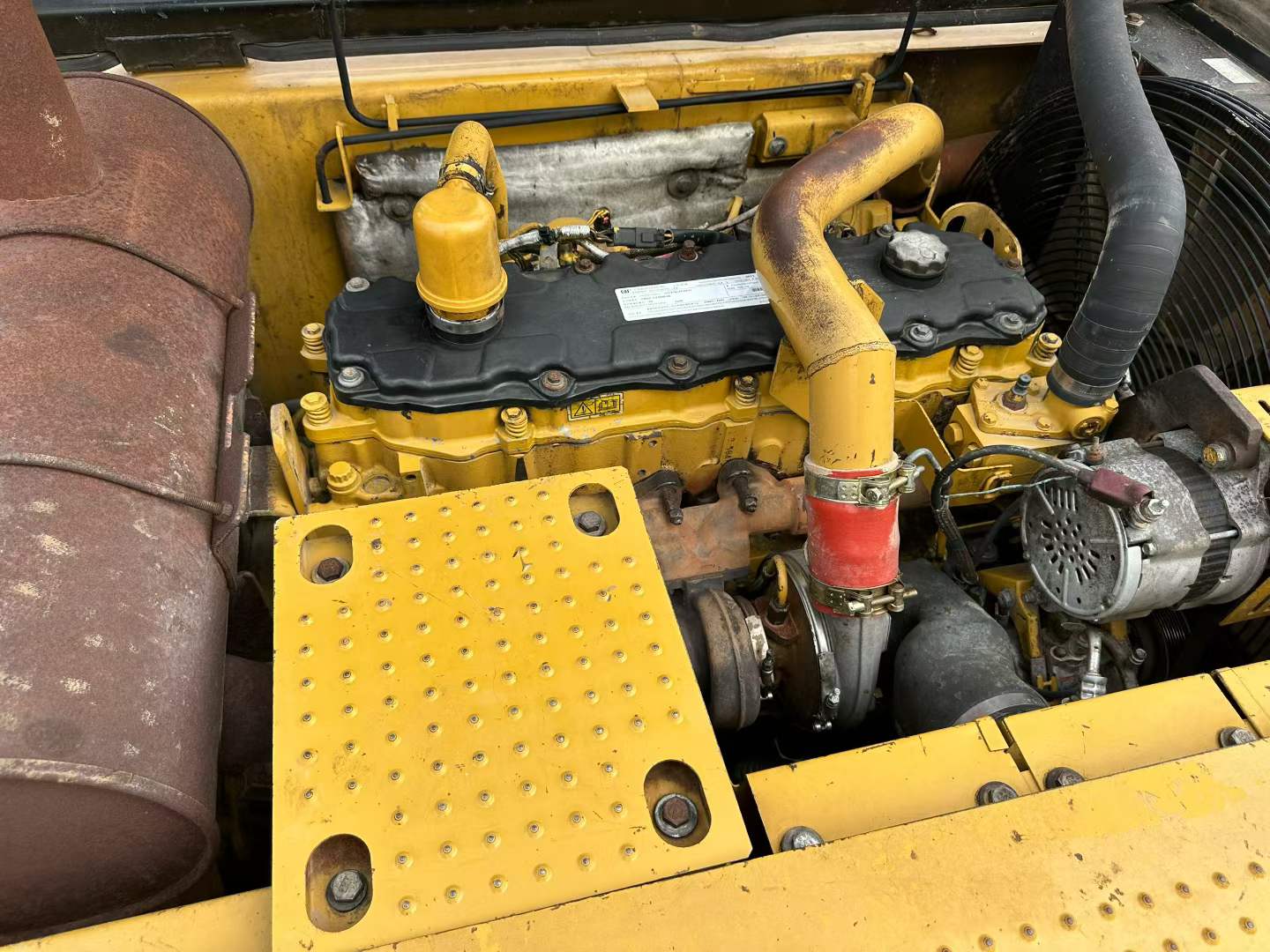

Powered by a robust C7ACERT engine producing 152kW at 2000 RPM, this machine handles demanding excavation tasks with a 1.1m³ bucket capacity and impressive 7.17m maximum digging depth. Advanced hydraulic systems provide 235 L/min flow capacity, ensuring smooth operation across all functions.
- 29-ton operating weight with 10.6m maximum excavation radius
- Dual travel speeds (3.5/5.3 km/h) for efficient site mobility
- 520L fuel tank capacity minimizes downtime
- Proven track record in construction and infrastructure projects
Located strategically in 广西南宁, this excavator eliminates lengthy procurement delays. Fast deployment means your project stays on schedule while benefiting from Caterpillar's legendary durability and service network throughout China.
| Specifications | Value |
|---|---|
| No. | 990722 |
| Tonnage (tons) | 29 |
| Working weight (kg) | 29240 |
| Bucket capacity (m³) | 1.1 |
| Boom length (mm) | 6150 |
| Rod length (mm) | 3200 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C7ACERT |
| Rated power (kw/rpm) | 152/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.3 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.75 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 135 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 x 1646 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 x 1407 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 310(including fuel tank) |
| Total transport length (mm) | 10410 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3180 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 490 |
| Back end turning radius (mm) | 3080 |
| Total track length (mm) | 4360 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3490 |
| Maximum digging depth (mm) | 7170 |
| Maximum excavation height (mm) | 9990 |
| Maximum unloading height (mm) | 7020 |
| Maximum vertical digging depth (mm) | 6510 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10600 |
| Maximum effective digging depth (mm) | 7010 |
Overview
No.990722
Brand Name：
CaterpillarModel Number：
329DYear：
2013
Location：
Guangxi China
