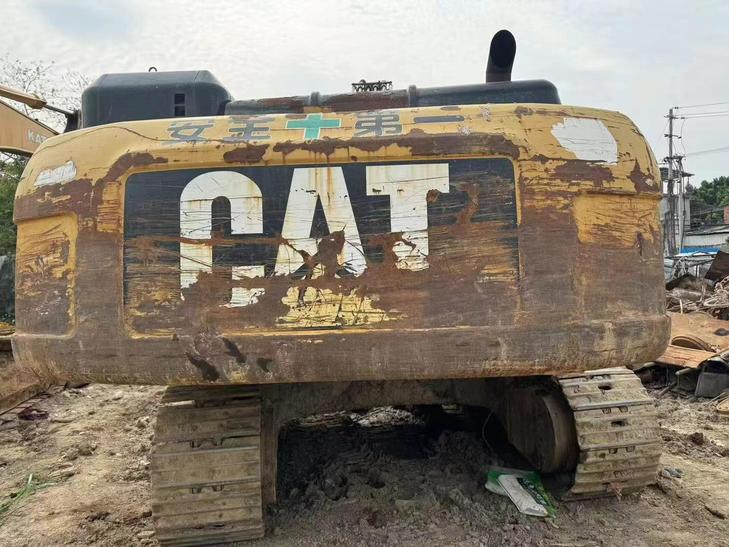

2016 Caterpillar 336FLH
Product Description
Built for demanding excavation projects, this 2016 Caterpillar 336FLH delivers exceptional operator control and jobsite performance. With 36 tons of working weight and a powerful Cat C9.3 engine producing 224kW, operators experience smooth hydraulic response and precise bucket positioning across varied terrain conditions.
Advanced cabin design provides superior visibility for enhanced safety and productivity. Multiple boom configurations (2550/3200/3900mm) and rod options (6180/6500mm) ensure optimal reach for diverse applications, while the 2.28m³ bucket capacity maximizes material handling efficiency.
- Maximum digging depth: 10,740mm with excellent stability
- EPA Tier 4 compliant engine with air-to-air cooling system
- Robust hydraulic system: 578 L/min main pump flow
- Enhanced operator comfort with ergonomic controls
- Proven Caterpillar reliability and serviceability
Currently located in Fujian, China, this machine combines proven engineering with operator-focused features for consistent performance in heavy construction and excavation operations.
| Specifications | Value |
|---|---|
| No. | 875584 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36570-39370 |
| Bucket capacity (m³) | 2.28 |
| Boom length (mm) | 2550/3200/3900 |
| Rod length (mm) | 6180/6500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C9.3(ATAAC) |
| Rated power (kw/rpm) | 224 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 149 |
| Displacement (L) | 9.3 |
| Working form | Air-to-air cooling meets EPA Tier 4 (US Environmental Protection Agency Phase 4) emission standards |
| Rotation speed (rpm) | 9.2 |
| Maximum tractive force (kN) | 295 |
| Travel speed (km/h) | 4.9 |
| Maximum flow of main pump (l/min) | 578 |
| Traveling Hydraulic Circuit (Mpa) | |35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot pump flow (L/min) | 4.1 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1356 |
| Fuel Tank (L) | 620 |
| Coolant (L) | 56 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3290/3390/3440 |
| Counterweight ground clearance (mm) | 5020 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | |700/800/850 |
| Maximum digging depth (mm) | 10740 |
| Maximum excavation height (mm) | 7500 |
| Maximum unloading height (mm) | 7610 |
Overview
No.875584
Brand Name：
CaterpillarModel Number：
336FLHYear：
2016
Location：
Fujian China
