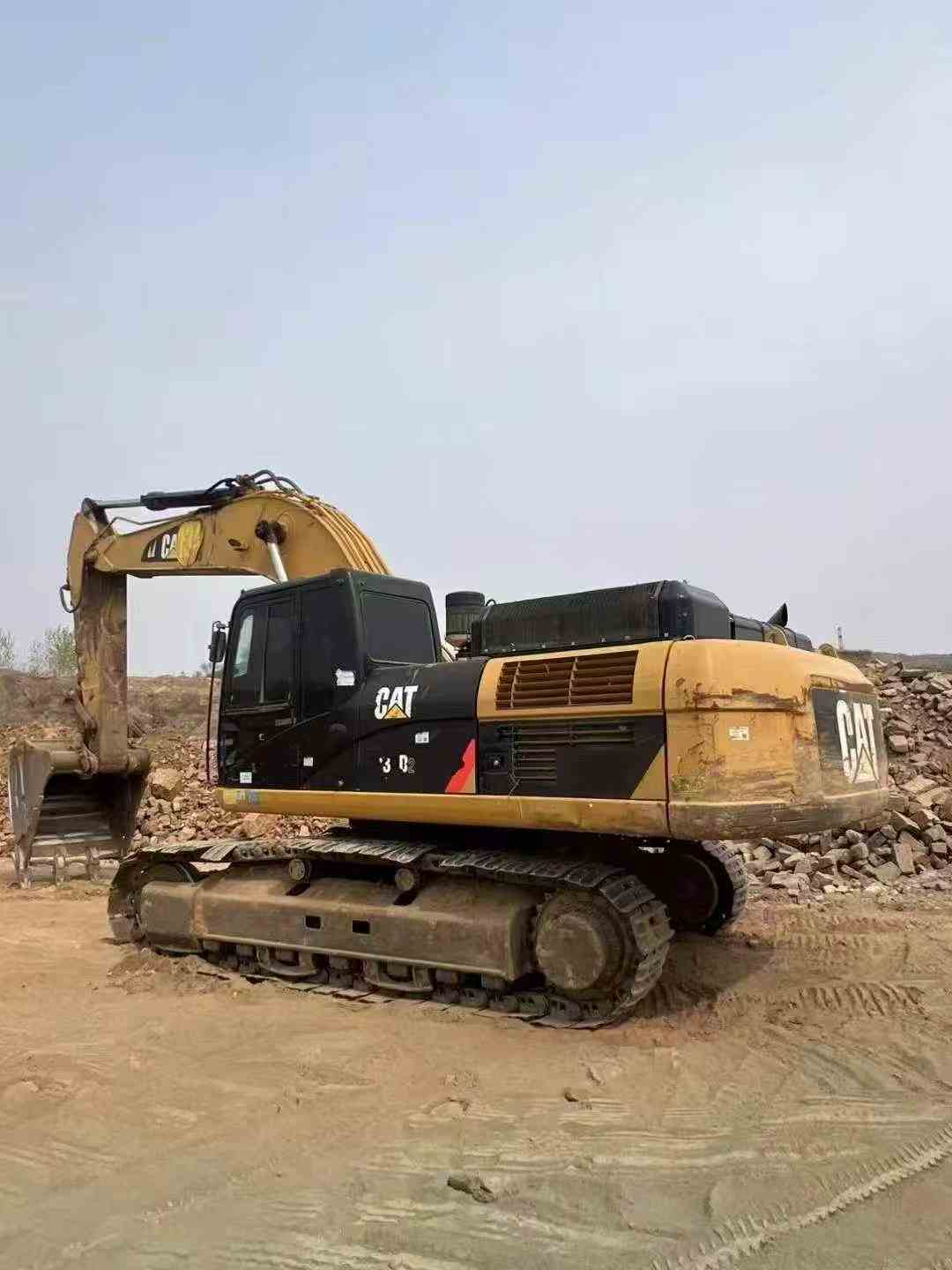

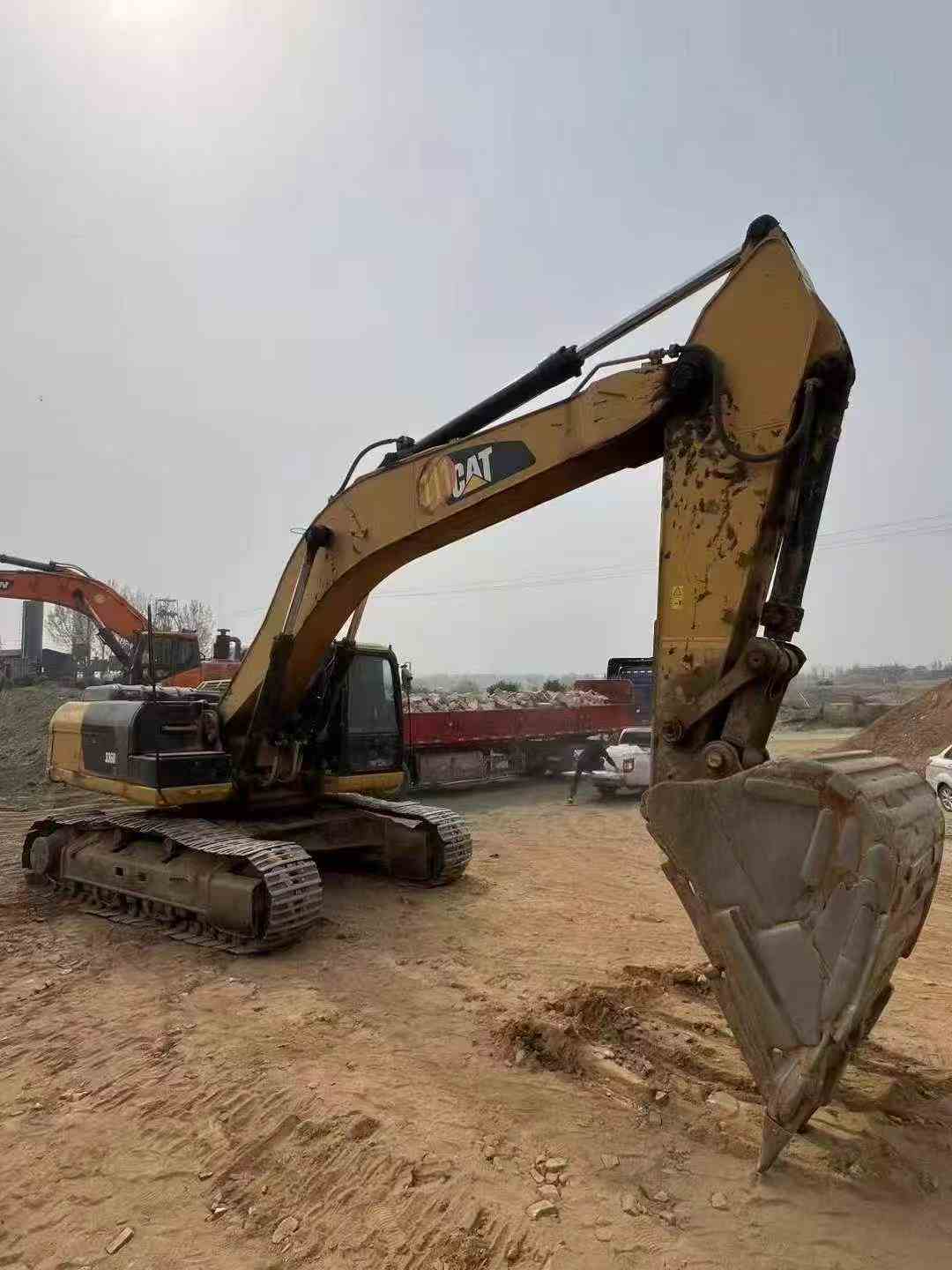

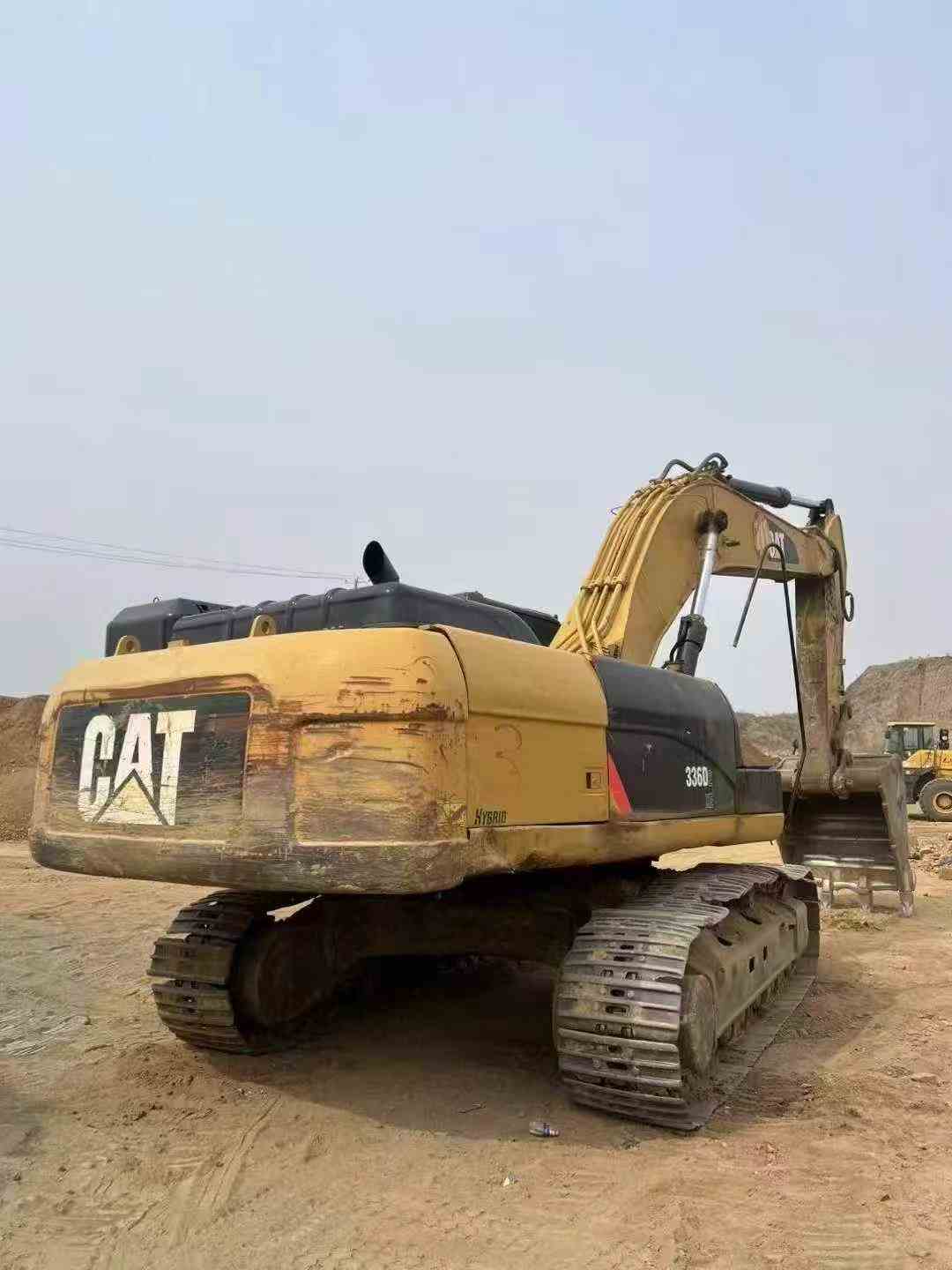

2016 Caterpillar 336FLH
Product Description
Built for demanding excavation projects, this 2016 Caterpillar 336FLH delivers exceptional operator control and site productivity. With 36 tons of working weight and a powerful Cat C9.3 engine producing 224kW, operators experience smooth hydraulic response and precise bucket positioning across varied terrain conditions.
Enhanced cabin visibility and ergonomic controls reduce operator fatigue during extended shifts. The machine's robust hydraulic system provides 578 L/min main pump flow, ensuring consistent performance for deep excavation work up to 10.7 meters and maximum reach extending 7.5 meters high.
- 36-ton operating weight with superior stability
- 2.28m³ bucket capacity for efficient material handling

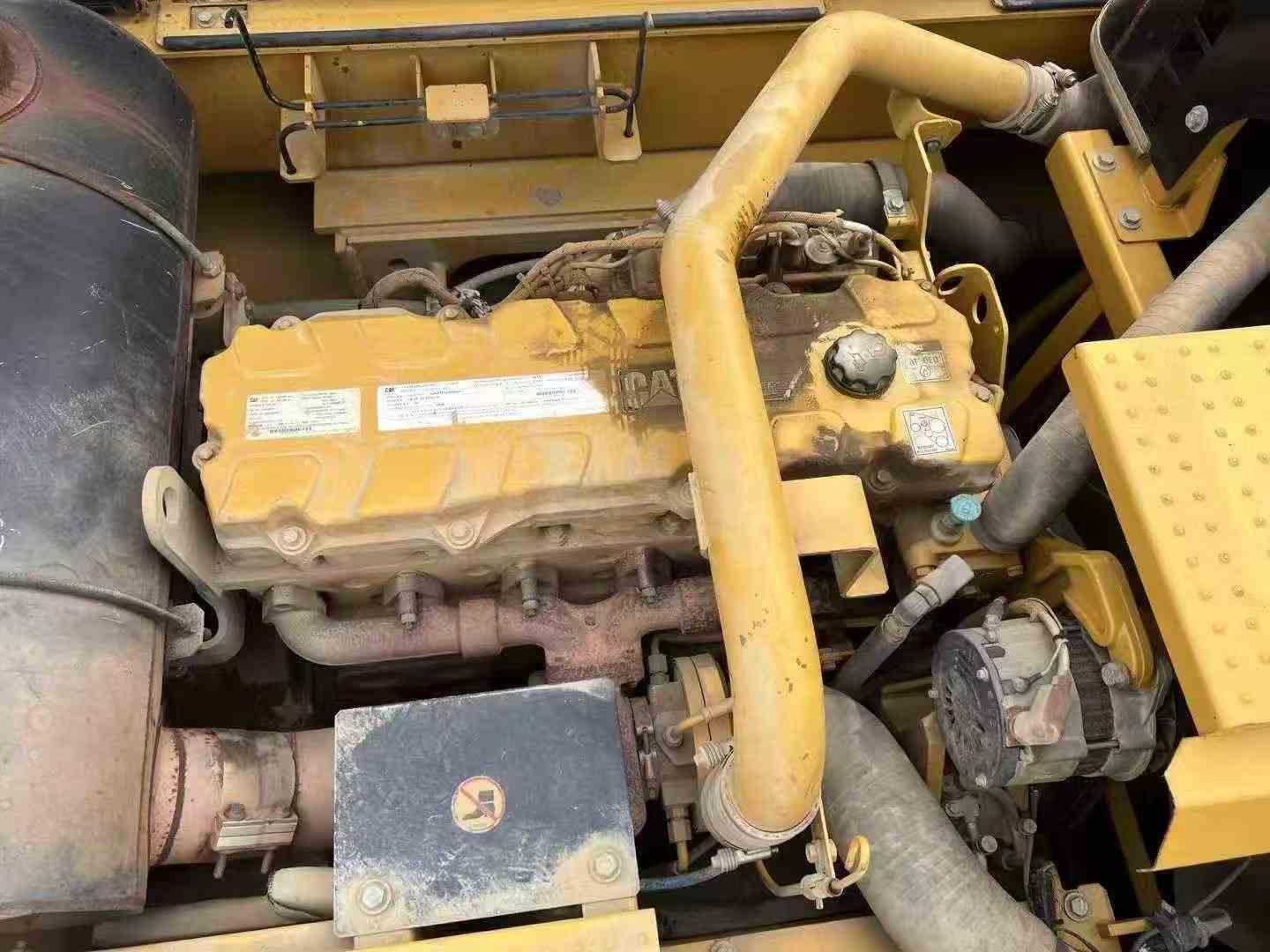

- Cat C9.3 ATAAC engine meeting EPA Tier 4 standards
- Advanced hydraulic system with 35 MPa traveling circuit pressure
- 620L fuel capacity for extended operation periods
- Located in Shandong, China - ready for immediate deployment
Proven reliability meets operational efficiency in this well-maintained excavator, designed for contractors requiring dependable performance in challenging work environments.
| Specifications | Value |
|---|---|
| No. | 938864 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36570-39370 |
| Bucket capacity (m³) | 2.28 |
| Boom length (mm) | 2550/3200/3900 |
| Rod length (mm) | 6180/6500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C9.3(ATAAC) |
| Rated power (kw/rpm) | 224 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 149 |
| Displacement (L) | 9.3 |
| Working form | Air-to-air cooling meets EPA Tier 4 (US Environmental Protection Agency Phase 4) emission standards |
| Rotation speed (rpm) | 9.2 |
| Maximum tractive force (kN) | 295 |
| Travel speed (km/h) | 4.9 |

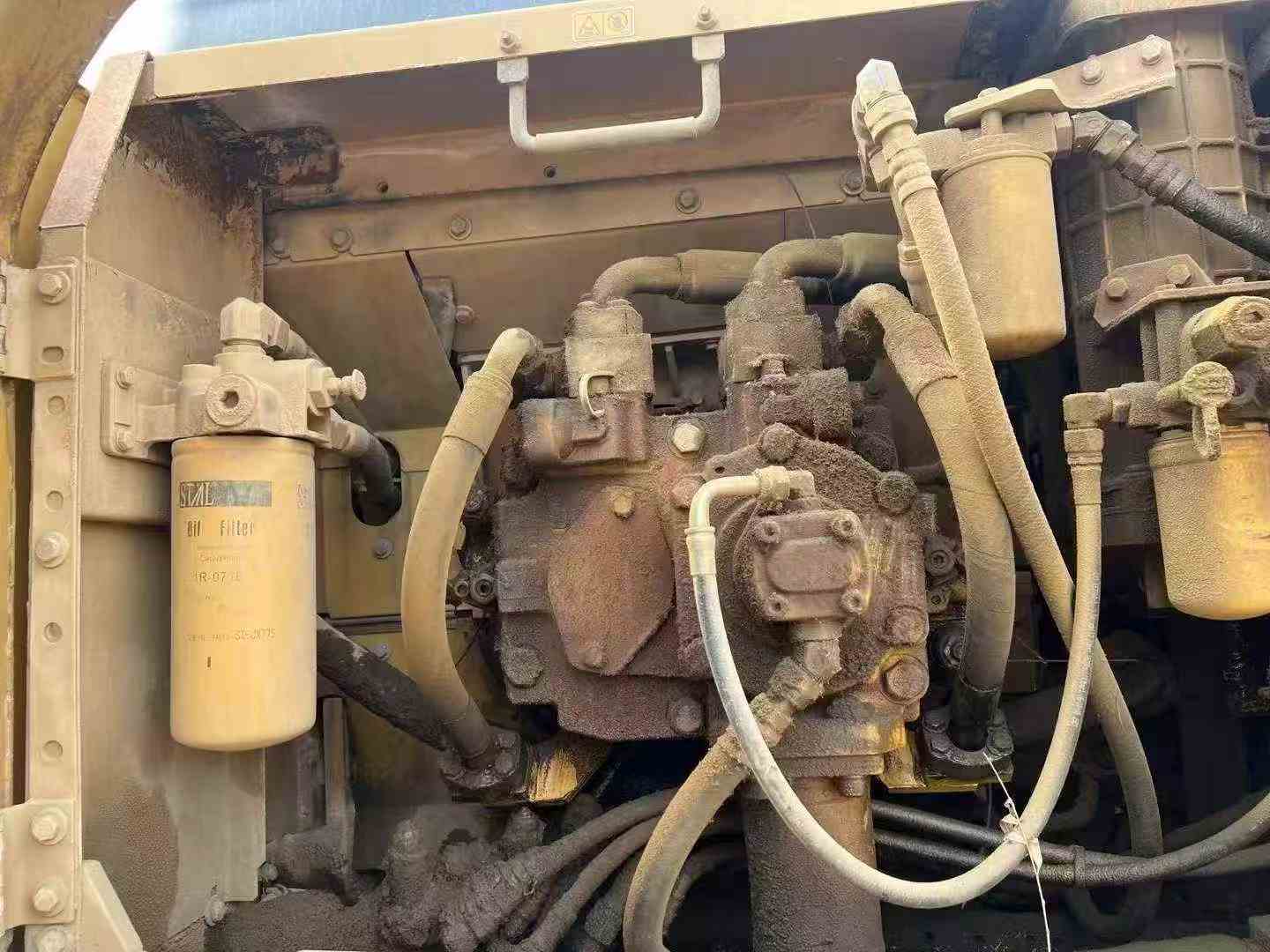

| Maximum flow of main pump (l/min) | 578 |
| Traveling Hydraulic Circuit (Mpa) | |35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot pump flow (L/min) | 4.1 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1356 |
| Fuel Tank (L) | 620 |
| Coolant (L) | 56 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3290/3390/3440 |
| Counterweight ground clearance (mm) | 5020 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | |700/800/850 |
| Maximum digging depth (mm) | 10740 |
| Maximum excavation height (mm) | 7500 |
| Maximum unloading height (mm) | 7610 |
Overview
No.938864
Brand Name：
CaterpillarModel Number：
336FLHYear：
2016
Location：
Shandong China
