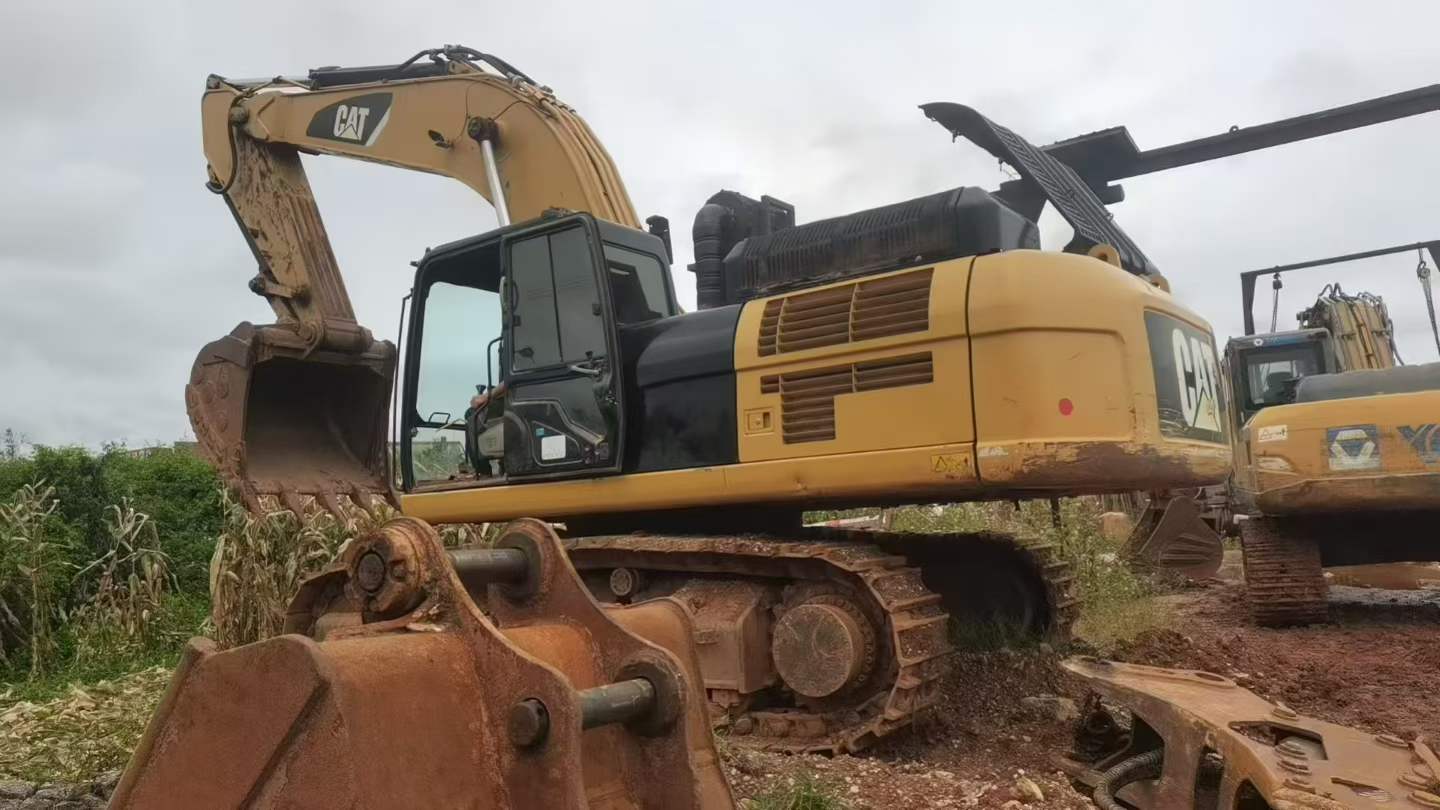

2018 Caterpillar 336FLH
Product Description
Featuring a robust 36-ton working weight, the Caterpillar 336FLH excavator from 2018 offers unparalleled stability and handling. With a powerful Caterpillar Cat C9.3 engine delivering 224 kW, this machine is designed for demanding tasks. Operators benefit from exceptional visibility in the spacious cabin, ensuring precise control and safety on the job site.
- Equipped with a 2.28 m³ bucket capacity, it handles large volumes efficiently.
- Boasting a maximum digging depth of 10740 mm, it tackles deep excavation projects with ease.
- The 3500 mm back end turning radius enhances maneuverability in tight spaces.
- Water-cooled engine and air-to-air cooling meet EPA Tier 4 emission standards, promoting environmental responsibility.
- Travel speed of 4.9 km/h and a maximum tractive force of 295 kN ensure efficient movement and operation.
| Specifications | Value |
|---|---|
| No. | 990453 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36570-39370 |
| Bucket capacity (m³) | 2.28 |
| Boom length (mm) | 2550/3200/3900 |
| Rod length (mm) | 6180/6500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C9.3(ATAAC) |
| Rated power (kw/rpm) | 224 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 149 |
| Displacement (L) | 9.3 |
| Working form | Air-to-air cooling meets EPA Tier 4 (US Environmental Protection Agency Phase 4) emission standards |
| Rotation speed (rpm) | 9.2 |
| Maximum tractive force (kN) | 295 |
| Travel speed (km/h) | 4.9 |
| Maximum flow of main pump (l/min) | 578 |
| Traveling Hydraulic Circuit (Mpa) | |35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot pump flow (L/min) | 4.1 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1356 |
| Fuel Tank (L) | 620 |
| Coolant (L) | 56 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3290/3390/3440 |
| Counterweight ground clearance (mm) | 5020 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | |700/800/850 |
| Maximum digging depth (mm) | 10740 |
| Maximum excavation height (mm) | 7500 |
| Maximum unloading height (mm) | 7610 |
see more
Overview
No.990453
Brand Name：
CaterpillarModel Number：
336FLHYear：
2018
Location：
Sichuan China
