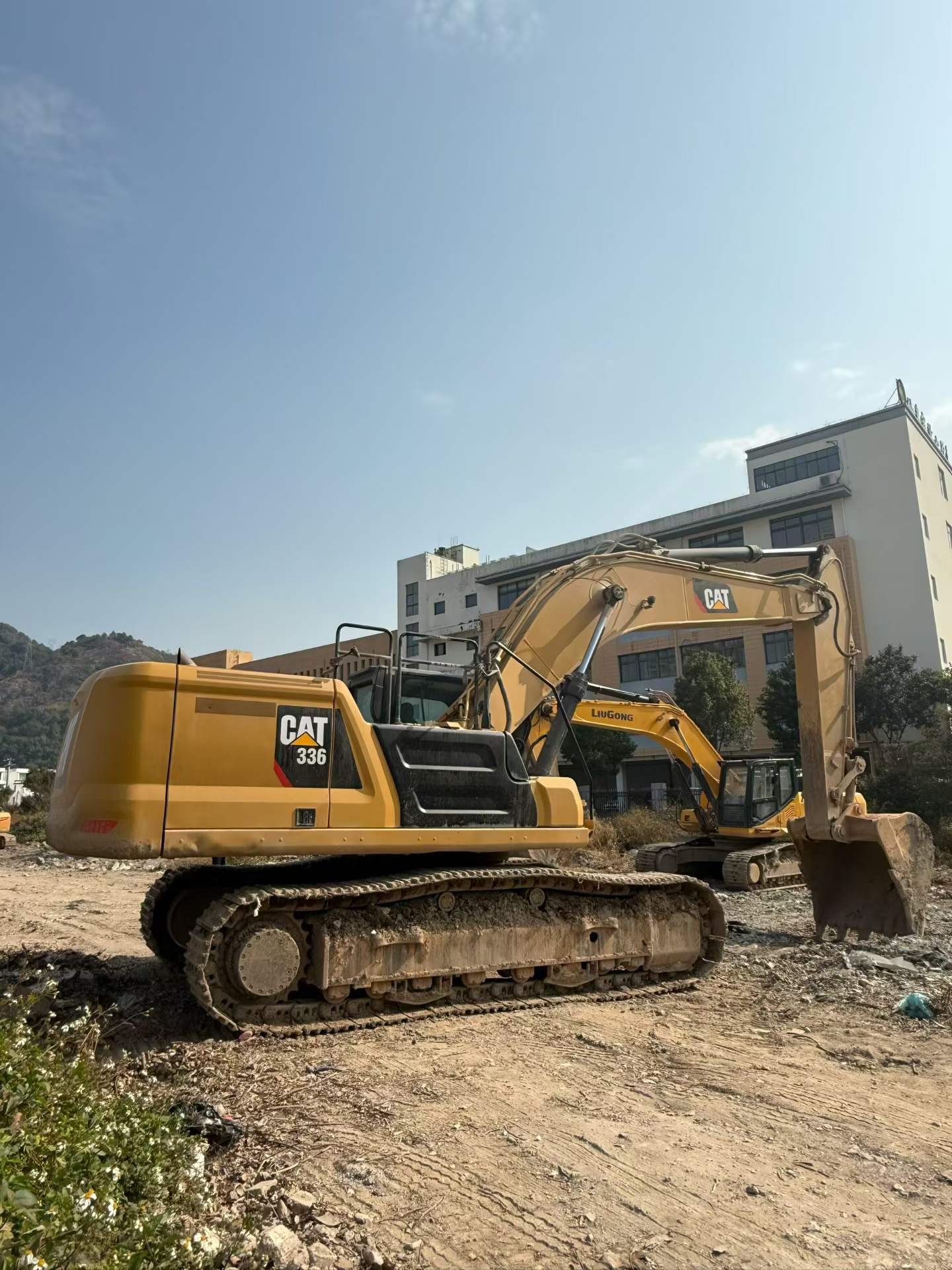

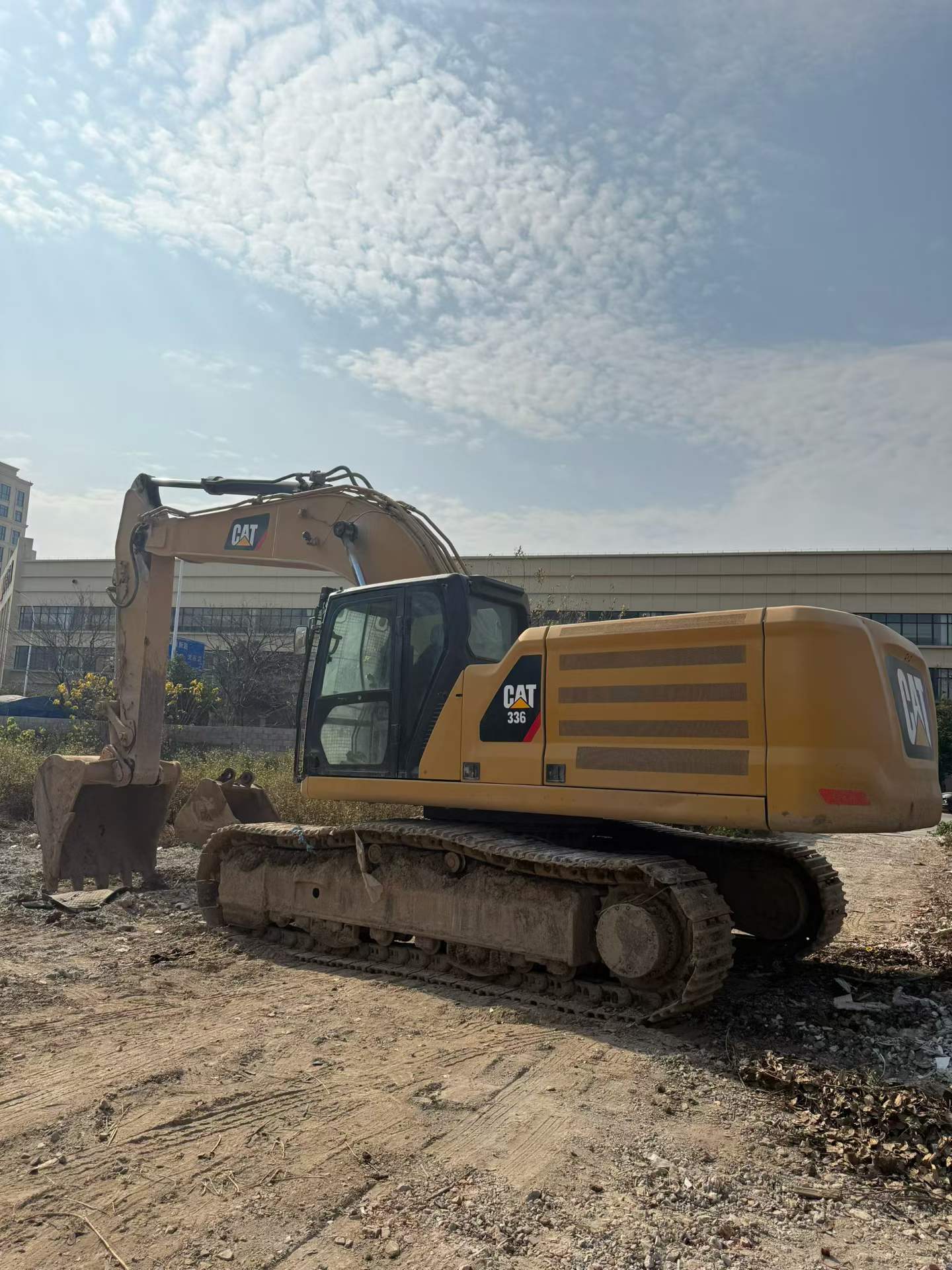

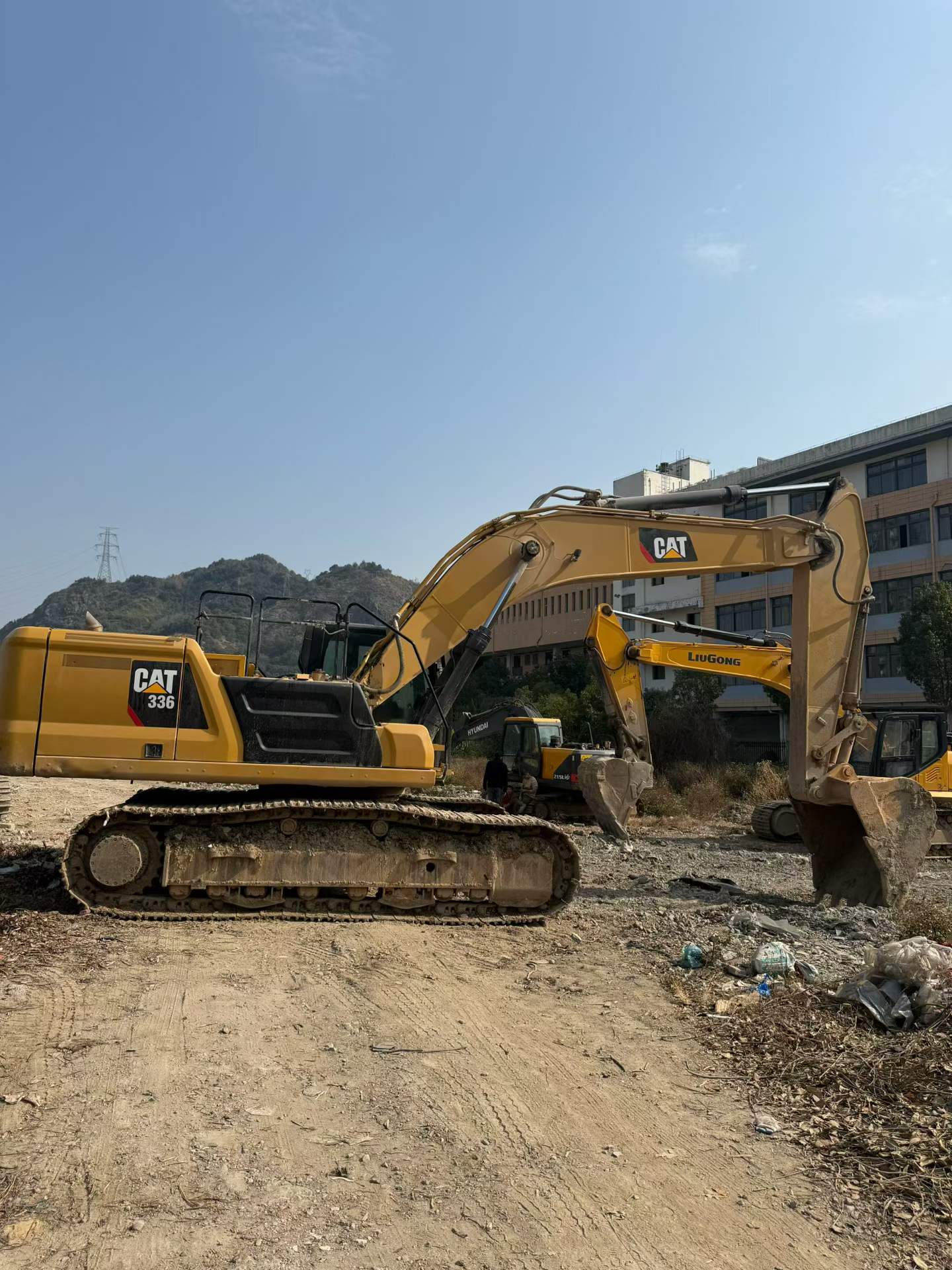

2019 Caterpillar 336FLH
Product Description
Maximize your construction budget with this 2019 Caterpillar 336FLH excavator, delivering enterprise-grade performance at a fraction of new equipment costs. Built for heavy-duty operations, this 36-ton machine features the proven Cat C9.3 ATAAC engine generating 224kW of reliable power while meeting EPA Tier 4 emission standards.
Key performance specifications include:
- 2.28m³ bucket capacity for maximum productivity
- 10.74m maximum digging depth with 7.5m reach
- 578 L/min hydraulic flow for responsive operation
- 620L fuel capacity minimizing downtime
- Multiple boom configurations (2550/3200/3900mm) for versatility
Located in Wenzhou, Zhejiang, this well-maintained unit represents exceptional value compared to new equipment pricing. With Caterpillar's renowned durability and comprehensive parts support network, you secure proven reliability without the premium cost. Smart operators recognize that strategic used equipment purchases like this 336FLH deliver immediate ROI while maintaining operational excellence across demanding jobsites.
| Specifications | Value |
|---|---|
| No. | 989852 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36570-39370 |
| Bucket capacity (m³) | 2.28 |
| Boom length (mm) | 2550/3200/3900 |
| Rod length (mm) | 6180/6500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

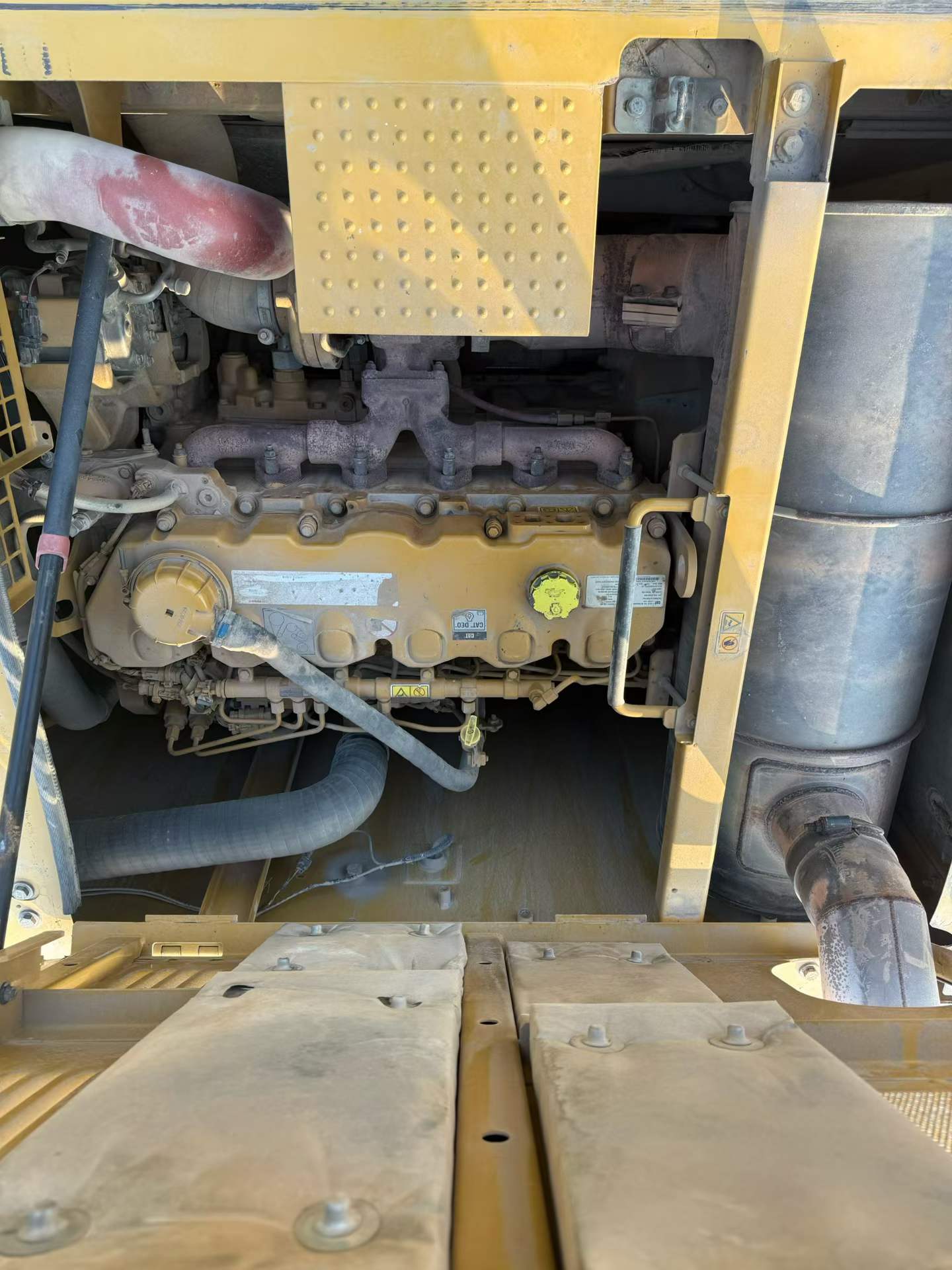

| Engine type | Caterpillar Cat C9.3(ATAAC) |
| Rated power (kw/rpm) | 224 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 149 |
| Displacement (L) | 9.3 |
| Working form | Air-to-air cooling meets EPA Tier 4 (US Environmental Protection Agency Phase 4) emission standards |
| Rotation speed (rpm) | 9.2 |
| Maximum tractive force (kN) | 295 |
| Travel speed (km/h) | 4.9 |
| Maximum flow of main pump (l/min) | 578 |
| Traveling Hydraulic Circuit (Mpa) | |35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot pump flow (L/min) | 4.1 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1356 |
| Fuel Tank (L) | 620 |
| Coolant (L) | 56 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3290/3390/3440 |
| Counterweight ground clearance (mm) | 5020 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | |700/800/850 |
| Maximum digging depth (mm) | 10740 |
| Maximum excavation height (mm) | 7500 |
| Maximum unloading height (mm) | 7610 |
Overview
No.989852
Brand Name：
CaterpillarModel Number：
336FLHYear：
2019
Location：
Zhejiang China
