2017 Caterpillar CT16
Product Description
Maximize your construction budget with this 2017 Caterpillar CT16 excavator, delivering proven performance at a fraction of new equipment costs. Built with Caterpillar's renowned engineering standards, this compact machine combines reliability with operational efficiency for demanding job sites.
Located in Guizhou Province, this well-maintained unit offers exceptional value for contractors seeking dependable earthmoving capabilities without the premium price tag. Advanced hydraulic systems and robust construction ensure consistent productivity across diverse applications.
- Compact design ideal for confined work spaces
- Fuel-efficient operation reduces operating costs
- Caterpillar's proven durability and service network
- Significant savings compared to new equipment pricing
Smart buyers recognize the financial advantage of quality used equipment. With proper maintenance history and Caterpillar's reputation for longevity, this CT16 represents a strategic investment that delivers immediate returns while preserving capital for other business priorities.
| Specifications | Value |
|---|---|
| No. | 990680 |
| Tonnage (tons) | 16 |
| Working weight (kg) | 17600 |
| Bucket capacity (m³) | 0.65 |
| Boom length (mm) | 5100 |
| Rod length (mm) | 2600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

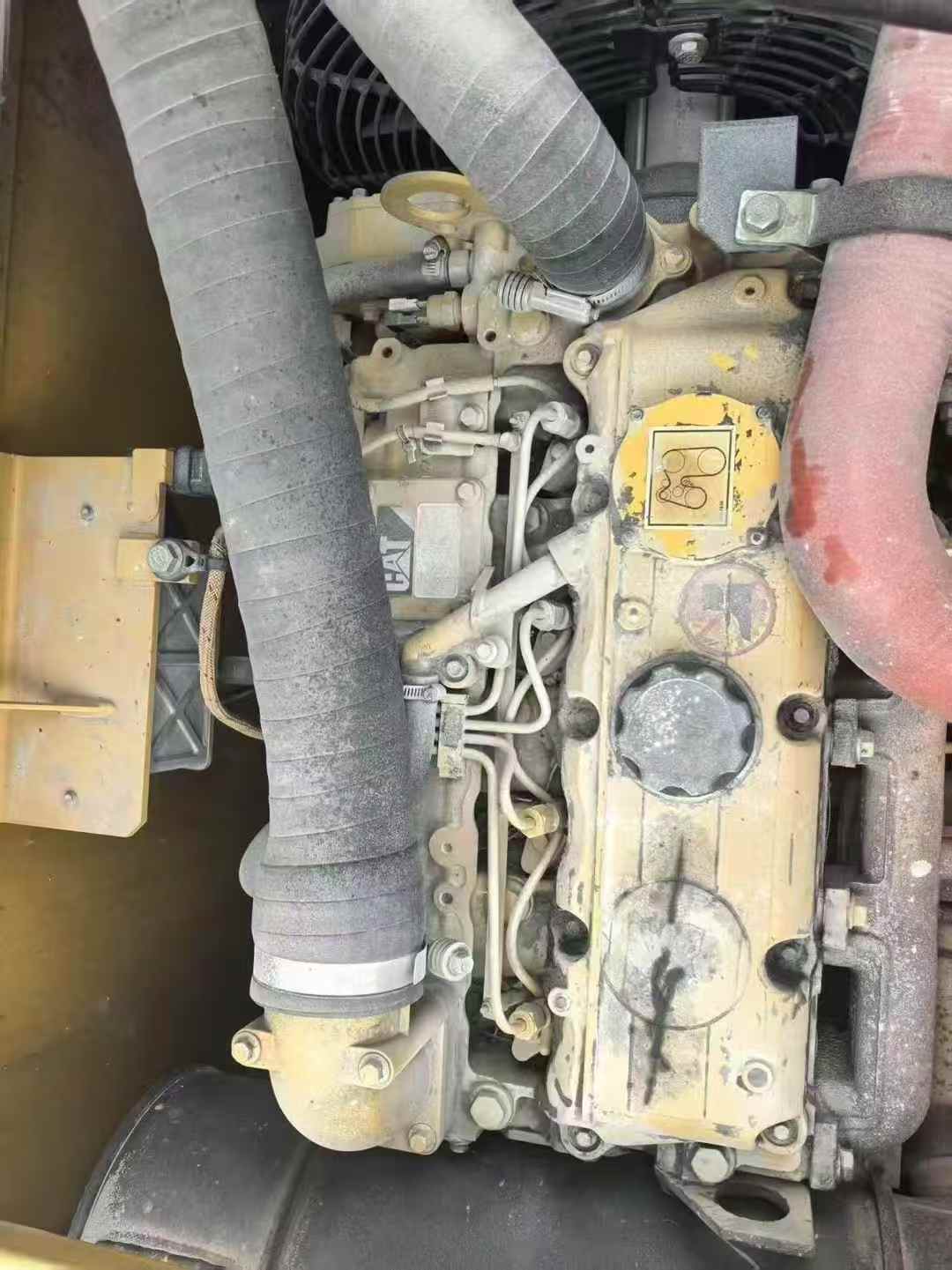

| Engine type | Caterpillar Cat C4.4 ACERT |
| Rated power (kw/rpm) | 89 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 127 |
| Displacement (L) | 4.4 |
| Working form | Meet EU Stage IIIB emission standards |
| Ground specific pressure (Kpa) | 49 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 111 |
| Rod digging force (kN) | 88 |
| Maximum tractive force (kN) | 156.2 |
| Travel speed (km/h) | 5.2 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 300 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 22.6 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Pilot pump flow (L/min) | 25.8 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 110 x 1039 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1331 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1193 |
| Fuel Tank (L) | 290 |
| Hydraulic Tank (L) | 106 |
| Engine Oil changes (L) | 13.5 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 190 |
| Total transport length (mm) | 8570 |
| Total transport width (mm) | 2520/2590/2690 (with different width tracks) |
| Total transport height (mm) | 3180 (to the top of the boom) |
| Full cab height (mm) | 2890 |
| Counterweight ground clearance (mm) | 1010 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2500 |
| Total track length (mm) | 3970 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500/600/700 |
| Total track width (mm) | 2520/2590/2690 |
| Maximum digging radius (mm) | 8910 |
| Maximum digging depth (mm) | 6090 |
| Maximum excavation height (mm) | 8920 |
| Maximum unloading height (mm) | 6280 |
| Maximum vertical digging depth (mm) | 4930 |
| Maximum excavation radius of stop surface (mm) | 8780 |
| Maximum effective digging depth (mm) | 5870 |
Overview
No.990680
Brand Name：
CaterpillarModel Number：
CT16Year：
2017
Location：
Guizhou China
