Product Description

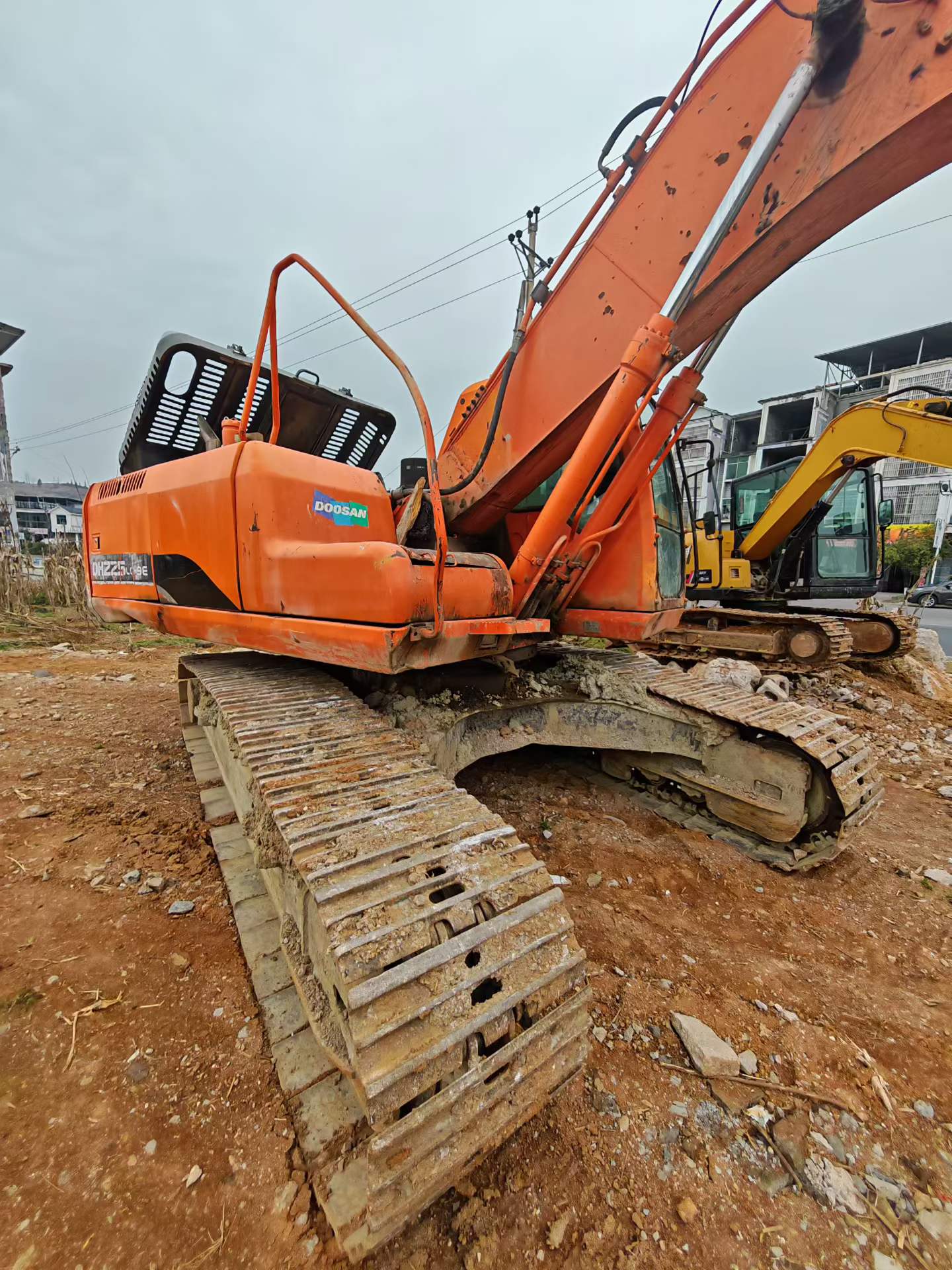

Built for demanding construction environments, this 2013 Doosan DH220-9E delivers proven performance with 22-ton operating weight and robust 110kW Doosan DB58TIS engine. Located in Anhui Province, this excavator features a 0.93m³ bucket capacity and impressive 9.97m maximum digging radius, making it ideal for medium to large-scale earthmoving projects.
Doosan's reputation for engineering excellence translates directly into superior resale value and parts accessibility in the used equipment market. With extensive dealer networks across Asia and globally standardized components, maintenance remains straightforward and cost-effective. The DH220-9E's hydraulic system operates at 32.4 MPa working pressure, ensuring consistent power delivery even after years of operation.
- 22,000kg working weight with 136.2kN bucket digging force

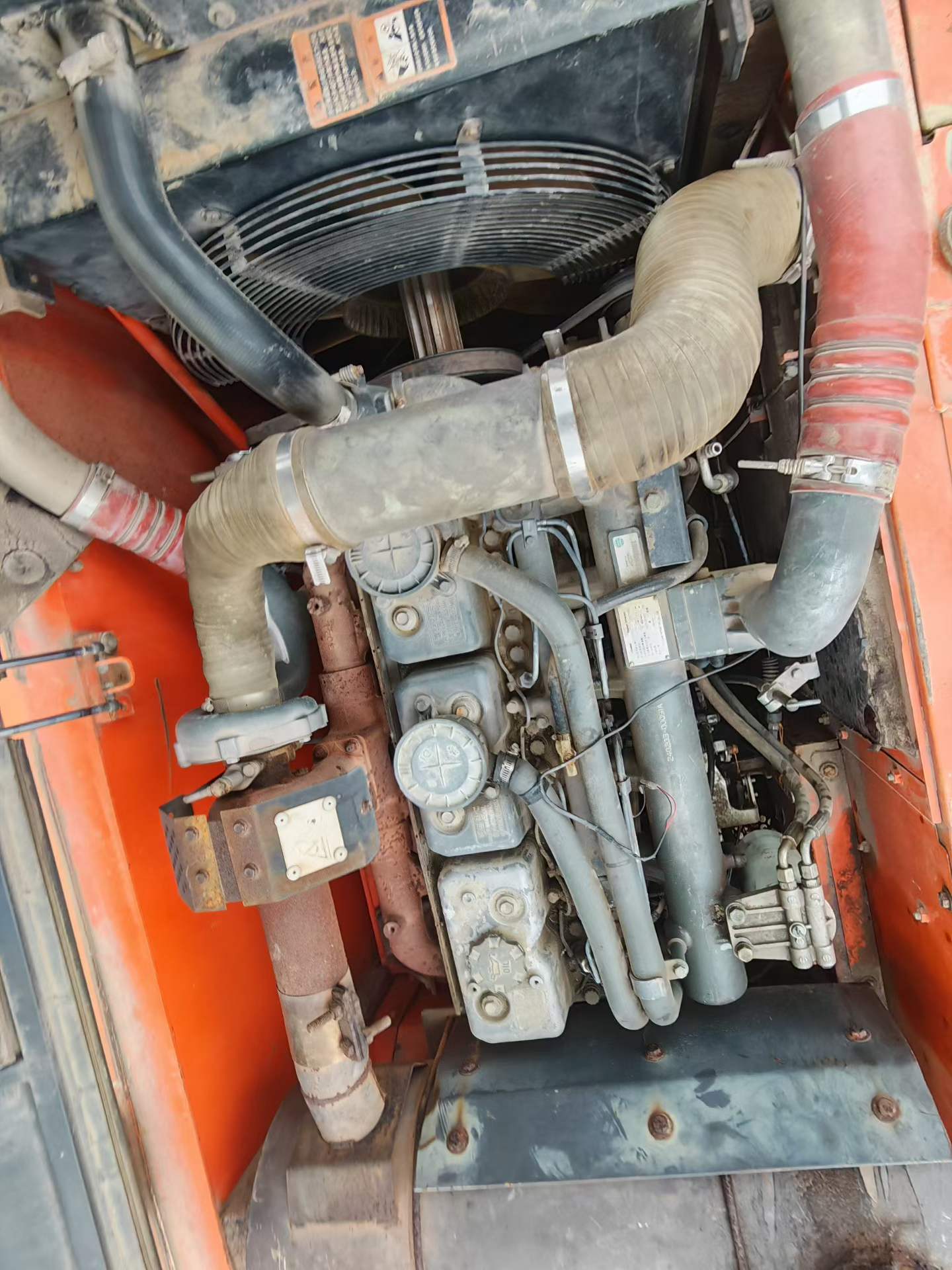

- Proven Doosan DB58TIS 6-cylinder engine (8.07L displacement)
- Maximum digging depth: 6.66m, unloading height: 6.8m
- Established parts supply chain and service network
- Strong residual value retention in secondary markets
Smart buyers recognize Doosan's commitment to long-term component availability, making this DH220-9E a strategic investment fo
| Specifications | Value |
|---|---|
| No. | 987396 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22000 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan DB58TIS |
| Rated power (kw/rpm) | 110/1950 |
| Cylinder diameter × stroke (mm) | 111 x 139 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.07 |
| Ground specific pressure (Kpa) | 46 |
| Rotation speed (rpm) | 12.1 |
| Bucket digging force (kN) | 136.2/144.1 |
| Rod digging force (kN) | 100/104.9 |
| Travel speed (km/h) | 3.1-5.4 |

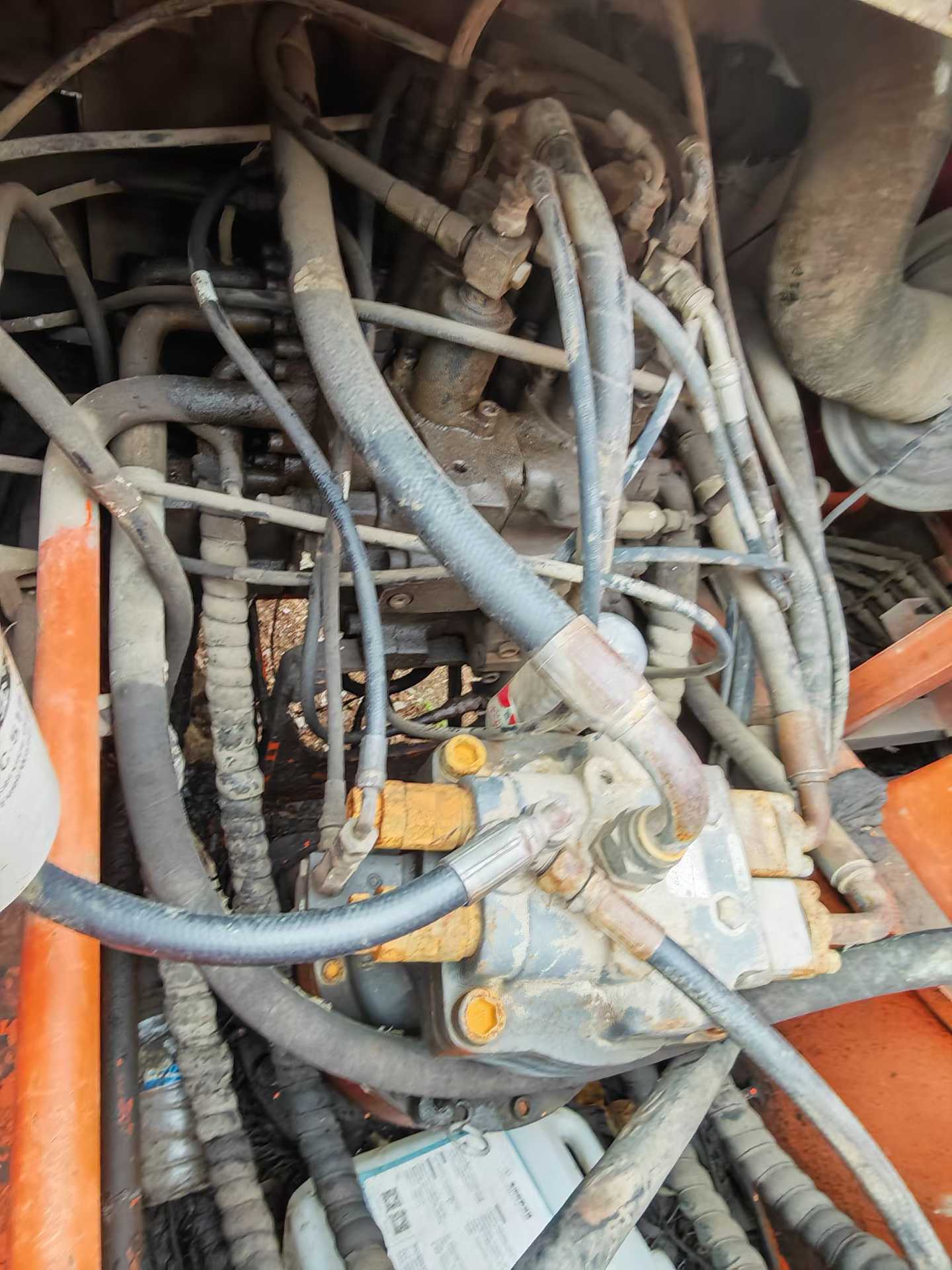

| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Pilot pump flow (L/min) | 2 x 212 |
| Fuel Tank (L) | 310 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 42 |
| Hydraulic System (L) | 135 |
| Total transport length (mm) | 9645 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3025 |
| Full cab height (mm) | 3025 |
| Counterweight ground clearance (mm) | 1105 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3685 |
| Back end turning radius (mm) | 2840 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 4440 |
| Maximum digging radius (mm) | 9965 |
| Maximum digging depth (mm) | 6655 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6800 |
| Maximum vertical digging depth (mm) | 5980 |
| Maximum excavation radius of stop surface (mm) | 9780 |
| Maximum effective digging depth (mm) | 5885 |
