Product Description

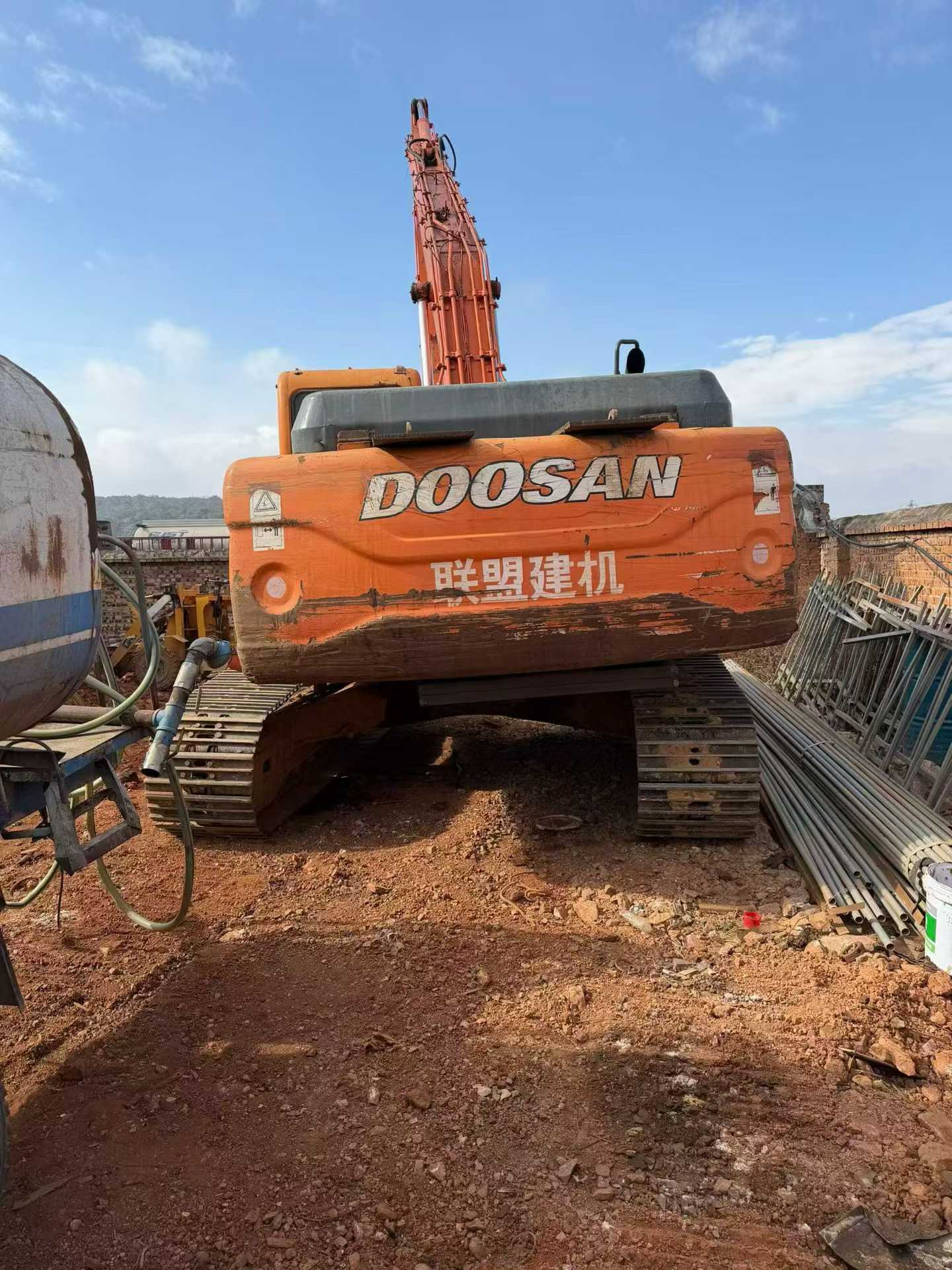

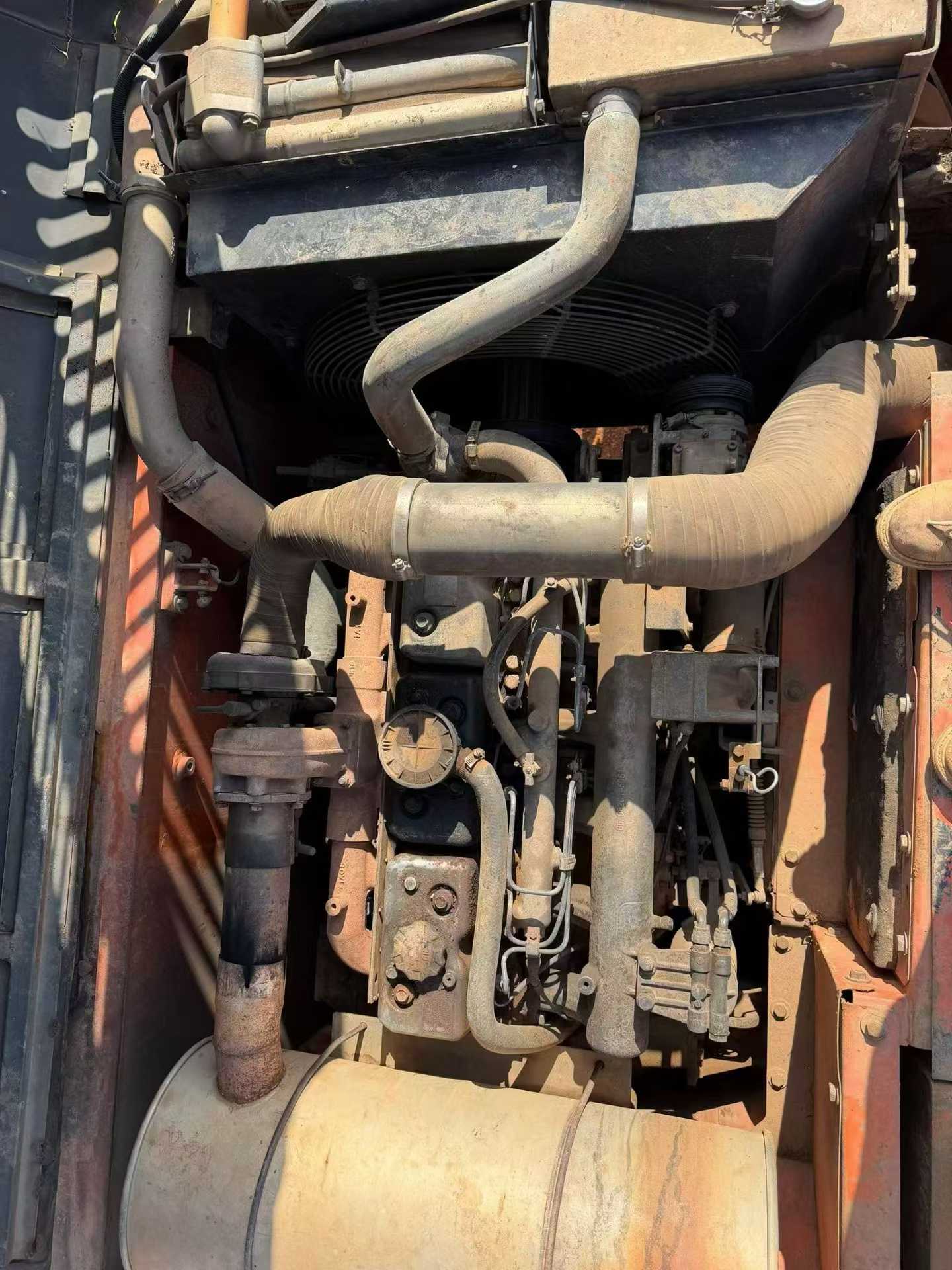

Maximize your construction budget with this proven 2013 Doosan DX60 excavator, delivering professional-grade performance at a fraction of new equipment costs. Powered by a reliable Yanmar 4TNV94L engine producing 39.7kW, this 6-ton machine handles demanding jobsites with 44kN bucket digging force and 58kN maximum tractive force.
Built for versatility, the DX60 features a 6150mm maximum digging radius and 3805mm digging depth, making it ideal for utility work, landscaping, and small construction projects. With 0.21m³ bucket capacity and dual hydraulic pumps delivering 60.5L/min flow, productivity remains consistently high throughout long workdays.
- Compact 2000mm width fits through standard gates
- 115L fuel tank minimizes refueling downtime
- 9.5 rpm rotation speed ensures efficient operation
- Located in Kunming, Yunnan for immediate inspection
Smart contractors choose quality used equipment that delivers reliable service without the depreciation hit. This DX60 represents exceptional value—proven Doosan engineering at an investment-friendly price point.
| Specifications | Value |
|---|---|
| No. | 989713 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
