Product Description

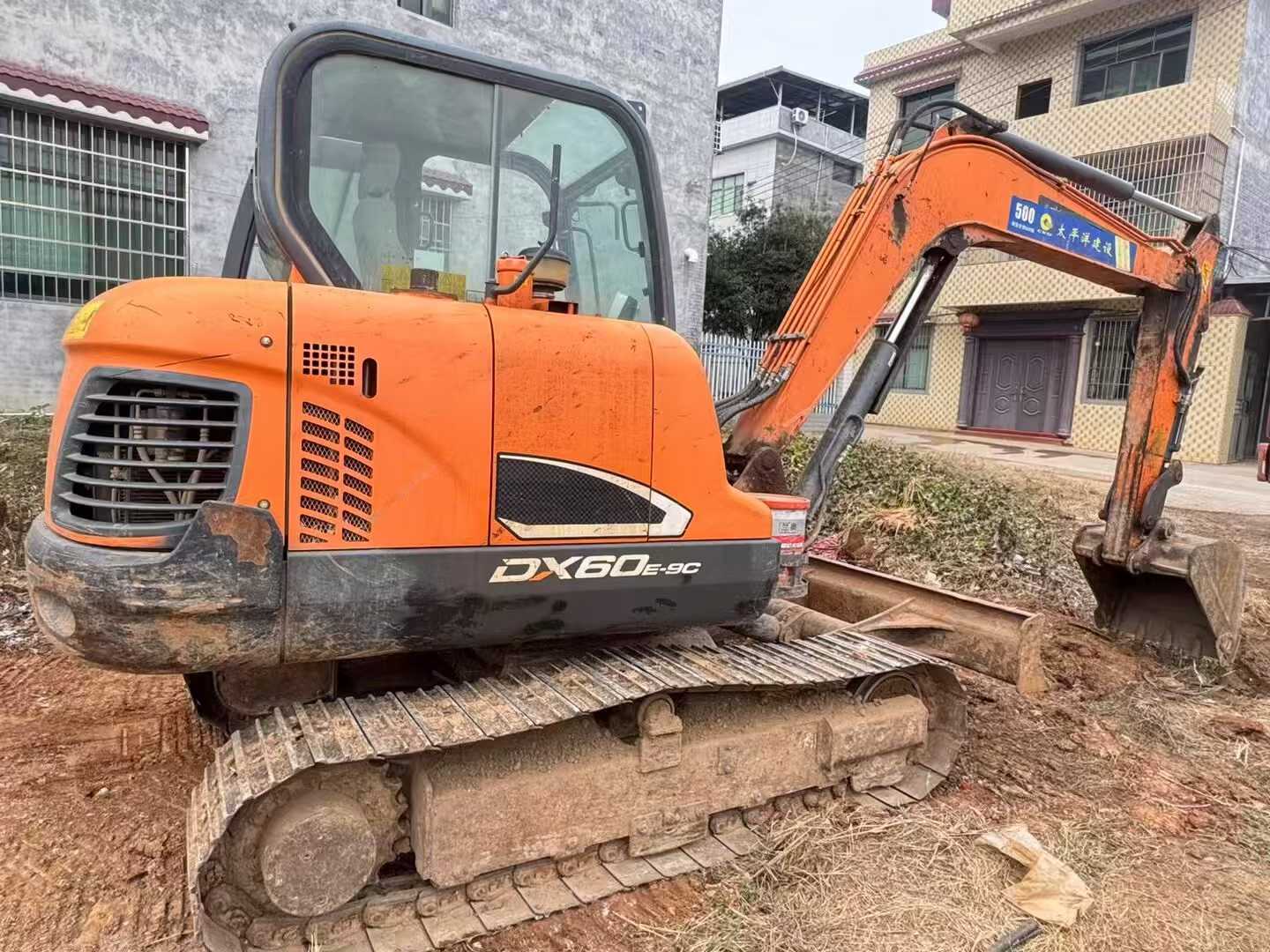

Built for endurance, this 2020 Doosan DX60 excavator demonstrates exceptional reliability after years of proven performance. With its robust 6-ton capacity and Yanmar 4TNV94L engine delivering 39.7kW of power, this machine has consistently handled demanding construction and excavation tasks across Guangdong province.
Key performance specifications include:
- Maximum digging depth of 3,805mm with 44kN bucket digging force
- Compact 5,850mm transport length ideal for confined job sites
- Efficient 0.21m³ bucket capacity for precise material handling
- Superior 78% climbing ability on challenging terrain
- 115L fuel tank ensuring extended operational periods
Currently located in Maoming, Guangdong, this workhorse maintains its structural integrity and operational efficiency. The DX60's proven track record in the field validates Doosan's commitment to manufacturing durable, long-lasting equipment. Ready for immediate deployment on your next project.
| Specifications | Value |
|---|---|
| No. | 989706 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

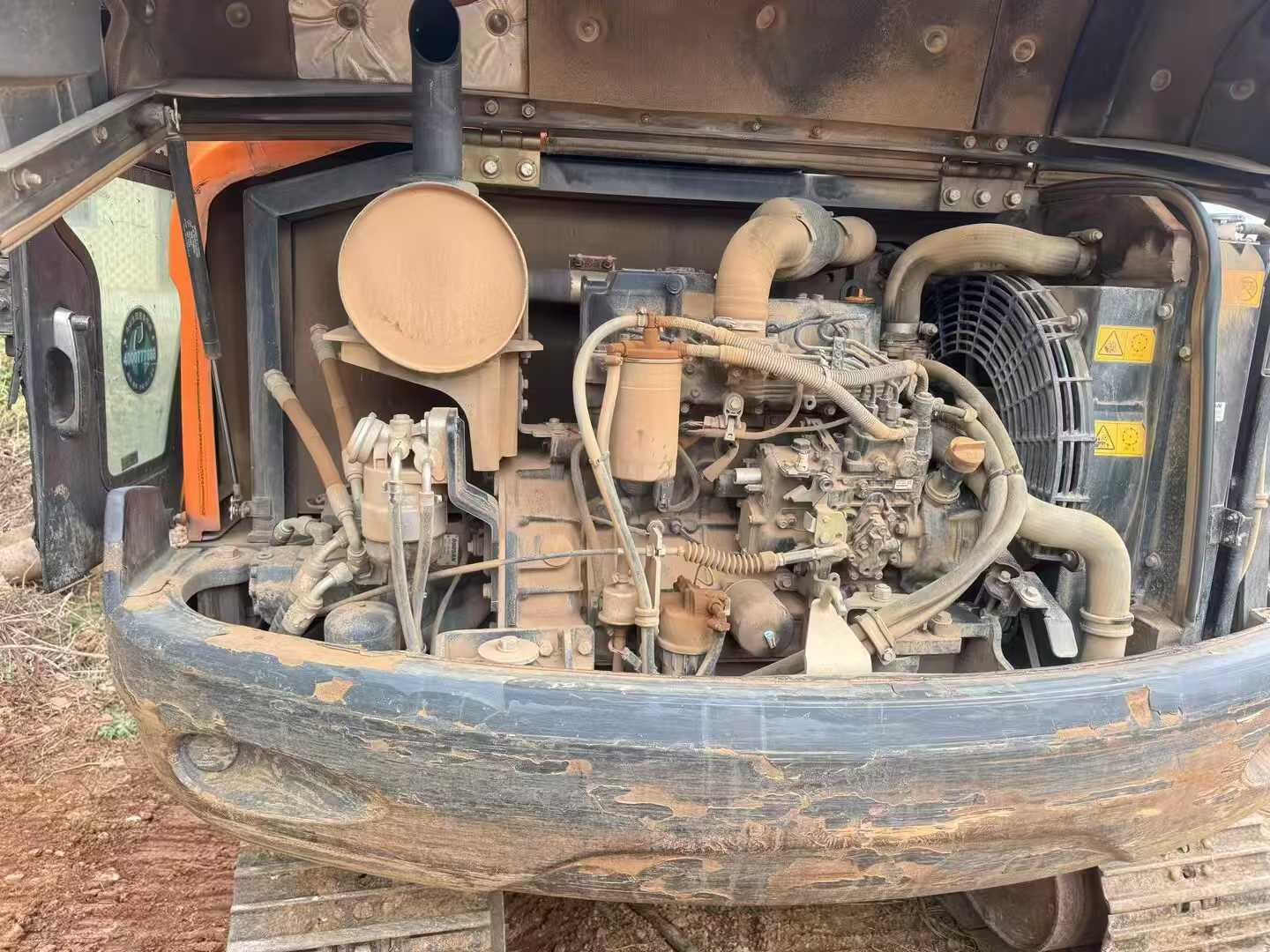

| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
