Product Description

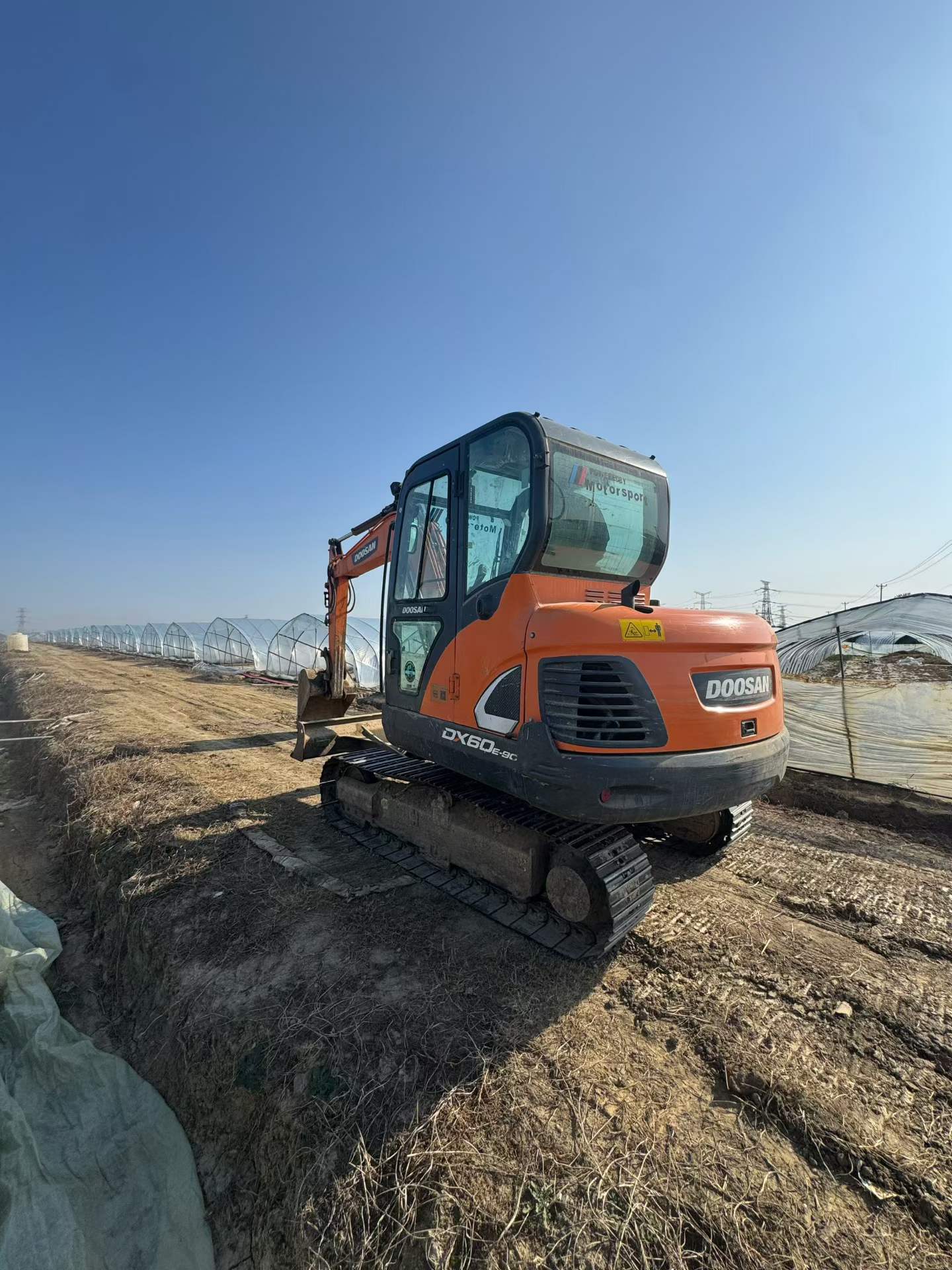

Built for demanding construction environments, this 2021 Doosan DX60 compact excavator demonstrates exceptional durability with only minimal operational hours. Operating at 6 tons with a robust 5,700kg working weight, this proven workhorse delivers consistent performance across diverse job sites.

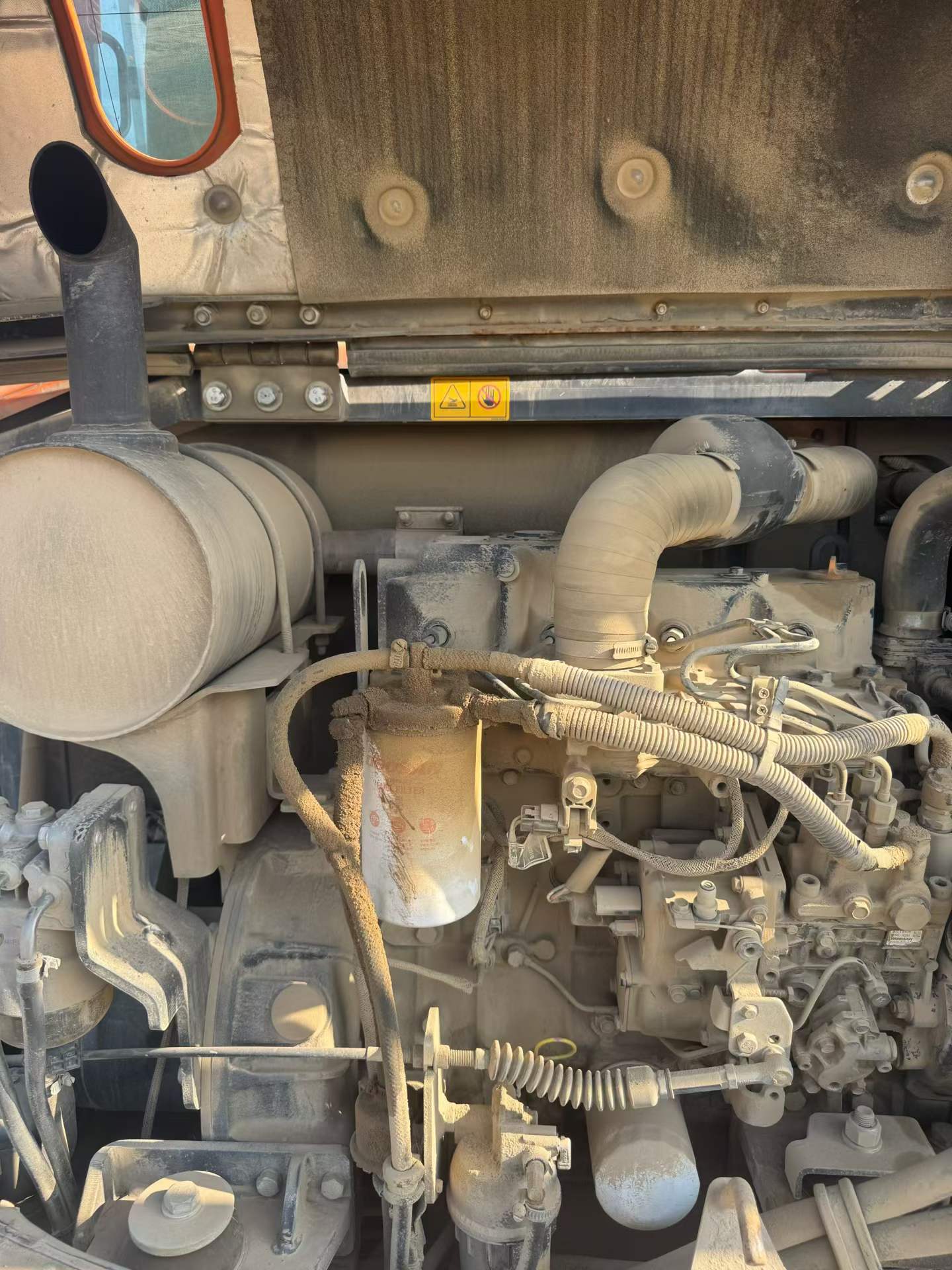

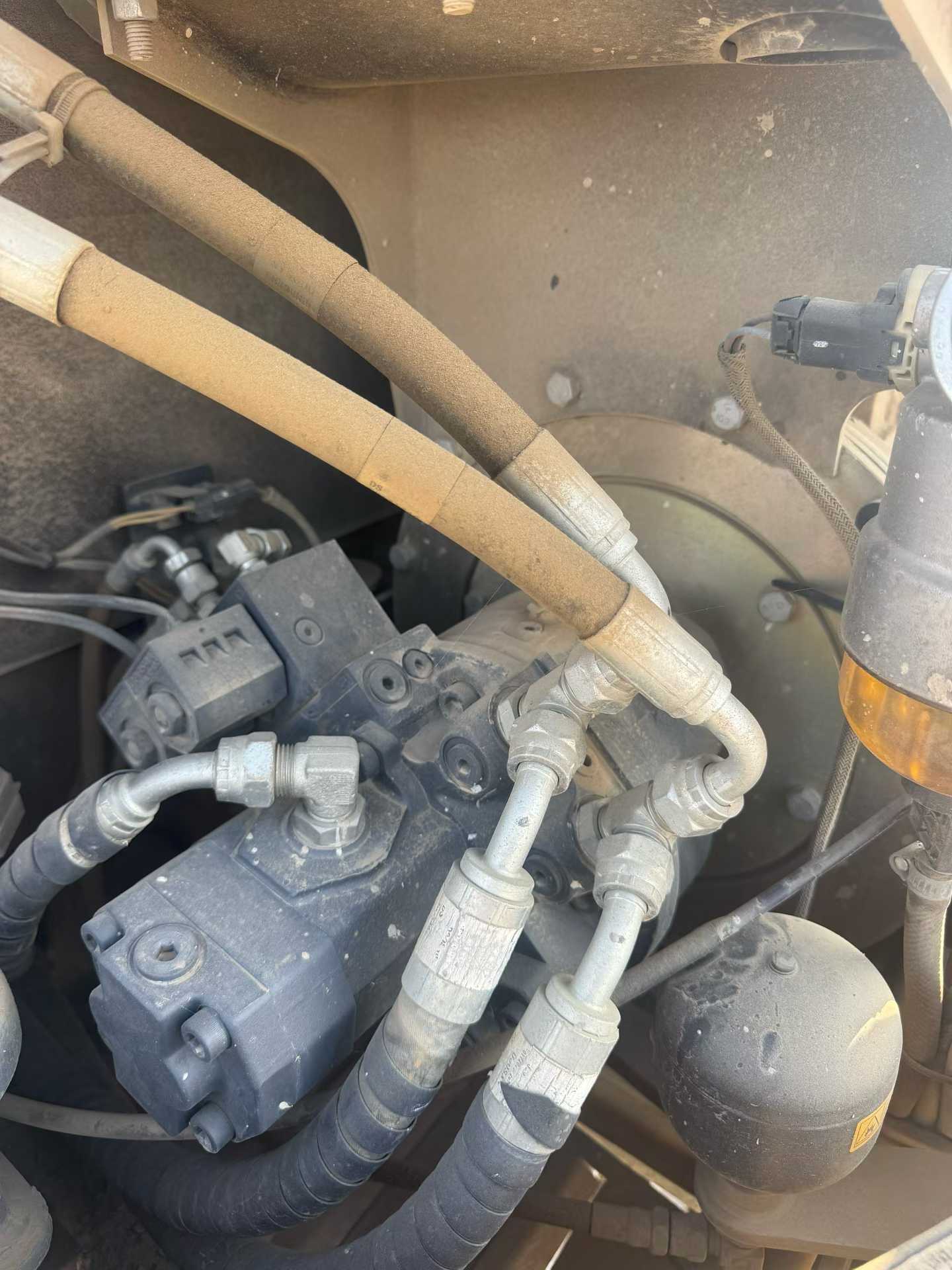

Powered by a reliable Yanmar 4TNV94L engine producing 39.7kW at 2200 RPM, this machine combines efficiency with dependable power delivery. Advanced hydraulic systems provide 44kN bucket digging force and 28kN rod digging force, ensuring productive excavation in challenging conditions.
- Compact dimensions: 5,850mm length × 2,000mm width × 2,575mm height
- Maximum digging depth: 3,805mm with 6,150mm reach radius
- 0.21m³ bucket capacity optimized for precision work
- 115L fuel tank for extended operational periods
- Located in Suzhou, Jiangsu Province
Three years of proven field performance validates this excavator's build quality and reliability. Ready for immediate deployment on your next project.
| Specifications | Value |
|---|---|
| No. | 989182 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
