Product Description

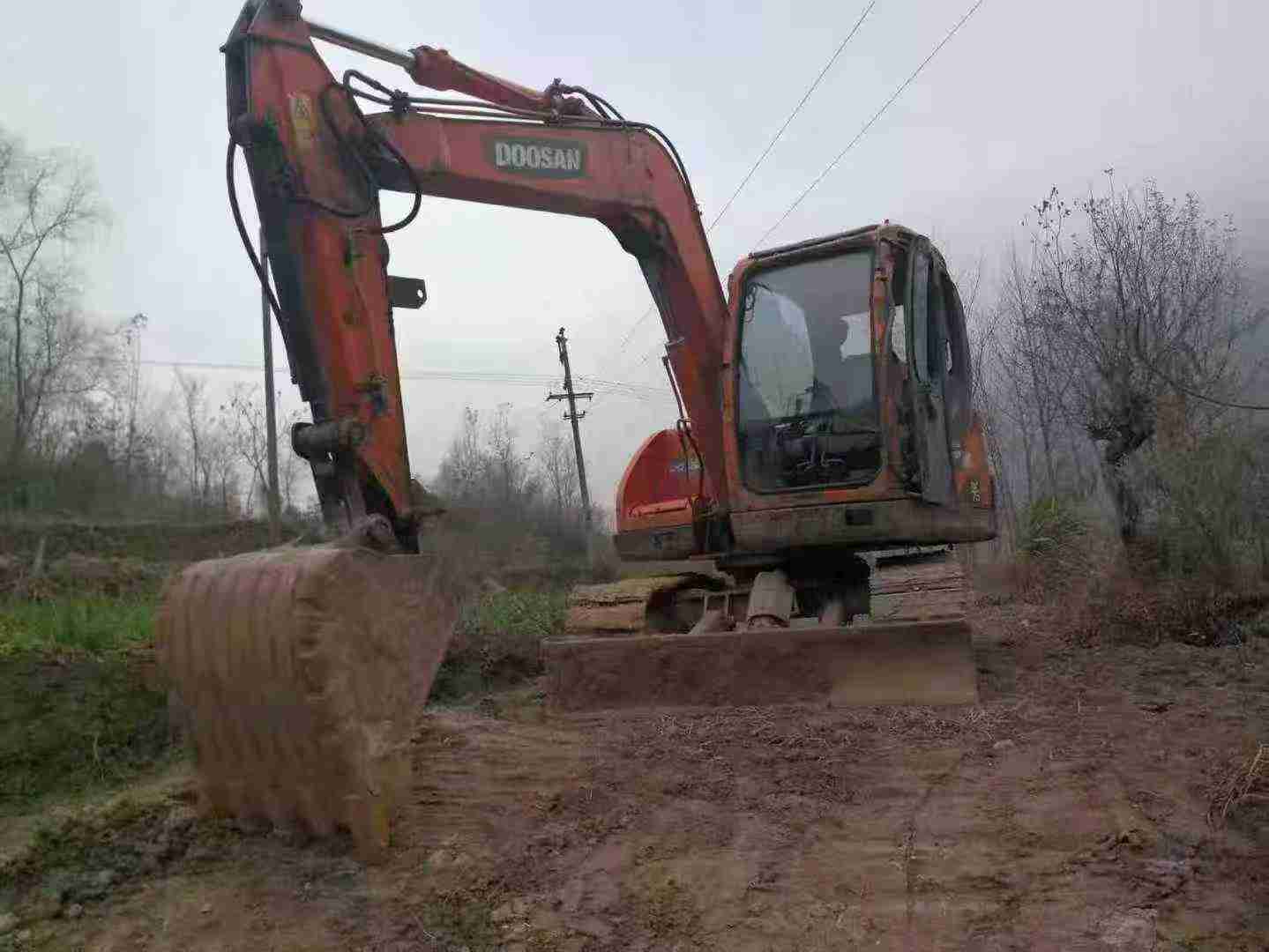

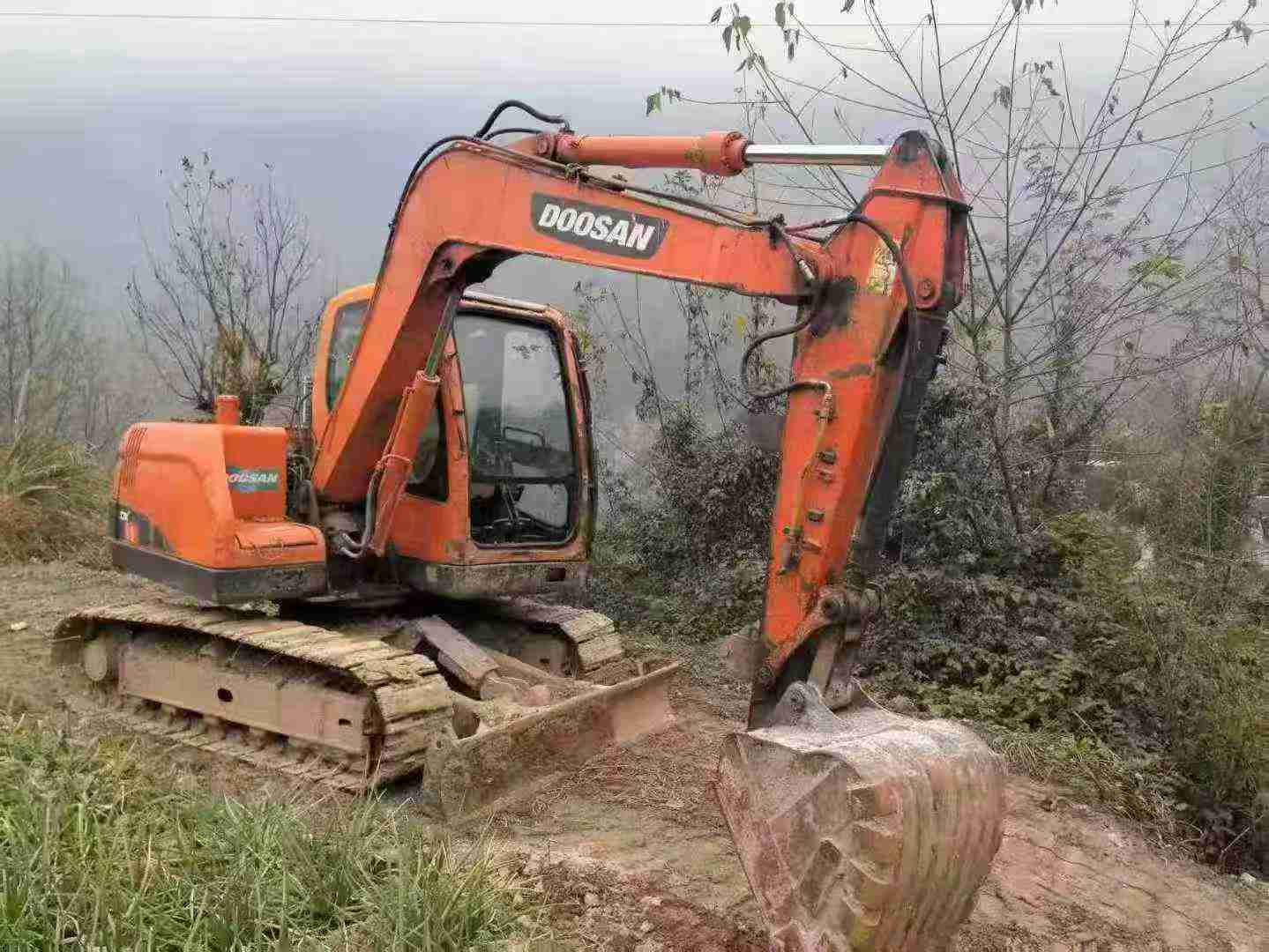

Built for demanding excavation work, this 2015 Doosan DX75 delivers reliable 7-ton performance with proven Yanmar 4TNV94L engine technology. Located in Sichuan Luzhou, this compact excavator combines 39.7kW rated power with precise hydraulic control for efficient digging, grading, and demolition operations.
Key operational specifications include:
- Maximum digging depth of 3,930mm with 6,270mm reach radius
- Powerful 53.4kN bucket digging force for tough soil conditions
- 0.28m³ bucket capacity optimized for versatility
- Compact 2,100mm transport width for site accessibility
- 111L fuel tank capacity for extended operation cycles
Engineered with variable piston pump hydraulics and 30° climbing capability, this machine handles confined spaces and challenging terrain with confidence. Direct-injection, water-cooled engine ensures consistent performance across temperature ranges. Ready for immediate deployment on construction sites, utility projects, and landscaping applications requiring precision excavation work.
| Specifications | Value |
|---|---|
| No. | 989504 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7350 |
| Bucket capacity (m³) | 0.28 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 24.6/1475 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct spray |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 53.4 |
| Rod digging force (kN) | 36.9 |
| Travel speed (km/h) | 3.0 / 4.7 |
| Turning torque (Nm) | 23.4 ~ 24.6 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 111 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2100 |
| Total transport height (mm) | 2680(to top of cab) |
| Full cab height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1755 |
| Onboard width (mm) | 2130 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track ground length (mm) | 2110 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 3930 |
| Maximum excavation height (mm) | 7050 |
| Maximum unloading height (mm) | 5165 |
| Maximum vertical digging depth (mm) | 2570 |
| Dodging plate width × height (mm) | 2100 x 420 |
| Maximum excavation radius of stop surface (mm) | 6115 |
