Product Description

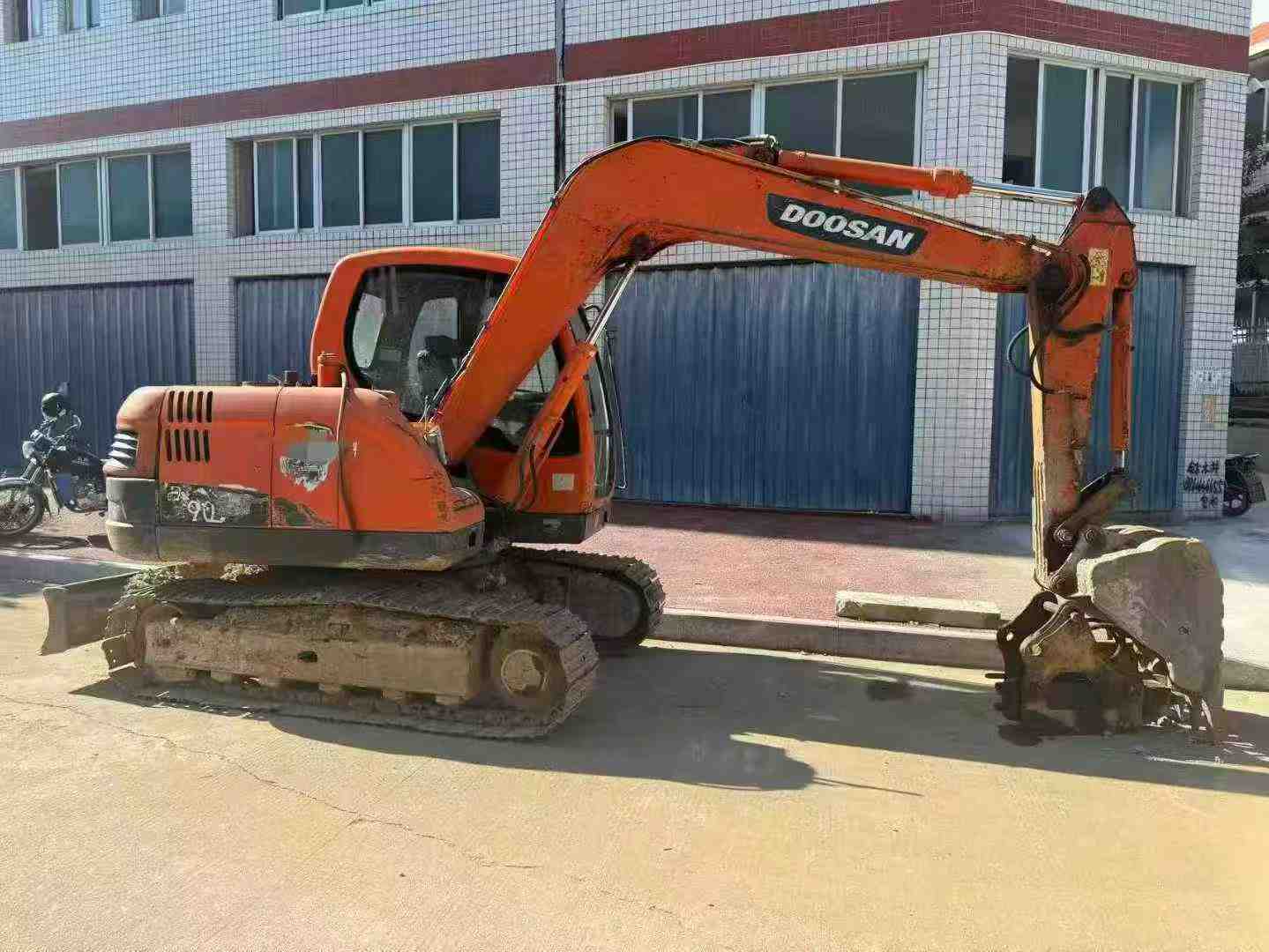

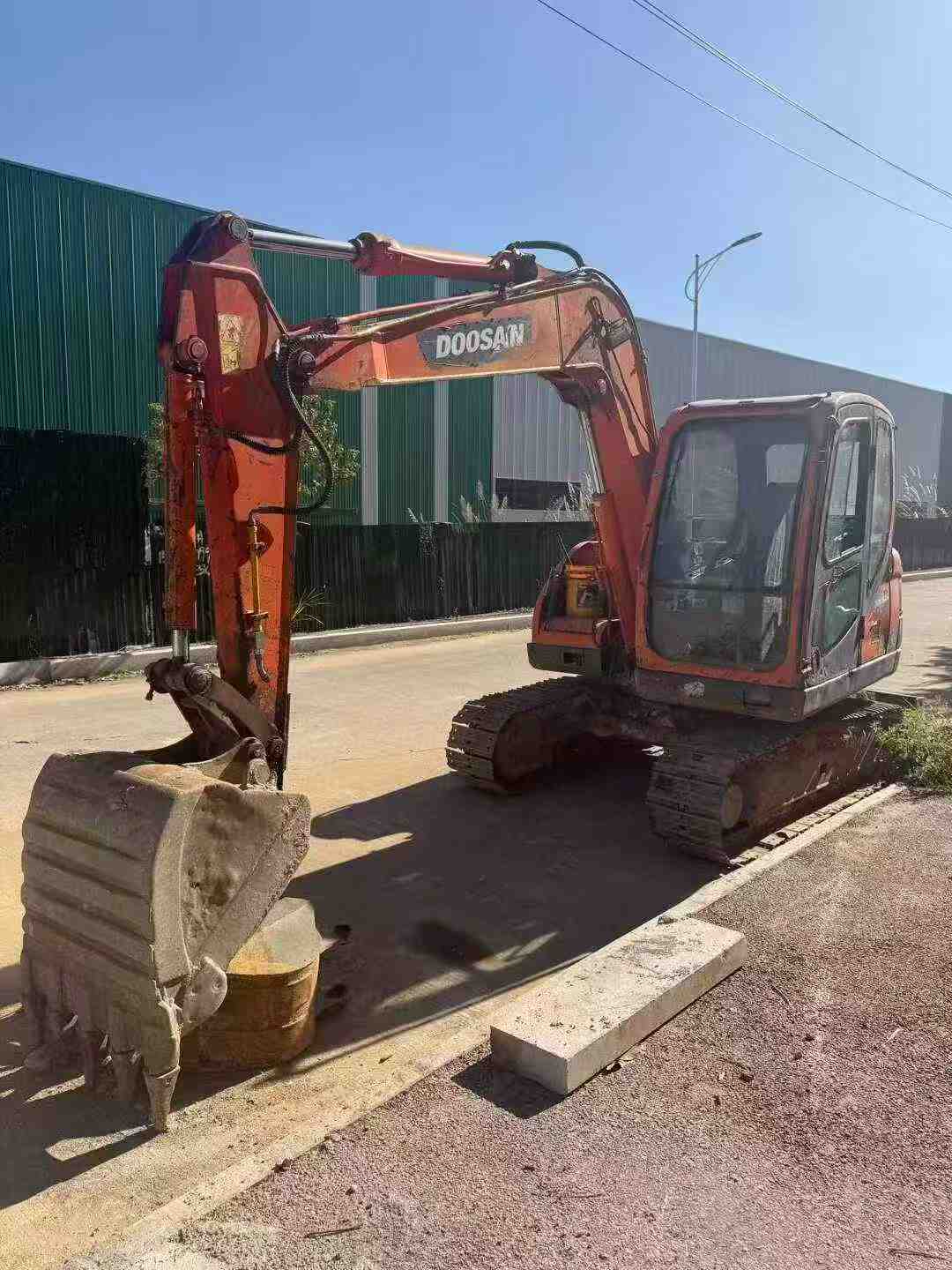

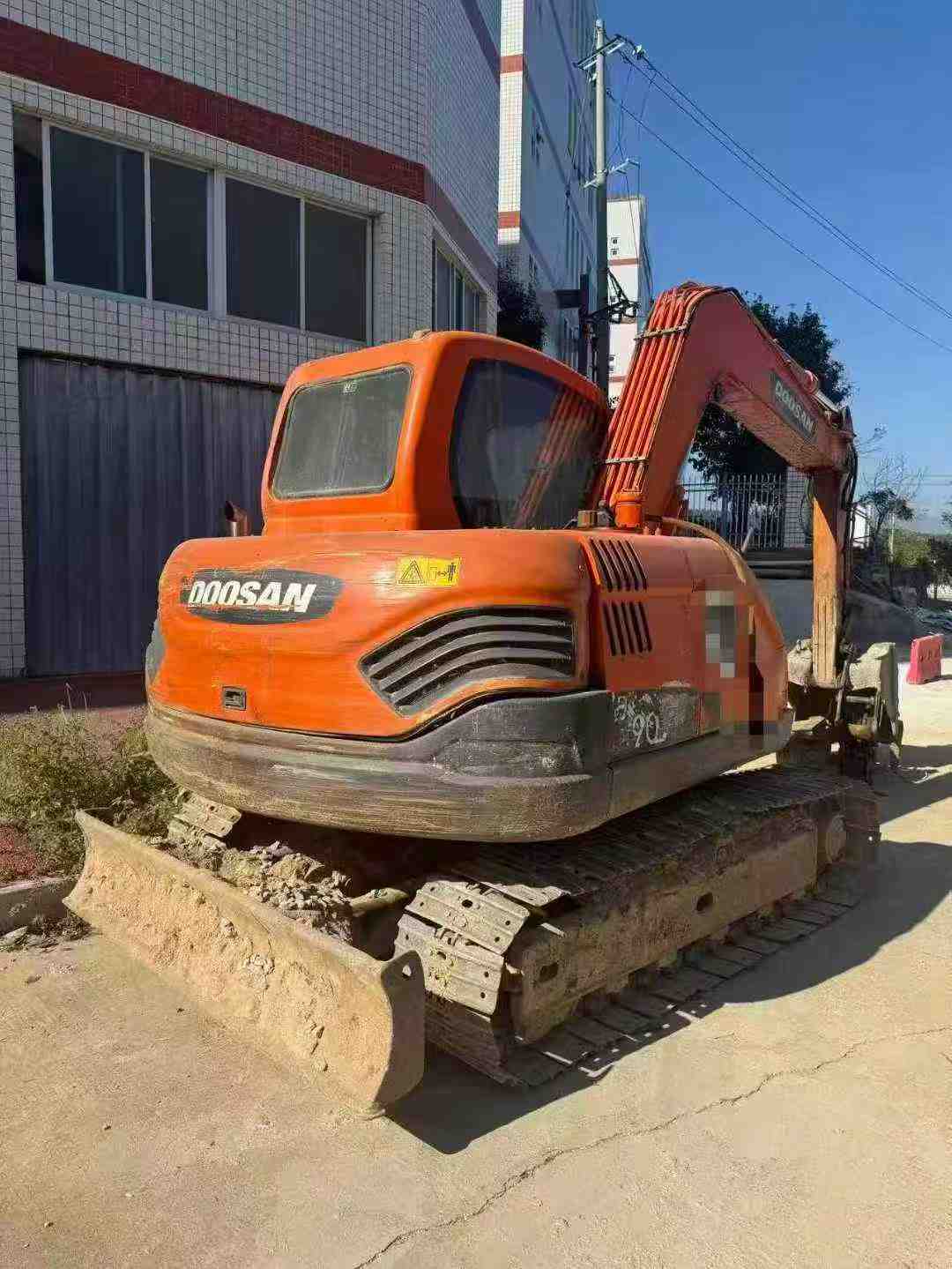

Maximize your construction budget with this proven 2016 Doosan DX75 excavator from Zhejiang Lishui. Built for reliable performance, this 7-ton machine delivers exceptional value at a fraction of new equipment costs.

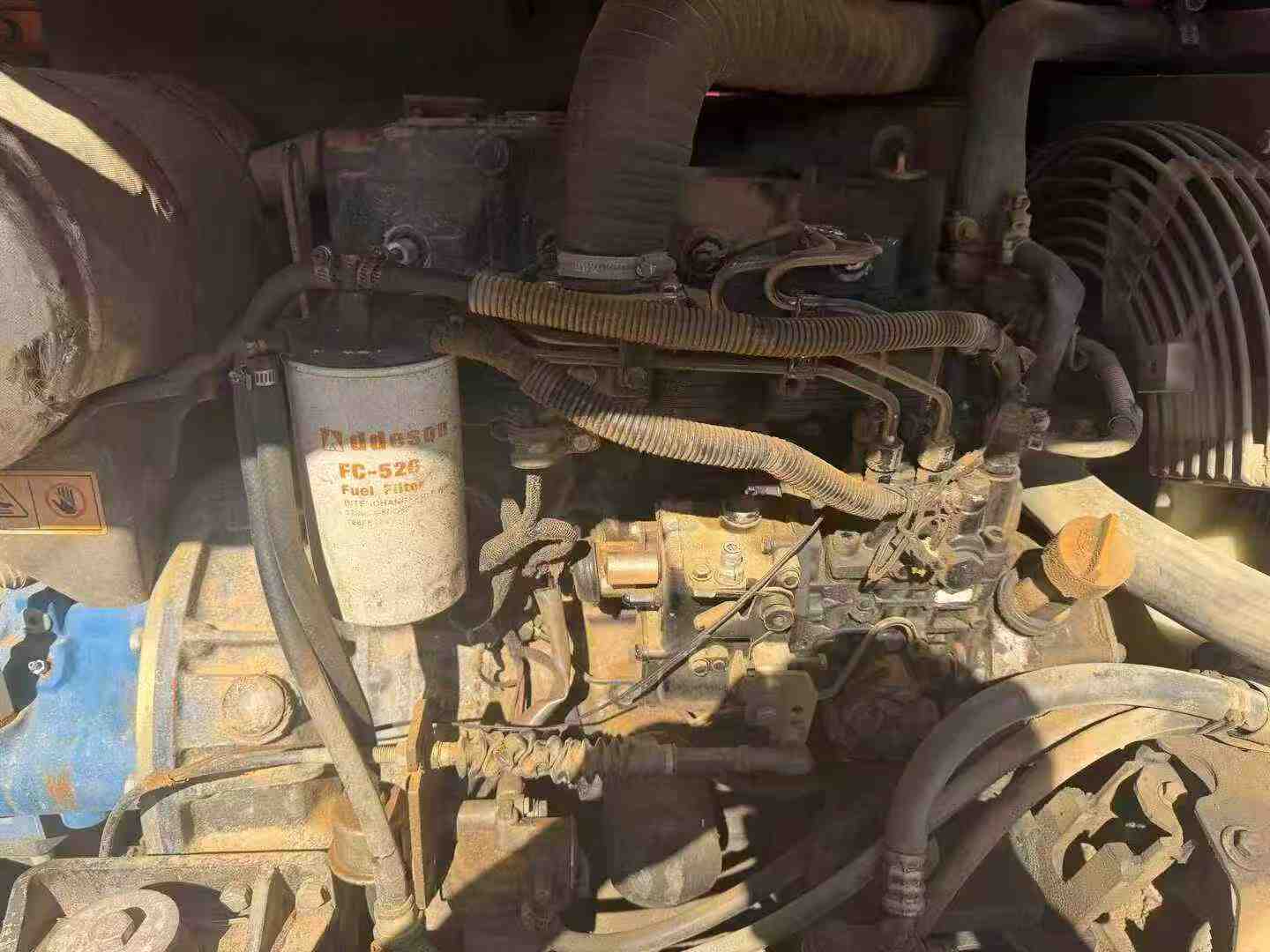

Powered by a robust Yanmar 4TNV94L engine producing 39.7kW, this compact excavator handles demanding jobsites with authority. Key specifications include 0.28m³ bucket capacity, 6.27m maximum digging radius, and 3.93m maximum digging depth. With 53.4kN bucket digging force and 36.9kN rod digging force, productivity remains consistently high across diverse applications.
- 7,350kg working weight for optimal stability

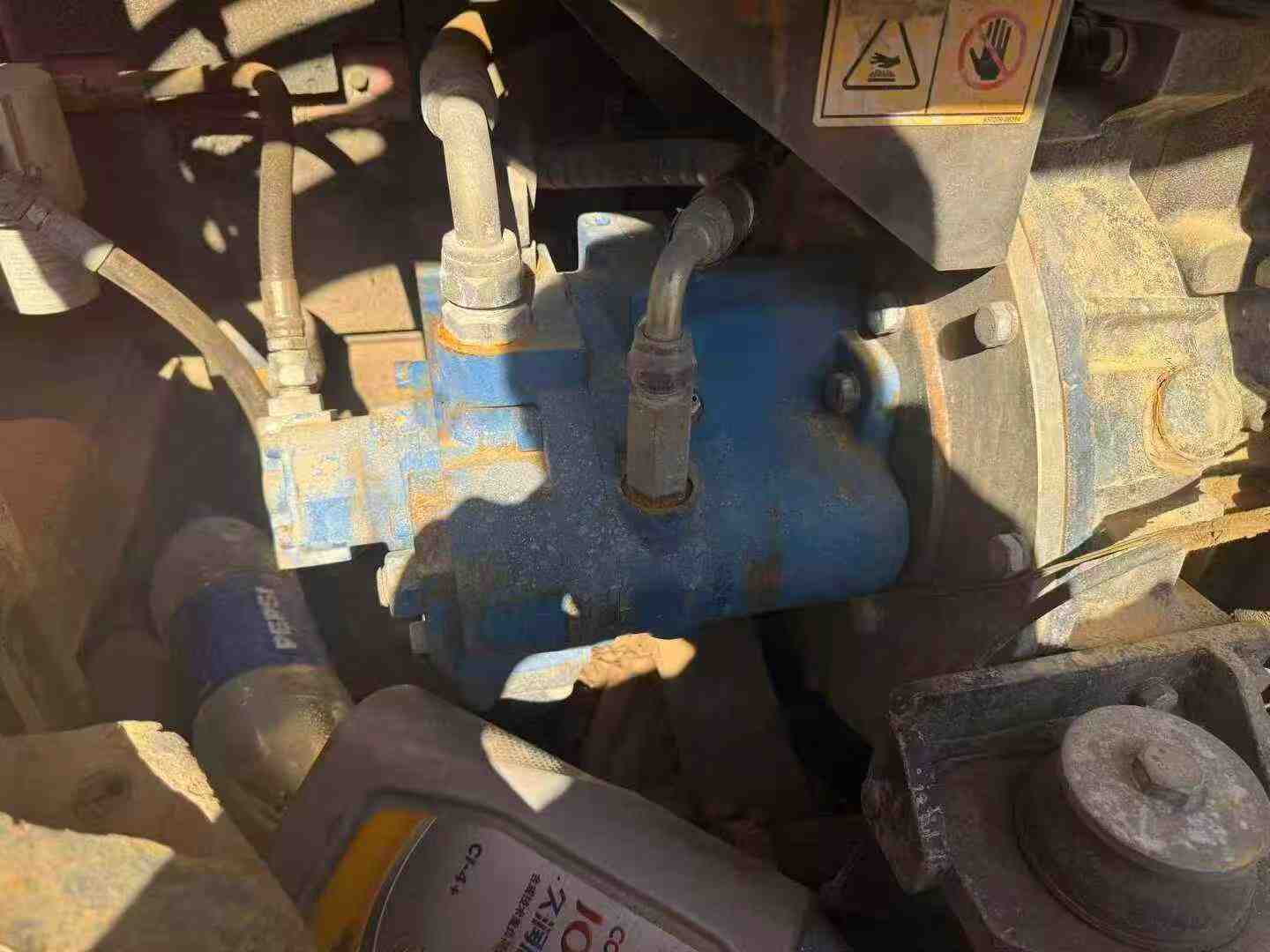

- Variable piston pump hydraulic system
- 30° climbing capability on challenging terrain
- 111L fuel tank for extended operation
- Compact 2.1m transport width for easy mobilization
Smart contractors choose quality used equipment that maintains performance standards while protecting capital. This DX75 represents proven Doosan engineering at an intelligent price point, ready for immediate deployment on your next project.
| Specifications | Value |
|---|---|
| No. | 989054 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7350 |
| Bucket capacity (m³) | 0.28 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 24.6/1475 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct spray |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 53.4 |
| Rod digging force (kN) | 36.9 |
| Travel speed (km/h) | 3.0 / 4.7 |
| Turning torque (Nm) | 23.4 ~ 24.6 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 111 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2100 |
| Total transport height (mm) | 2680(to top of cab) |
| Full cab height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1755 |
| Onboard width (mm) | 2130 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track ground length (mm) | 2110 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 3930 |
| Maximum excavation height (mm) | 7050 |
| Maximum unloading height (mm) | 5165 |
| Maximum vertical digging depth (mm) | 2570 |
| Dodging plate width × height (mm) | 2100 x 420 |
| Maximum excavation radius of stop surface (mm) | 6115 |
