Product Description

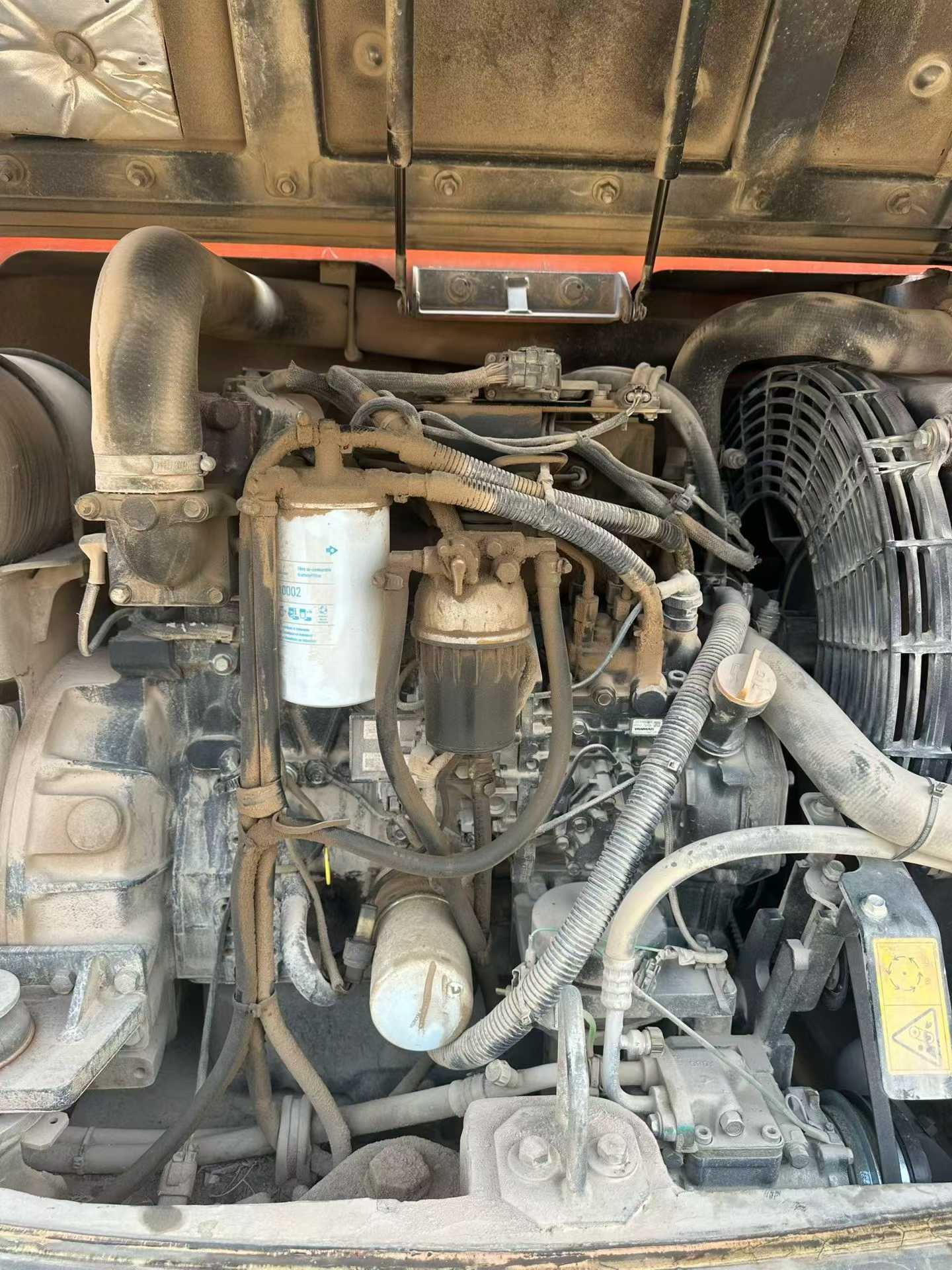

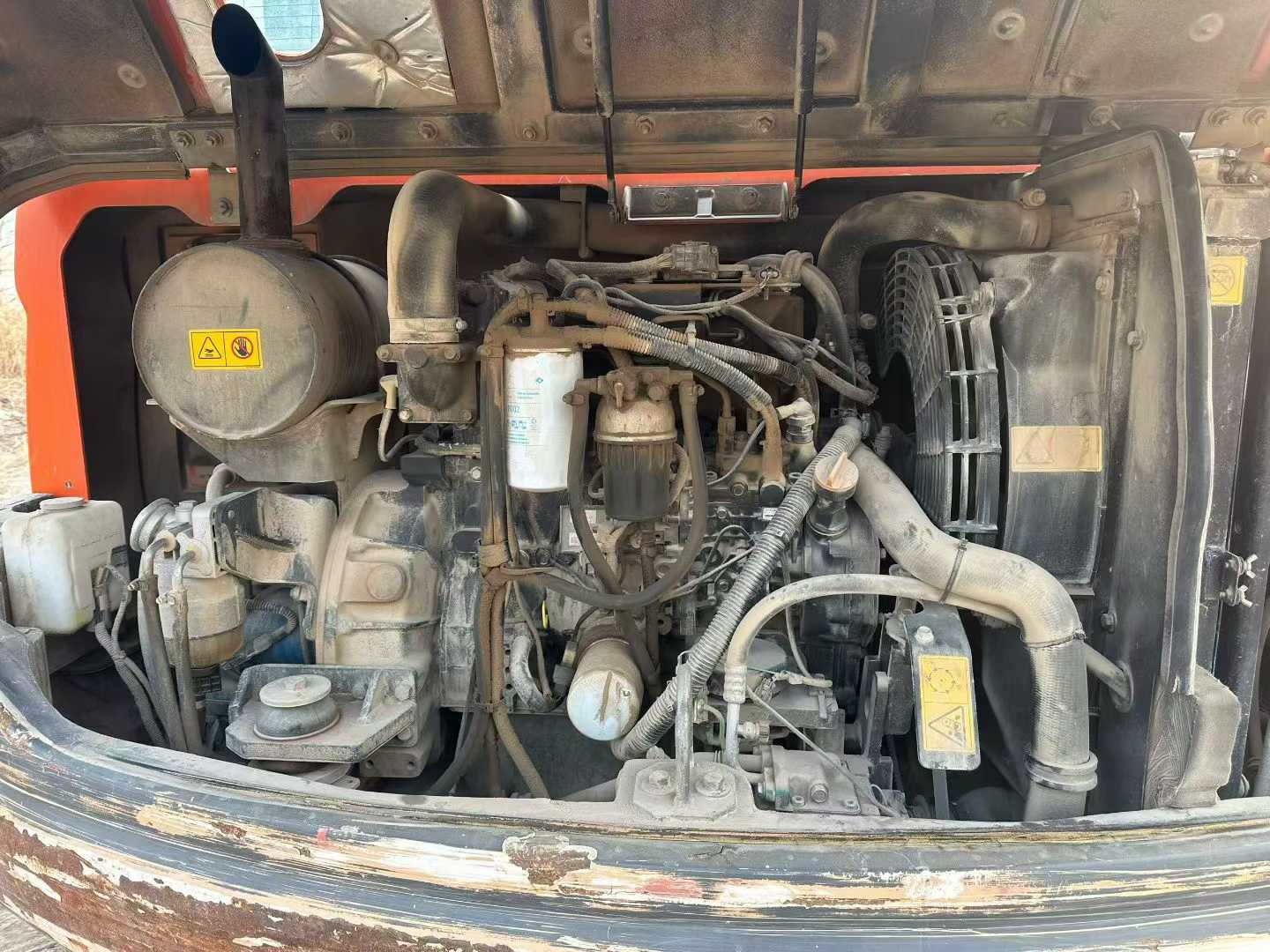

Equipped with a Yanmar 4TNV94L engine, this 2018 Doosan DX75 excavator delivers 39.7 kW of power at 2200 rpm, ensuring robust performance and reliability. With a working weight of 7350 kg and a bucket capacity of 0.28 m³, it is designed for precision and efficiency. The variable piston pump in the hydraulic system enhances control and responsiveness, making it ideal for a variety of construction tasks.
- Engine: 4-stroke, water-cooled, direct spray, 4 cylinders
- Rated power: 39.7 kW / 2200 rpm
- Maximum torque: 24.6 Nm / 1475 rpm
- Bucket digging force: 53.4 kN
- Rod digging force: 36.9 kN
- Travel speed: 3.0 / 4.7 km/h
- Turning torque: 23.4 ~ 24.6 Nm
Manufactured as a joint venture/import, this excavator boasts a high climbing ability of 30°, facilitating work on challenging terrains. Its compact design, with a total transport length of 6030 mm and width of 2100 mm, ensures easy maneuverability and transportation. The Doosan DX75 is a testament to superior engineering, offering a blend of power, efficiency, and versatility.
| Specifications | Value |
|---|---|
| No. | 990455 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7350 |
| Bucket capacity (m³) | 0.28 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 24.6/1475 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct spray |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 53.4 |
| Rod digging force (kN) | 36.9 |
| Travel speed (km/h) | 3.0 / 4.7 |
| Turning torque (Nm) | 23.4 ~ 24.6 |

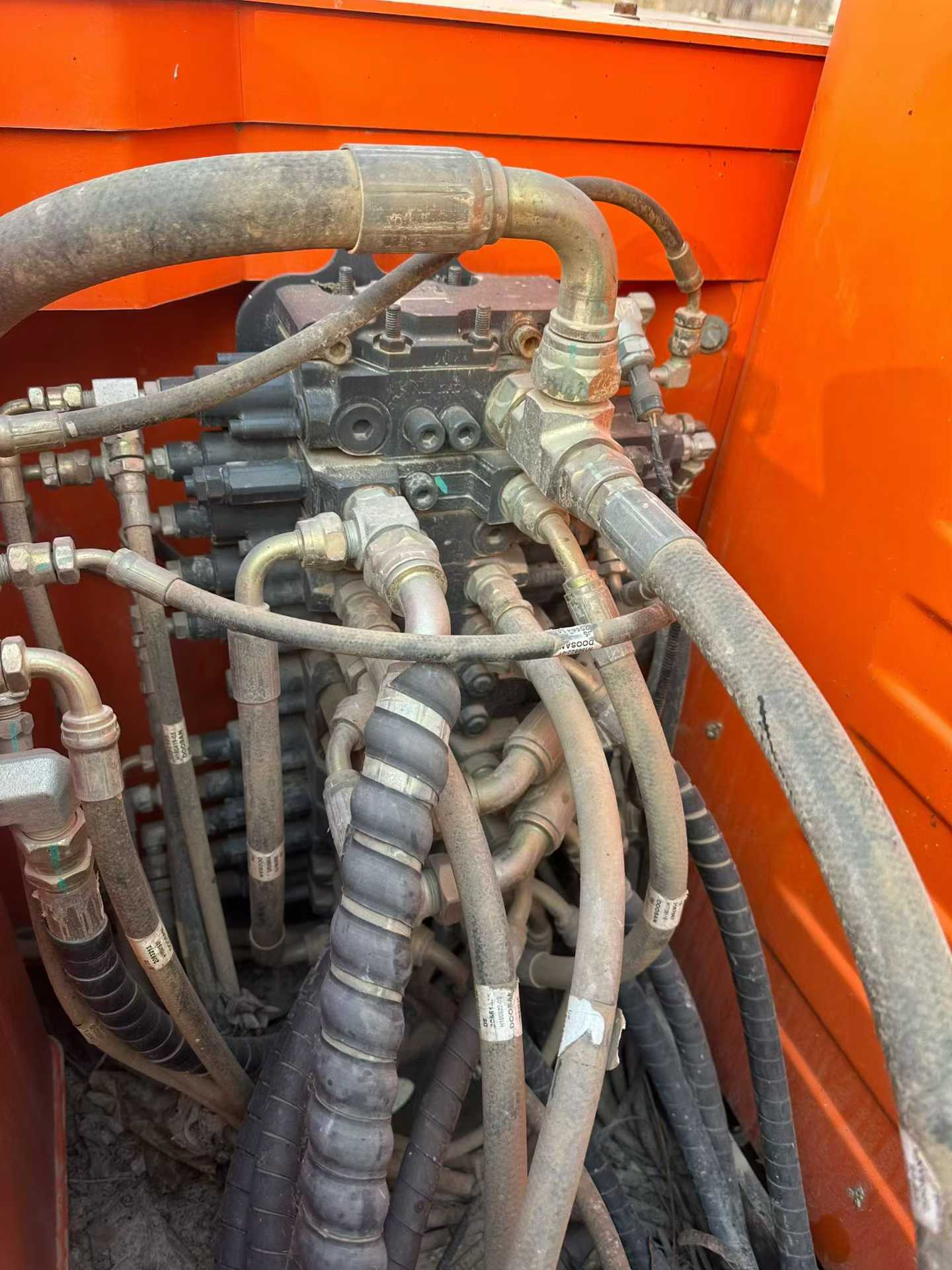

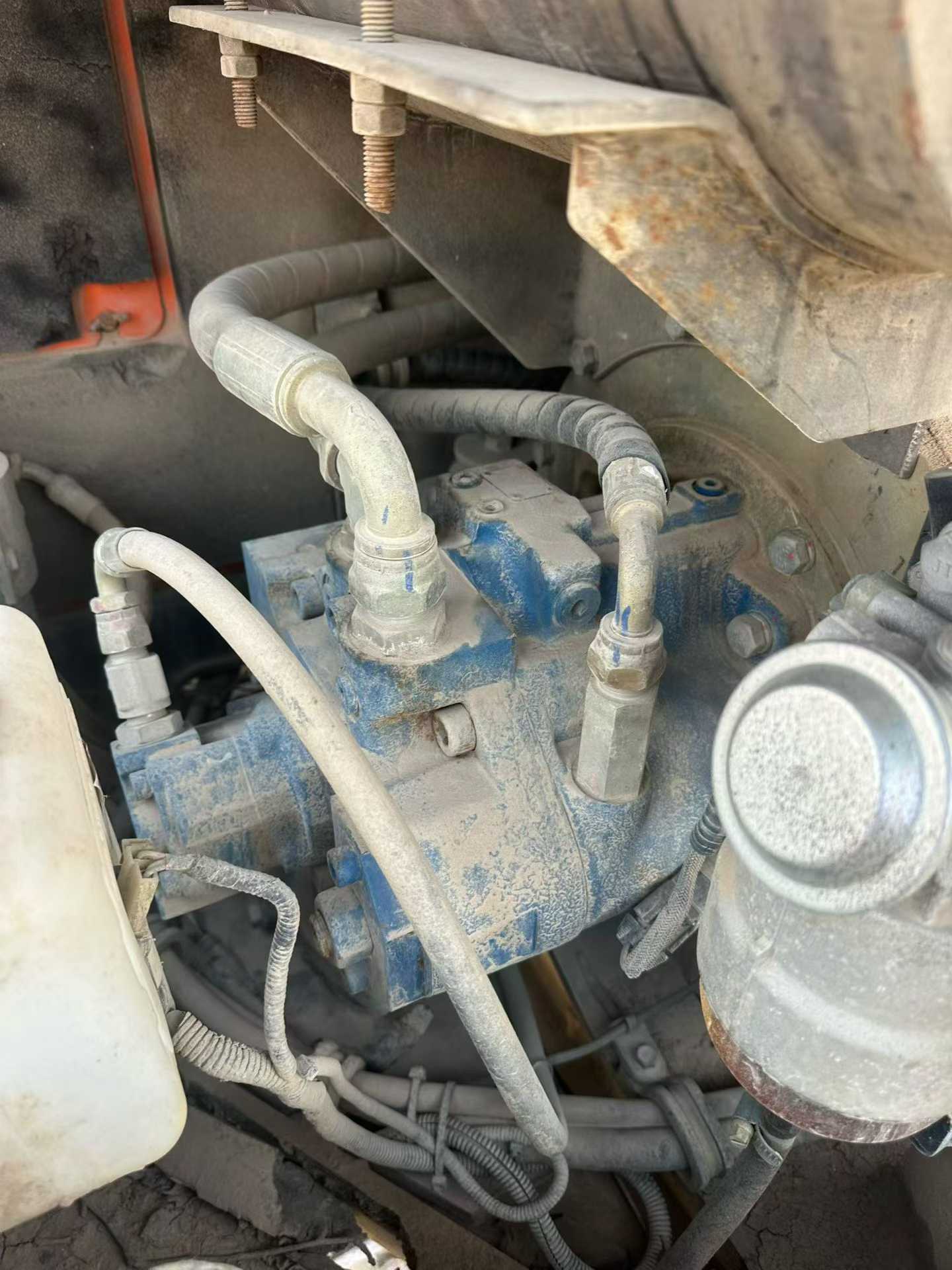

| Main pump type | Variable piston pump |
| Fuel Tank (L) | 111 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2100 |
| Total transport height (mm) | 2680(to top of cab) |
| Full cab height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1755 |
| Onboard width (mm) | 2130 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track ground length (mm) | 2110 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 3930 |
| Maximum excavation height (mm) | 7050 |
| Maximum unloading height (mm) | 5165 |
| Maximum vertical digging depth (mm) | 2570 |
| Dodging plate width × height (mm) | 2100 x 420 |
| Maximum excavation radius of stop surface (mm) | 6115 |
