Product Description

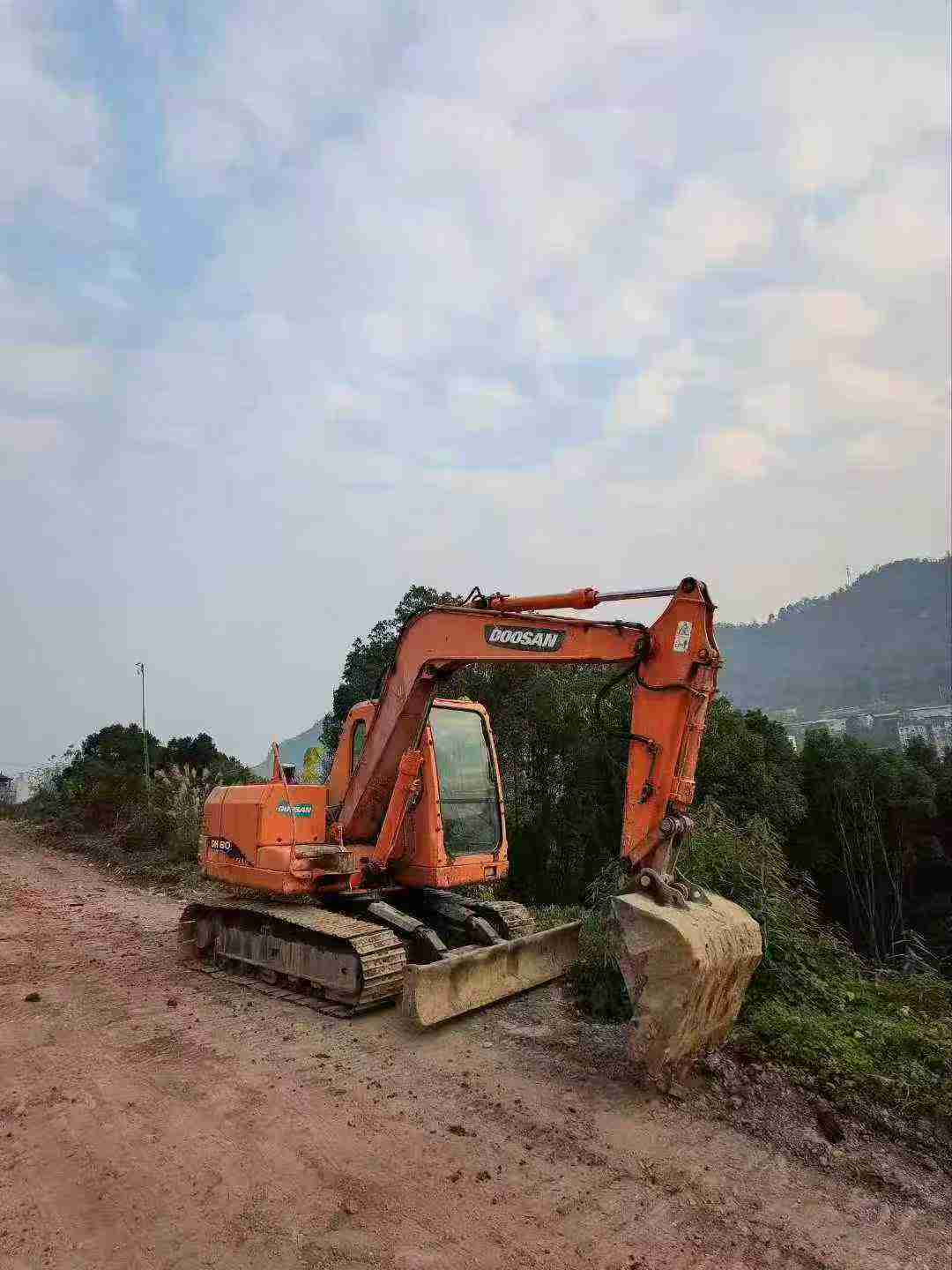

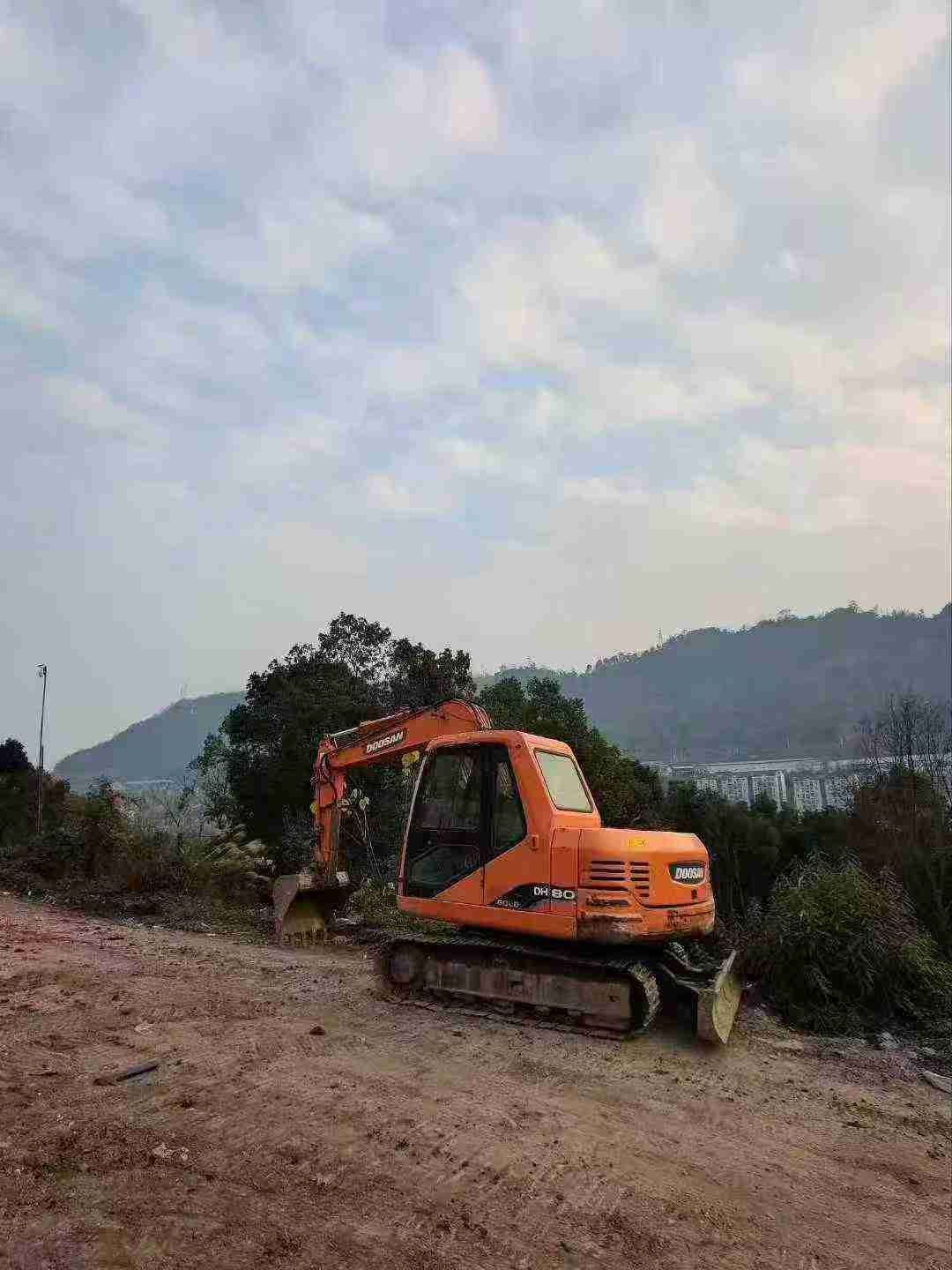

Maximize your construction budget with this proven 2013 Doosan DX80 excavator, delivering 8-ton performance at a fraction of new equipment costs. Built in Yantai with joint venture quality standards, this compact powerhouse features a reliable Yanmar 4TNV98 engine producing 41.4kW of consistent power for demanding jobsites.
Strategic specifications include:
- 0.30-0.32 m³ bucket capacity with 56kN digging force
- 6.35m maximum reach and 4.17m digging depth

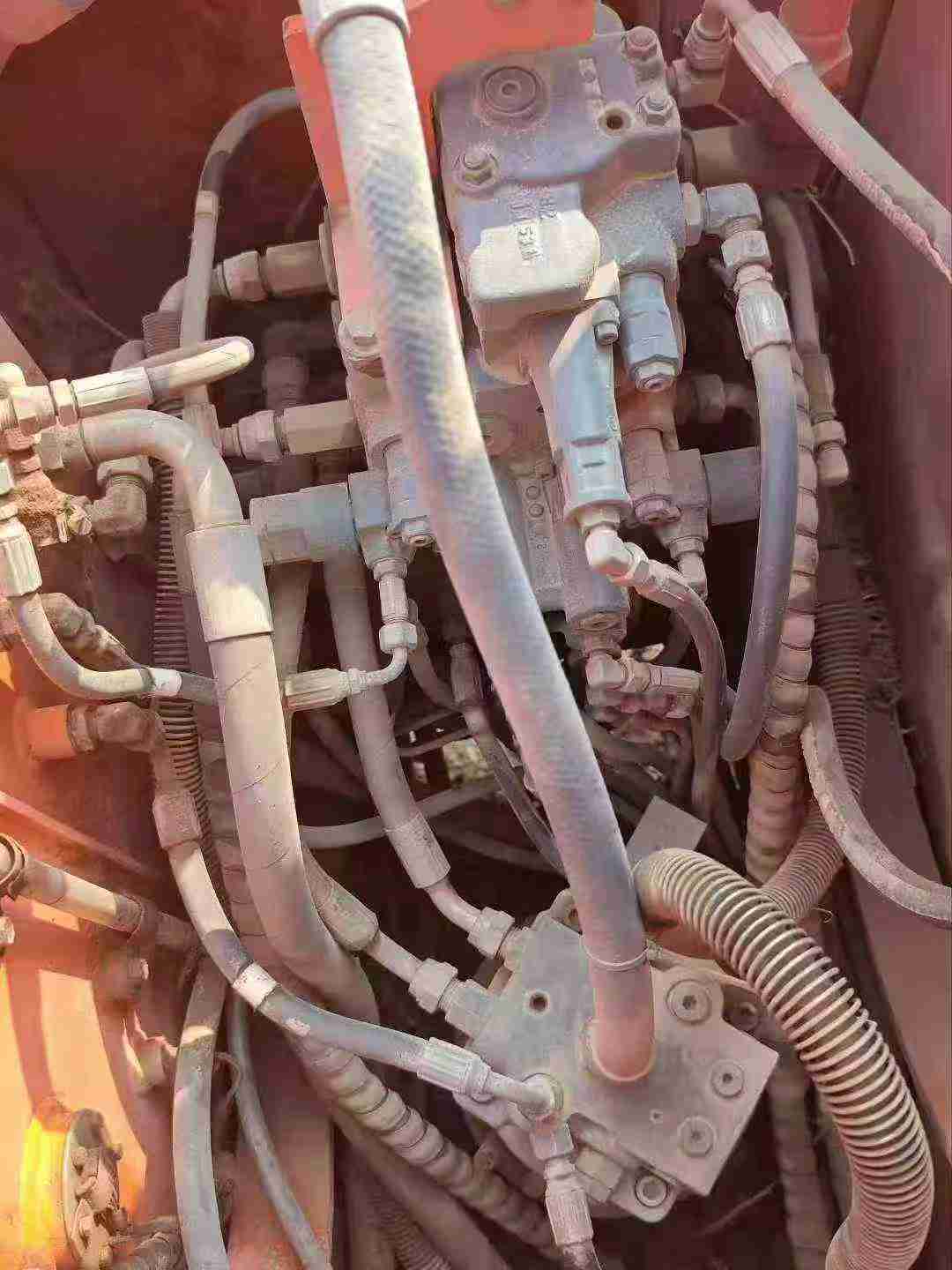

- Dual-circuit hydraulic system (75.6L/min main pumps)
- Compact 2.29m transport width for tight access
- 145L fuel capacity for extended operation cycles
Currently located in Sichuan Luzhou, this excavator represents smart capital allocation for contractors seeking reliable mid-size performance without new equipment depreciation. Proven 4-stroke, water-cooled engine technology ensures consistent productivity while maintaining lower operational costs compared to financing new machinery.
| Specifications | Value |
|---|---|
| No. | 991295 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

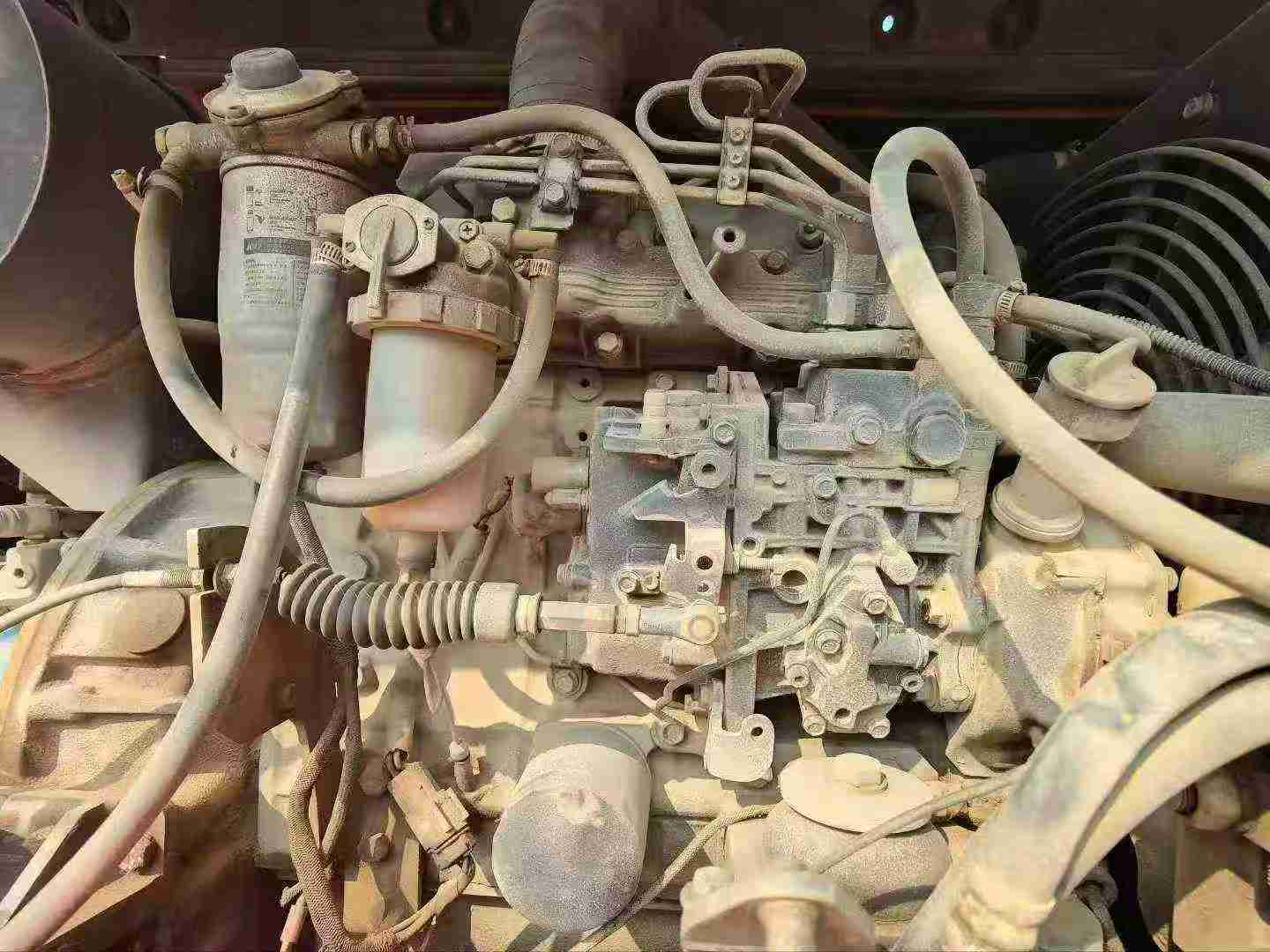

| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |
| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
