Product Description

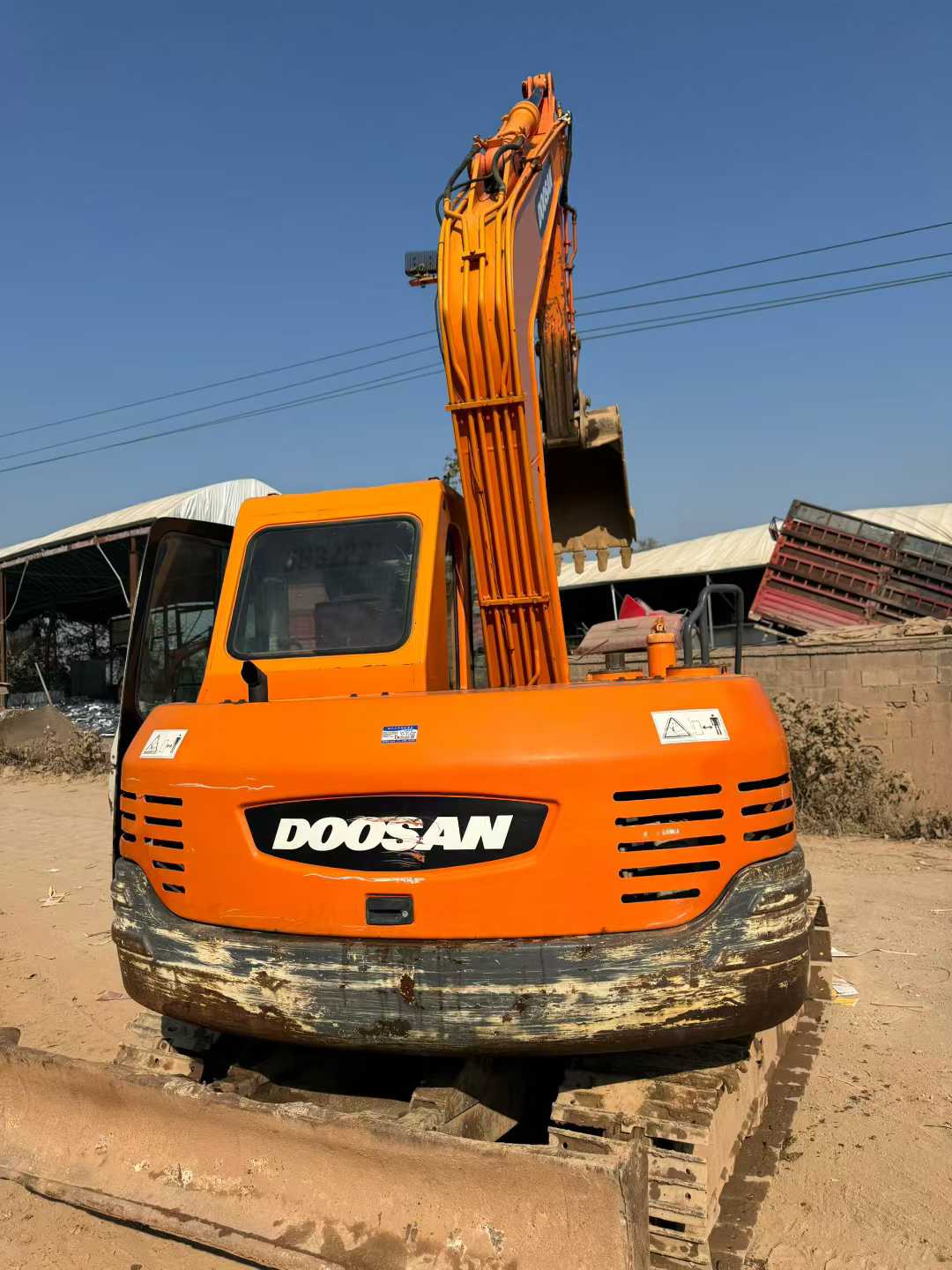

Strengthen your fleet operations with this reliable 2016 Doosan DX80 excavator, currently positioned in Zhejiang, China. Built for consistent performance, this 8-ton machine delivers the dependable backup power contractors need when primary equipment is committed to larger projects.
Powered by a proven Yanmar 4TNV98 engine generating 41.4kW at 2100 RPM, this compact excavator maintains productivity across diverse jobsites. Key operational specifications include:
- Maximum digging depth of 4,165mm with 6,350mm reach radius
- Bucket capacity range of 0.30-0.32m³ for versatile material handling
- 56kN bucket digging force ensuring efficient excavation
- Compact transport dimensions (6000 × 2290 × 2685mm) for easy mobilization
- 145L fuel capacity supporting extended operating periods
Perfect for contractors managing multiple concurrent projects, this DX80 provides immediate deployment capability without disrupting primary fleet schedules. Joint venture manufacturing ensures parts availability and service support throughout its operational lifecycle.
| Specifications | Value |
|---|---|
| No. | 969592 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |
| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
