Product Description

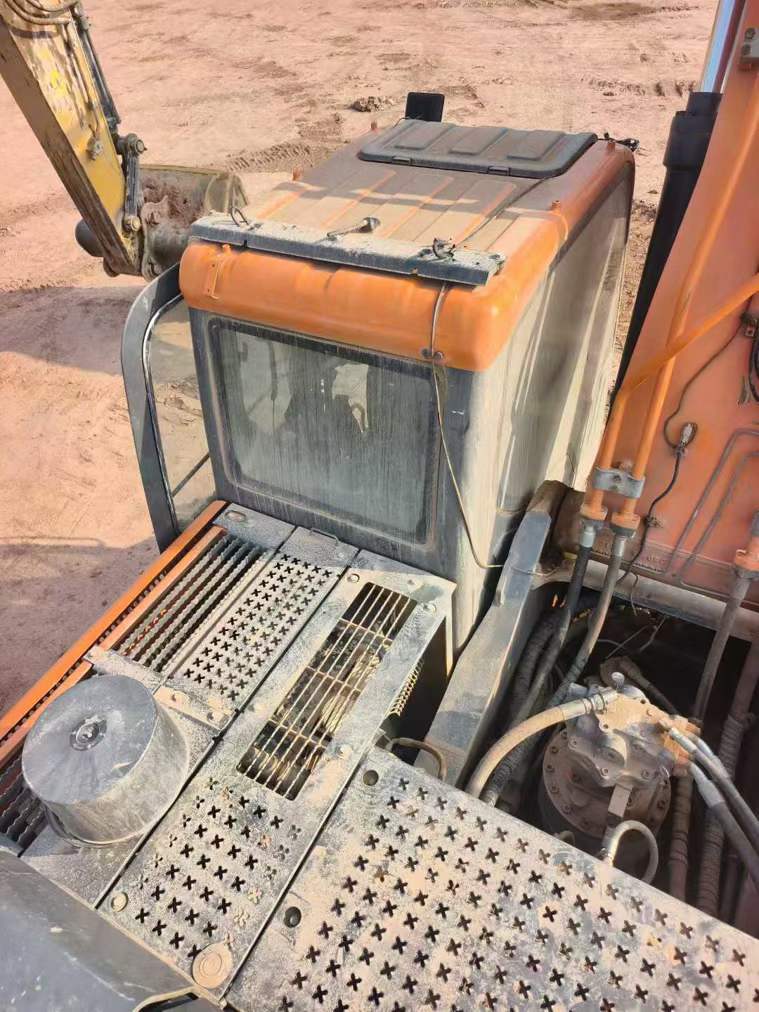

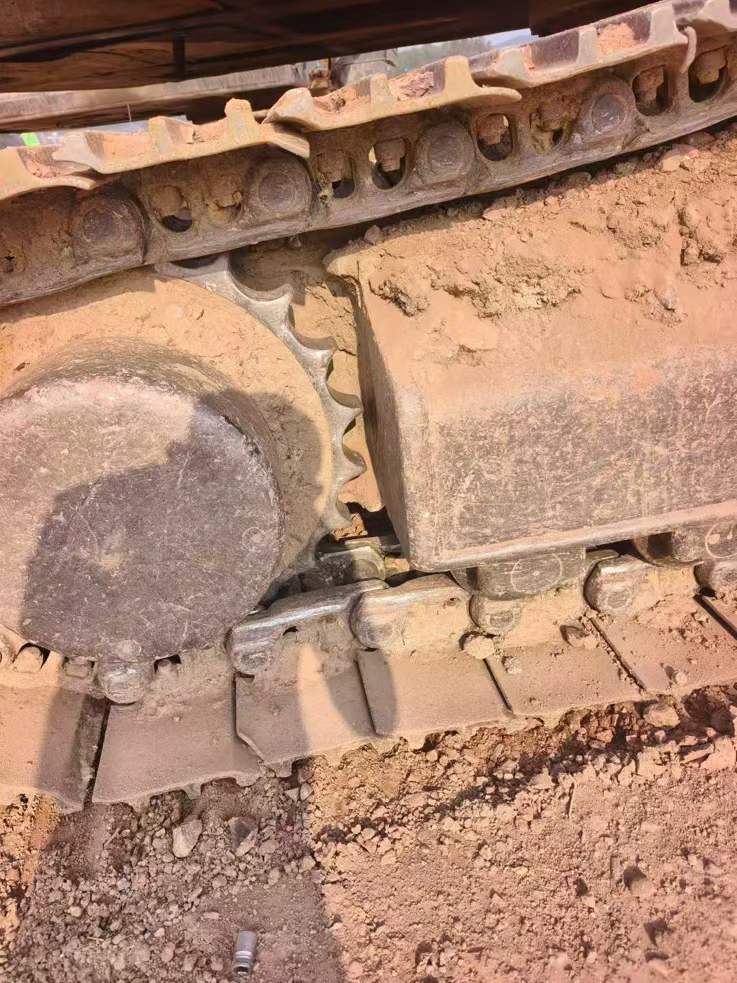

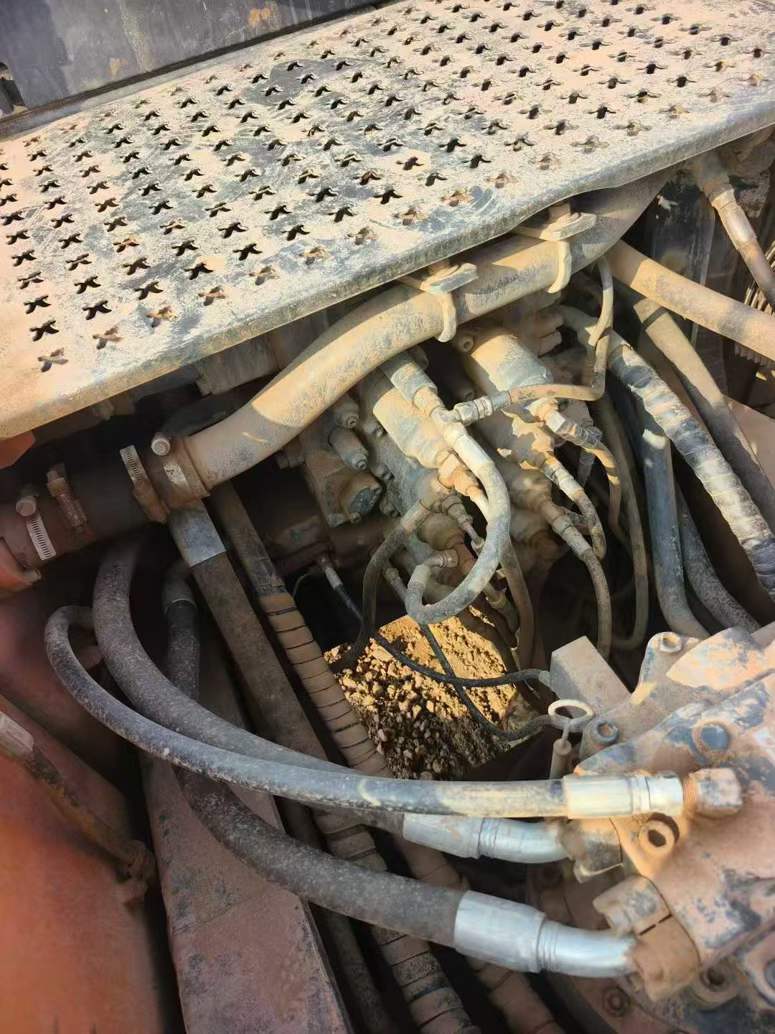

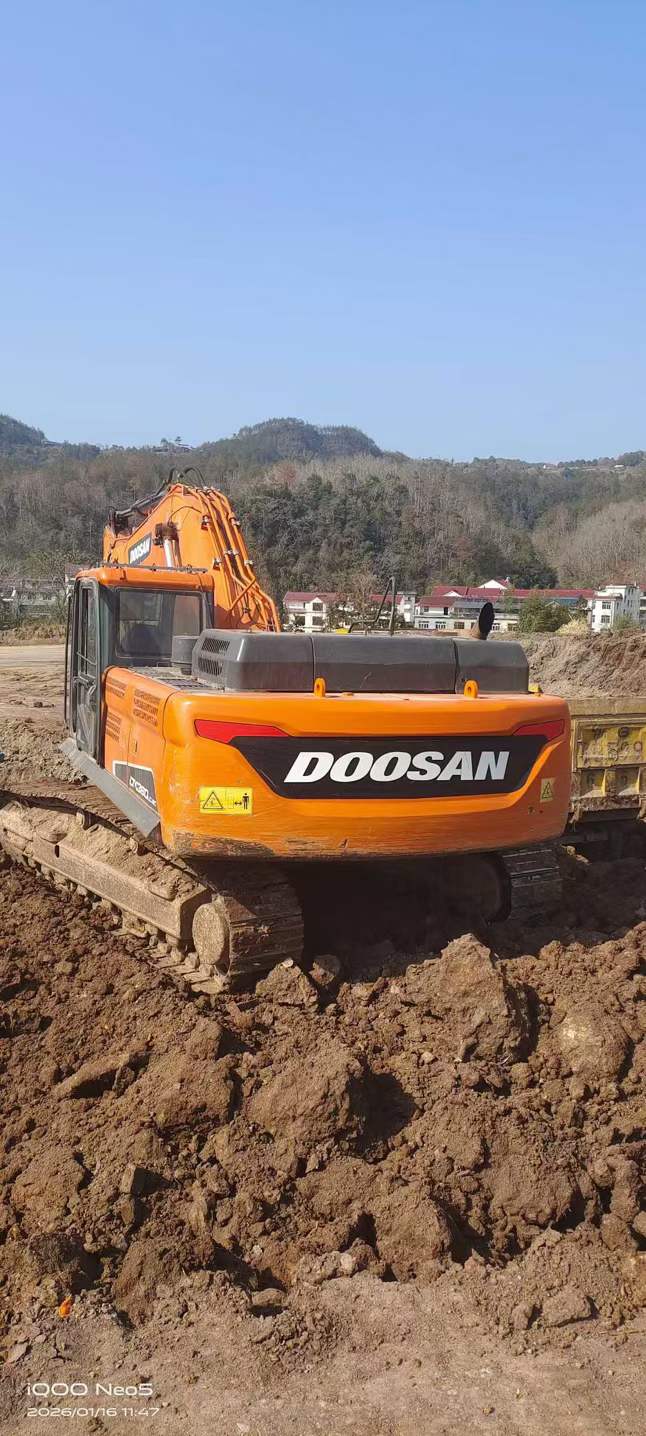

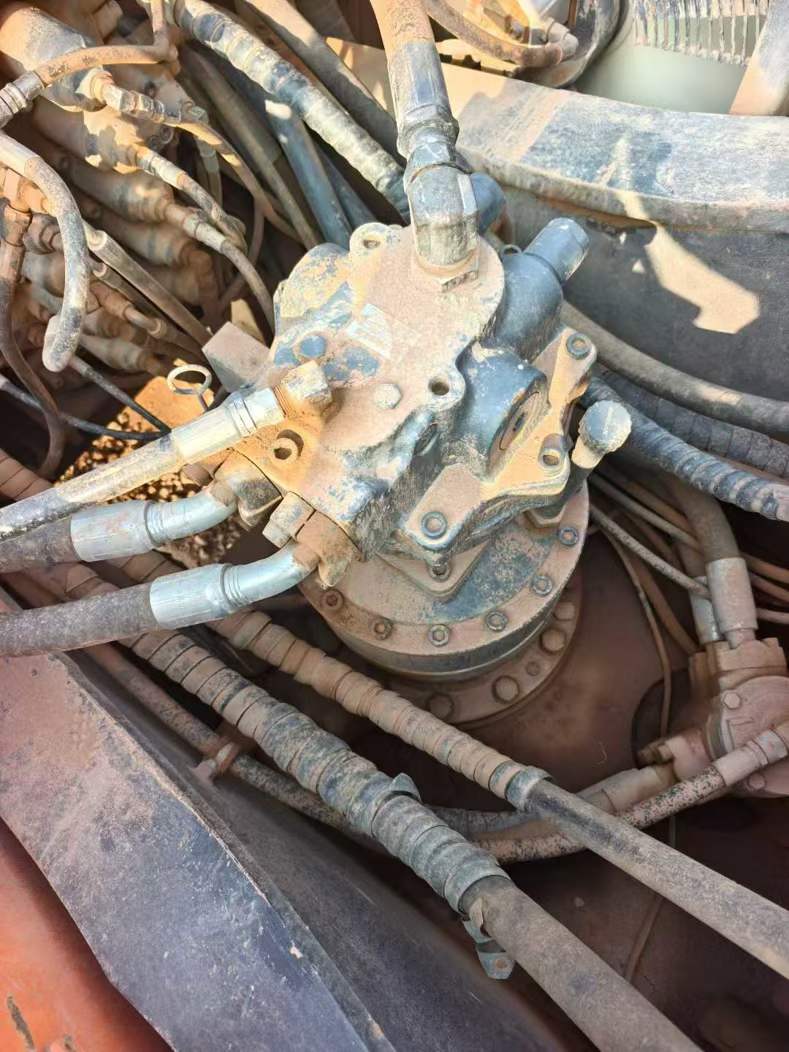

Engineered with precision hydraulics delivering 75.6 L/min dual-pump flow and 28 MPa working pressure, this 2020 Doosan DX80 represents proven mid-size excavator technology. Powered by a robust Yanmar 4TNV98 engine producing 41.4kW at 2100 RPM, this 8-ton machine combines reliable performance with efficient fuel consumption from its 145L tank.
Built in Yantai with joint-venture manufacturing standards, this DX80 features superior digging capabilities:
- Maximum digging reach: 6,350mm with 4,165mm depth capacity
- Bucket digging force: 56kN for challenging excavation tasks
- Compact 1,800mm rear swing radius for confined jobsites
- 30° climbing ability with 4.9 km/h travel speed
Currently located in Hangzhou, Zhejiang, this excavator maintains Doosan's reputation for hydraulic efficiency and structural durability. With 0.30-0.32m³ bucket capacity and 450mm track plates, it delivers optimal ground pressure distribution at 37 kPa. Professional inspection welcome.
| Specifications | Value |
|---|---|
| No. | 989194 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

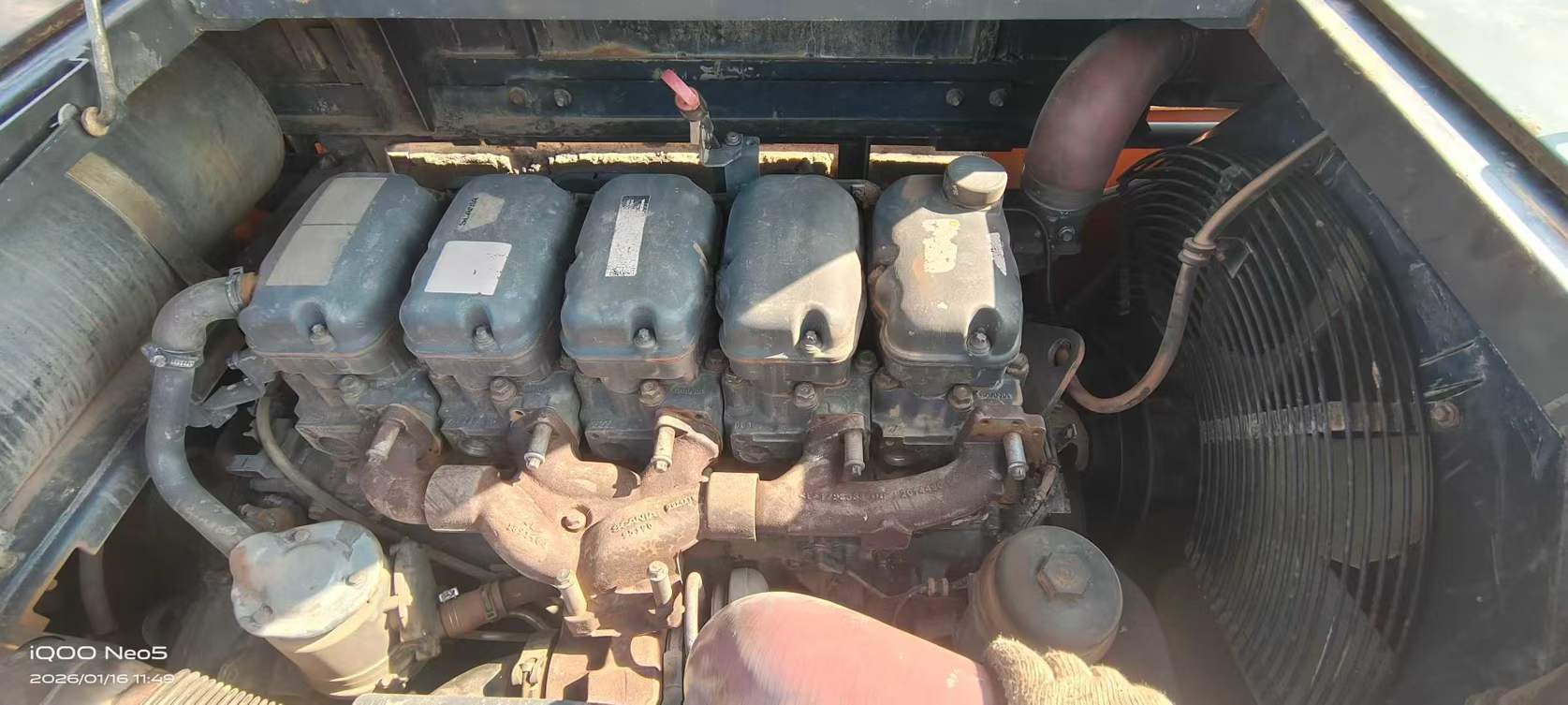

| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |
| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
