Product Description
Skip the factory lead times with this 2021 Doosan DX80 excavator, available now from our Zhejiang China facility. Built for 8-ton performance, this compact powerhouse delivers 56kN bucket digging force and 4165mm maximum digging depth through its reliable Yanmar 4TNV98 engine producing 41.4kW at 2100rpm.
Engineered for versatility, the DX80 combines a 0.30-0.32m³ bucket capacity with precise hydraulic control at 28MPa working pressure. Its 6350mm maximum digging radius and 30° climbing ability handle demanding jobsite conditions while maintaining 37kPa ground pressure for minimal surface impact.
- Immediate availability from Zhejiang distribution center
- Fast deployment to your construction site
- Proven 4-stroke, water-cooled direct injection system
- Compact 6000mm transport length fits standard trailers
- 145L fuel capacity for extended operation cycles
Ready for immediate shipment, this DX80 eliminates procurement delays and gets your project moving. Contact us today for fast delivery anywhere in the region.
| Specifications | Value |
|---|---|
| No. | 971416 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

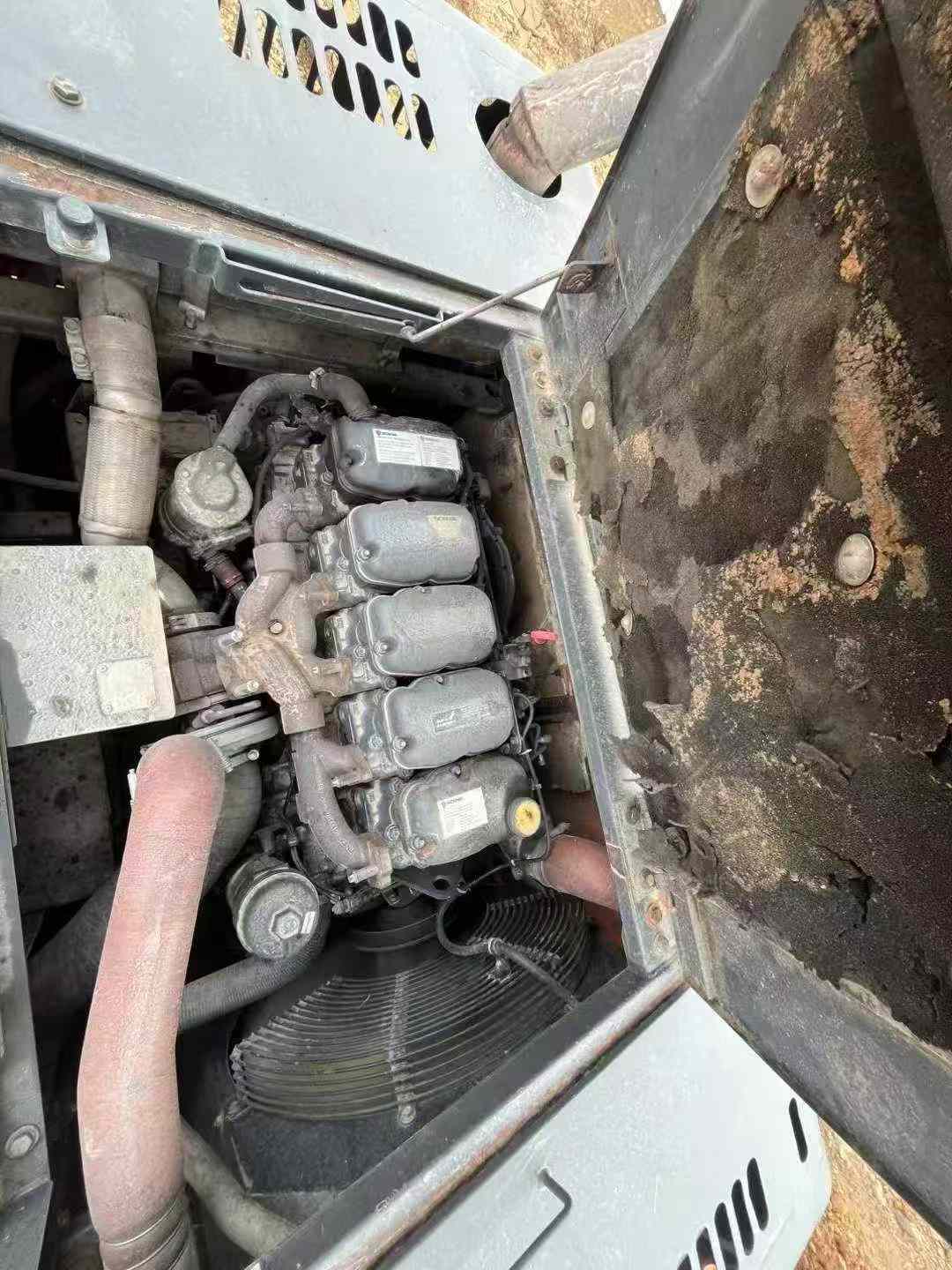

| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |
| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
