Product Description
Built for demanding excavation work, this 2014 Hitachi ZX120 delivers reliable 12-ton performance with proven ISUZU CC-4BG1TC engine technology. Currently located in Shandong Dongying, this machine combines 66kW rated power with precision hydraulic controls for consistent jobsite productivity.
Engineered with a 0.52m³ bucket capacity and 99kN digging force, this excavator handles foundation work, trenching, and material handling with professional-grade efficiency. Key operational specifications include:
- Maximum digging depth: 5.57m with 8.27m reach radius
- Dual-speed travel system: 3.4/5.5 km/h for versatile mobility
- 4-cylinder water-cooled engine with 4.329L displacement
- Variable piston pump hydraulics with 34.3 MPa system pressure
- 2490mm transport width for standard trailer compatibility

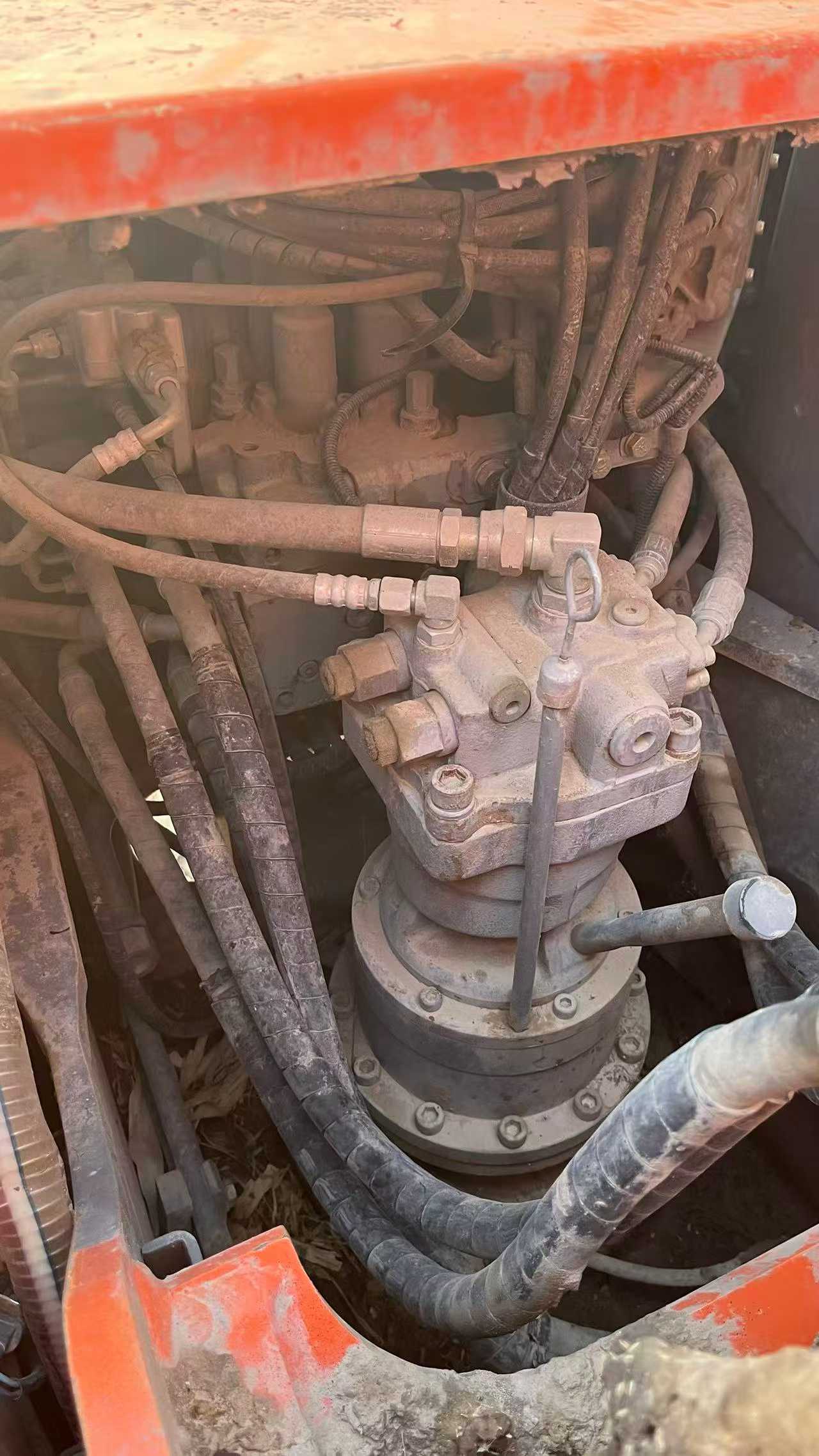

Factory-equipped with quantitative plunger rotation motor and dual variable piston pumps, this ZX120 maintains smooth operation across grading, demolition, and excavation applications. Ready for immediate deployment with 250L fuel capacity and proven Hitachi durability standards.
| Specifications | Value |
|---|---|
| No. | 988391 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
