Product Description

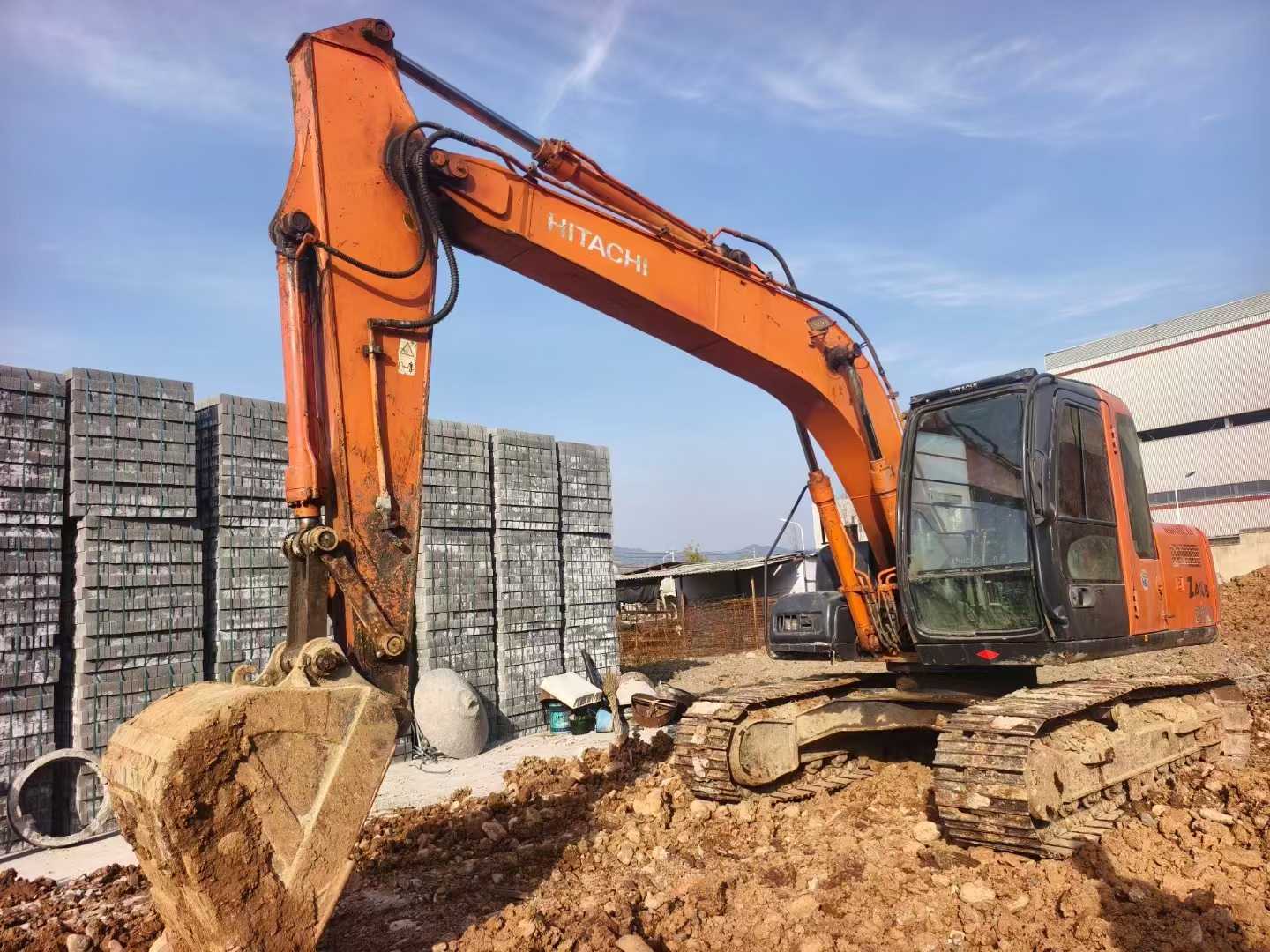

Strengthen your fleet operations with this reliable 2016 Hitachi ZX120 excavator, engineered for consistent performance in demanding construction environments. Built in Hefei with proven ISUZU CC-4BG1TC engine technology, this 12-ton workhorse delivers 66kW of power through a robust 4-cylinder, water-cooled system.
Key operational advantages include:
- 0.52m³ bucket capacity with 99kN digging force for efficient material handling
- 8.27m maximum reach radius covering extensive work zones
- Dual-speed travel system (3.4/5.5 km/h) for optimal site mobility
- 250L fuel capacity minimizing downtime between refueling
- Compact 2.49m transport width for easy trailer loading
Currently located in Hubei Province, this machine represents an ideal backup unit for contractors managing multiple projects simultaneously. With proven hydraulic systems featuring variable piston pumps and quantitative plunger rotation motor, expect dependable daily operation. Perfect for contractors seeking fleet expansion without compromising on established Hitachi reliability standards.
| Specifications | Value |
|---|---|
| No. | 989593 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

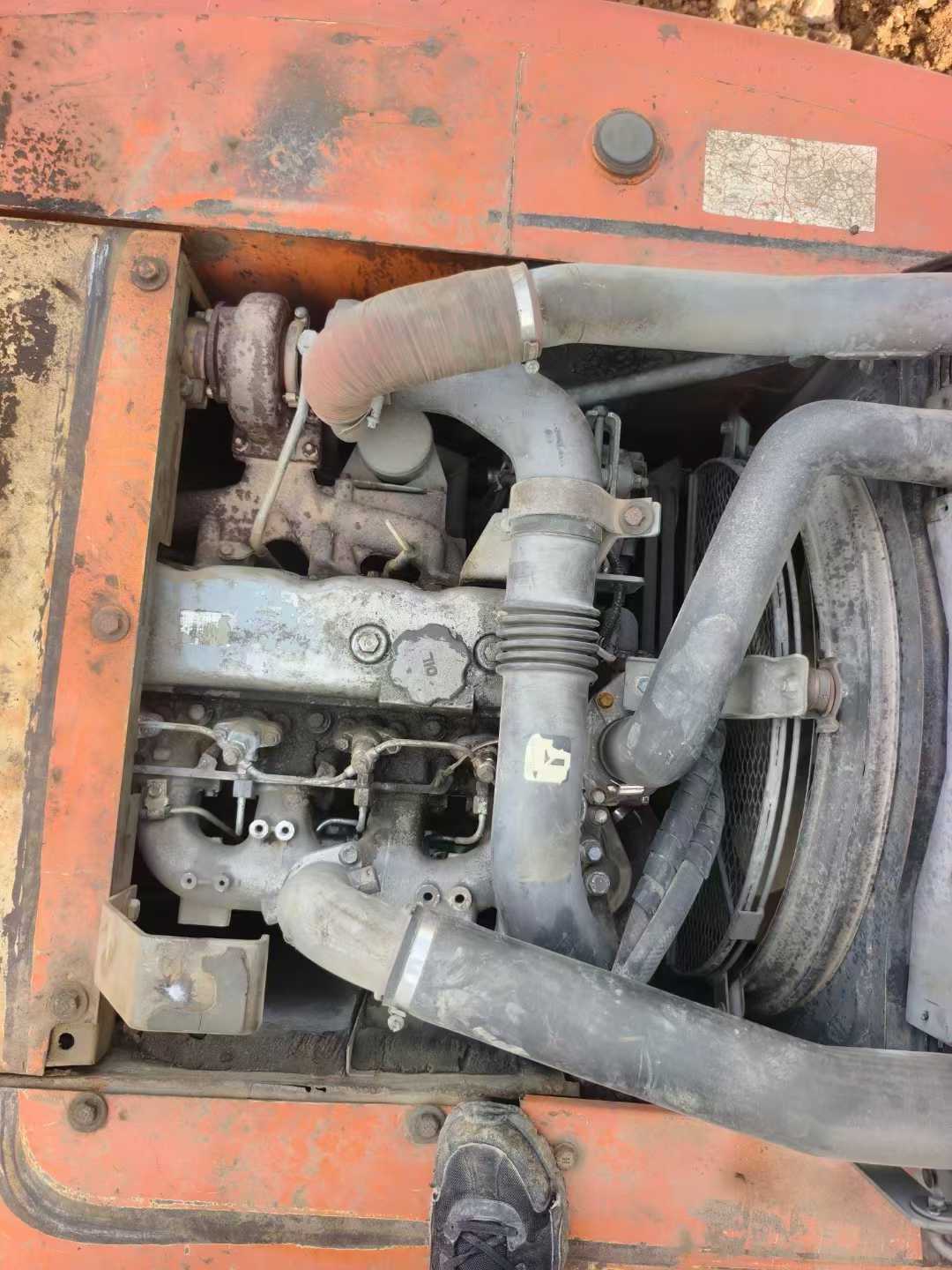

| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |

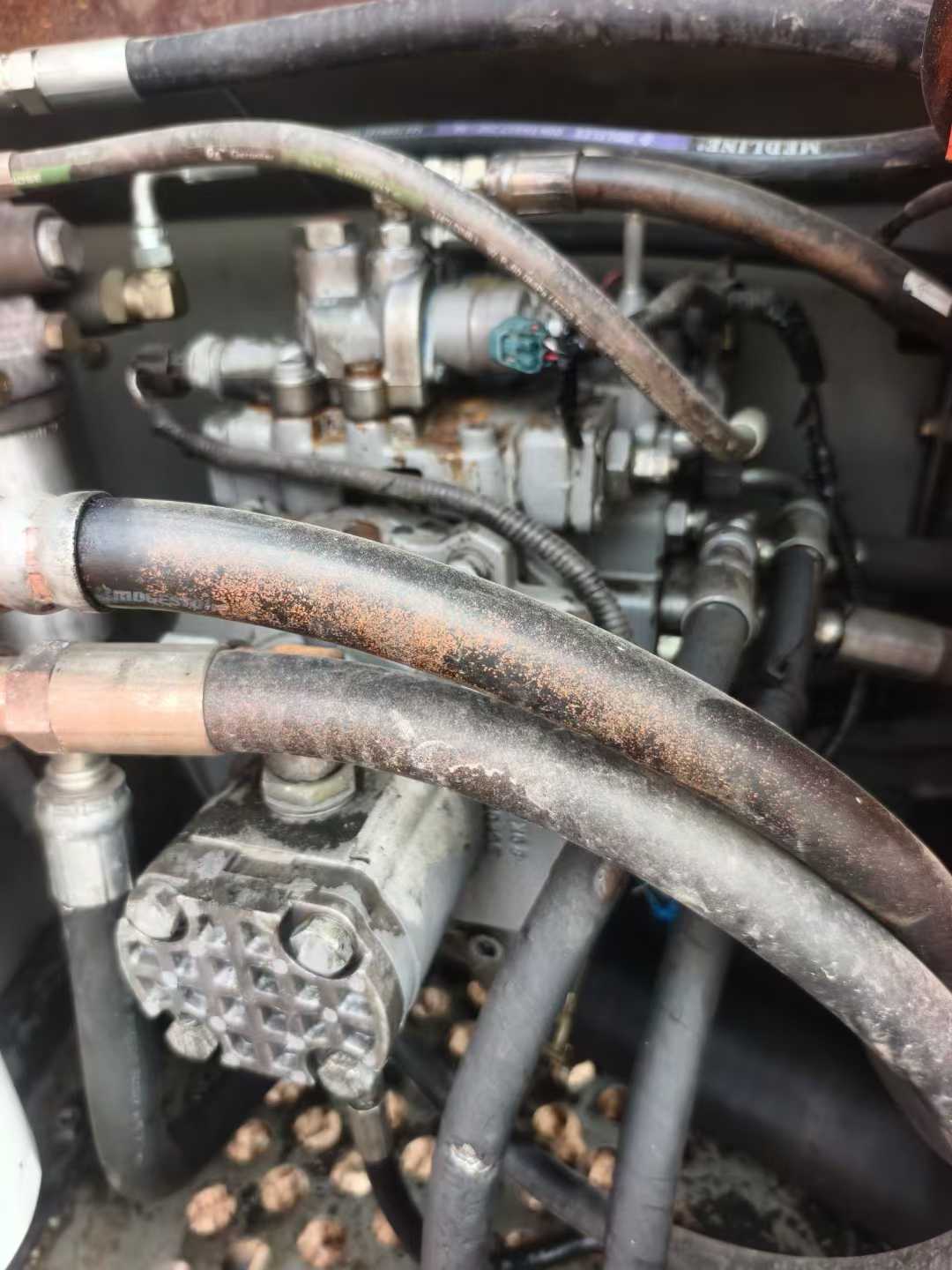

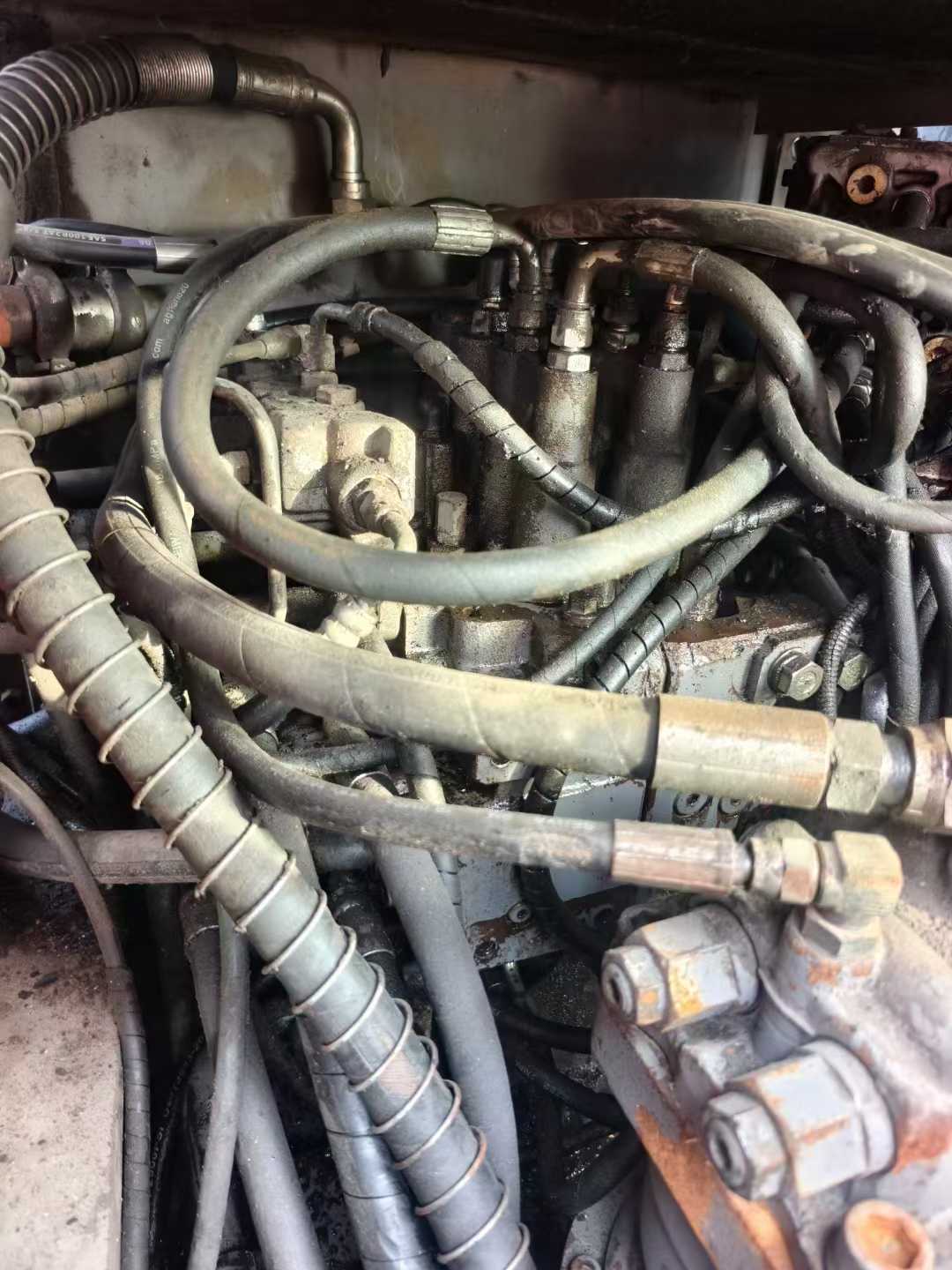

| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
