Product Description

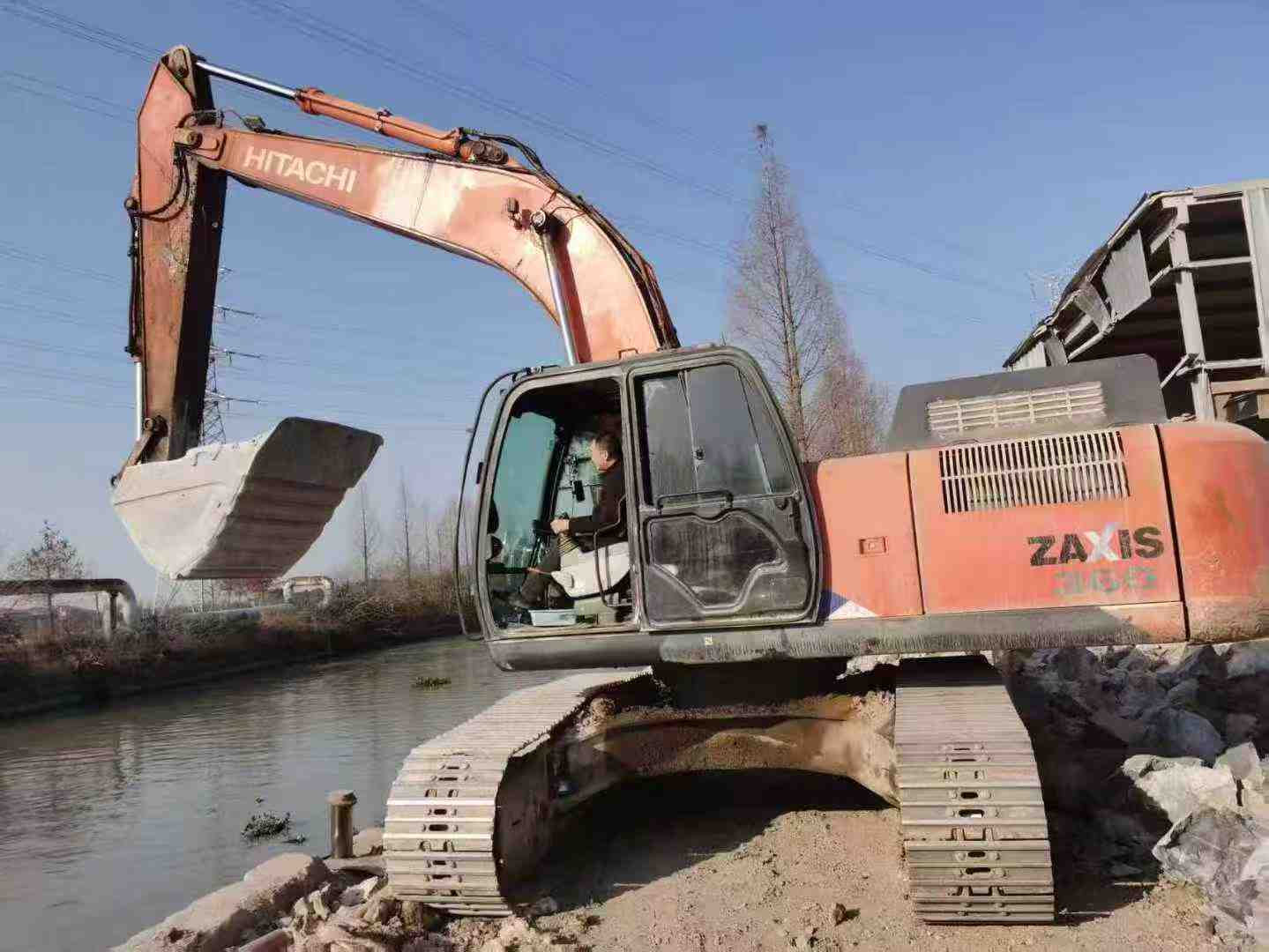

Built for demanding construction environments, this 2019 Hitachi ZX300-5A delivers exceptional operator control and jobsite performance. With 30-ton capacity and 171kW Isuzu engine power, operators benefit from precise hydraulic response and stable platform dynamics during extended work cycles.
Advanced cabin design provides superior visibility across the 10.79m maximum digging radius, while ergonomic controls reduce operator fatigue. The machine's 70% climbing ability and 57.8 KPa ground pressure ensure reliable traction on challenging terrain without excessive ground disturbance.

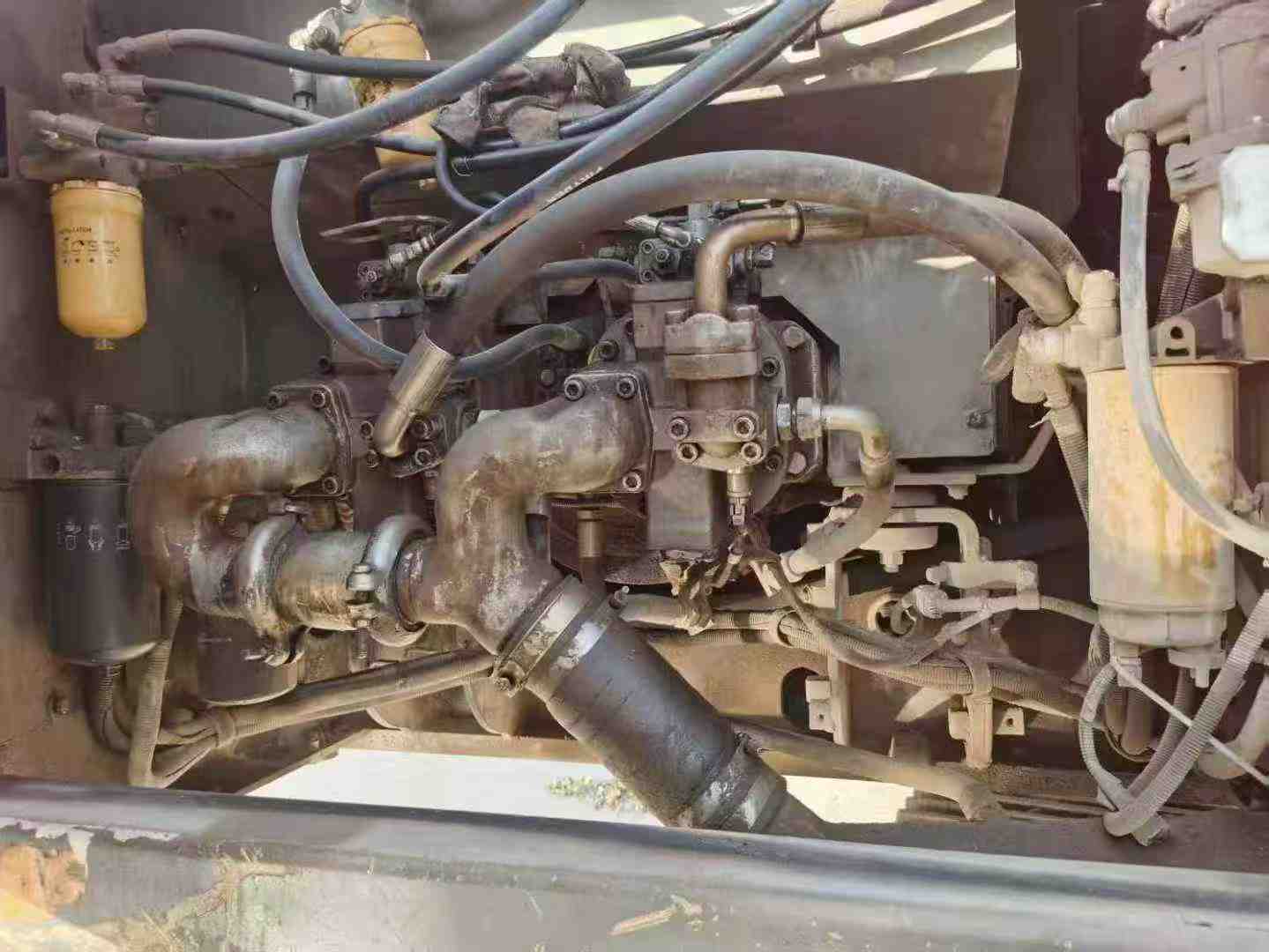

- Dual variable axial piston pumps (2 x 236 L/min) for responsive hydraulic performance
- 202kN bucket digging force with 1.4-1.62m³ capacity range
- Water-cooled 6-cylinder engine with electronic fuel injection
- 3900mm minimum turning radius for confined workspace maneuverability
- 510L fuel capacity supporting extended operational periods
Currently located in Shaoxing, Zhejiang Province, this excavator combines proven Hitachi engineering with operator-focused design elements that maximize productivity and comfort during heavy-duty applications.
| Specifications | Value |
|---|---|
| No. | 989326 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 28800-29000 |
| Bucket capacity (m³) | 1.4-1.62 |
| Boom length (mm) | 6200 |
| Rod length (mm) | 3110 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GH-6HK1XKSA-02 |
| Rated power (kw/rpm) | 171/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 ×125 |
| Maximum torque (N.m) | 1014/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.790 |
| Working form | 4 stroke, water cooled, electrically controlled direct injection |
| Ground specific pressure (Kpa) | 57.8-58 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 202 |
| Rod digging force (kN) | 144 |
| Maximum tractive force (kN) | 246 |
| Travel speed (km/h) | 3.3-5.5 |
| Turning torque (Nm) | 91 |
| Rotary hydraulic motor type | 1 swashplate plunger motor |
| Type of walking hydraulic motor | 2 variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 236 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Main pump type | 2 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 30 |
| Pilot pump type | 1 gear pump |
| Fuel Tank (L) | 510 |
| Hydraulic Tank (L) | 156 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 290 |
| Total transport length (mm) | 10620 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3200 |
| Full cab height (mm) | 3120 |
| Counterweight ground clearance (mm) | 1130 |
| Minimum ground clearance (mm) | 510 |
| Minimum turning radius of front working device (mm) | 3900 |
| Back end turning radius (mm) | 3250 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3730 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10790 |
| Maximum digging depth (mm) | 7300 |
| Maximum excavation height (mm) | 10350 |
| Maximum unloading height (mm) | 7250 |
| Maximum vertical digging depth (mm) | 6530 |
| Maximum excavation radius of stop surface (mm) | 10600 |
