Product Description
Maximize your construction budget with this proven 2014 Hitachi ZX60 compact excavator from Fujian Province. Built in Hefei with Japanese engineering standards, this 6-ton workhorse delivers exceptional value at a fraction of new equipment costs.

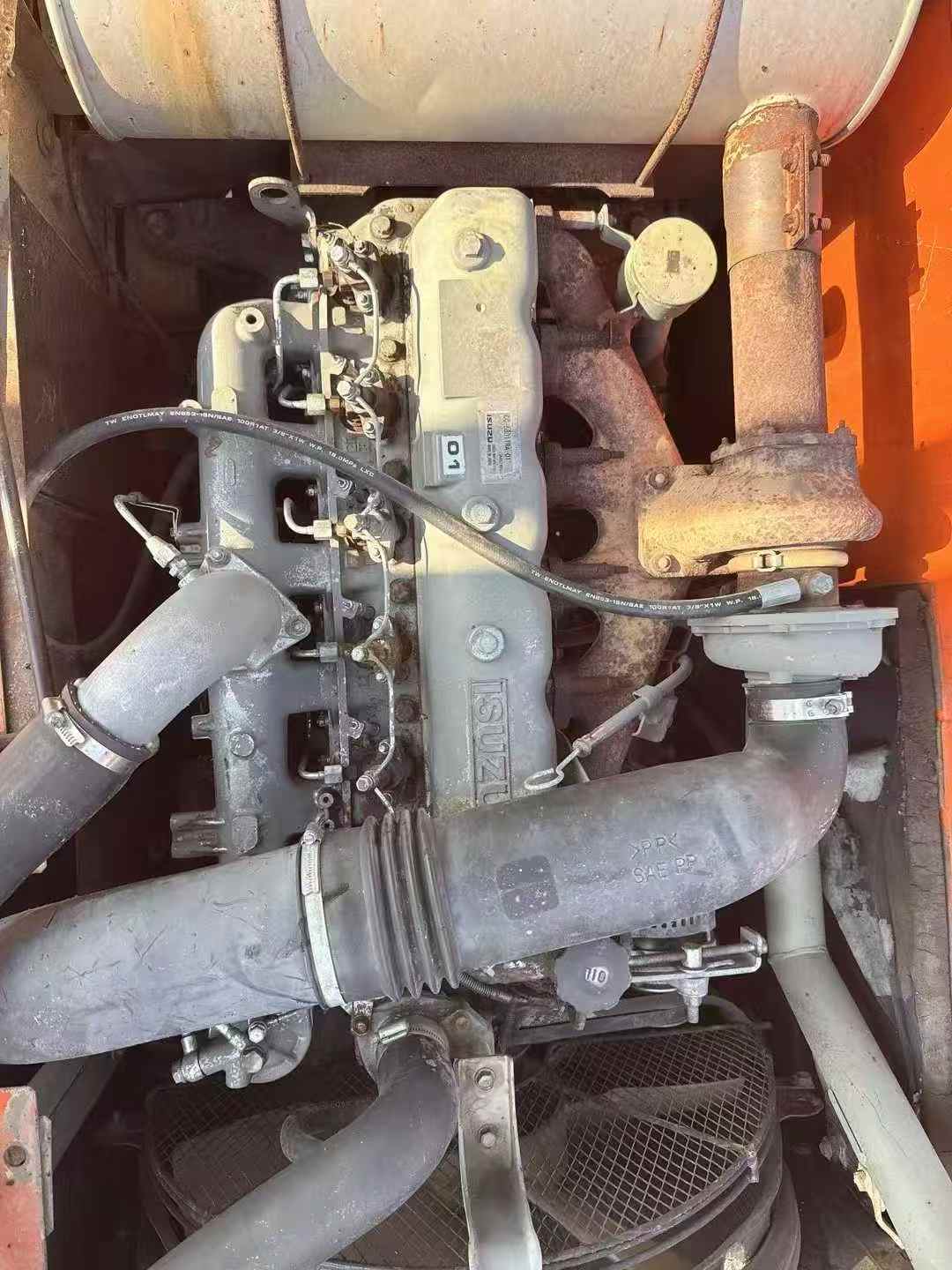

Powered by a reliable ISUZU 4JG1 engine producing 40.5kW, this machine combines fuel efficiency with robust performance. The 0.22m³ bucket capacity and 41.4kN digging force handle demanding excavation tasks, while the 6.25m maximum reach provides versatility across job sites.
- Compact 2.06m transport width fits tight access areas

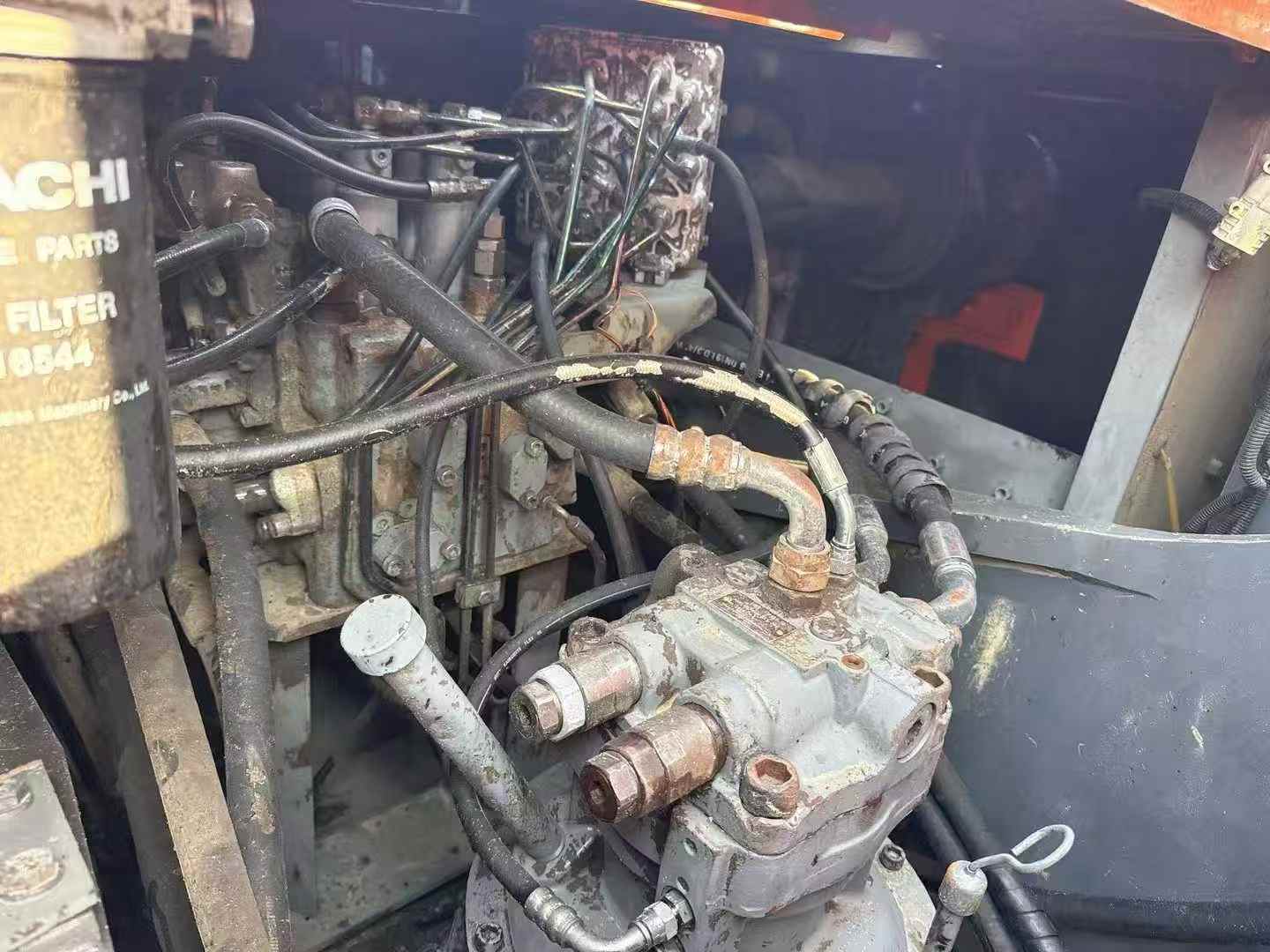

- Advanced hydraulic system with variable piston pumps ensures smooth operation
- 70% climbing capability tackles challenging terrain
- 120L fuel tank minimizes downtime
- Proven track record with proper maintenance history
Smart contractors choose quality used equipment that maintains productivity without the depreciation hit. This ZX60 offers years of reliable service at substantial savings compared to new alternatives. Ready for immediate deployment on your next project.
| Specifications | Value |
|---|---|
| No. | 988347 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
