Product Description
Built for precision and reliability, this 2014 Hitachi ZX60 compact excavator delivers exceptional performance in tight spaces. With its 6-ton operating weight and ISUZU CC-4JG1 engine producing 40.5kW at 2100 rpm, operators benefit from consistent power delivery and fuel efficiency from the 120L tank.
Superior operator comfort comes standard with excellent cabin visibility and intuitive controls. The machine's 9.3 rpm rotation speed and 2510mm minimum turning radius enable smooth maneuvering around obstacles, while the robust hydraulic system provides 41.4kN bucket digging force for demanding excavation tasks.
- Maximum digging depth: 3850mm with 6250mm reach
- Dual-speed travel: 2.5/4.5 km/h for versatility
- 400mm track plates ensure excellent stability
- Water-cooled 4-cylinder engine for reliable operation
- Compact 6060mm transport length fits standard trailers
Currently located in Ningbo, Zhejiang Province, this well-maintained excavator represents proven Japanese engineering ideal for construction, landscaping, and utility work requiring precision handling in confined areas.
| Specifications | Value |
|---|---|
| No. | 989145 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |

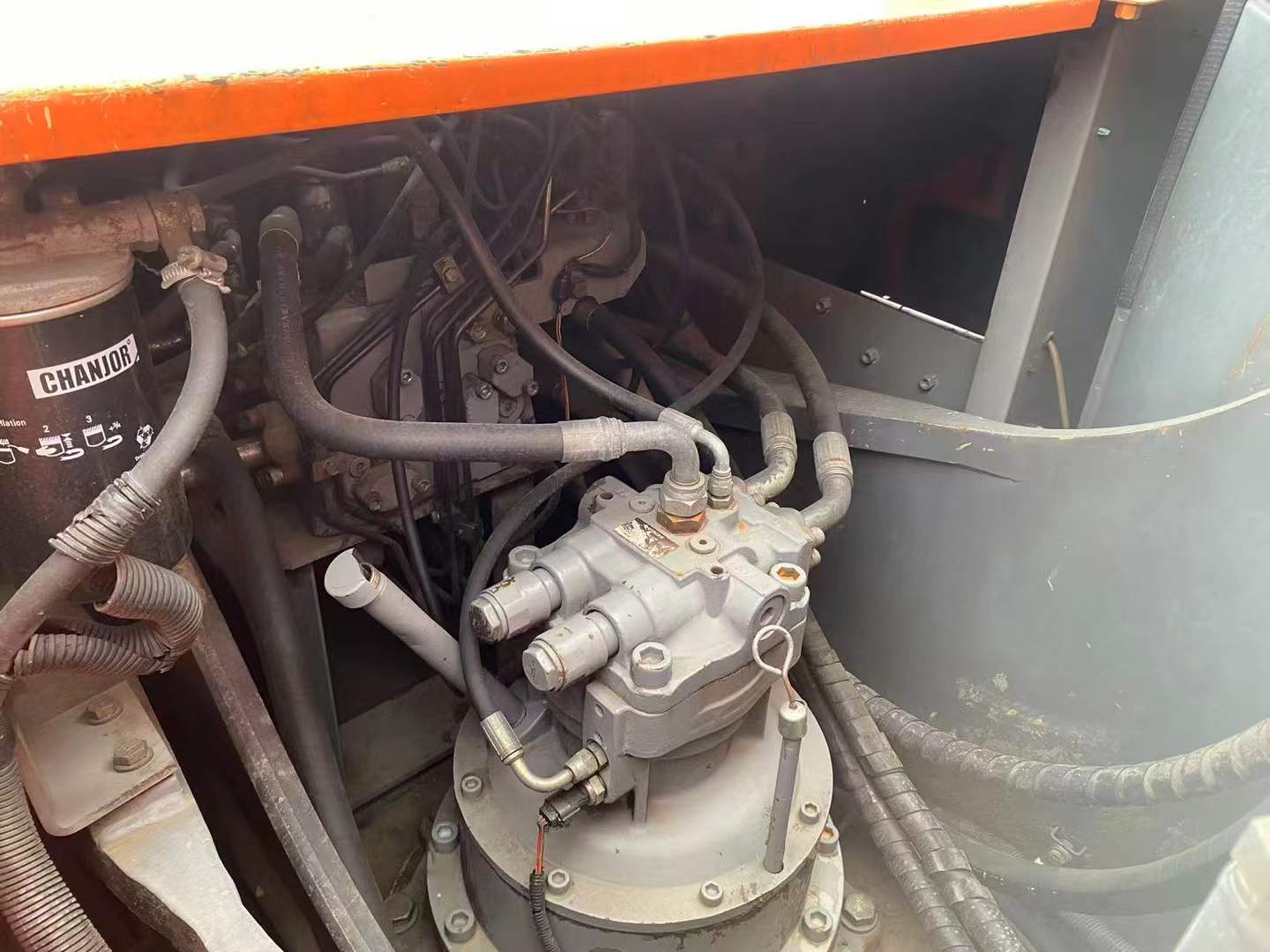

| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |

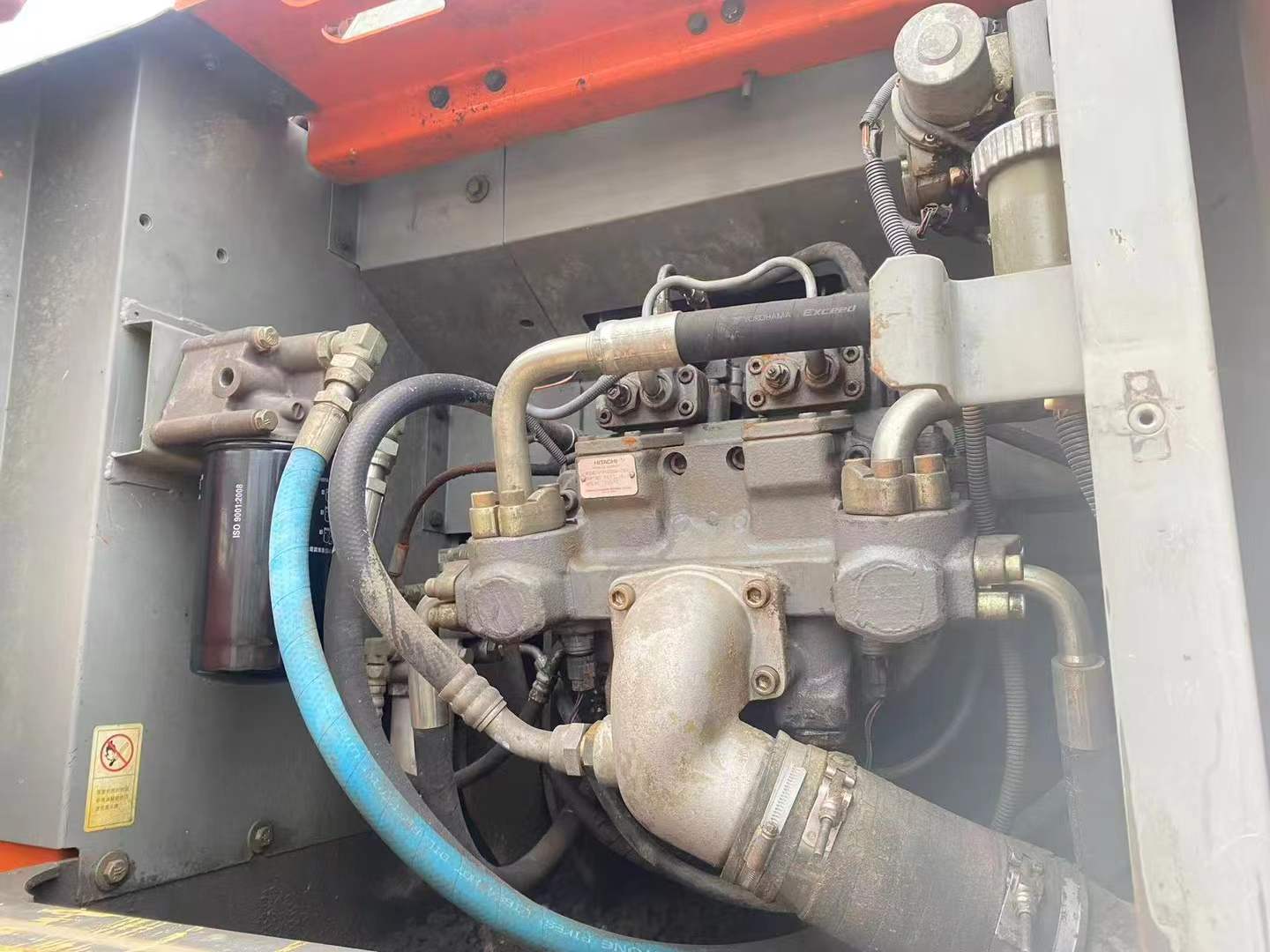

| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
