Product Description

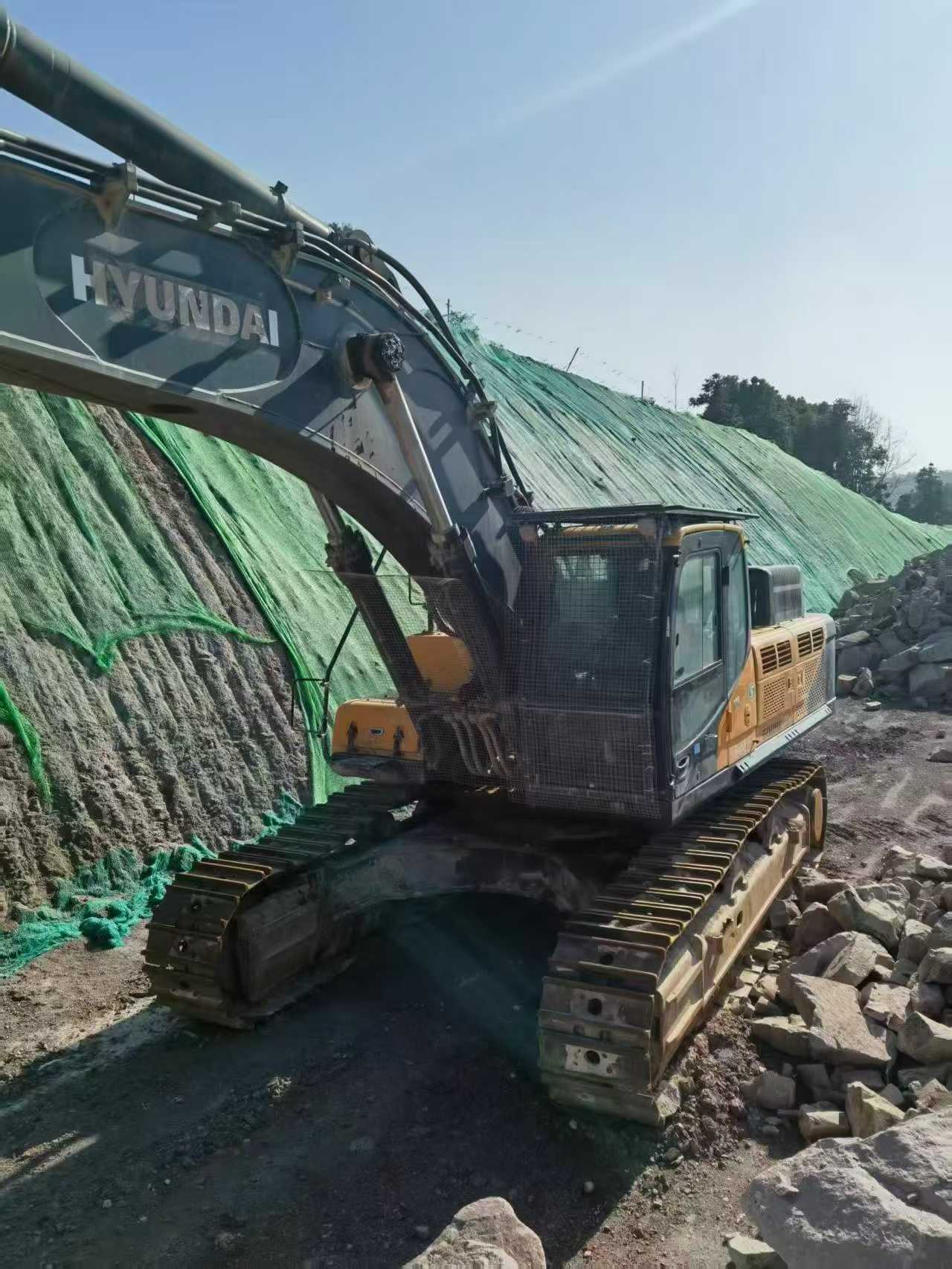

Engineered with precision hydraulics and a robust Yanmar 4TNV94L engine delivering 36.2kW at 2200 rpm, this 2021 Hyundai HX60 compact excavator demonstrates superior technical performance in the 6-ton class. The variable piston pump system generates 138 L/min maximum flow, powering exceptional digging forces of 46.7kN bucket force and 27.5kN arm force through optimized cylinder configurations.
Built on Hyundai's proven HX series platform, this machine features advanced axial piston motors with automatic braking for precise rotation control and two-speed travel motors with integrated parking brake systems. Operating specifications include a maximum digging reach of 6,127mm, excavation depth of 3,760mm, and impressive 70% climbing capability on challenging terrain.
- Compact dimensions: 5,900mm transport length, 1,920mm width
- Efficient fuel management with 118.5L tank capacity
- Water-cooled 4-cylinder direct injection engine

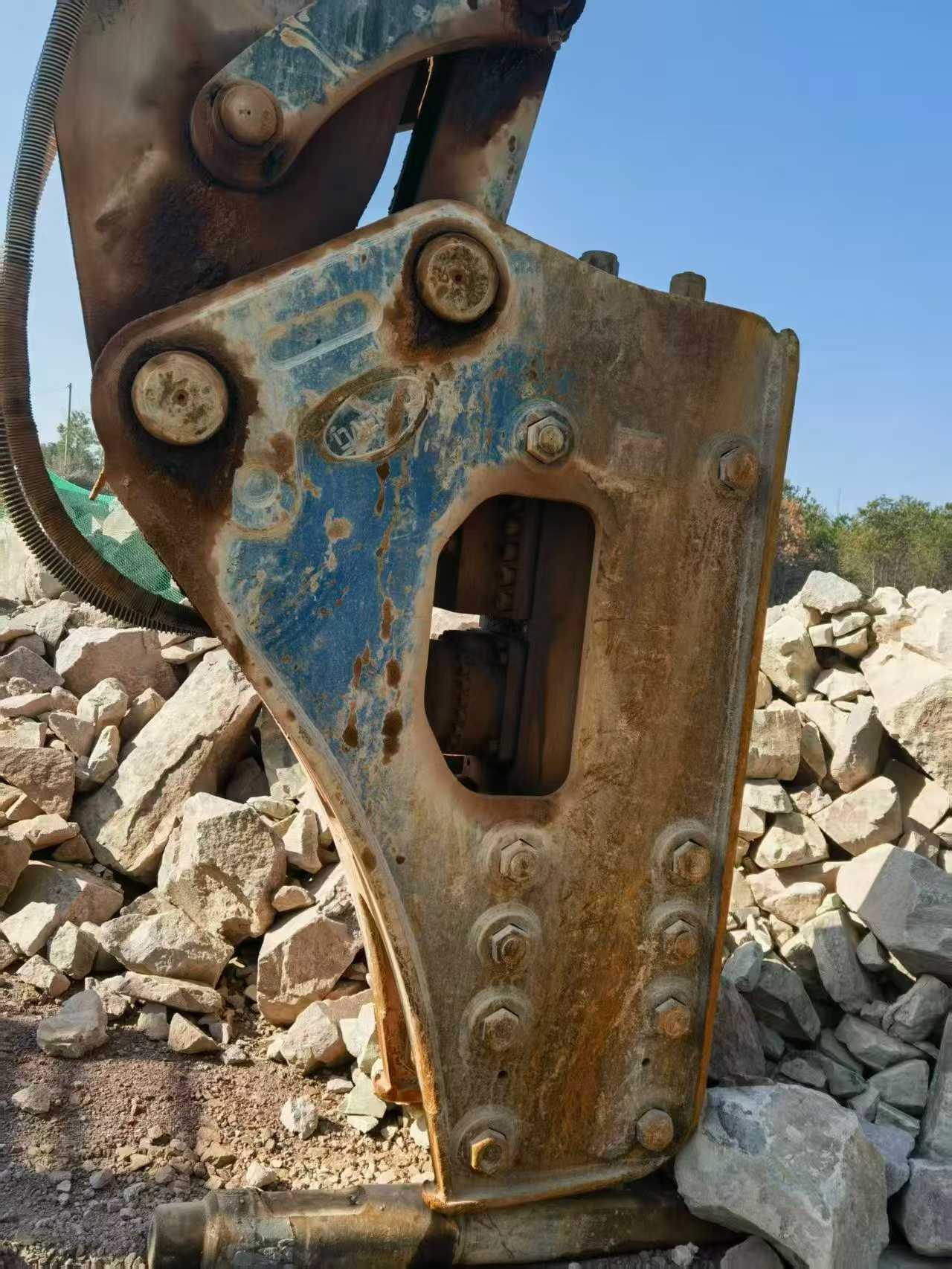

- Standard hydraulic breaker pipeline preparation
- Located in Shenzhen, Guangdong for immediate inspection
| Specifications | Value |
|---|---|
| No. | 989173 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5720 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L-ZXSHYB(XSNSRE) |
| Rated power (kw/rpm) | 36.2/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 94 x 110 |
| Maximum torque (N.m) | 201.1/1400 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.053 |
| Working form | 4 stroke, direct injection engine |
| Rotation speed (rpm) | 10.88 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 46.7 |
| Rod digging force (kN) | 27.5 |
| Travel speed (km/h) | 4.6 / 2.4 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |

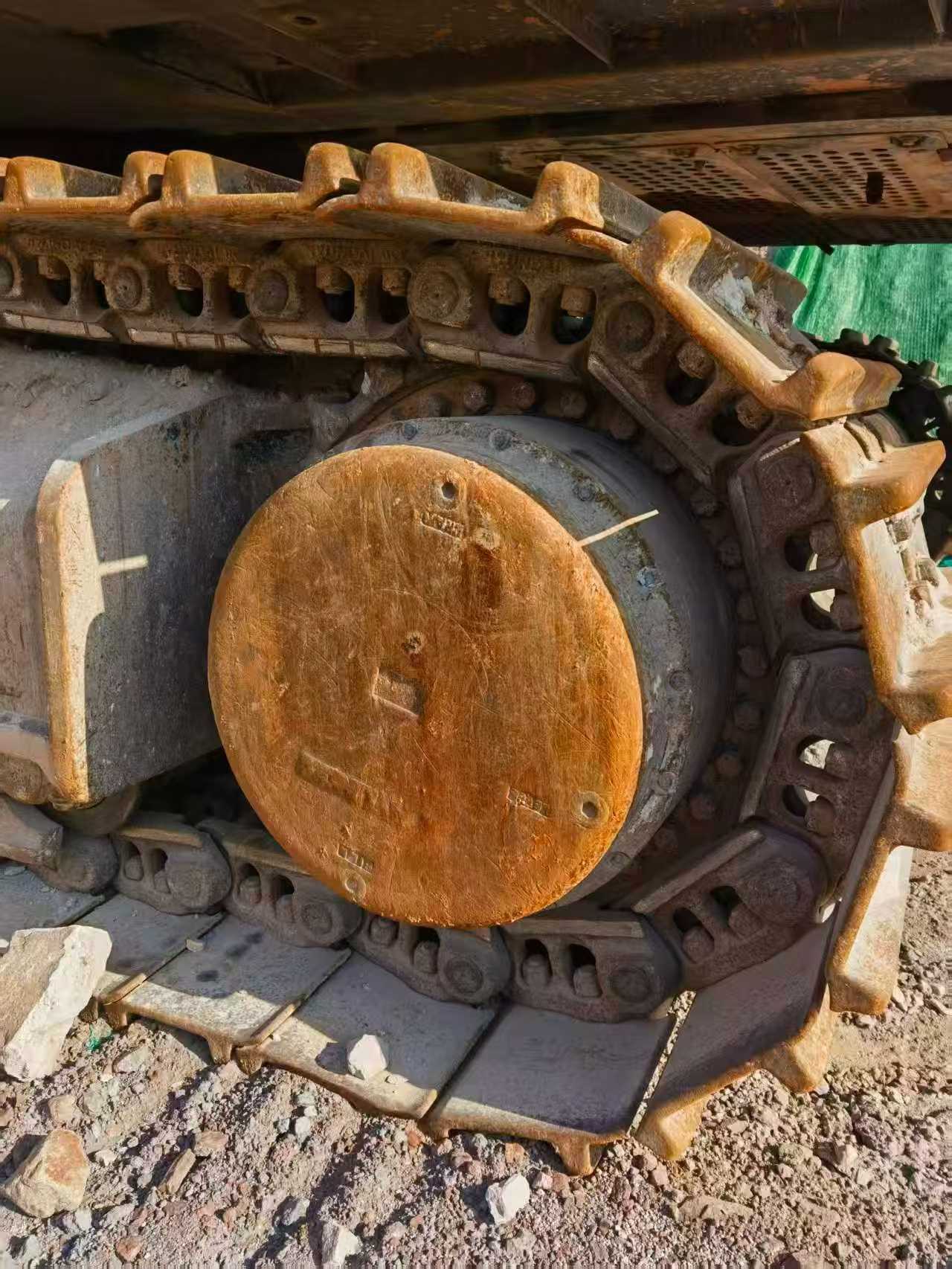

| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |

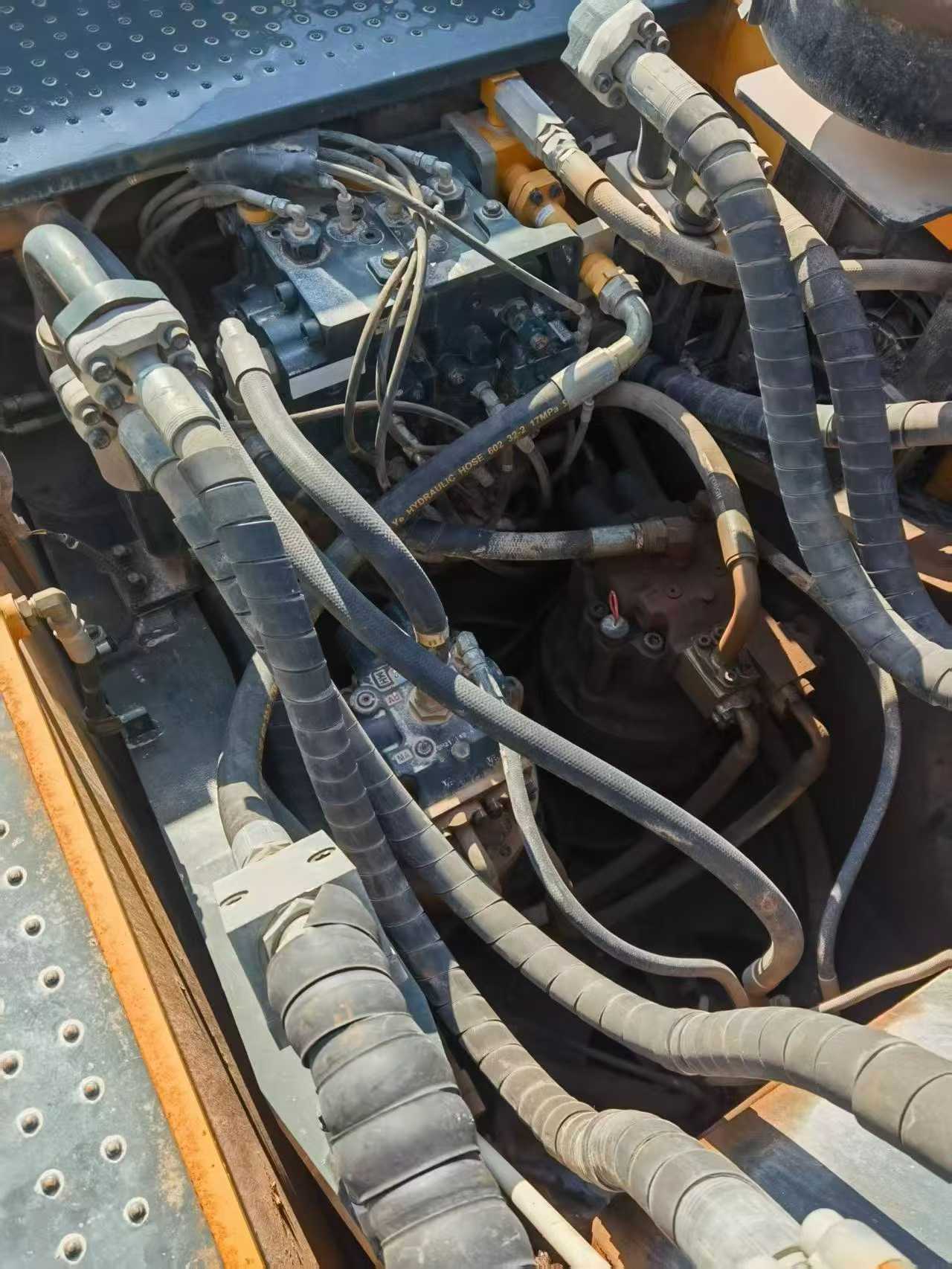

| Maximum flow of main pump (l/min) | 138 |
| Hydraulic crushing pipeline is standard | is |

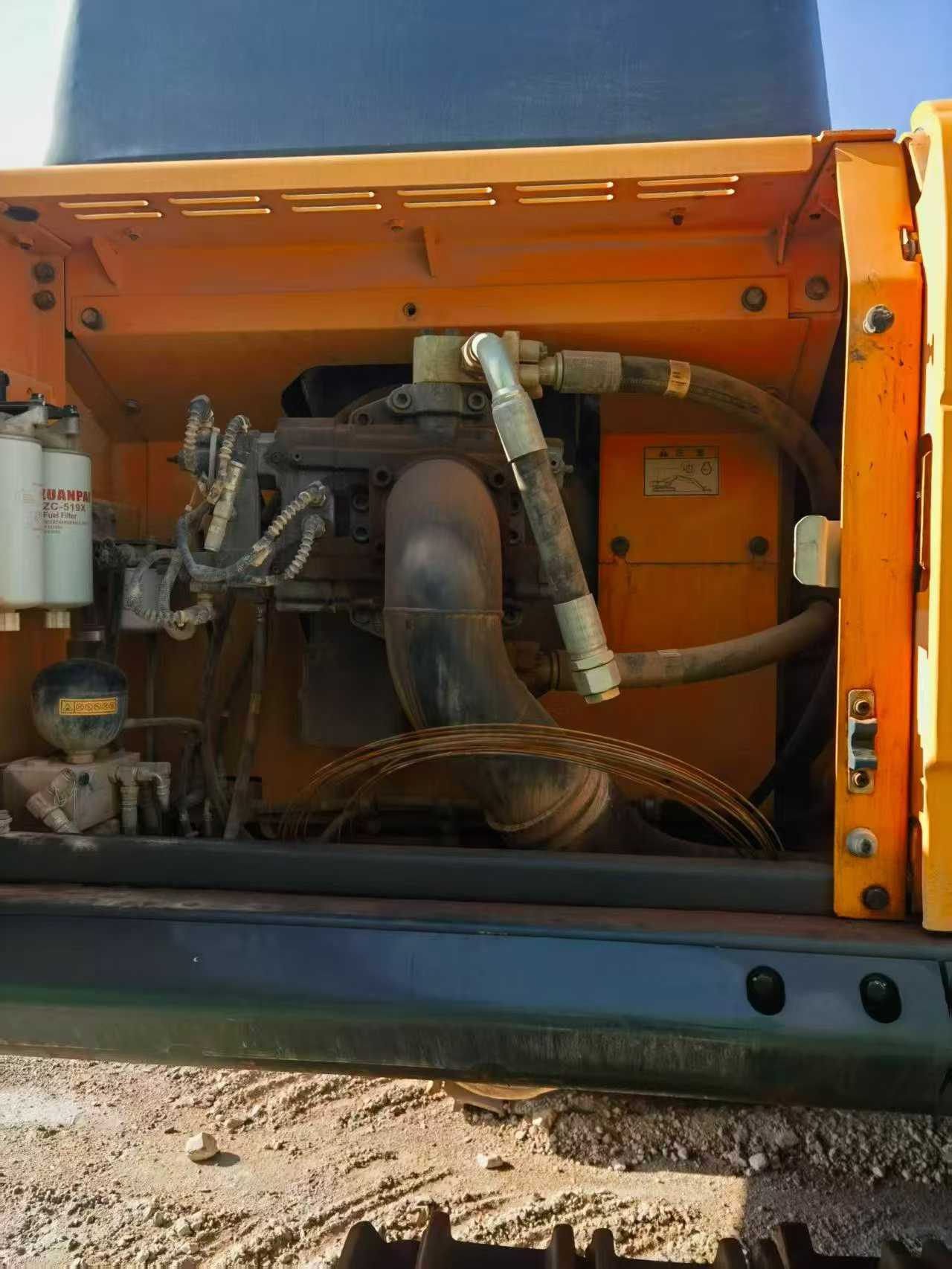

| Main pump type | Variable piston pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-80 * 50 * 660 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-85 * 55 * 850 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-105 * 60 * 715 |
| Fuel Tank (L) | 118.5 |
| Hydraulic Tank (L) | 70 |
| Engine Oil changes (L) | 11.6 |
| Coolant (L) | 10 |
| Hydraulic System (L) | 120 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 1860 |
| Minimum turning radius of front working device (mm) | 2350 |
| Back end turning radius (mm) | 1650 |
| Track ground length (mm) | 1990 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6127 |
| Maximum digging depth (mm) | 3760 |
| Maximum excavation height (mm) | 5753 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 2915 |
| Maximum excavation radius of stop surface (mm) | 5990 |
