Product Description
Built for reliability and engineered to last, this 2014 Hyundai HX75 excavator delivers proven performance with 7-ton capacity and robust Yanmar 4TNV98-Z engine producing 44.4kW of power. Currently located in Hangzhou, Zhejiang, this compact yet capable machine features a 0.32m³ bucket capacity and impressive 6.3m maximum digging radius, making it ideal for urban construction and utility work.
Hyundai's reputation in the used equipment market stems from exceptional parts availability and strong resale value retention. With established dealer networks across Asia and standardized components, maintenance costs remain predictable throughout the machine's lifecycle. Key specifications include:
- Maximum digging depth: 4,015mm with 55.9kN bucket digging force
- Compact transport dimensions: 6,080mm length × 2,260mm width
- Efficient hydraulic system with 158L/min main pump flow
- 70% climbing ability for challenging terrain access
This HX75 represents smart investment in proven technology, backed by Hyundai's joint venture manufacturing quality and comprehensive service support infrastructure.
| Specifications | Value |
|---|---|
| No. | 989189 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000 |
| Bucket capacity (m³) | 0.32 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

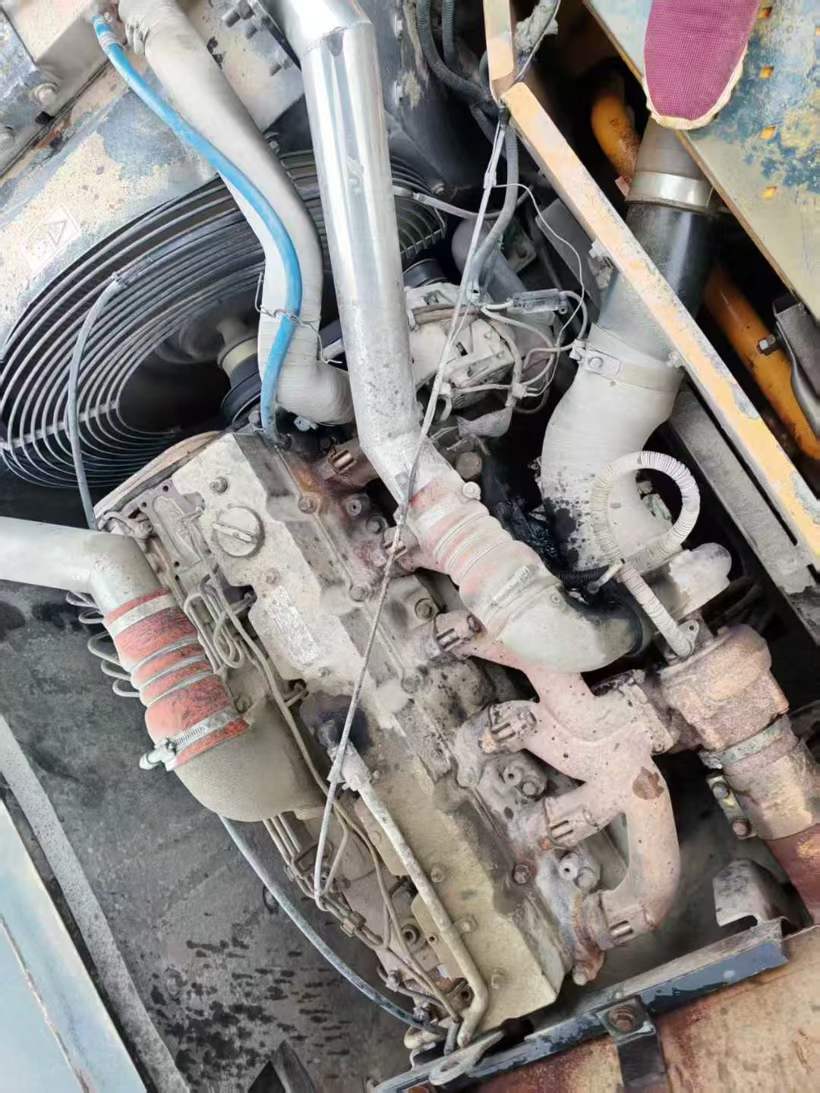

| Engine type | Yanmar 4TNV98-Z |
| Rated power (kw/rpm) | 44.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 55.9 |
| Rod digging force (kN) | 43.9 |
| Travel speed (km/h) | 4.0/2.4 |
| Maximum flow of main pump (l/min) | 158 |

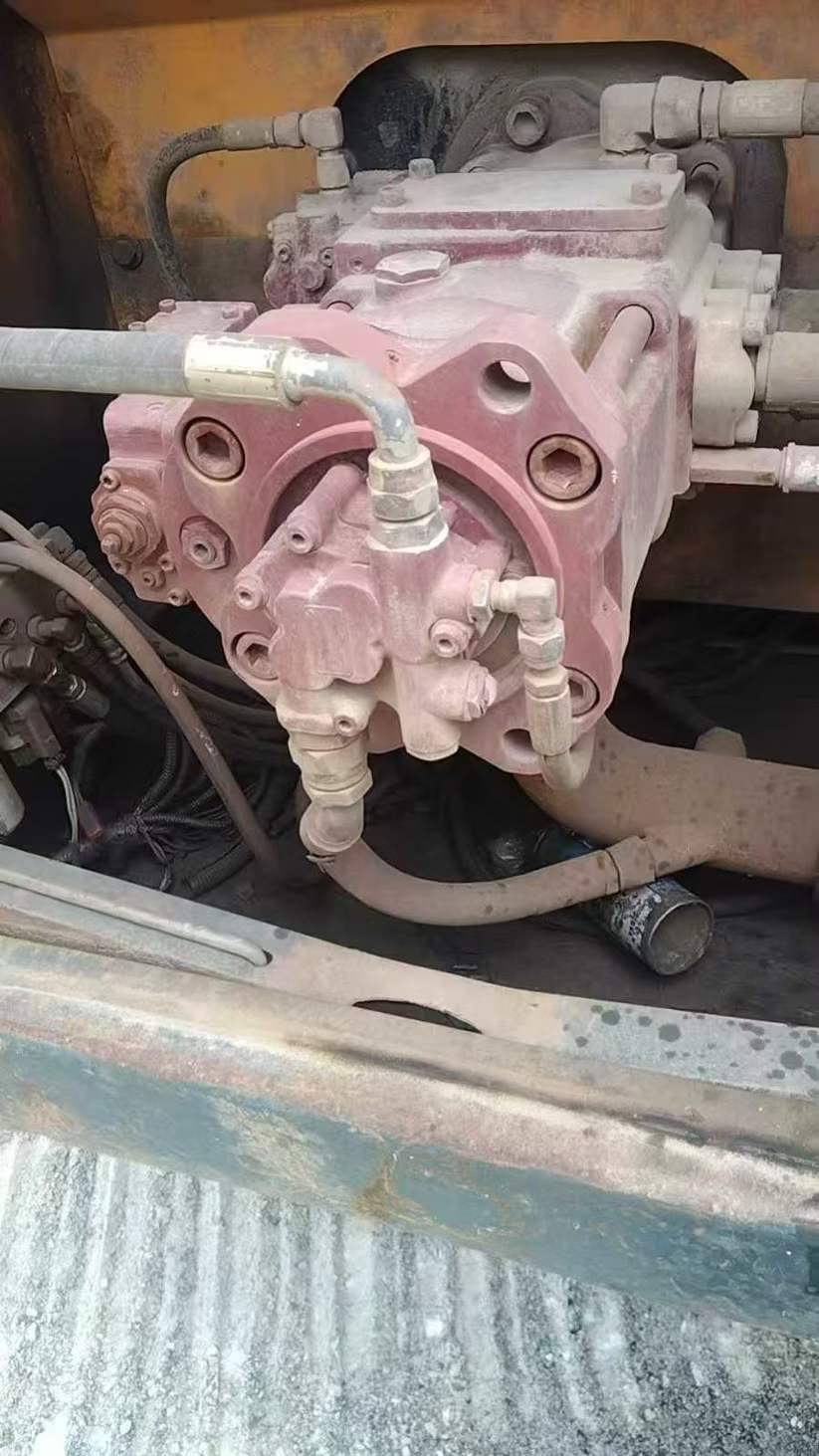

| Main pump type | Variable piston pump |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 9.2 |
| Coolant (L) | 11 |
| Hydraulic System (L) | 75 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2550 |
| Counterweight ground clearance (mm) | 755 |
| Minimum turning radius of front working device (mm) | 1750 |
| Back end turning radius (mm) | 1730 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |

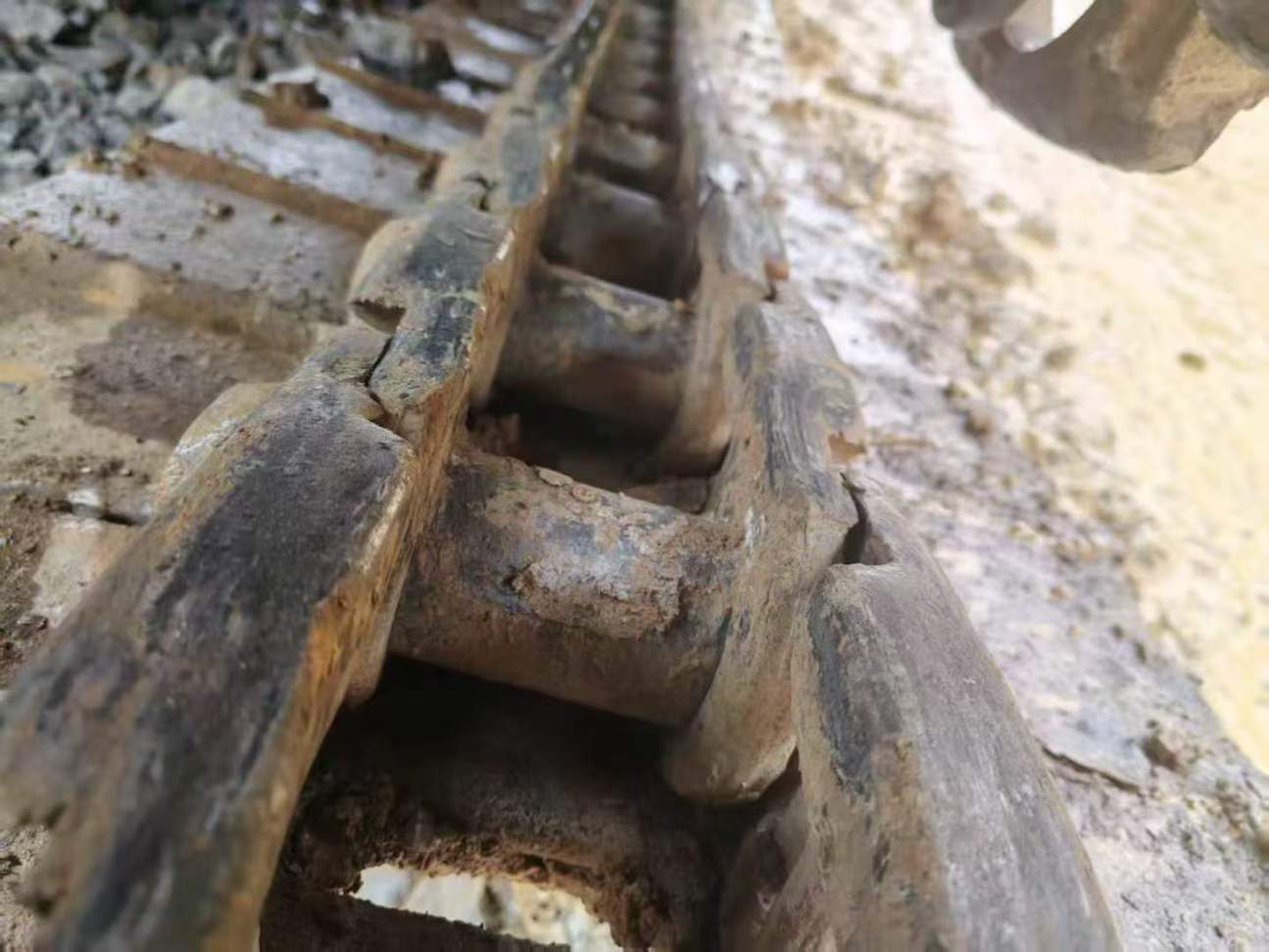

| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6335 |
| Maximum digging depth (mm) | 4015 |
| Maximum excavation height (mm) | 7175 |
| Maximum unloading height (mm) | 5080 |
| Maximum vertical digging depth (mm) | 3120 |
| Maximum excavation radius of stop surface (mm) | 6185 |
