Product Description

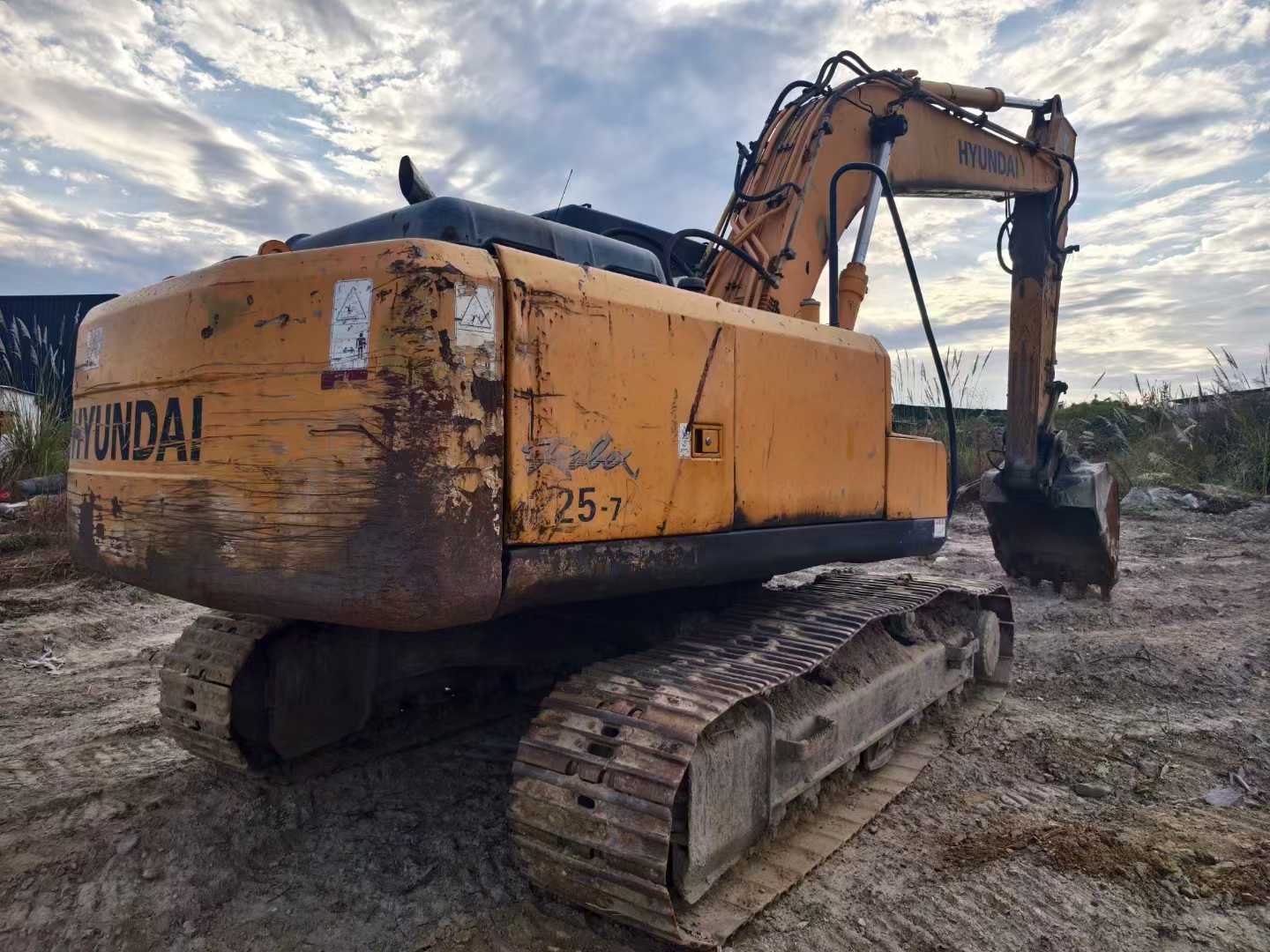

Engineered with dual variable plunger pumps delivering 2×222 L/min maximum flow, this 2010 Hyundai R215VSN excavator demonstrates superior hydraulic performance for demanding construction operations. The robust Cummins QSB7 engine generates 125kW at 1900 RPM, providing reliable power through its 6.7L displacement and water-cooling system.
Built on Hyundai's proven R215VSN platform, this 21-ton machine combines precision engineering with operational efficiency. Key specifications include:
- Maximum digging reach: 9,720mm with 6,550mm depth capability
- 0.83m³ bucket capacity optimized for versatility
- Advanced axial piston motors with automatic braking systems
- 70% climbing ability and dual-speed travel configuration
- Comprehensive hydraulic system: 270L capacity with 180L tank
Located in Hubei, China, this joint venture-manufactured excavator represents proven technology with documented maintenance intervals. The R215VSN series maintains strong resale value due to its balanced performance characteristics and component accessibility, making it an intelligent investment for contractors requiring dependable mid-size excavation equipment.
| Specifications | Value |
|---|---|
| No. | 878248 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.83 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2700 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSB7 |
| Rated power (kw/rpm) | 125/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107*124 |
| Maximum torque (N.m) | 67/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.9/3.8 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2*222 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*120*80*1120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*140*95*1570 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*125*85*1320 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9500 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of front working device (mm) | 3470 |
| Back end turning radius (mm) | 2830 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9720 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 5920 |
| Maximum excavation radius of stop surface (mm) | 9550 |
