Product Description

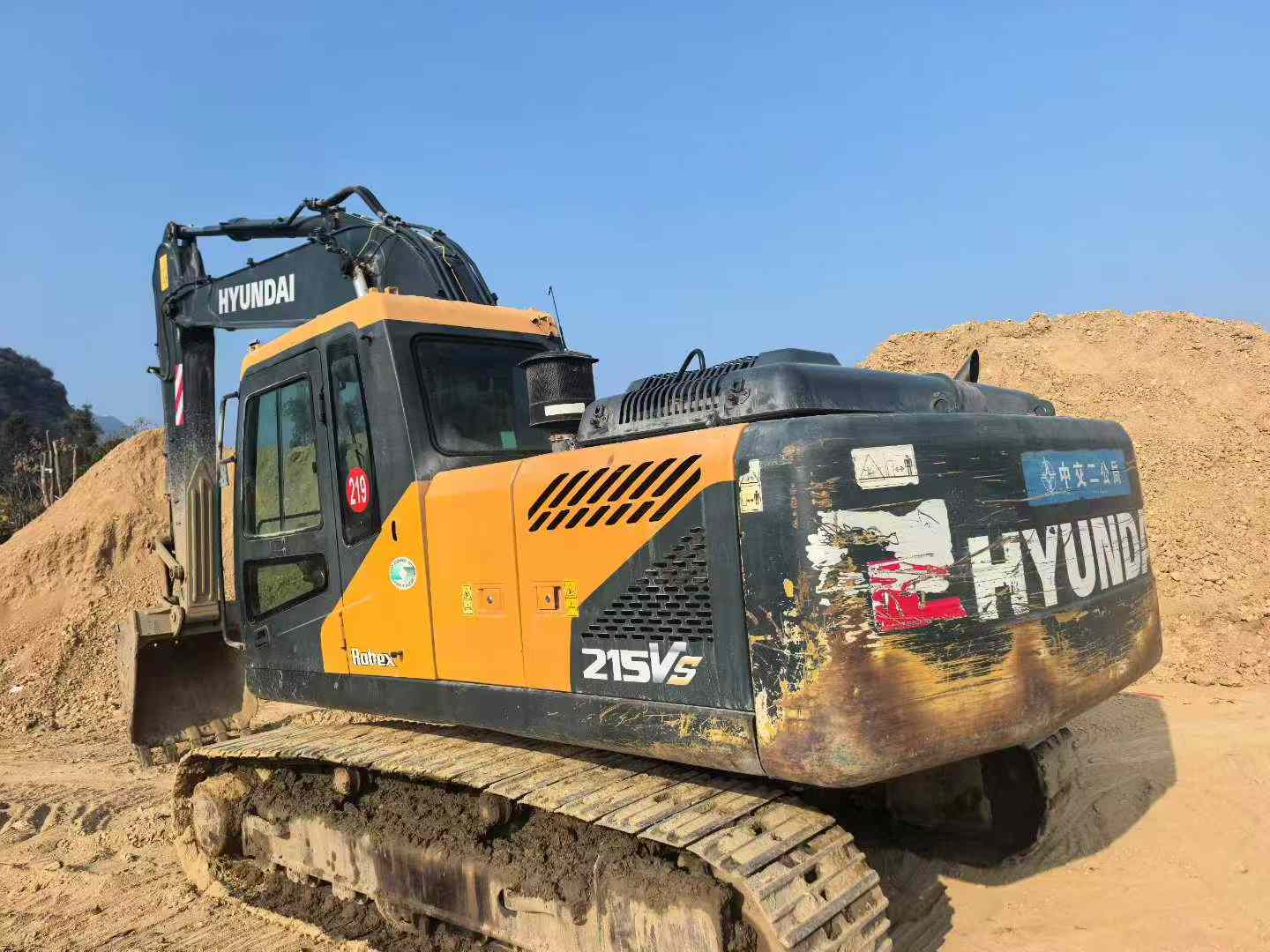

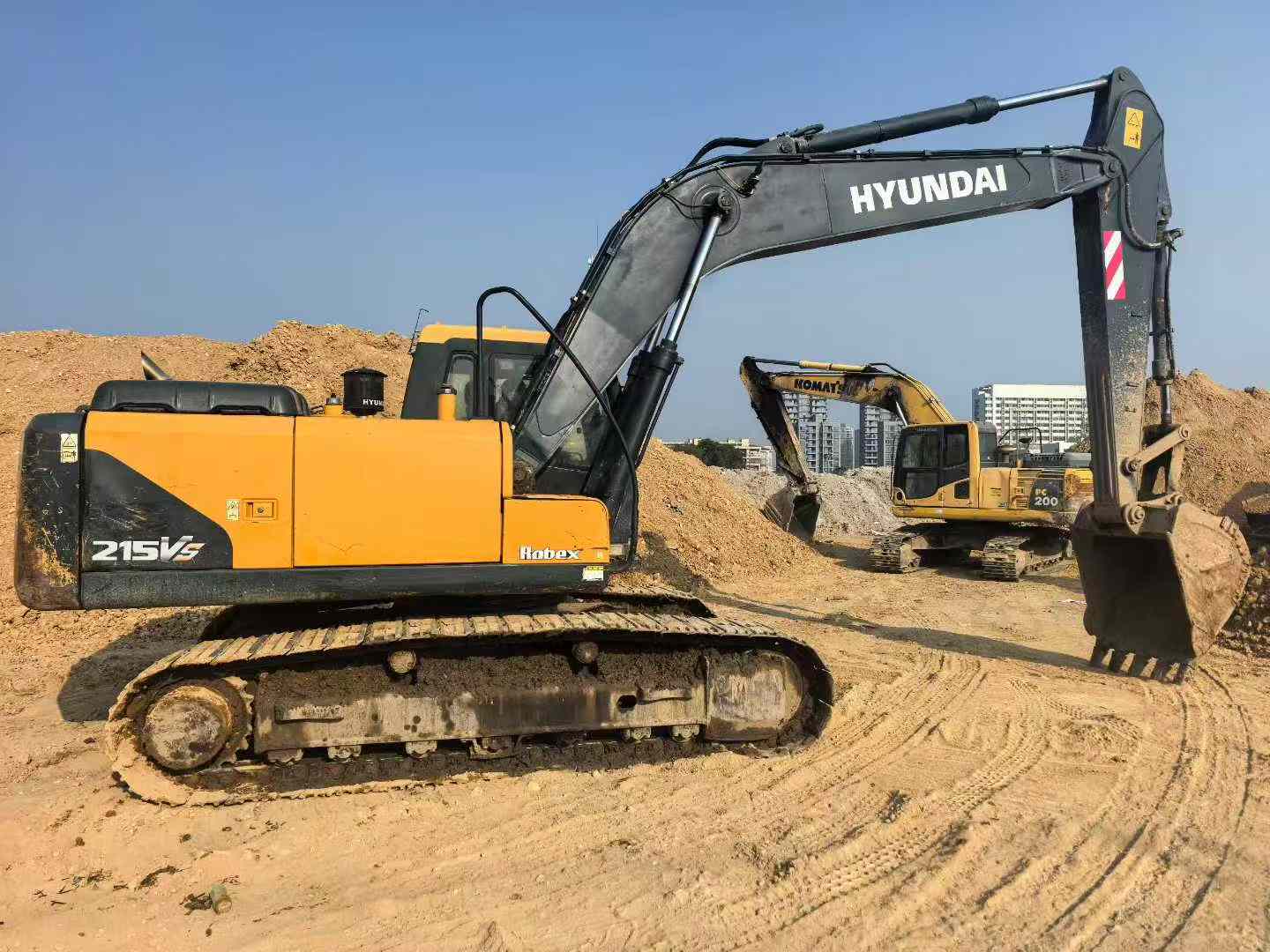

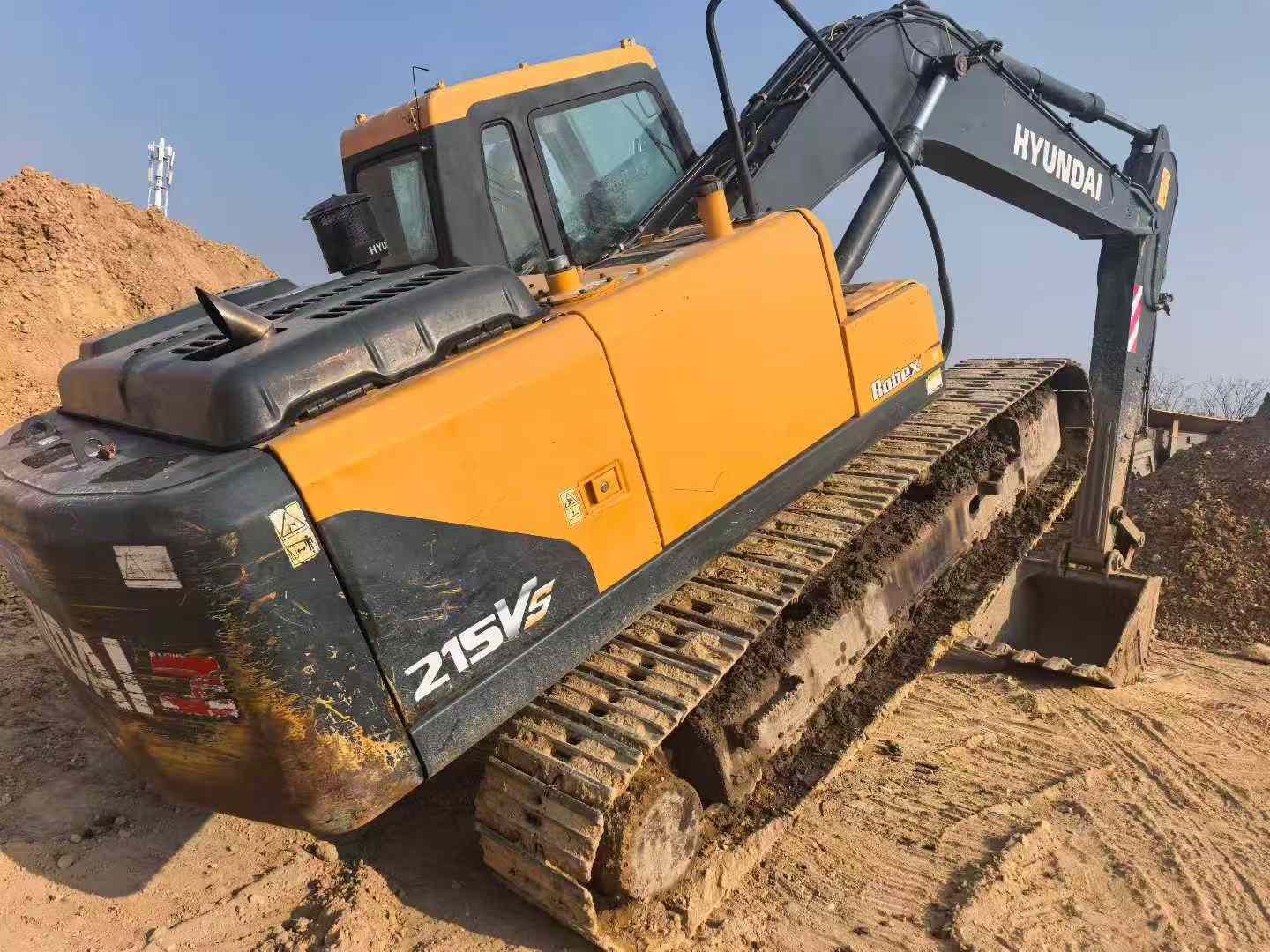

Built for demanding construction environments, this 2022 Hyundai R215VSN excavator delivers exceptional operator control and worksite efficiency. With its 21-ton operating weight and robust Cummins QSB7 engine producing 125kW of power, operators experience smooth hydraulic response and precise digging control across challenging terrain.

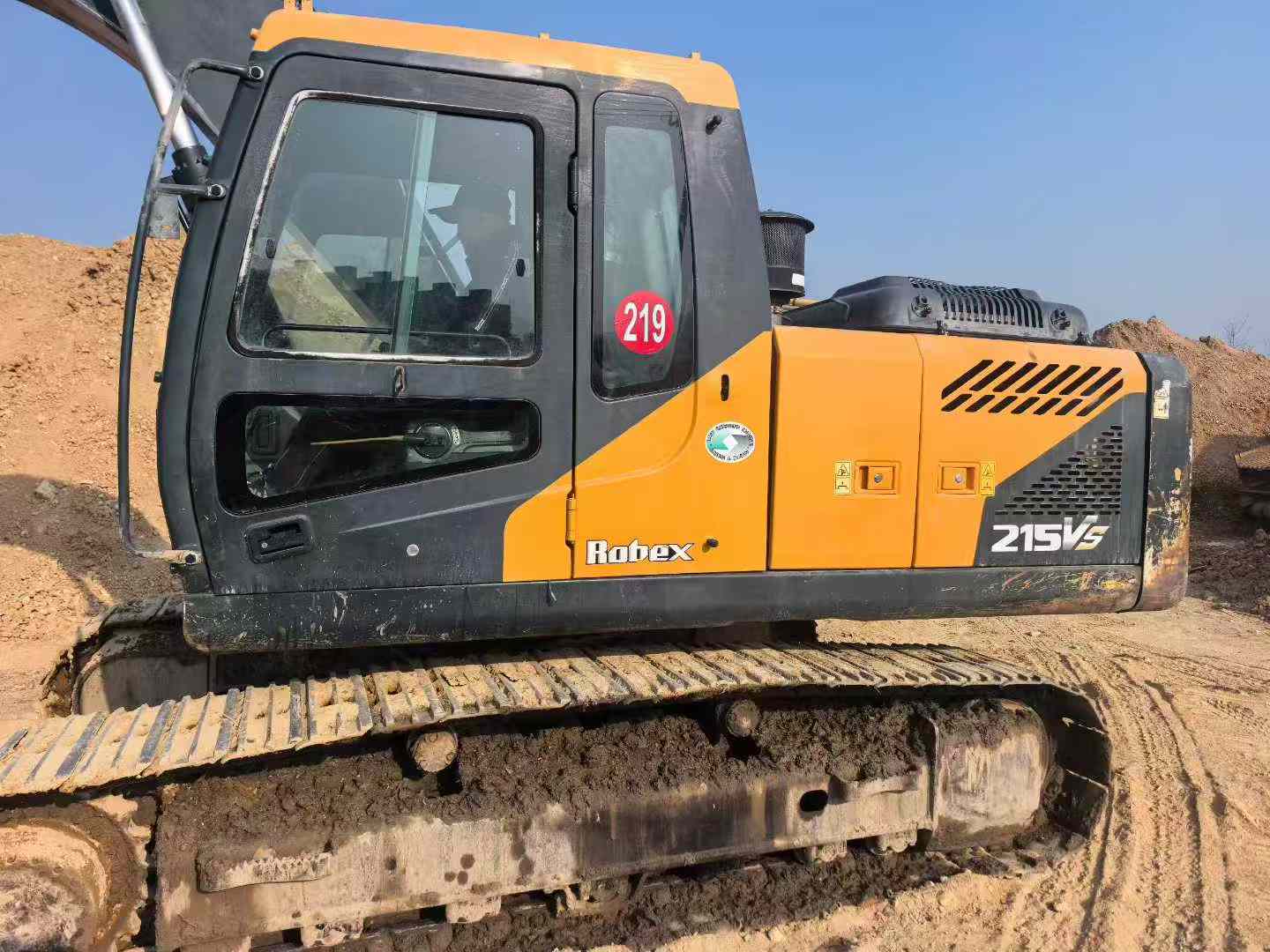

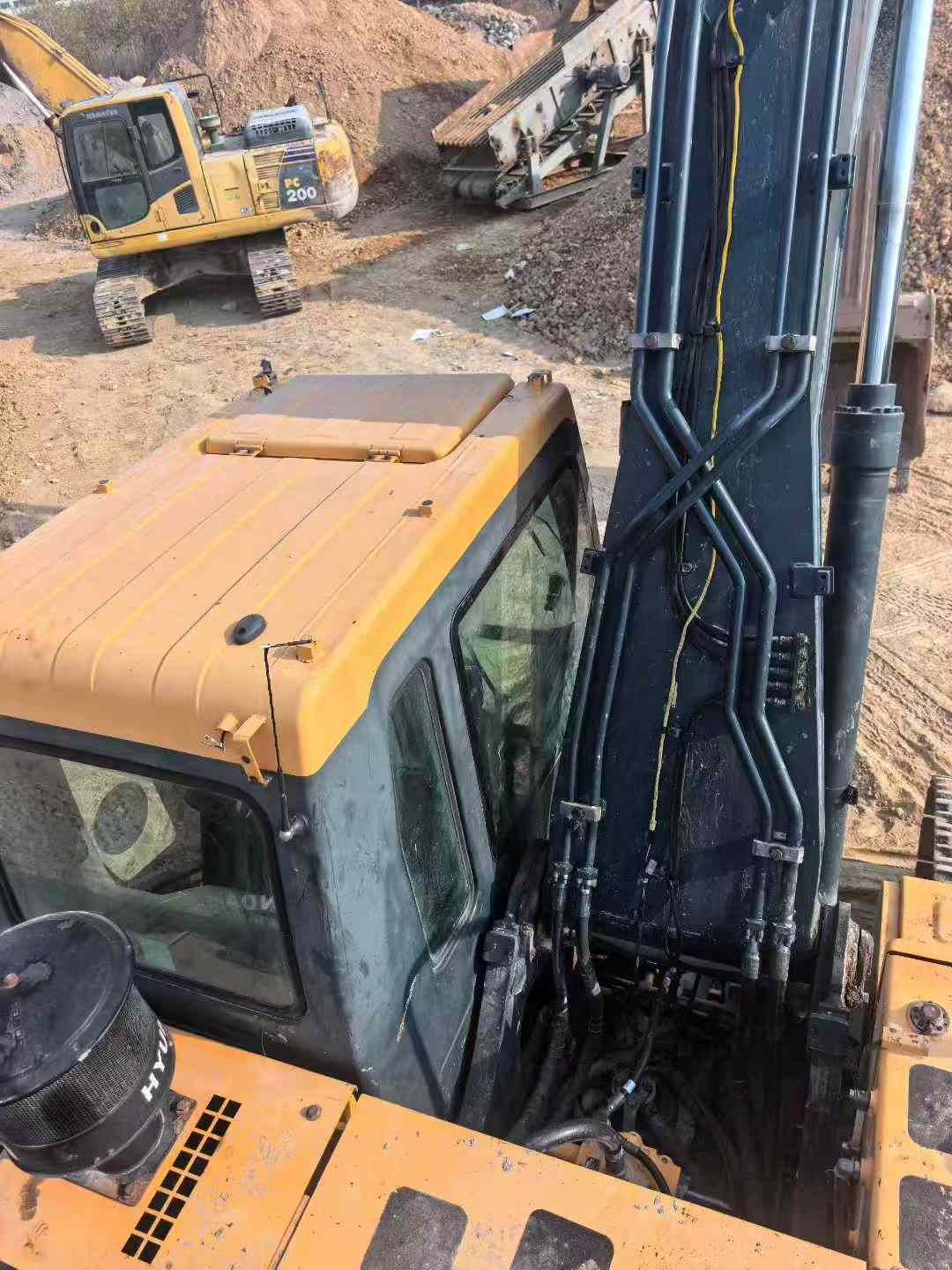

Advanced cabin design ensures optimal visibility during complex operations, while the machine's 70% climbing ability and 11.4 rpm rotation speed provide superior maneuverability on uneven surfaces. Key operational advantages include:
- Maximum digging reach of 9,720mm with 6,550mm depth capability
- Dual-speed travel system (5.9/3.8 km/h) for efficient site navigation
- 0.83m³ bucket capacity optimized for medium-scale excavation projects
- Two-speed axial plunger motors with integrated braking systems
- 340L fuel capacity supporting extended operational periods
Located in Zhejiang Province, this well-maintained excavator combines proven hydraulic technology with operator-focused ergonomics, making it ideal for contractors prioritizing productivity and machine reliability in demanding applications.
| Specifications | Value |
|---|---|
| No. | 989663 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.83 |

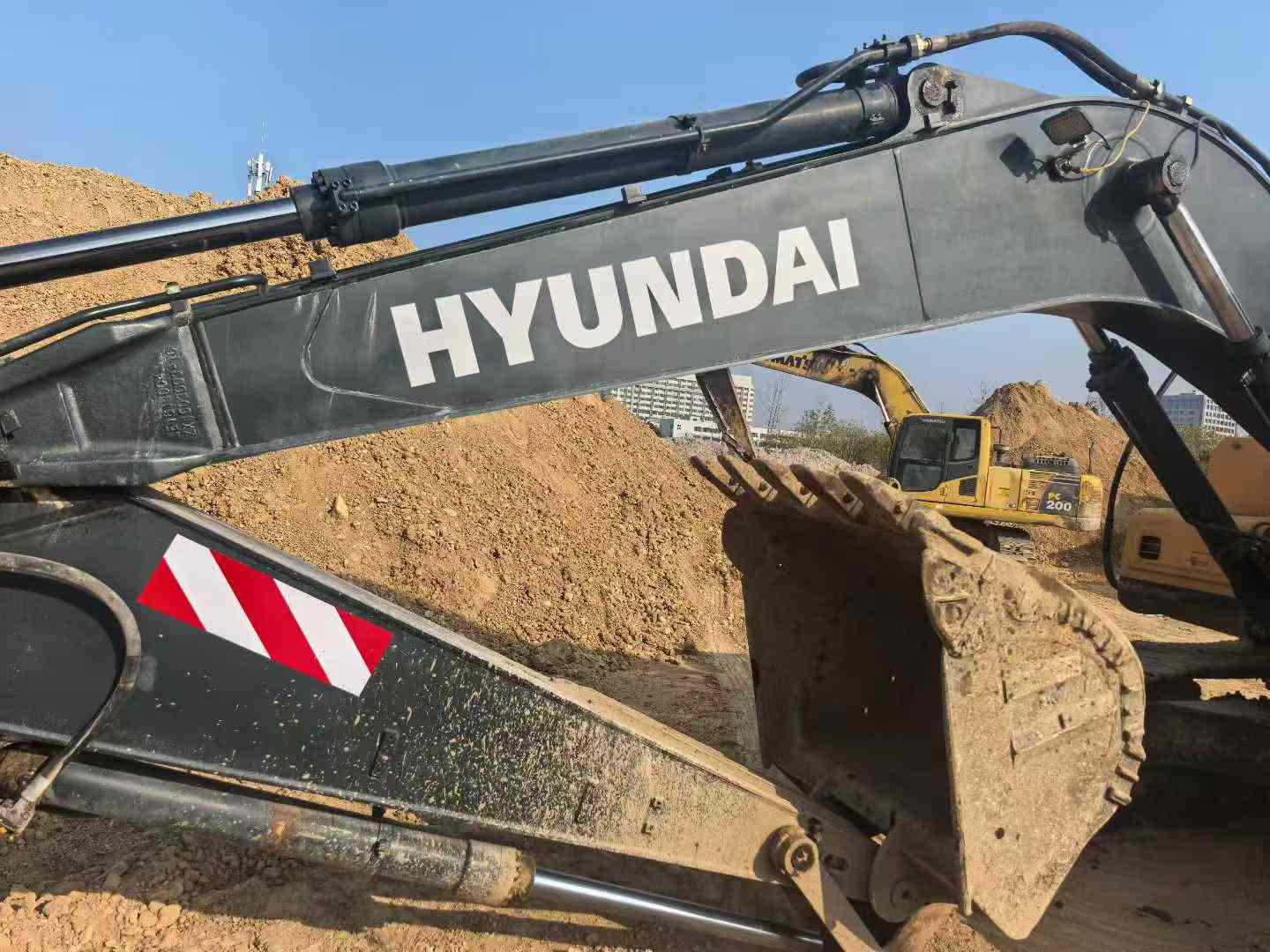

| Boom length (mm) | 5650 |
| Rod length (mm) | 2700 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSB7 |
| Rated power (kw/rpm) | 125/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107*124 |
| Maximum torque (N.m) | 67/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.9/3.8 |

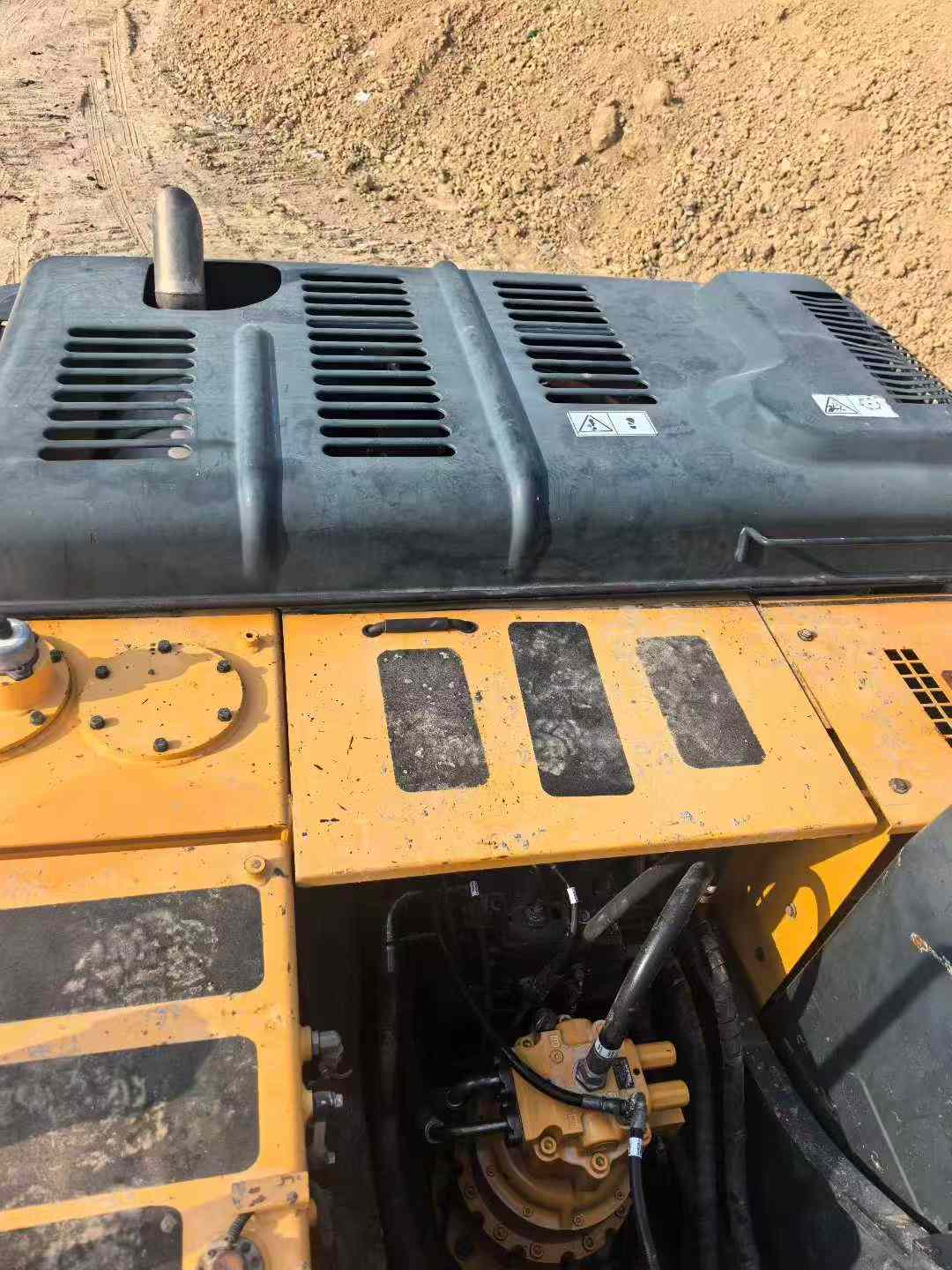

| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2*222 |

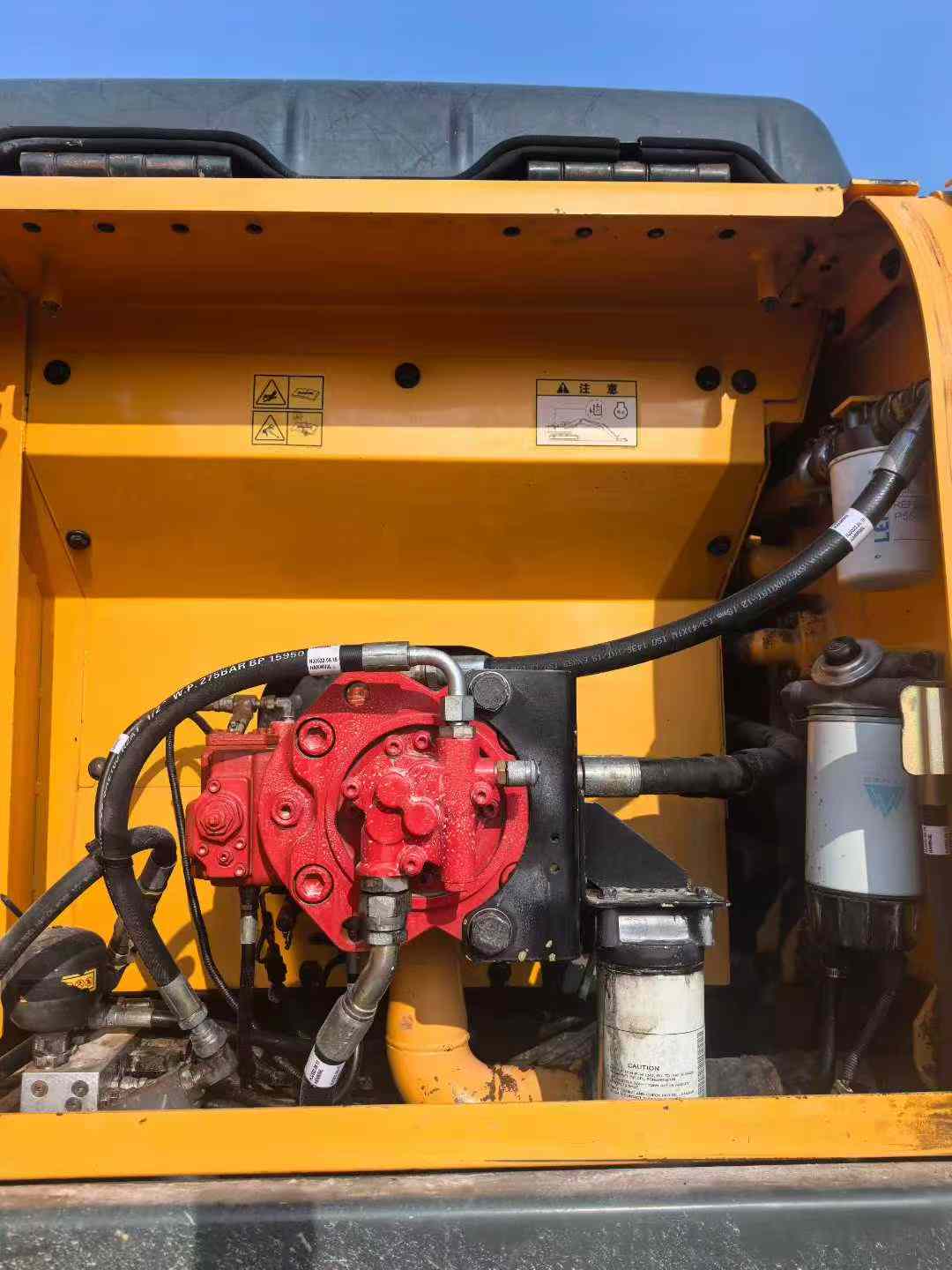

| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*120*80*1120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*140*95*1570 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*125*85*1320 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9500 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of front working device (mm) | 3470 |
| Back end turning radius (mm) | 2830 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9720 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 5920 |
| Maximum excavation radius of stop surface (mm) | 9550 |
