Product Description

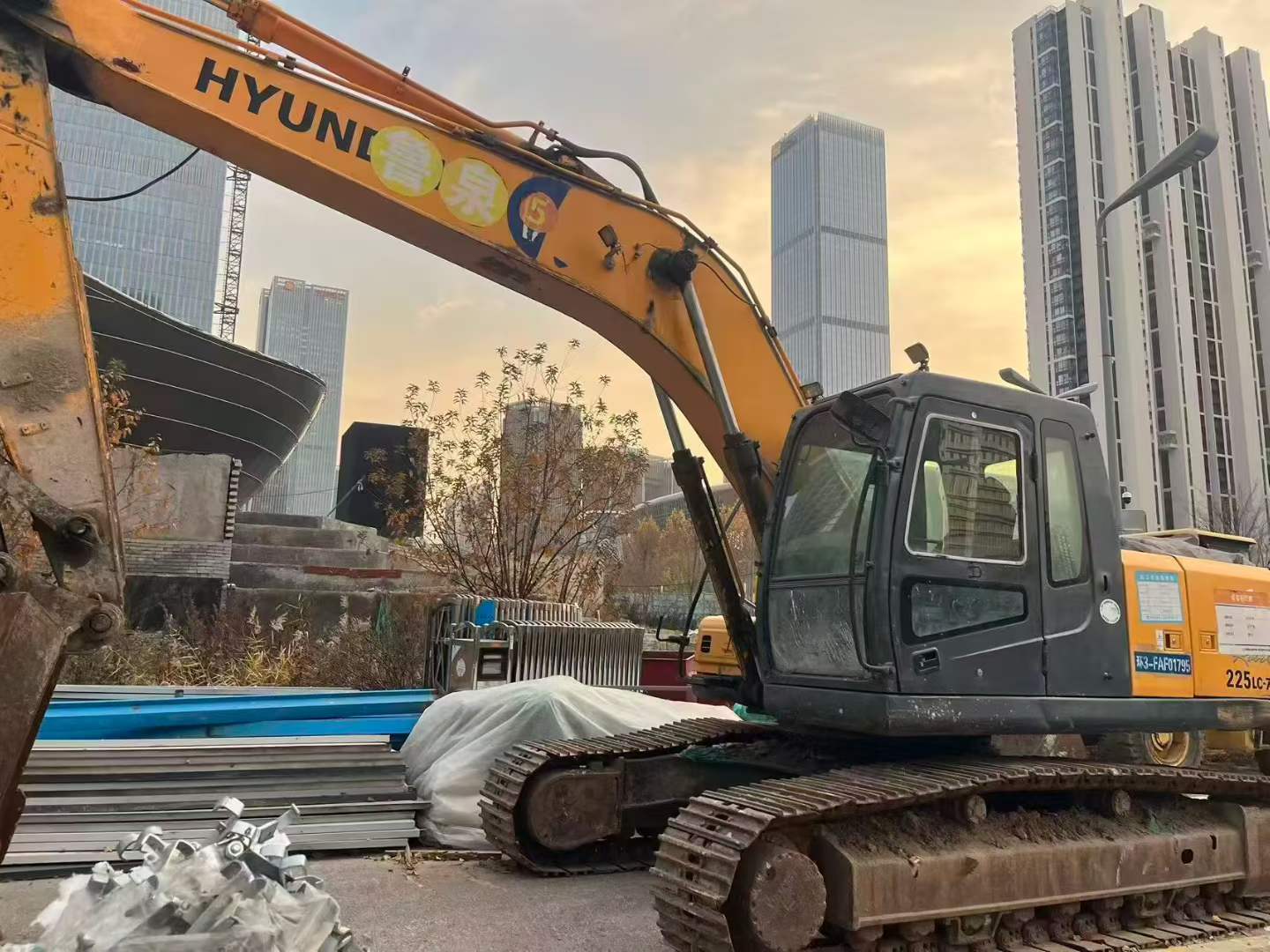

Maximize your construction budget with this robust 2011 Hyundai R225LVS excavator, delivering professional-grade performance at a fraction of new equipment costs. Built with Hyundai's proven engineering, this 22-ton workhorse features a powerful 6.7L turbocharged engine generating 113kW, ensuring reliable operation across demanding jobsites.
Key performance specifications include:
- Maximum digging reach of 9,980mm with 6,730mm depth capability
- 1.05m³ bucket capacity for efficient material handling
- 35° climbing ability and 5.3km/h travel speed for versatile mobility
- Advanced hydraulic system with dual variable plunger pumps
- 400L fuel tank supporting extended operational periods
Currently located in Jinan, Shandong, this well-maintained machine represents exceptional value for contractors seeking dependable excavation equipment without new equipment premiums. Smart operators recognize that proven machinery like this R225LVS delivers the same productivity as newer models while preserving capital for other business investments.
| Specifications | Value |
|---|---|
| No. | 987267 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22570 |
| Bucket capacity (m³) | 1.05 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2920 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE6.7 |
| Rated power (kw/rpm) | 113 / 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Maximum torque (N.m) | 63 / 1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | 6-cylinder, 4-stroke, water-cooled turbocharged engine |
| Climbing ability (%) | 35 ° (70%). |
| Travel speed (km/h) | 5.3/ 3.4 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 222 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Control Hydraulic Circuit (Mpa) | 4 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 85 x 1055 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 140 x ø 100 x 1510 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 120 x ø 85 x 1290 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 275 |
| Theoretical fuel consumption (L/h) | 160 |
| Total transport length (mm) | 9550 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3080 |
| Full cab height (mm) | 2920 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of front working device (mm) | 3740 |
| Back end turning radius (mm) | 2840 |
| Onboard width (mm) | 2740 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 9980 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6280 |
| Maximum excavation radius of stop surface (mm) | 2990 |
| Maximum effective digging depth (mm) | 6730 |
