Product Description

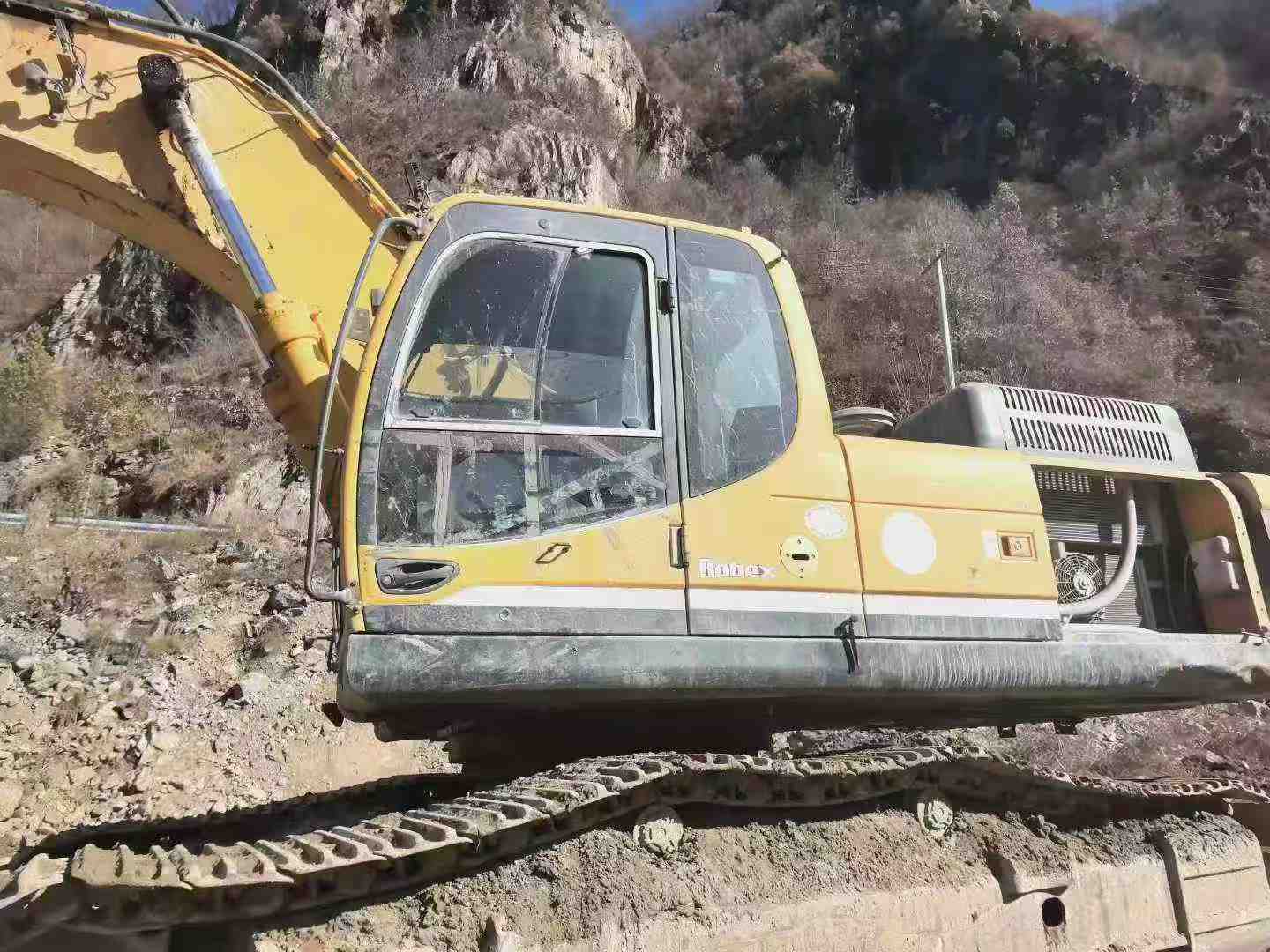

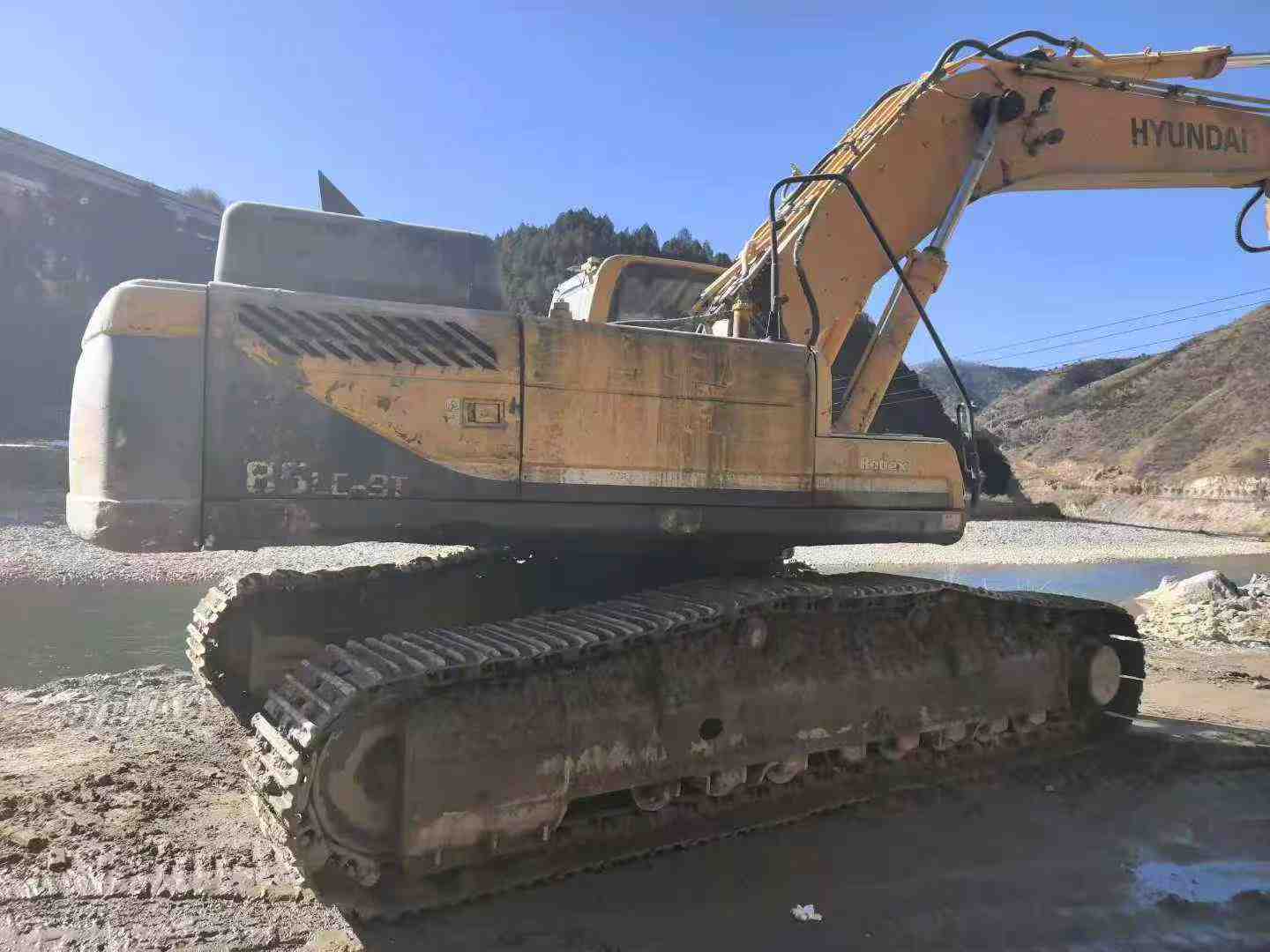

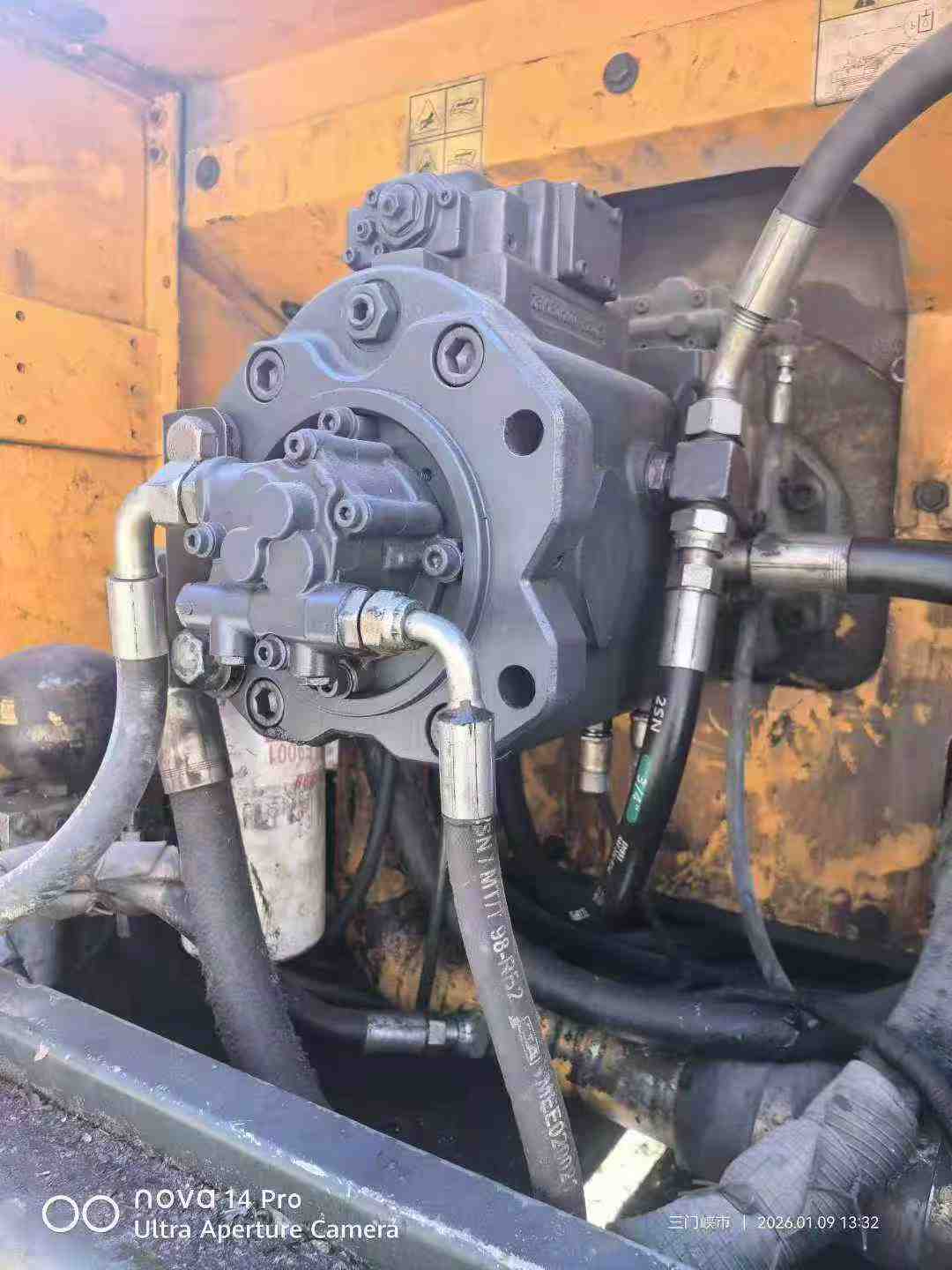

Built for demanding construction environments, this 2016 Hyundai R385LVS delivers exceptional operator control and job site performance. With 38 tons of working weight and a powerful 221kW HYUNDAI HE8.9 engine, operators benefit from precise hydraulic response through dual variable plunger pumps delivering 630 L/min combined flow.
Enhanced visibility from the spacious cabin ensures confident operation during complex excavation tasks. Key operational advantages include:
- Maximum digging reach of 10.52m with 6.75m depth capability
- Superior stability with 70% climbing ability and 1.9m³ bucket capacity
- Efficient fuel management through 610L tank and water-cooled engine system
- Robust undercarriage featuring dual sprockets and 51 track plates per side
Located in Zhejiang Shaoxing, this machine combines proven Hyundai engineering with practical features essential for heavy excavation work. Comprehensive hydraulic system capacity of 415L ensures consistent performance across extended operating cycles, while the 3.34m transport width facilitates efficient site-to-site mobility.
| Specifications | Value |
|---|---|
| No. | 989688 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38,900 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 6150 |
| Rod length (mm) | 2800 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE8.9 |
| Rated power (kw/rpm) | 221/1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114*145 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.0 / 3.2 |
| Maximum flow of main pump (l/min) | 2*315 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*150*105*1295 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*170*120*1760 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*160*110*1500 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 610 |
| Hydraulic Tank (L) | 210 |
| Engine Oil changes (L) | 31.7 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 415 |
| Total transport length (mm) | 10830 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3680 |
| Counterweight ground clearance (mm) | 1290 |
| Minimum turning radius of front working device (mm) | 4220 |
| Back end turning radius (mm) | 3415 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10520 |
| Maximum digging depth (mm) | 6750 |
| Maximum excavation height (mm) | 10150 |
| Maximum unloading height (mm) | 7030 |
| Maximum vertical digging depth (mm) | 4480 |
| Maximum excavation radius of stop surface (mm) | 10290 |
| Maximum effective digging depth (mm) | 6580 |
