Product Description

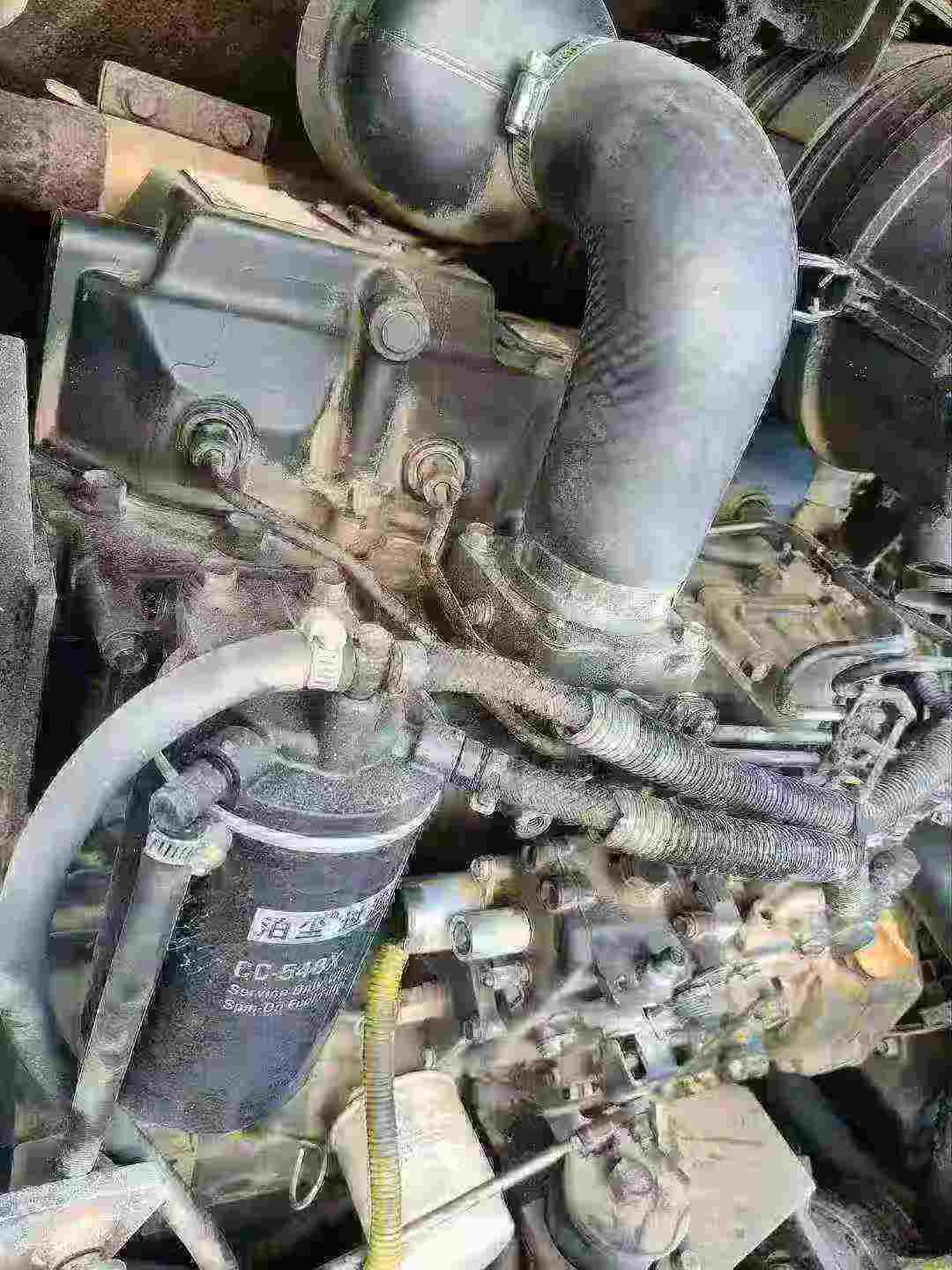

Engineered with precision hydraulics and a robust Yanmar 4TNV94L engine, this 2016 Hyundai R60-7 excavator delivers reliable performance in demanding construction environments. Rated at 40kW with water-cooling technology, the four-cylinder powerplant ensures consistent operation across varied terrain conditions.

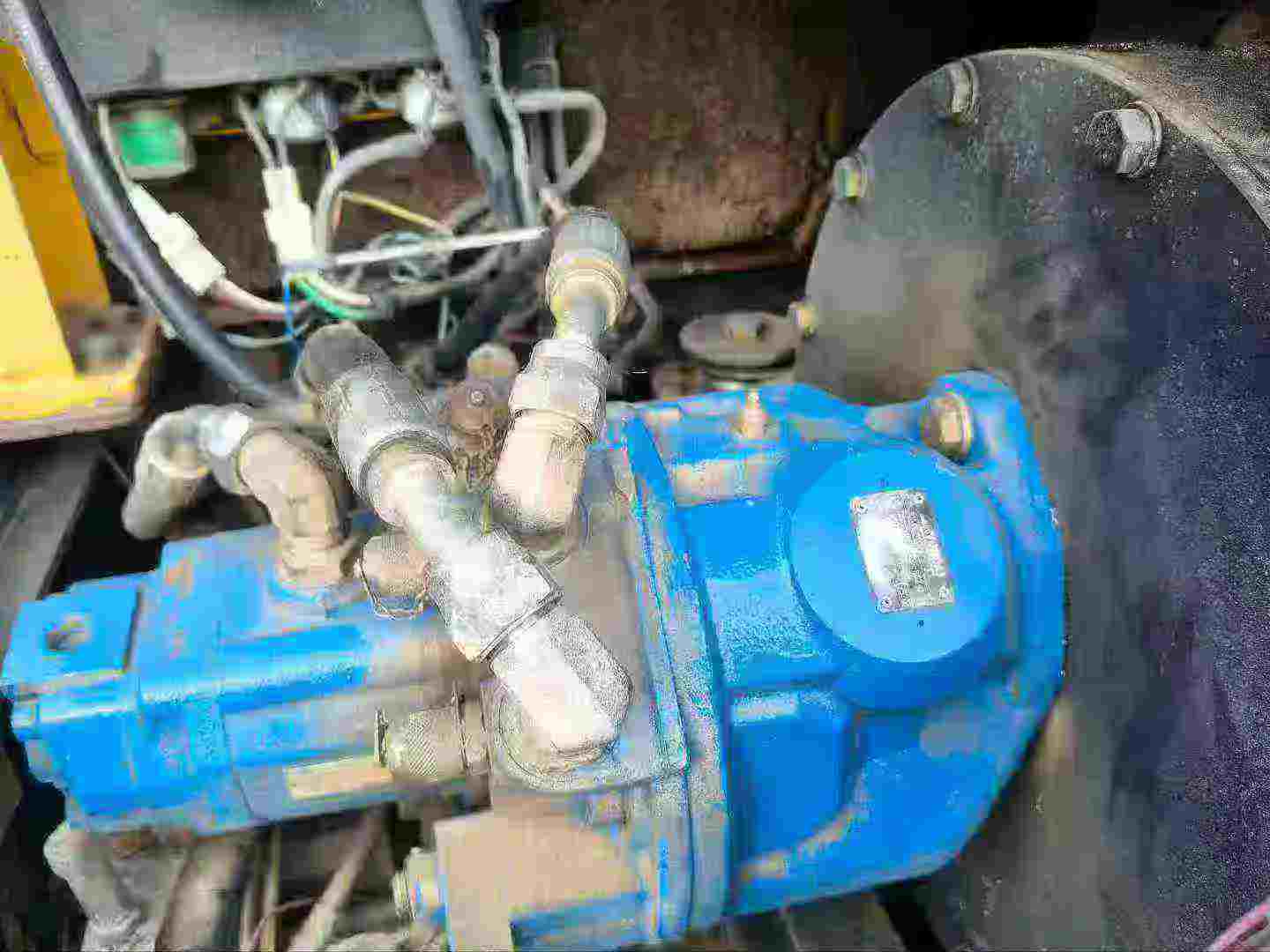

Advanced dual variable axial piston pumps provide exceptional hydraulic control, generating 37.7kN bucket digging force and 28.4kN rod digging force. With a 6-ton operating weight and 0.06-0.21m³ bucket capacity range, this compact excavator maximizes productivity in confined spaces while maintaining superior stability.
Key technical specifications include:
- Maximum digging radius: 6,150mm with 3,820mm depth capability
- 9.6 rpm rotation speed for precise positioning
- 70% climbing ability on 35-degree slopes
- Compact transport dimensions: 5,900 × 1,920 × 2,550mm
- 120L fuel capacity with 70L hydraulic reservoir
Currently located in Luzhou, Sichuan, this joint-venture manufactured unit represents proven Hyundai engineering quality with comprehensive operational capabilities for medium-scale excavation projects.
| Specifications | Value |
|---|---|
| No. | 991265 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.06-0.21 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanma 4TNV94L |
| Rated power (kw/rpm) | 40/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 37.7 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.2-4.0 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 70 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1520 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1920 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5780 |
| Maximum unloading height (mm) | 4050 |
| Maximum vertical digging depth (mm) | 3200 |
| Dodging plate width × height (mm) | 1920 x 350 |
| Maximum excavation radius of stop surface (mm) | 6010 |
| Maximum effective digging depth (mm) | 3420 |
