Product Description

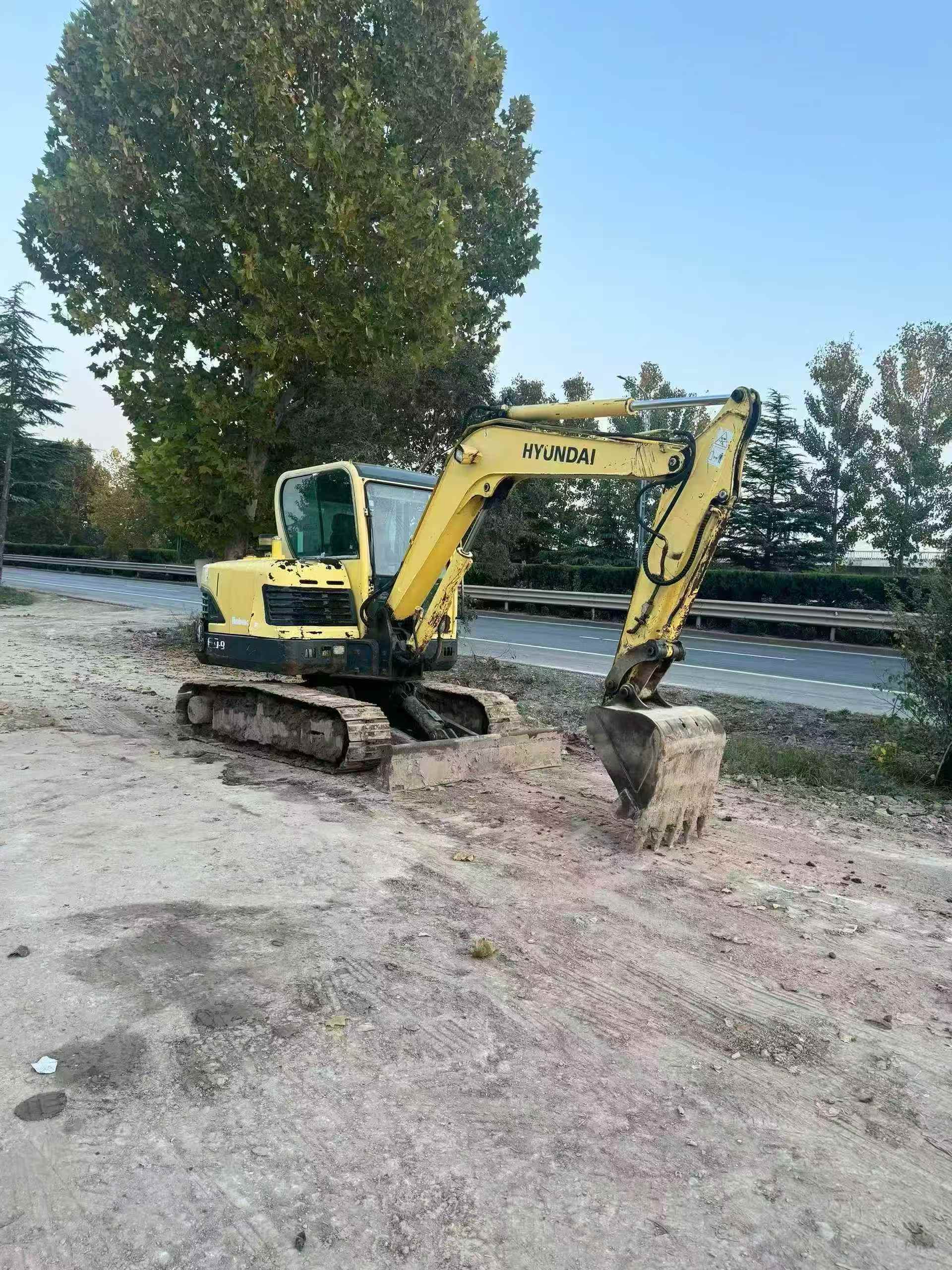

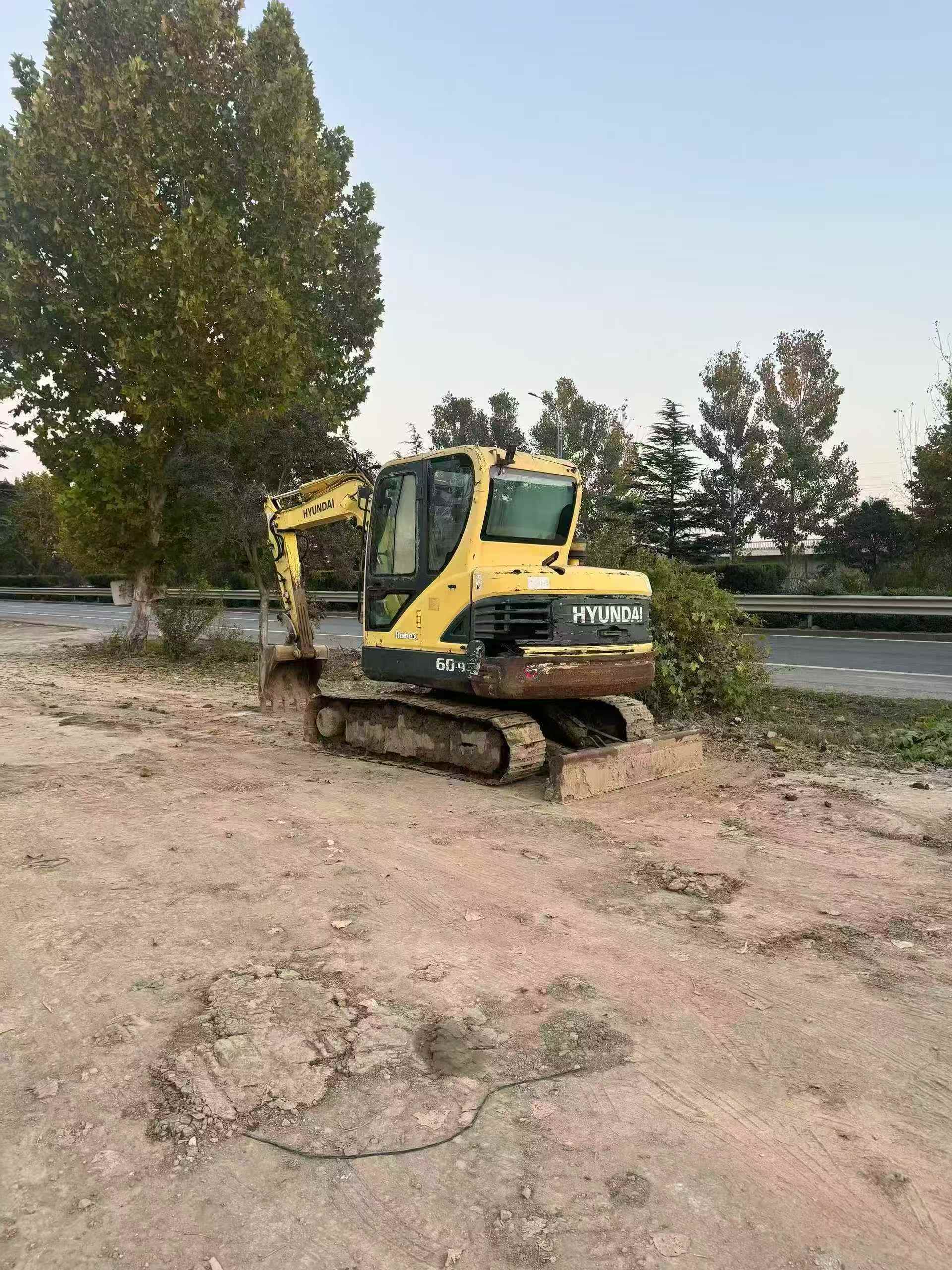

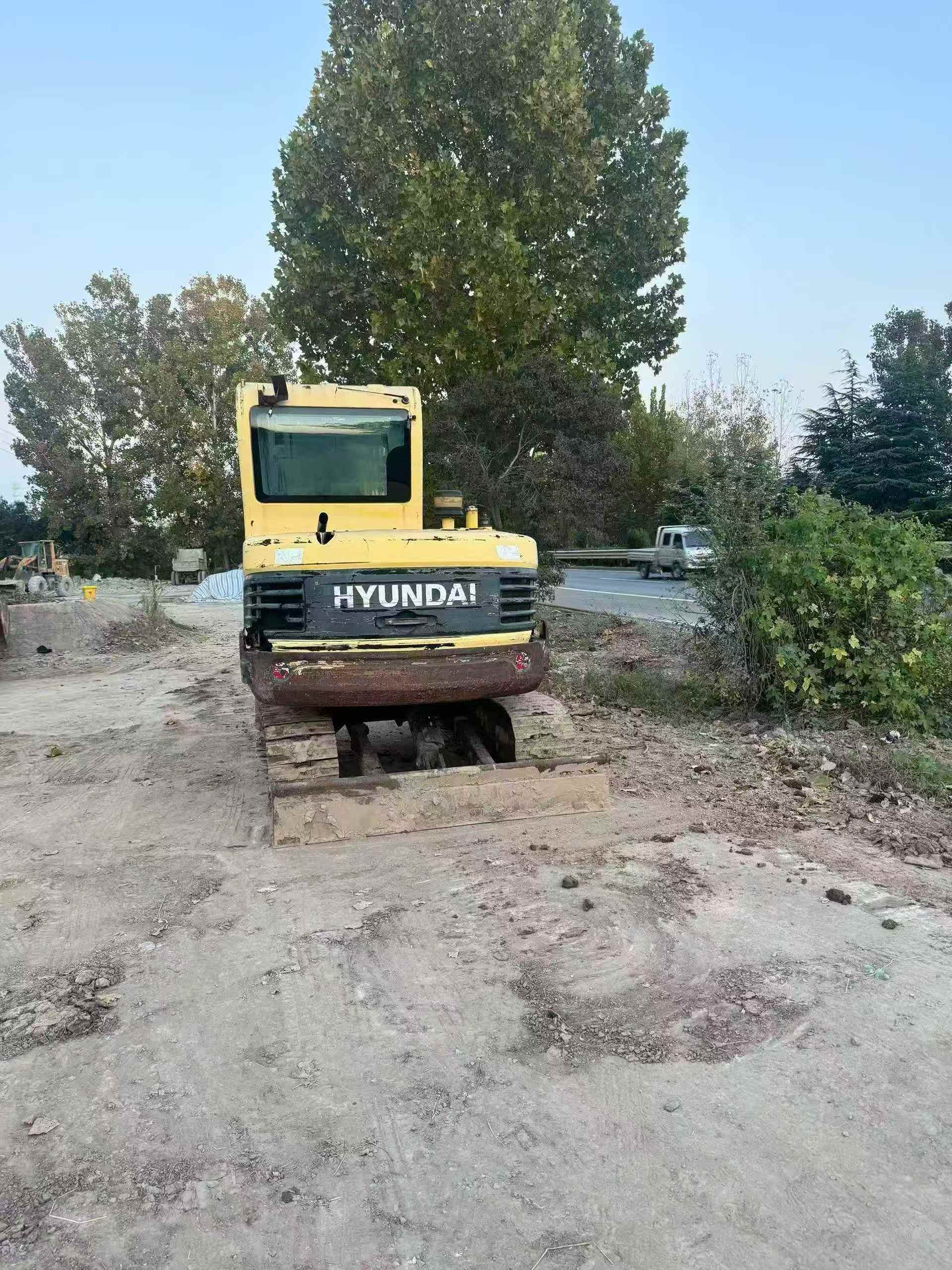

Built for precision and reliability, this 2016 Hyundai R60-9 compact excavator delivers exceptional operator control in demanding work environments. With its 6-ton working weight and Yanmar 4TNV94L engine producing 39kW of power, operators benefit from responsive hydraulic performance and stable operation across varied terrain.
Key operator advantages include:
- Enhanced visibility from the full-height 2550mm cabin with panoramic sightlines
- Precise control through dual variable axial piston pumps for smooth operation
- Superior stability with 1520mm track gauge and 400mm track plate width
- Comfortable operation with water-cooled engine reducing vibration and noise
- Excellent maneuverability featuring 1650mm rear swing radius for tight spaces
Capable of 70% grade climbing and 6150mm maximum digging radius, this machine handles challenging jobsites with confidence. The 0.07-0.21m³ bucket capacity range provides versatility for various excavation tasks. Currently located in Jiangsu, China, this well-maintained unit offers proven Hyundai engineering at an attractive value point for contractors seeking dependable compact excavation performance.
| Specifications | Value |
|---|---|
| No. | 950026 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5660 |
| Bucket capacity (m³) | 0.07-0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

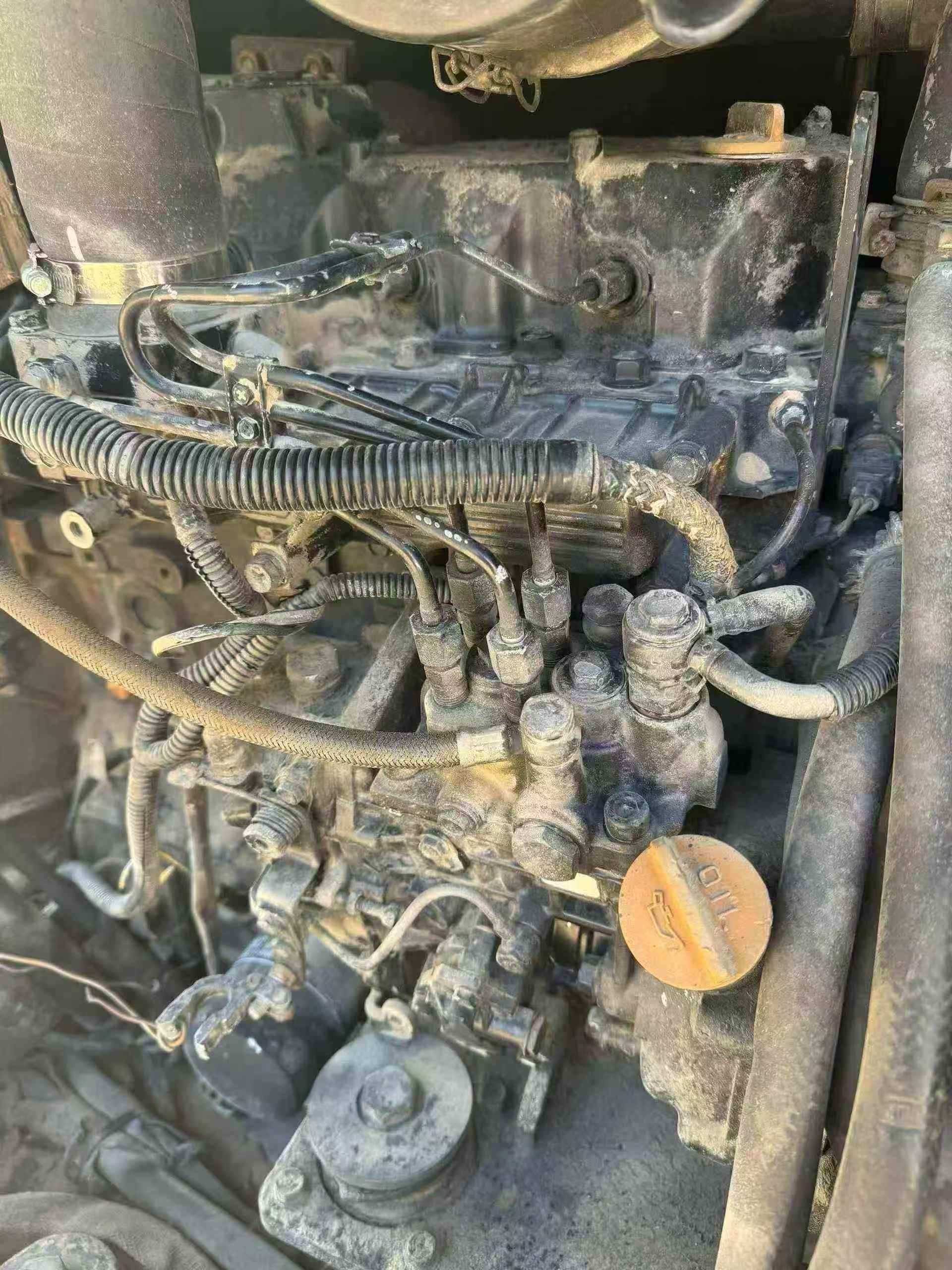

| Engine type | Yanmar Yanma 4TNV94L |
| Rated power (kw/rpm) | 39/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 38.5 |
| Rod digging force (kN) | 29 |
| Travel speed (km/h) | 2.2-4.0 |
| Hydraulic crushing pipeline is standard | no |

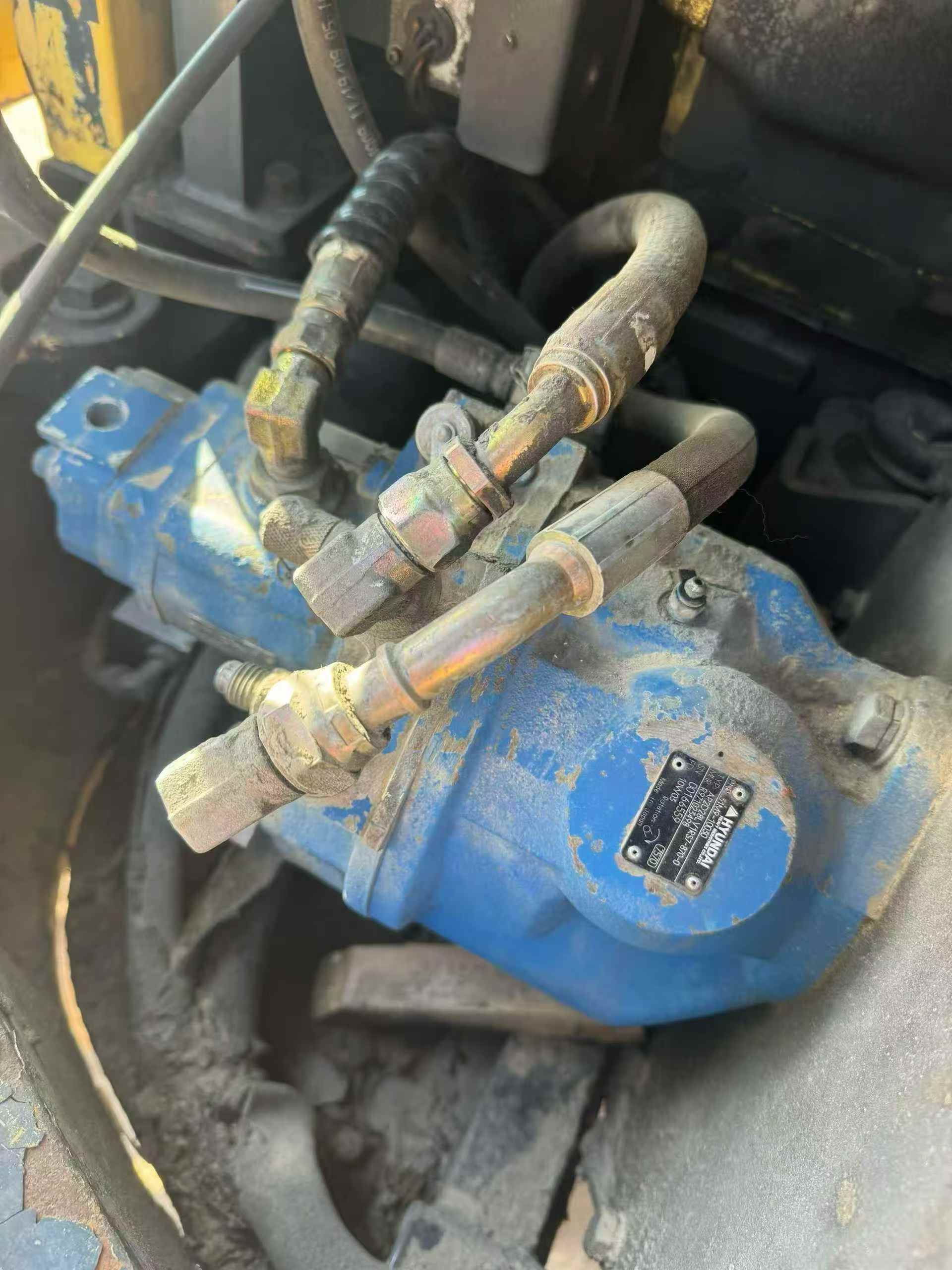

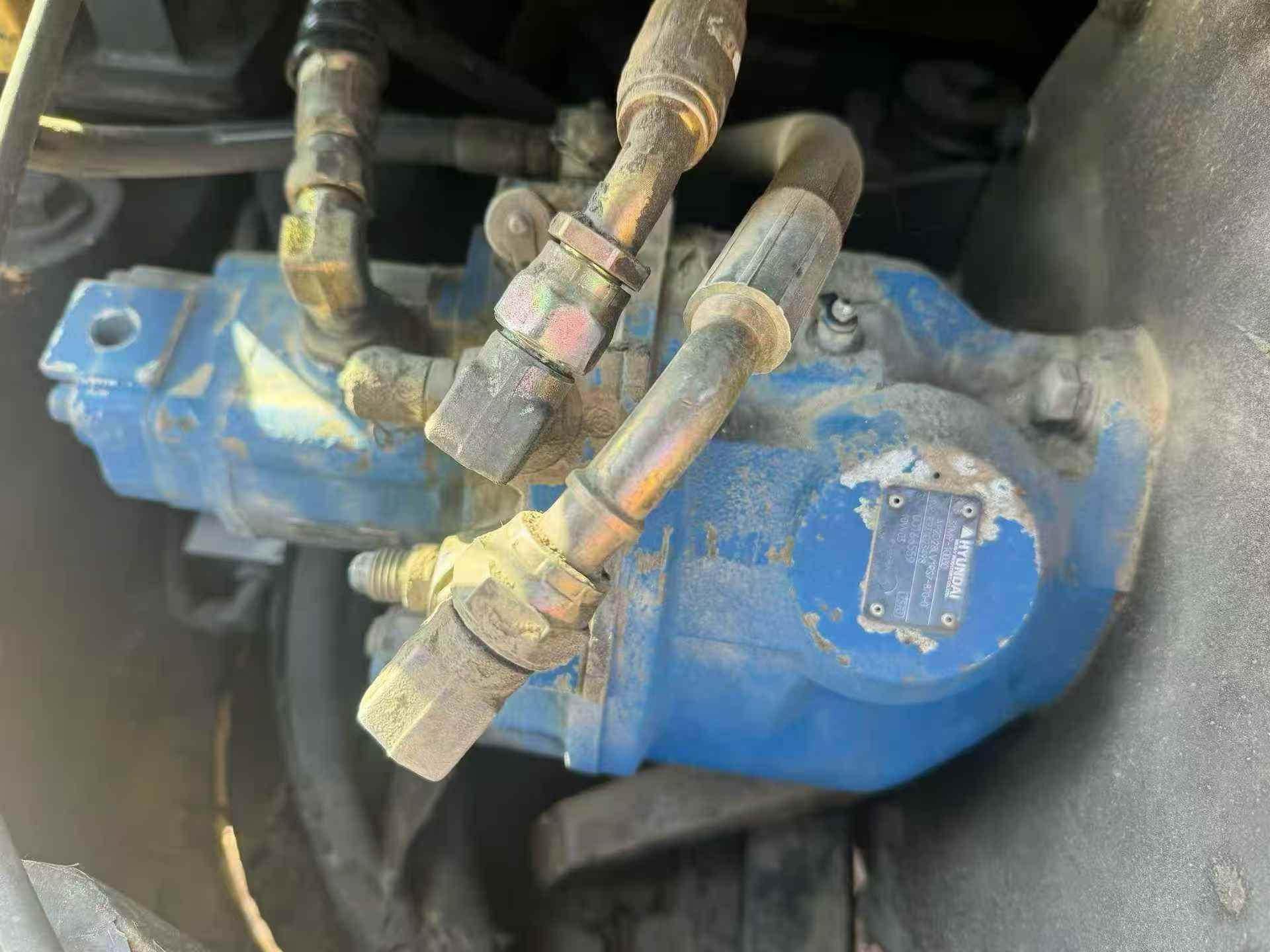

| Main pump type | 2× variable axial piston pump + gear pump |
| Fuel Tank (L) | 125 |
| Hydraulic Tank (L) | 70 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1520 |

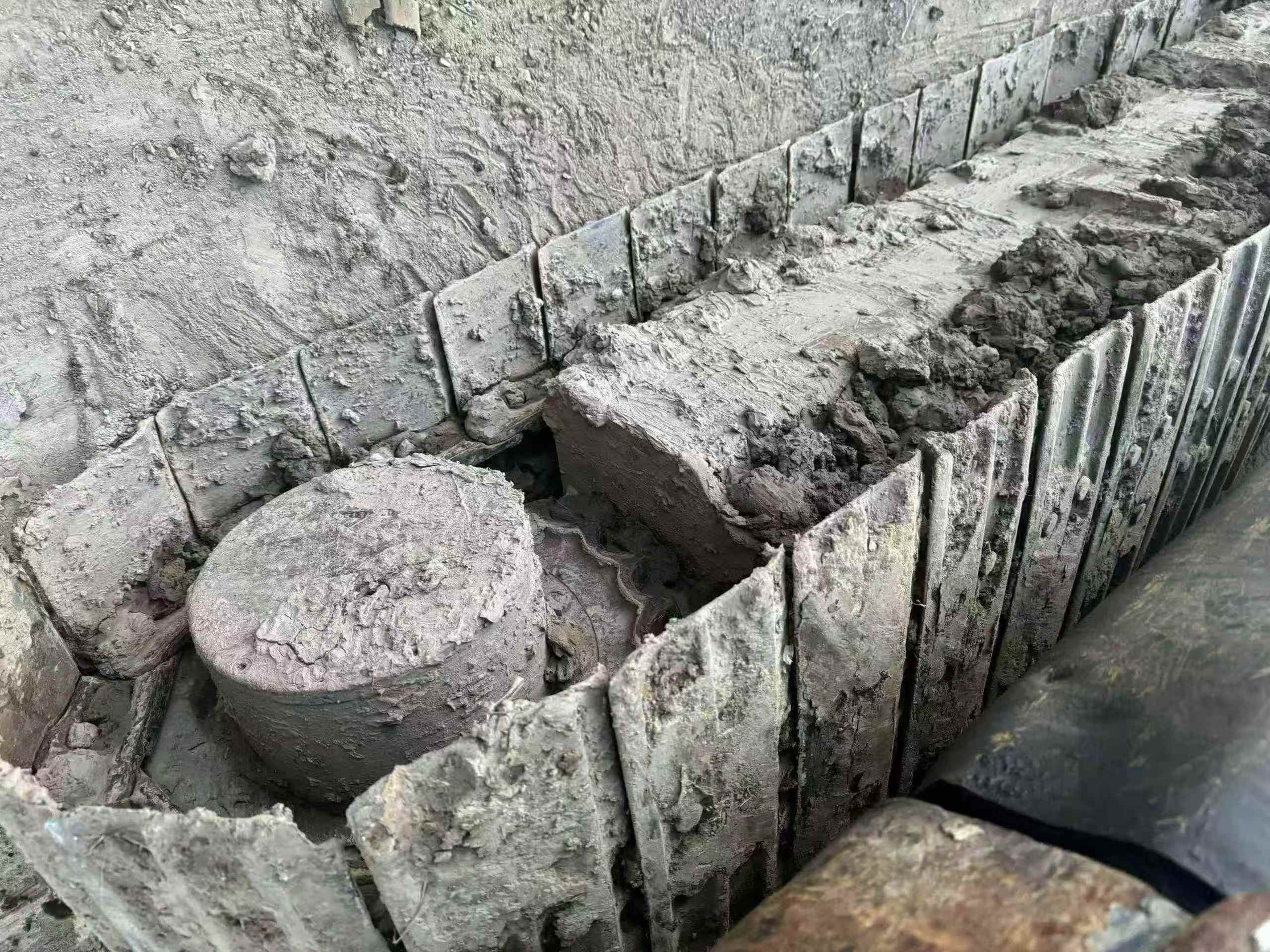

| Track plate width (mm) | 400 |
| Total track width (mm) | 1920 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5780 |
| Maximum unloading height (mm) | 4050 |
| Maximum vertical digging depth (mm) | 3200 |
| Dodging plate width × height (mm) | 1920 x 350 |
| Maximum excavation radius of stop surface (mm) | 6010 |
