Product Description

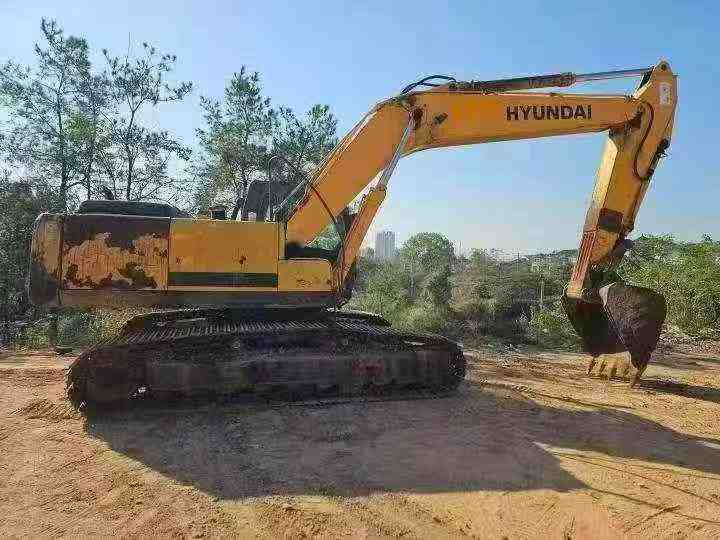

Built to withstand the demands of heavy construction, this 2011 Hyundai XDL65 excavator demonstrates exceptional durability through over a decade of reliable operation. Engineering excellence meets proven performance in this robust machine, currently located in Jiangsu Province.
Thirteen years of continuous service validate the superior build quality that Hyundai is renowned for in the construction industry. This workhorse has consistently delivered dependable results across diverse job sites, making it an intelligent investment for contractors seeking established reliability.
- Proven track record spanning 13+ years of operation
- Hyundai's renowned engineering and manufacturing standards
- Demonstrated longevity in demanding construction environments
- Strategic Jiangsu location for efficient deployment
When durability matters most, this XDL65 stands as testament to Hyundai's commitment to building machines that endure. Ready for immediate deployment and years of continued productive service.
| Specifications | Value |
|---|---|
| No. | 987766 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25200 |
| Bucket capacity (m³) | 1.08 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3050 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

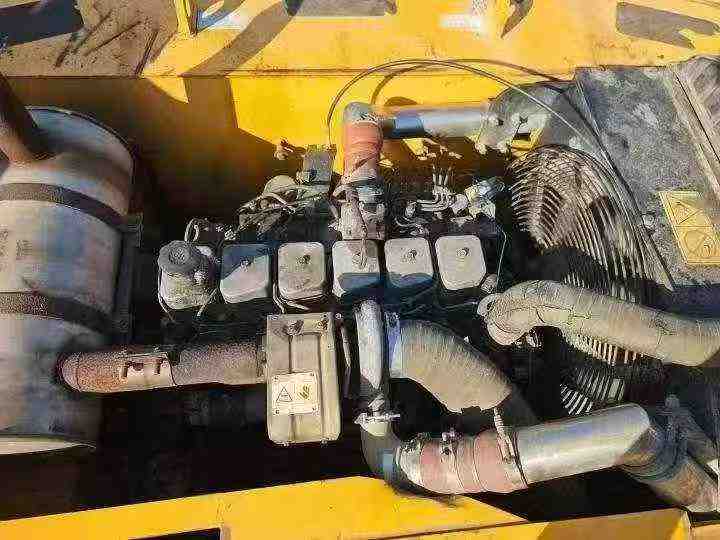

| Engine type | Cummins B5.9-C |
| Rated power (kw/rpm) | 133/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5880 |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 12.6 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 178.5 |
| Rod digging force (kN) | 118.7 |
| Travel speed (km/h) | 3.5-5.5 |
| Maximum flow of main pump (l/min) | 2 x 224 |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 275 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 135 * 90 * 1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 * 110 * 1620 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 * 95 * 1345 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 9920 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3220 |
| Full cab height (mm) | 2990 |
| Counterweight ground clearance (mm) | 1115 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2965 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2580 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3830 |
| Maximum digging radius (mm) | 10360 |
| Maximum digging depth (mm) | 7000 |
| Maximum excavation height (mm) | 9670 |
| Maximum unloading height (mm) | 6630 |
| Maximum vertical digging depth (mm) | 6150 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10190 |
| Maximum effective digging depth (mm) | 6380 |
