Product Description
Built for demanding construction sites, this 2012 Hyundai XDL65 excavator delivers reliable performance across digging, grading, and demolition operations. Engineered with Hyundai's proven hydraulic system, it handles everything from foundation excavation to material loading with precision control and consistent power output.
Key operational capabilities include:
- Deep excavation work up to maximum dig depth specifications
- Precise grading and site preparation tasks
- Demolition projects requiring controlled force application
- Material handling and loading operations
Currently positioned in Zhejiang Lishui, this machine has been maintained for immediate deployment. Operators will find familiar controls and responsive hydraulics that minimize learning curves while maximizing productivity. Ready for transport to your job site and immediate integration into active projects.
Contact us for detailed specifications, maintenance records, and scheduling availability for this work-ready excavator.
| Specifications | Value |
|---|---|
| No. | 987322 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25200 |
| Bucket capacity (m³) | 1.08 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3050 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

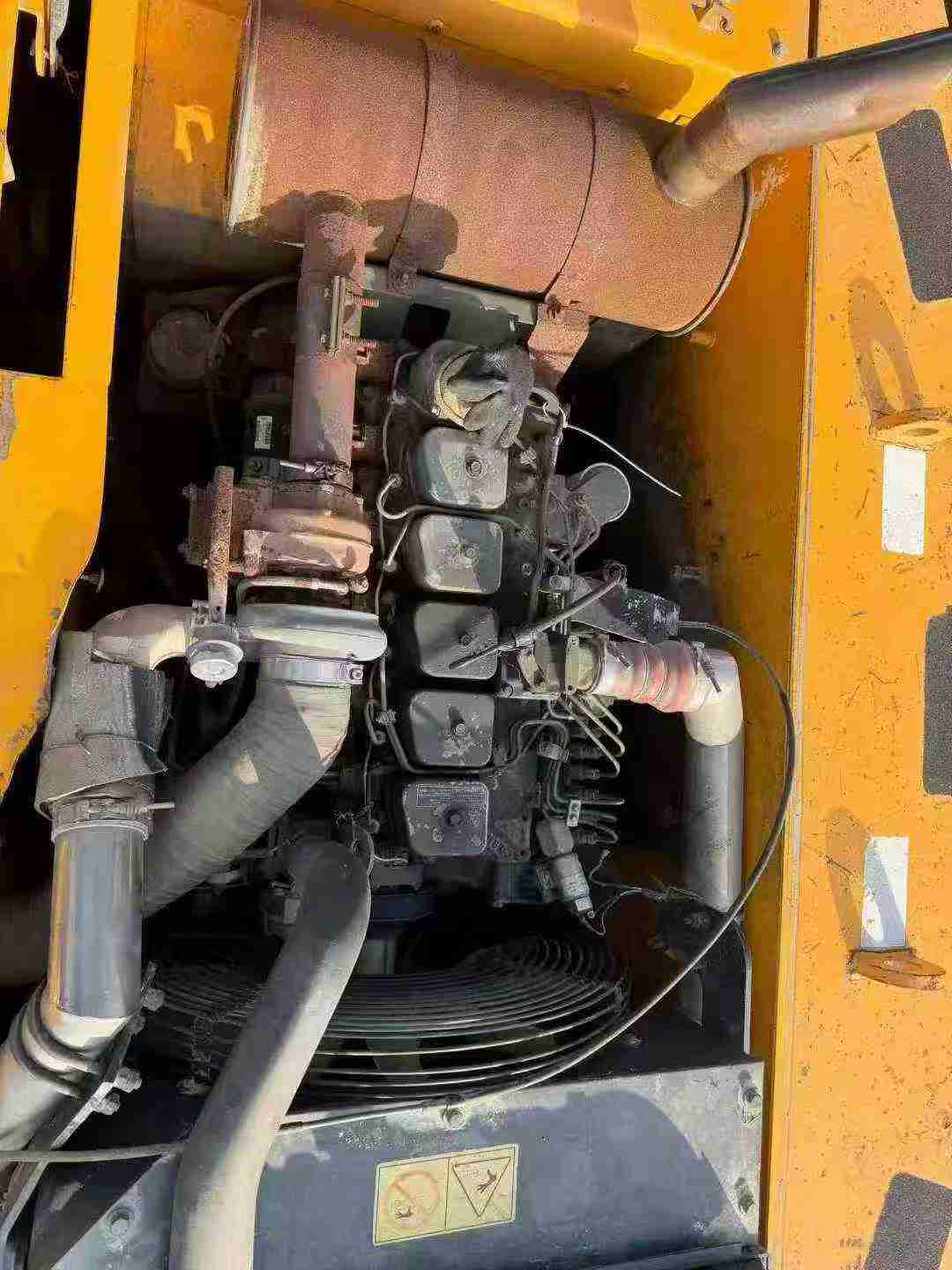

| Engine type | Cummins B5.9-C |
| Rated power (kw/rpm) | 133/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5880 |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 12.6 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 178.5 |
| Rod digging force (kN) | 118.7 |
| Travel speed (km/h) | 3.5-5.5 |
| Maximum flow of main pump (l/min) | 2 x 224 |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 275 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 135 * 90 * 1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 * 110 * 1620 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 * 95 * 1345 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 9920 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3220 |
| Full cab height (mm) | 2990 |
| Counterweight ground clearance (mm) | 1115 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2965 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2580 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3830 |
| Maximum digging radius (mm) | 10360 |
| Maximum digging depth (mm) | 7000 |
| Maximum excavation height (mm) | 9670 |
| Maximum unloading height (mm) | 6630 |
| Maximum vertical digging depth (mm) | 6150 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10190 |
| Maximum effective digging depth (mm) | 6380 |
