Product Description
Strengthen your fleet operations with this reliable 2016 Hyundai XDL65 excavator, strategically positioned in Fujian, China for immediate deployment. Built for contractors who demand consistent performance across multiple job sites, this mid-size unit delivers the operational flexibility essential for maintaining project schedules when primary equipment requires maintenance or faces unexpected downtime.
Key operational advantages include:
- Proven Hyundai engineering with established parts availability and service network
- Optimal size classification for versatile site applications and transport efficiency
- Ready availability from Fujian location for rapid fleet integration
- Cost-effective backup solution that maintains productivity standards
Smart contractors recognize that fleet redundancy prevents costly project delays. This XDL65 represents a strategic investment in operational continuity, offering the reliability and performance specifications necessary to keep your projects moving forward regardless of primary equipment status.
| Specifications | Value |
|---|---|
| No. | 931712 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25200 |
| Bucket capacity (m³) | 1.08 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3050 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

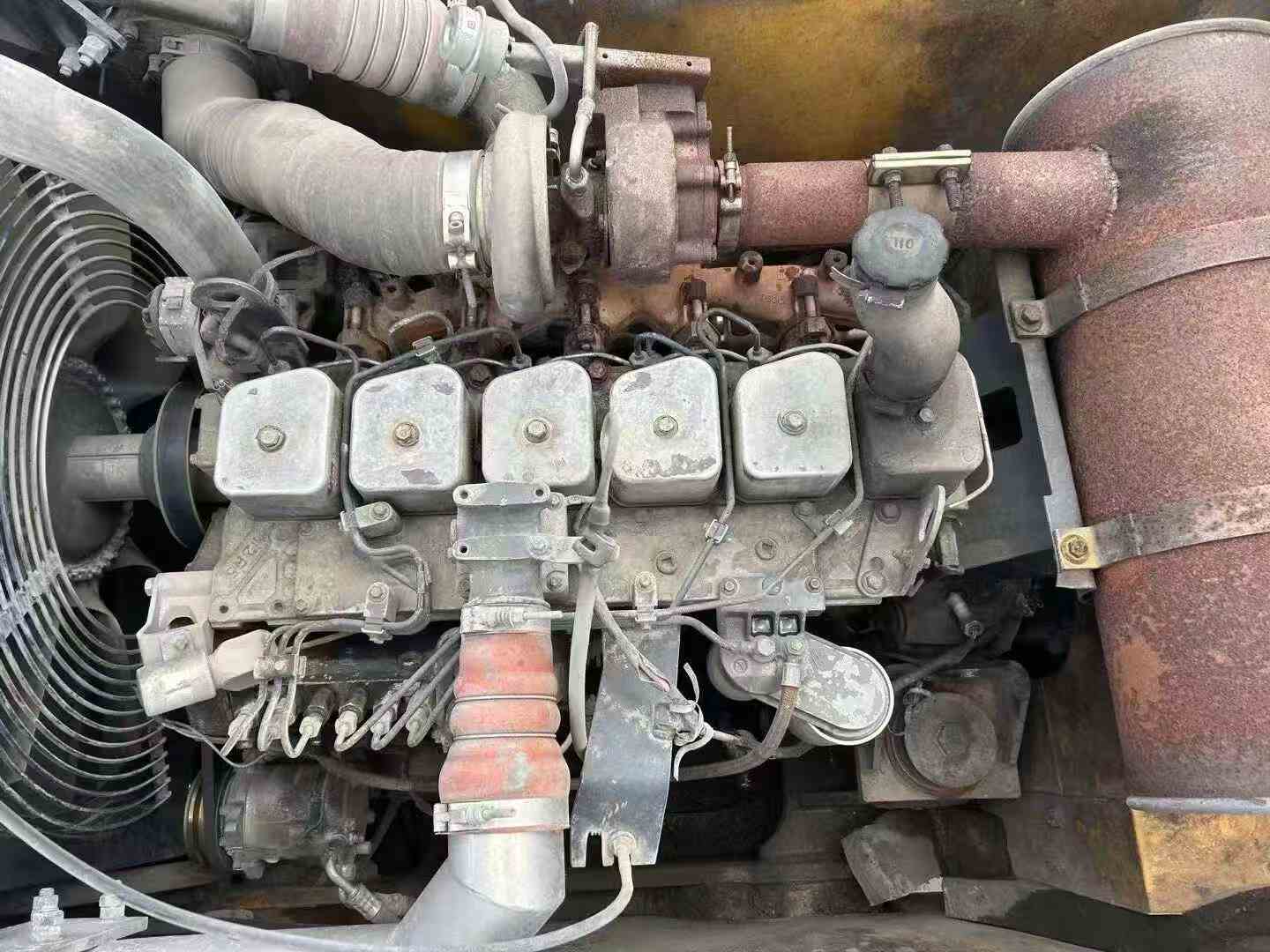

| Engine type | Cummins B5.9-C |
| Rated power (kw/rpm) | 133/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5880 |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 12.6 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 178.5 |
| Rod digging force (kN) | 118.7 |
| Travel speed (km/h) | 3.5-5.5 |
| Maximum flow of main pump (l/min) | 2 x 224 |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 275 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 135 * 90 * 1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 * 110 * 1620 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 * 95 * 1345 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 9920 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3220 |
| Full cab height (mm) | 2990 |
| Counterweight ground clearance (mm) | 1115 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2965 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2580 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3830 |
| Maximum digging radius (mm) | 10360 |
| Maximum digging depth (mm) | 7000 |
| Maximum excavation height (mm) | 9670 |
| Maximum unloading height (mm) | 6630 |
| Maximum vertical digging depth (mm) | 6150 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10190 |
| Maximum effective digging depth (mm) | 6380 |
