Product Description

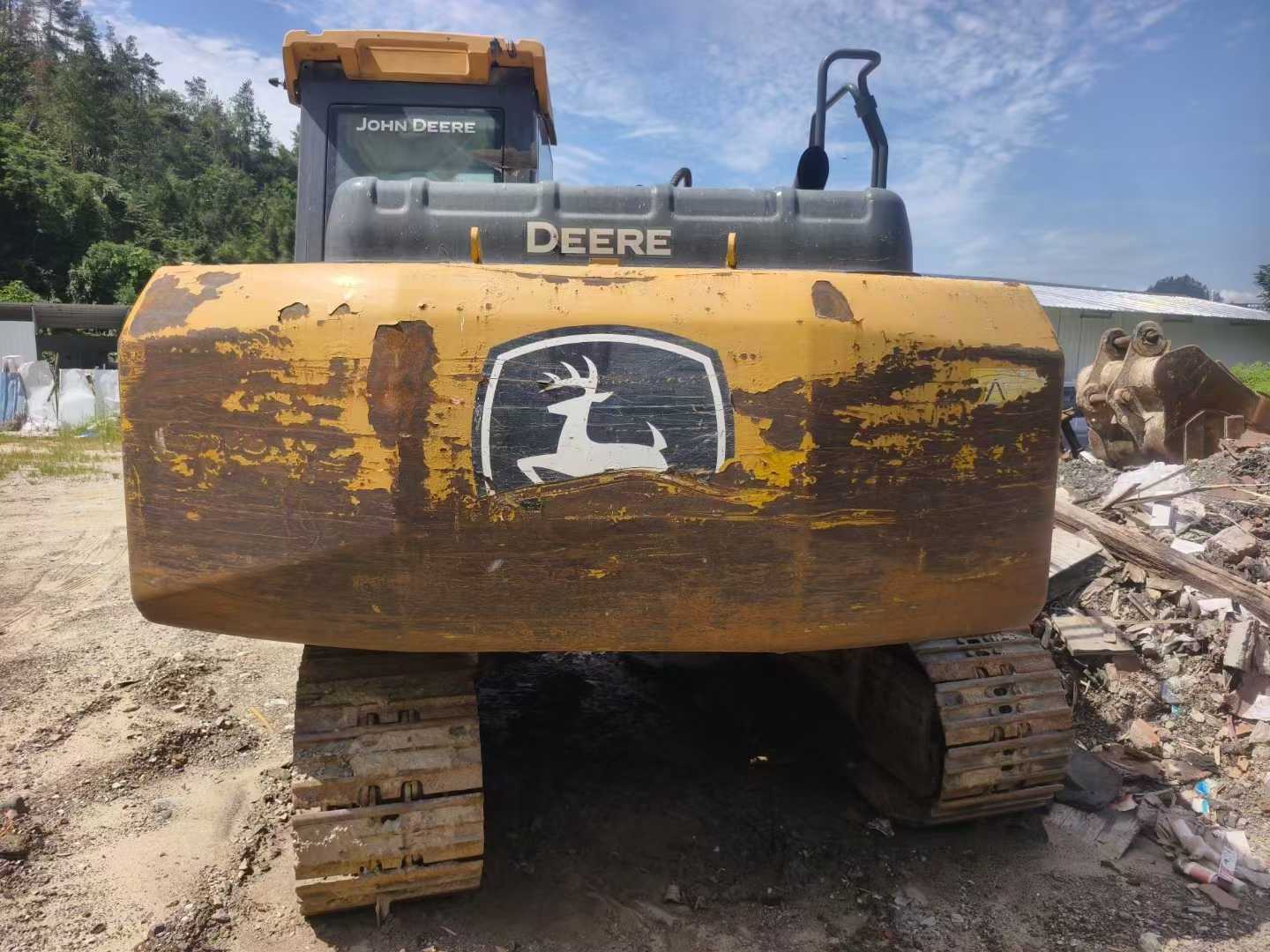

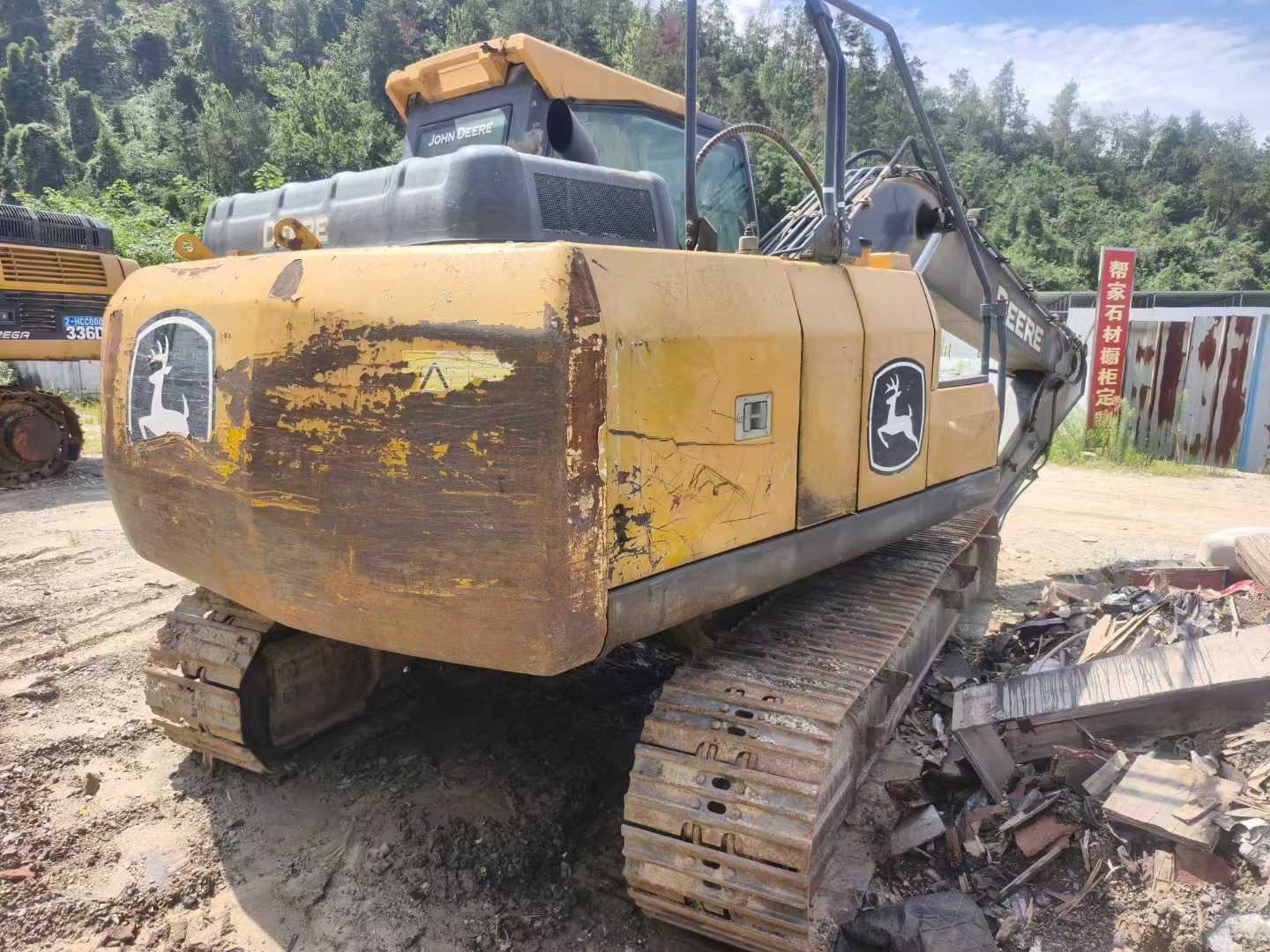

Skip the factory lead times with this robust 2018 JohnDeere E130 excavator, available now from Hubei China for immediate deployment to your site. Built for demanding construction and earthmoving operations, this 13-ton machine delivers reliable performance with its 80kW engine producing 445 N·m of maximum torque at 1400 rpm.
Engineered for versatility and efficiency, the E130 features an impressive 8.35m maximum digging radius and 5.76m maximum digging depth, powered by a dual main pump system flowing 126 L/min each. With 101kN bucket digging force and 70kN rod digging force, this excavator handles tough materials while maintaining precise control through its advanced hydraulic system.
- 13,480kg working weight with 43.6 kPa ground pressure
- 4.6m boom and 2.52m rod configuration
- 240L fuel capacity for extended operation
- 2.5m transport width fits standard trailers
- Fast deployment from Hubei logistics hub
Available now for immediate shipment, eliminating months of factory wait times typically associated with new equipment orders.
| Specifications | Value |
|---|---|
| No. | 906778 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13480 |
| Bucket capacity (m³) | |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 80 / 1800 |
| Maximum torque (N.m) | 445 / 1400 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.5 |
| Working form | |
| Ground specific pressure (Kpa) | 43.6 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 (35°) |
| Bucket digging force (kN) | 101 |
| Rod digging force (kN) | 70 |
| Maximum tractive force (kN) | 139 |
| Travel speed (km/h) | 5.8 / 3.1 |
| Turning torque (Nm) | 35.8 |
| Maximum flow of main pump (l/min) | 126 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 35.3 |
| Rotary Hydraulic Circuit (Mpa) | 27 |
| Main pump type | |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 18 x 1 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 125 |
| Engine Oil changes (L) | 14.7 |
| Coolant (L) | 18.2 |
| Hydraulic System (L) | 185 |
| Total transport length (mm) | 7632 |
| Total transport width (mm) | 2500 |
| Total transport height (mm) | 2841 |
| Full cab height (mm) | 2841 |
| Counterweight ground clearance (mm) | 888 |
| Minimum ground clearance (mm) | 434 |
| Minimum turning radius of front working device (mm) | 2626 |
| Back end turning radius (mm) | 2236 |
| Onboard width (mm) | 2500 |
| Total track length (mm) | 3501 |
| Track gauge (mm) | 2000 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2780 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 6 |
| Number of track plates (single side) (PCS) | 43 |
| Maximum digging radius (mm) | 8351 |
| Maximum digging depth (mm) | 5764 |
| Maximum excavation height (mm) | 8568 |
| Maximum unloading height (mm) | 6030 |
| Maximum vertical digging depth (mm) | 5107 |
| Maximum excavation radius of stop surface (mm) | 8214 |
