Product Description

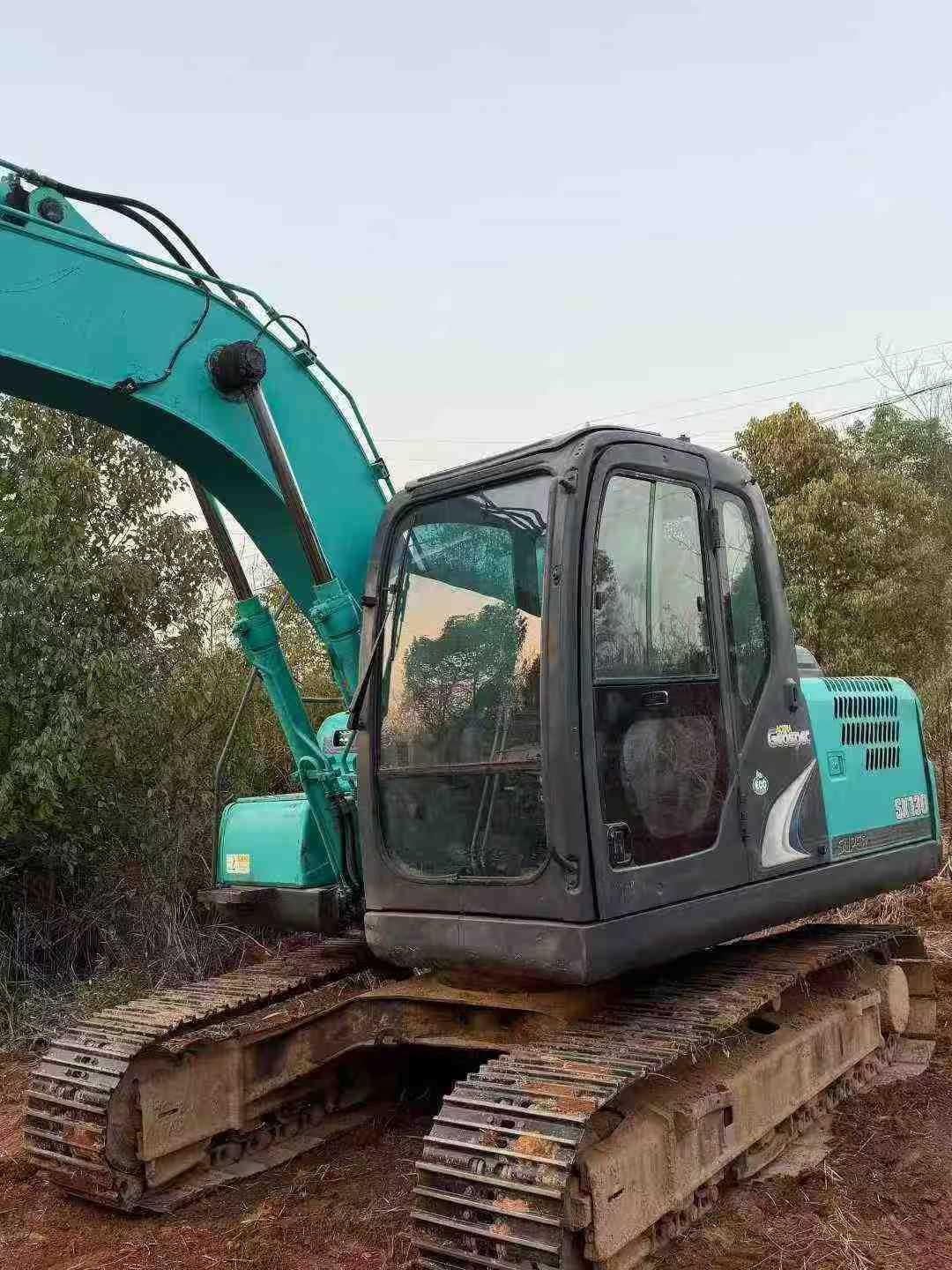

Built for immediate deployment, this 2019 Kobelco SK130 delivers 13-ton performance with proven Japanese engineering. Powered by a reliable Mitsubishi D04FR engine producing 74kW at 2000 rpm, this excavator handles demanding excavation, grading, and demolition tasks with precision.
Key operational specifications include:
- Maximum digging depth of 5.52m for deep foundation work
- 8.34m maximum reach for extended operational range
- 90.1kN bucket digging force tackles compacted materials
- 0.52m³ bucket capacity optimizes productivity cycles
- 275L fuel tank ensures extended operating periods
Compact transport dimensions (7.79m × 2.49m × 2.71m) enable efficient site-to-site mobility while maintaining full-size capabilities. Currently located in Jiangxi Province, this machine combines Kobelco's hydraulic expertise with Mitsubishi's proven powertrain reliability. Ready for immediate operation across construction, utility, and demolition applications.
| Specifications | Value |
|---|---|
| No. | 990595 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12800 |
| Bucket capacity (m³) | 0.52 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

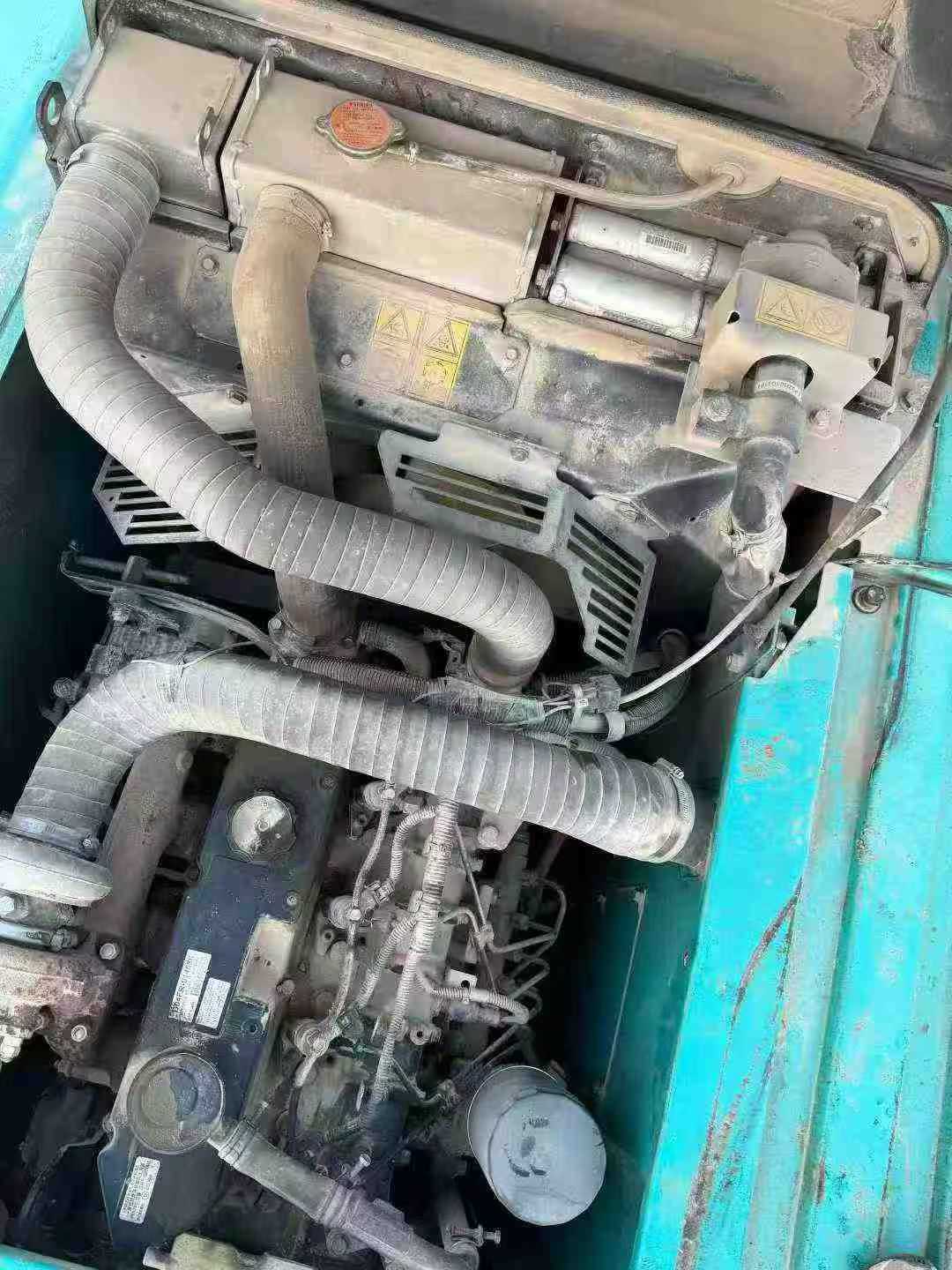

| Engine type | Mitsubishi D04FR |
| Rated power (kw/rpm) | 74/2000 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 90.1 |
| Travel speed (km/h) | 3.4/5.6 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 101 |
| Total transport length (mm) | 7790 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2710 |
| Full cab height (mm) | 2870 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2190 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 2870 |
| Track plate width (mm) | 500/600/700 |
| Maximum digging radius (mm) | 8340 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6090 |
| Maximum vertical digging depth (mm) | 4880 |
| Dodging plate width × height (mm) | 500 |
| Maximum excavation radius of stop surface (mm) | 8190 |
| Maximum effective digging depth (mm) | 5290 |
