Product Description
Built for demanding construction environments, this 2016 Kobelco SK200 delivers exceptional operator control and jobsite performance. Operating at 20 tons with a robust Mitsubishi 6D34-TLU2D engine producing 110kW, this excavator combines power with precision handling that experienced operators demand.
Key operational advantages include:

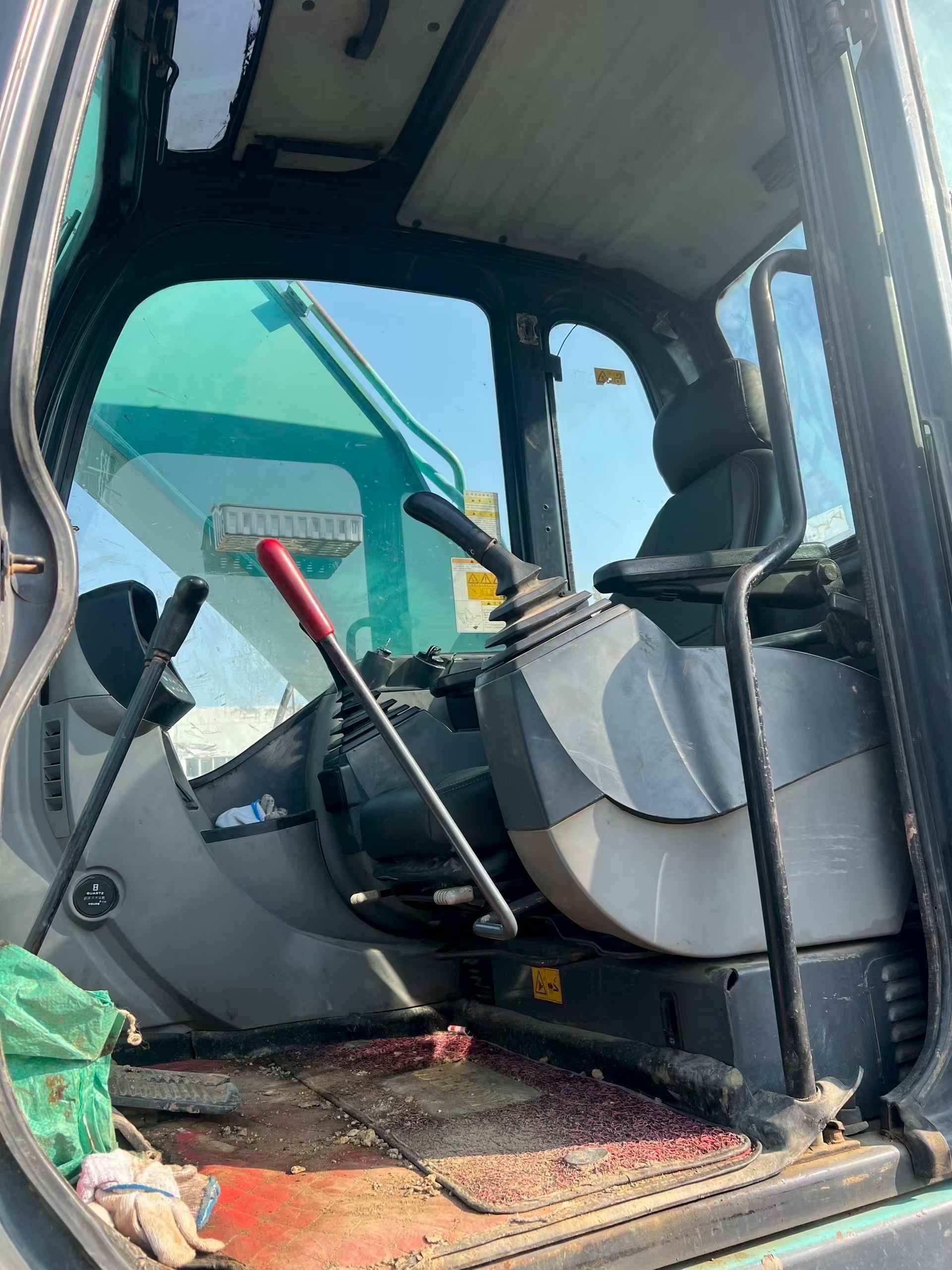

- Superior cabin visibility for enhanced safety and accuracy during complex maneuvers
- Stable 45/35 Kpa ground pressure distribution minimizing surface damage
- Responsive hydraulic system with 143kN bucket digging force (157kN supercharged)
- Dual-speed travel capability: 4.0km/h standard, 6.0km/h high-speed transport
- 340L fuel capacity for extended operation cycles
Located in Jiangsu, China, this water-cooled, turbocharged unit features the reliability of Japanese engineering with proven Mitsubishi power. The 0.8m³ bucket capacity and 70% climbing ability make it ideal for varied terrain applications. Double variable displacement hydraulic pumps ensure smooth, controlled operation across all functions.
| Specifications | Value |
|---|---|
| No. | 967718 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20000 |
| Bucket capacity (m³) | 0.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

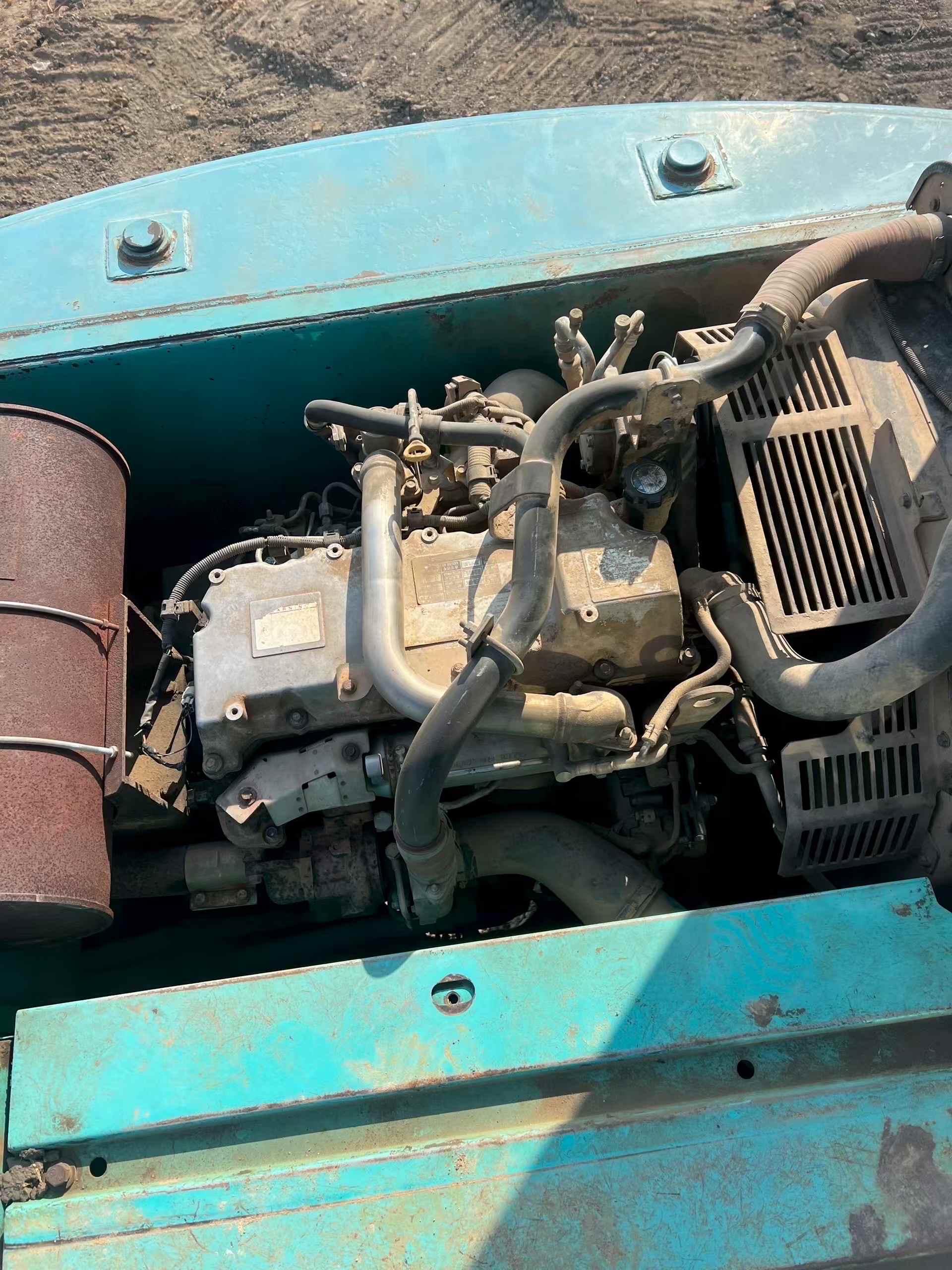

| Engine type | Mitsubishi 6D34-TLU2D |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Working form | Water-cooled, four-stroke, six-cylinder, direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 45; 35 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 143; Supercharged state: 157 |
| Rod digging force (kN) | 97.1; Supercharged state: 107 |
| Travel speed (km/h) | 1 speed: 4.0 2 speed :6.0 |
| Main overflow set pressure (Mpa) | 34.3; Supercharged state: 37.8 |
| Main pump type | Double variable displacement axial piston pump pilot gear pump |
| Fuel Tank (L) | 340 |
| Track plate width (mm) | 600; 800 |
