Product Description

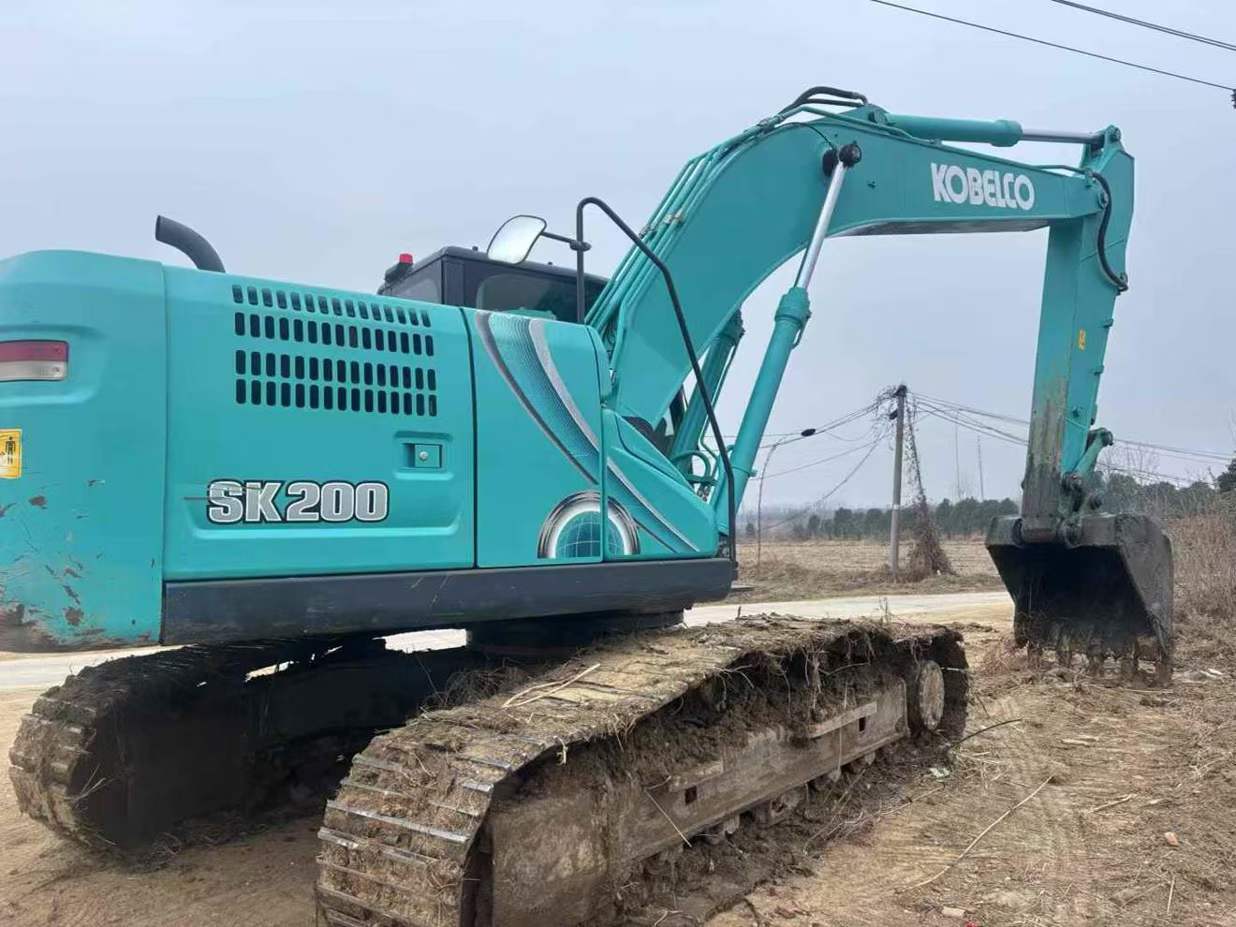

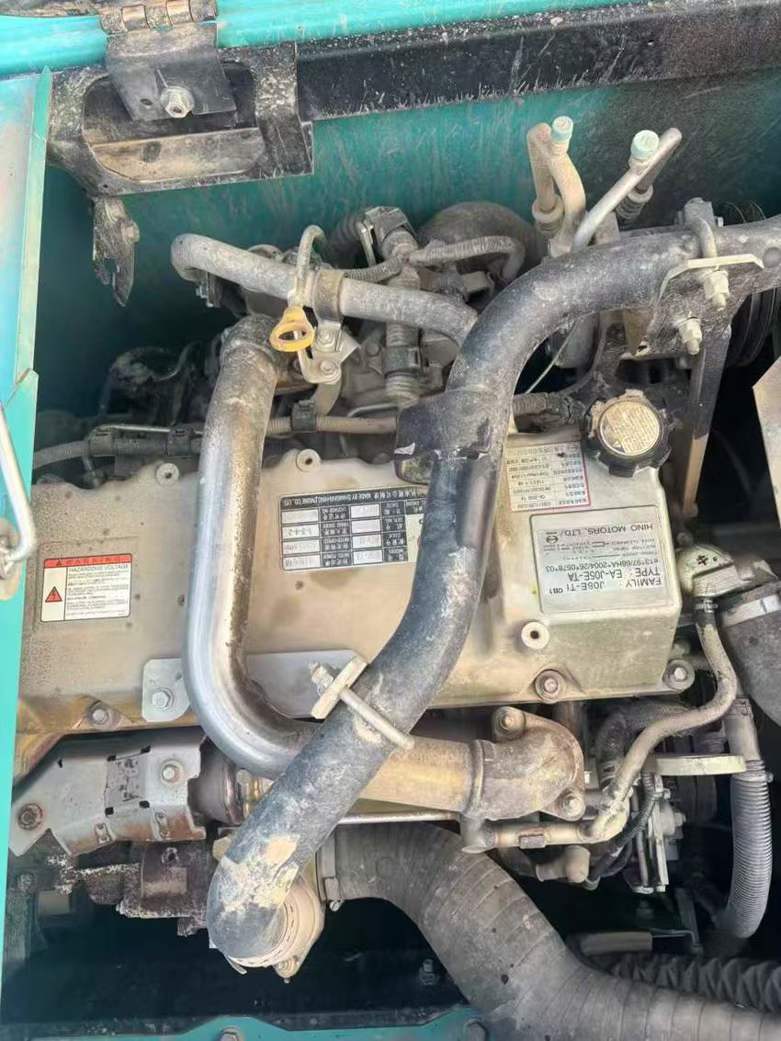

Built for demanding excavation work, this 2021 Kobelco SK200 delivers 20-ton performance with proven reliability. The Mitsubishi 6D34-TLU2D engine generates 110kW of power through water-cooled, turbocharged operation, ensuring consistent performance across extended work cycles.
Engineered for versatility, the machine handles digging operations with 143kN bucket force and 97.1kN arm force, while supercharged mode increases these to 157kN and 107kN respectively. The 0.8m³ bucket capacity optimizes material handling for medium-scale projects.

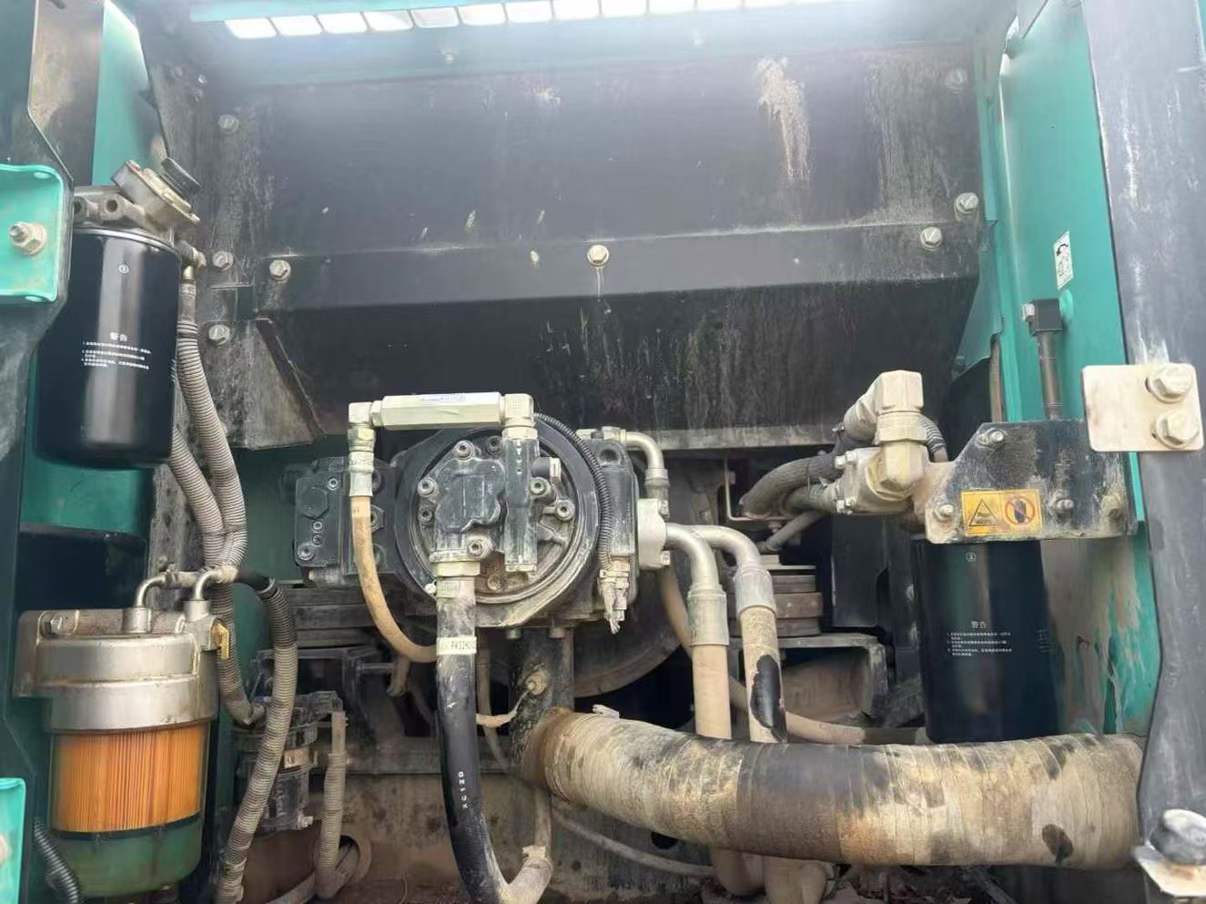

- Double variable displacement hydraulic system with 34.3 MPa operating pressure
- 340L fuel tank supports full-day operations
- 600mm/800mm track options adapt to various ground conditions
- 70% climbing capability tackles challenging terrain
- 11 rpm swing speed enhances operational efficiency
Currently located in Hefei, Anhui, this excavator stands ready for immediate deployment on construction sites, utility projects, or demolition work. Factory-backed specifications ensure reliable performance for contractors requiring dependable earthmoving capability.
| Specifications | Value |
|---|---|
| No. | 991206 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20000 |
| Bucket capacity (m³) | 0.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TLU2D |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Working form | Water-cooled, four-stroke, six-cylinder, direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 45; 35 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 143; Supercharged state: 157 |
| Rod digging force (kN) | 97.1; Supercharged state: 107 |
| Travel speed (km/h) | 1 speed: 4.0 2 speed :6.0 |
| Main overflow set pressure (Mpa) | 34.3; Supercharged state: 37.8 |
| Main pump type | Double variable displacement axial piston pump pilot gear pump |
| Fuel Tank (L) | 340 |
| Track plate width (mm) | 600; 800 |
