Product Description

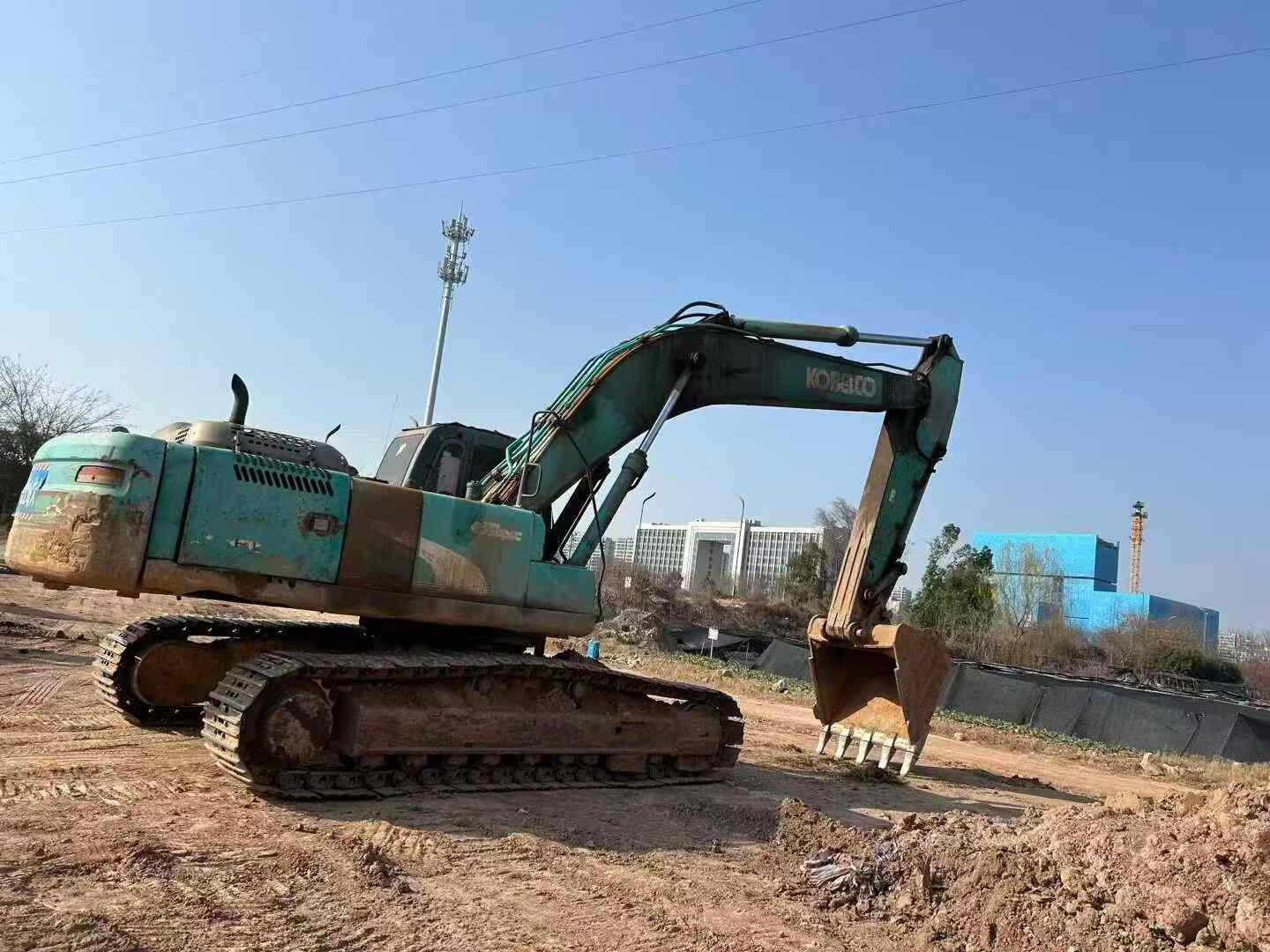

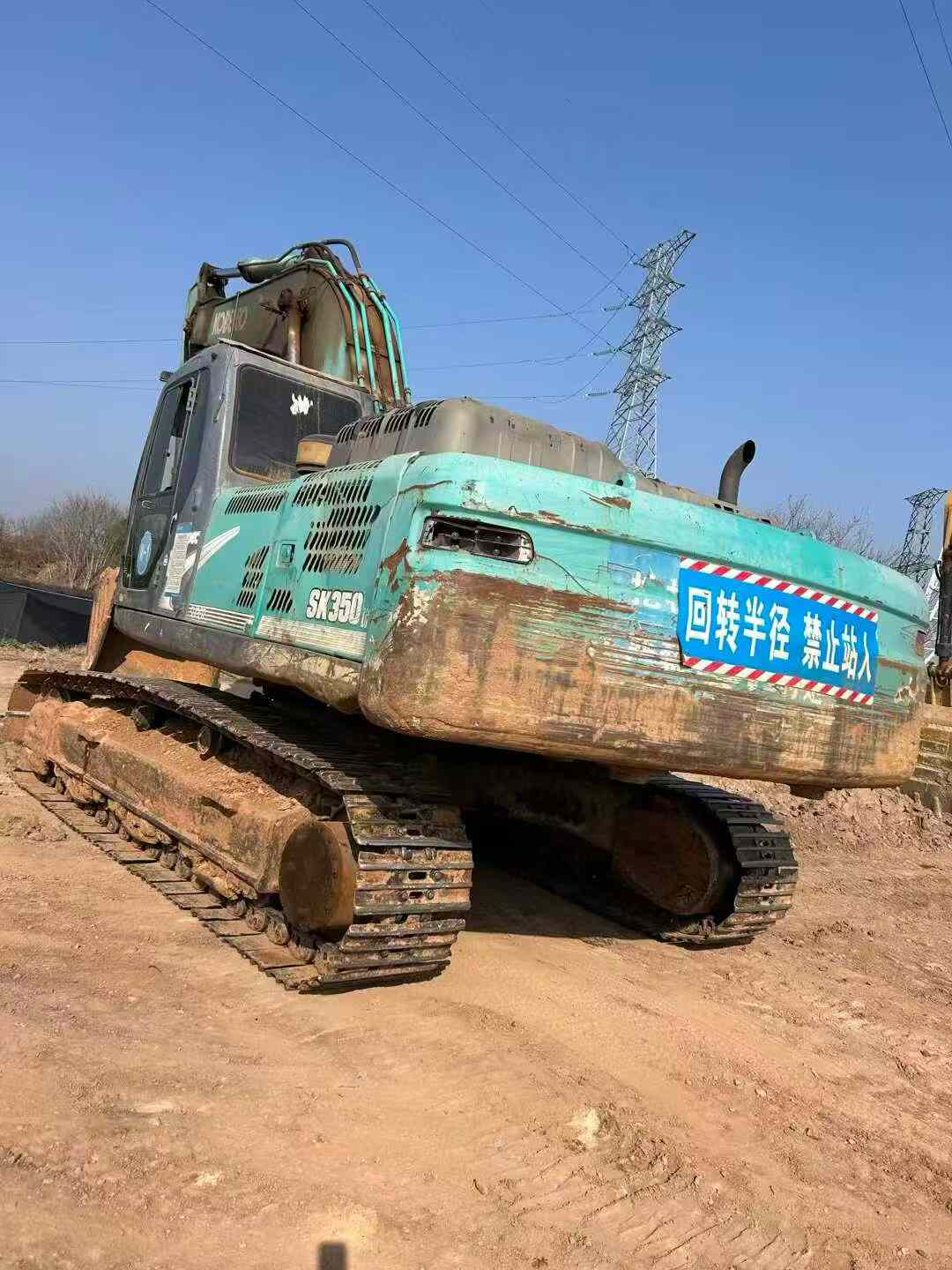

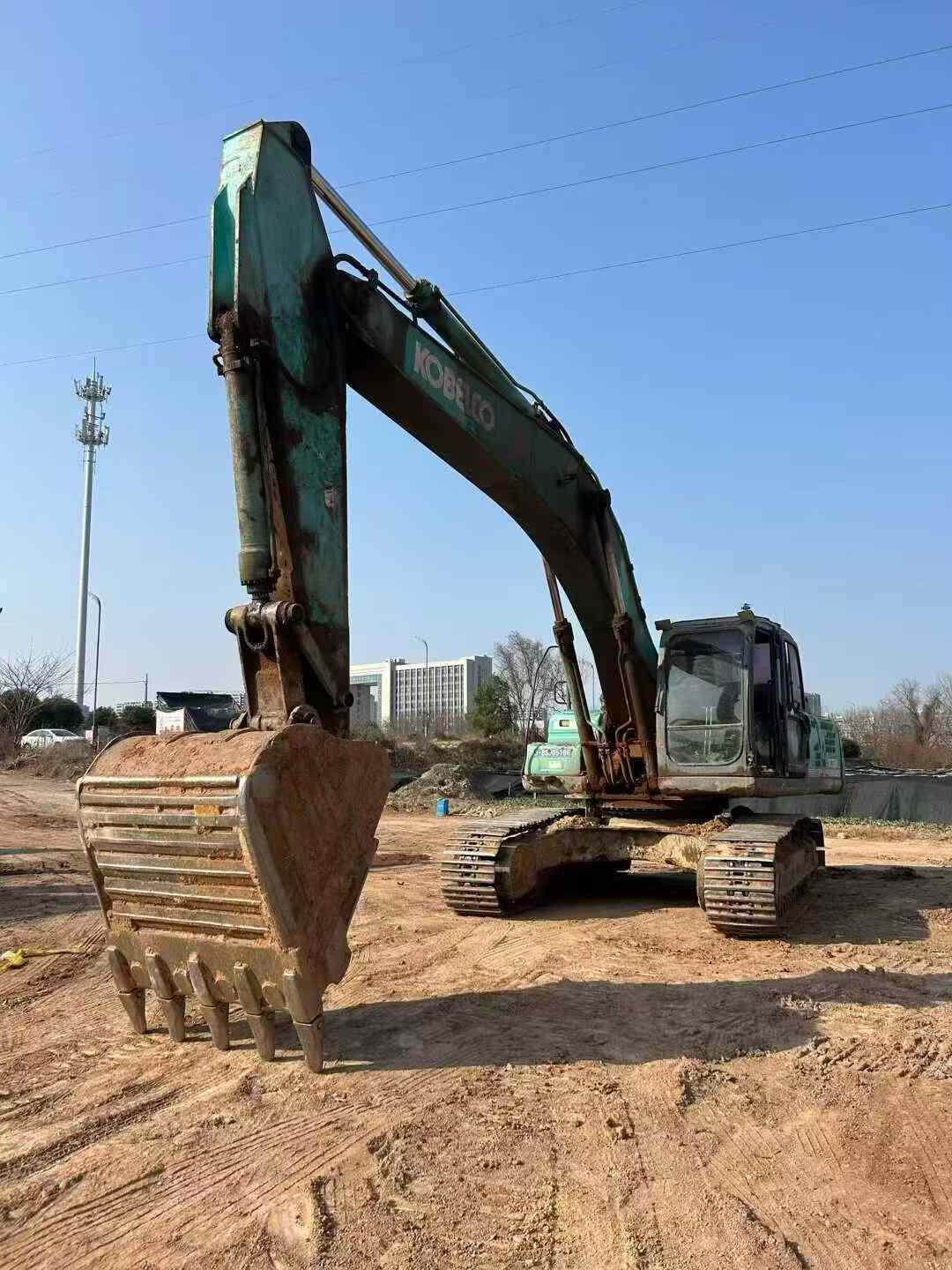

Maximize your construction budget with this proven 2016 Kobelco SK350LC-8 excavator, delivering 35-ton performance at a fraction of new equipment costs. Powered by a robust Hino JO8E engine producing 196.9kW, this machine combines reliability with impressive operational capabilities including 11.26m maximum digging radius and 7.56m maximum digging depth.
Key performance specifications include:
- 1.6m³ bucket capacity with 222kN digging force
- 34,700kg working weight for superior stability
- Dual variable displacement hydraulic pumps (2×294 L/min)
- 580L fuel tank for extended operation cycles
- 70% climbing ability on challenging terrain
Currently located in Zhejiang Lishui, this SK350LC-8 represents smart capital allocation for contractors seeking dependable heavy machinery without new equipment premiums. Built with Kobelco's renowned engineering standards, this excavator offers years of productive service while preserving cash flow for other business investments.
| Specifications | Value |
|---|---|
| No. | 990081 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 34700 |
| Bucket capacity (m³) | 1.6 |
| Rod length (mm) | 3300 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

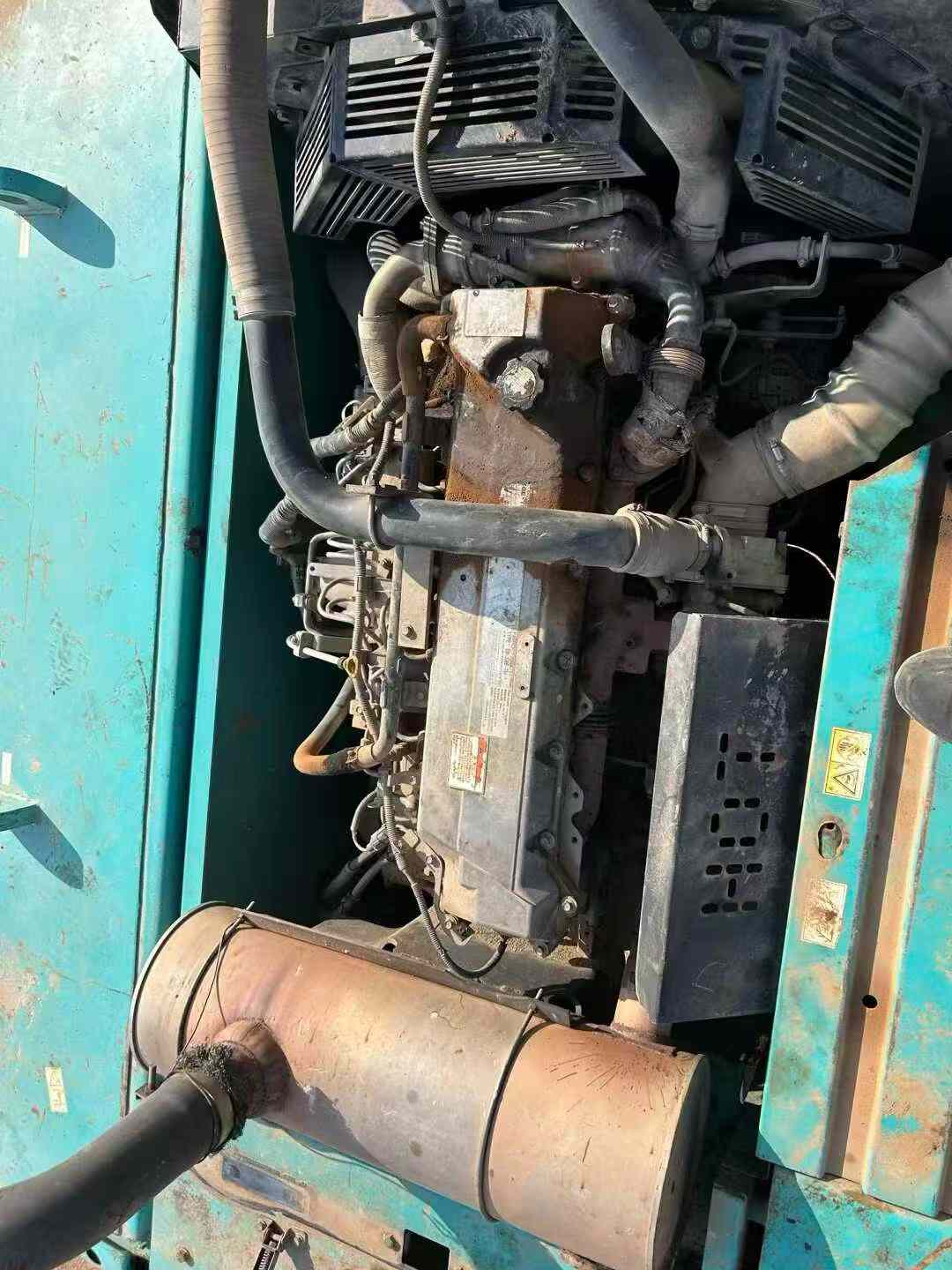

| Engine type | Hino JO8E |
| Rated power (kw/rpm) | 196.9/2100 |
| Cylinder diameter × stroke (mm) | 112*130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.7 |
| Working form | Direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 50.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 (35°) |
| Bucket digging force (kN) | 222 |
| Rod digging force (kN) | 165 |
| Maximum tractive force (kN) | 322 |
| Travel speed (km/h) | 5.6/3.3 |
| Type of walking hydraulic motor | Two sets of two-speed plunger motors |
| Maximum flow of main pump (l/min) | 2*294 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Main pump type | Double variable displacement axial piston pump, pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150*1193 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170*1788 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*140*1550 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 280 |
| Engine Oil changes (L) | 28.5 |
| Coolant (L) | 31.1 |
| Hydraulic System (L) | 353 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3400 |
| Total transport height (mm) | 3420 |
| Full cab height (mm) | 3160 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4370 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 4980 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600/800/900 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 4050 |
| Maximum digging radius (mm) | 11260 |
| Maximum digging depth (mm) | 7560 |
| Maximum excavation height (mm) | 10580 |
| Maximum unloading height (mm) | 7370 |
| Maximum vertical digging depth (mm) | 6610 |
| Maximum excavation radius of stop surface (mm) | 11060 |
| Maximum effective digging depth (mm) | 7400 |
