Product Description
Built for enduring performance, this 2013 Kobelco SK70 excavator delivers proven reliability in the 7-ton class. Powered by a robust ISUZU AU4LE2X engine producing 41kW at 2200 RPM, this machine combines Japanese engineering precision with practical field durability. Located in Guangdong, China, this unit represents exceptional value in today's used equipment market.
Kobelco's reputation for parts availability and strong resale values makes this SK70 a smart investment for contractors seeking dependable performance. With a maximum digging depth of 4,160mm and reach extending to 6,460mm, this compact excavator handles diverse applications while maintaining fuel efficiency through its 120L tank capacity.

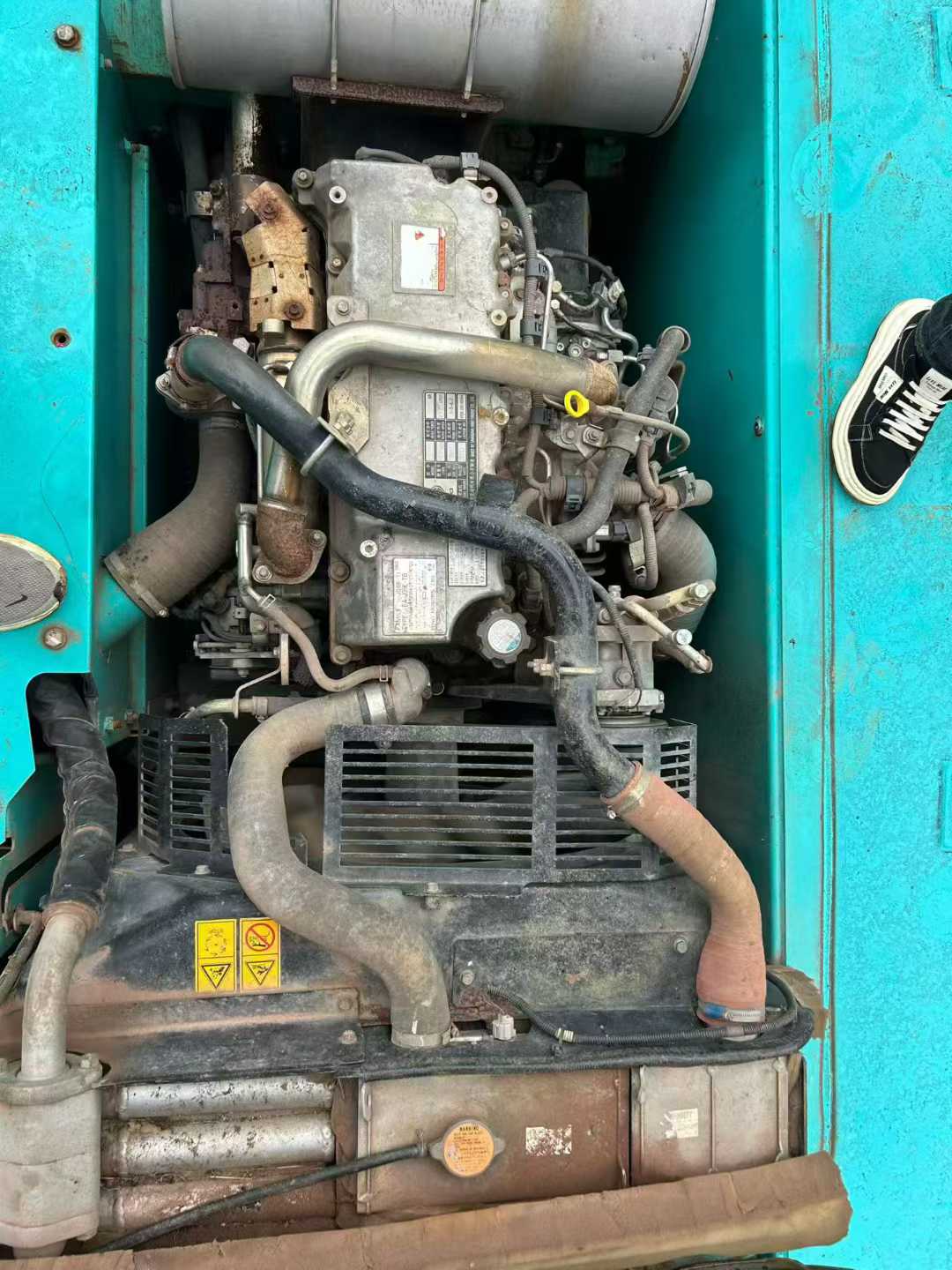

- Proven ISUZU 4-cylinder engine with water-cooling system

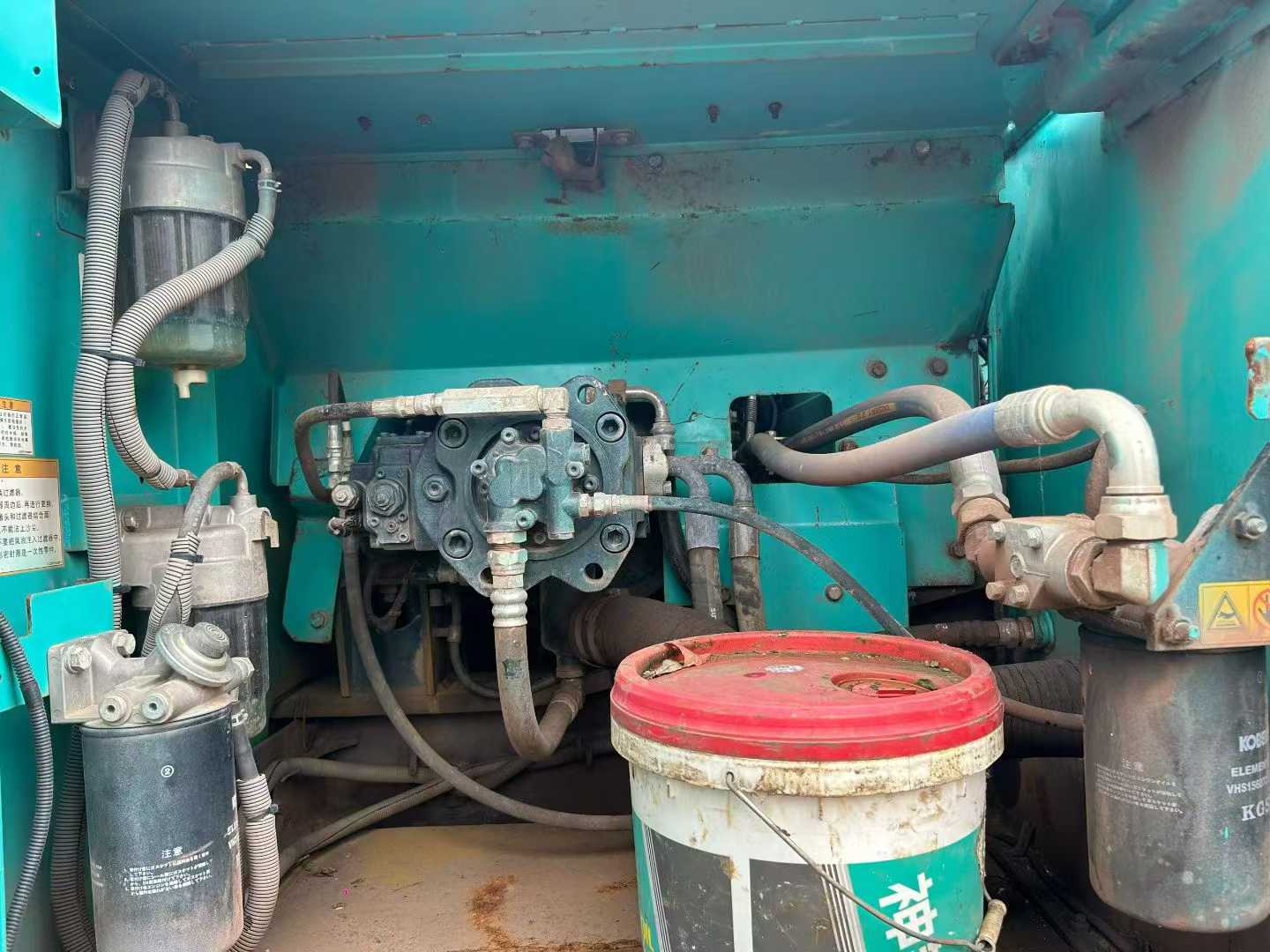

- Advanced hydraulic system with 29.4 MPa working pressure
- Compact 2,630mm transport height for easy jobsite mobility
- Established dealer network ensures parts and service support
- Strong brand recognition maintains resale value over time
Ready for immediate deployment, this SK70 combines Kobelco's engineering heritage with practical specifications that deliver consistent results across construction, landscapin
| Specifications | Value |
|---|---|
| No. | 949885 |
| Tonnage (tons) | 7 |
| Boom length (mm) | 5830 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotation speed (rpm) | 11.5 |
| Travel speed (km/h) | 2.8/5.3 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
