Product Description

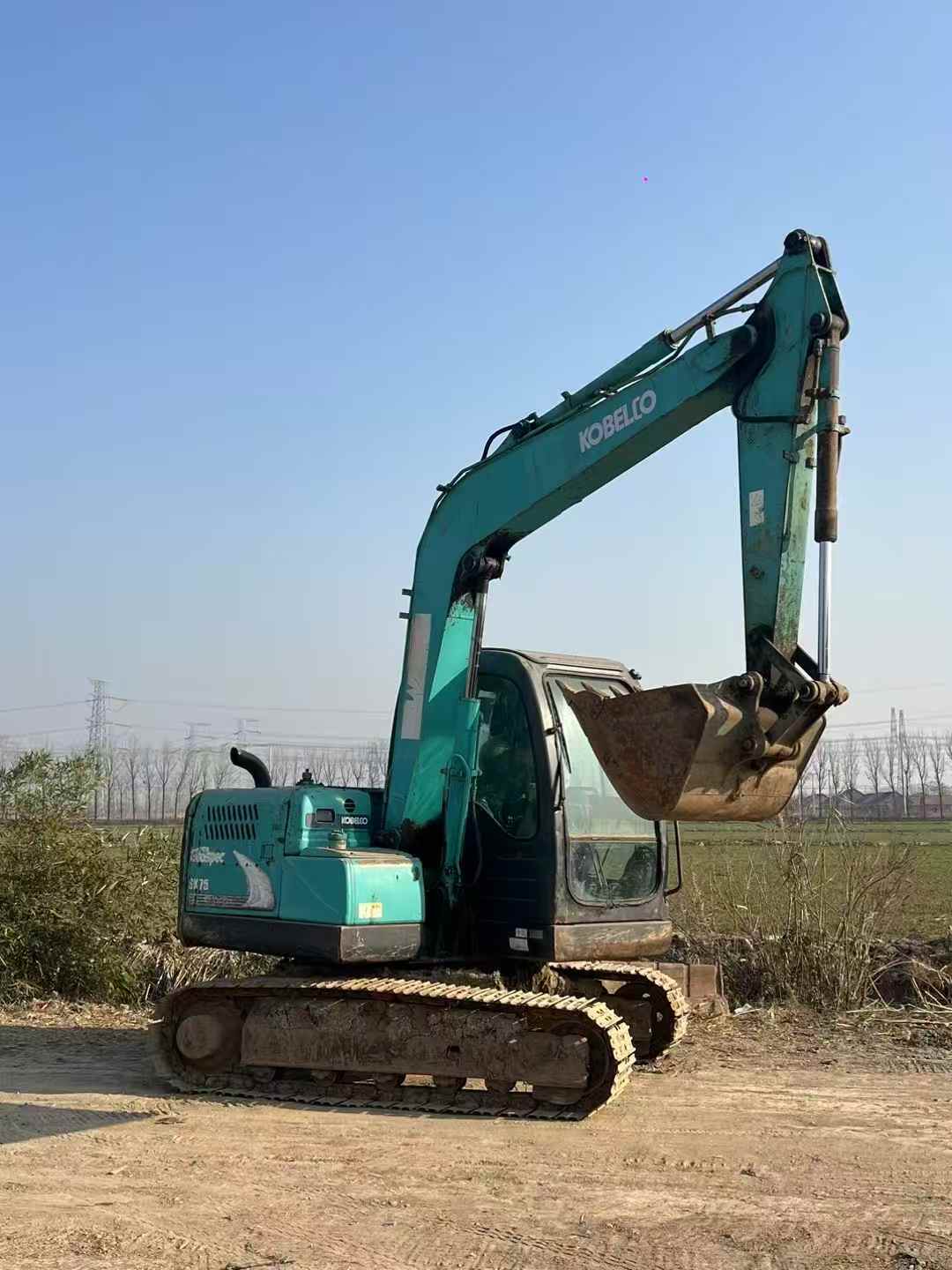

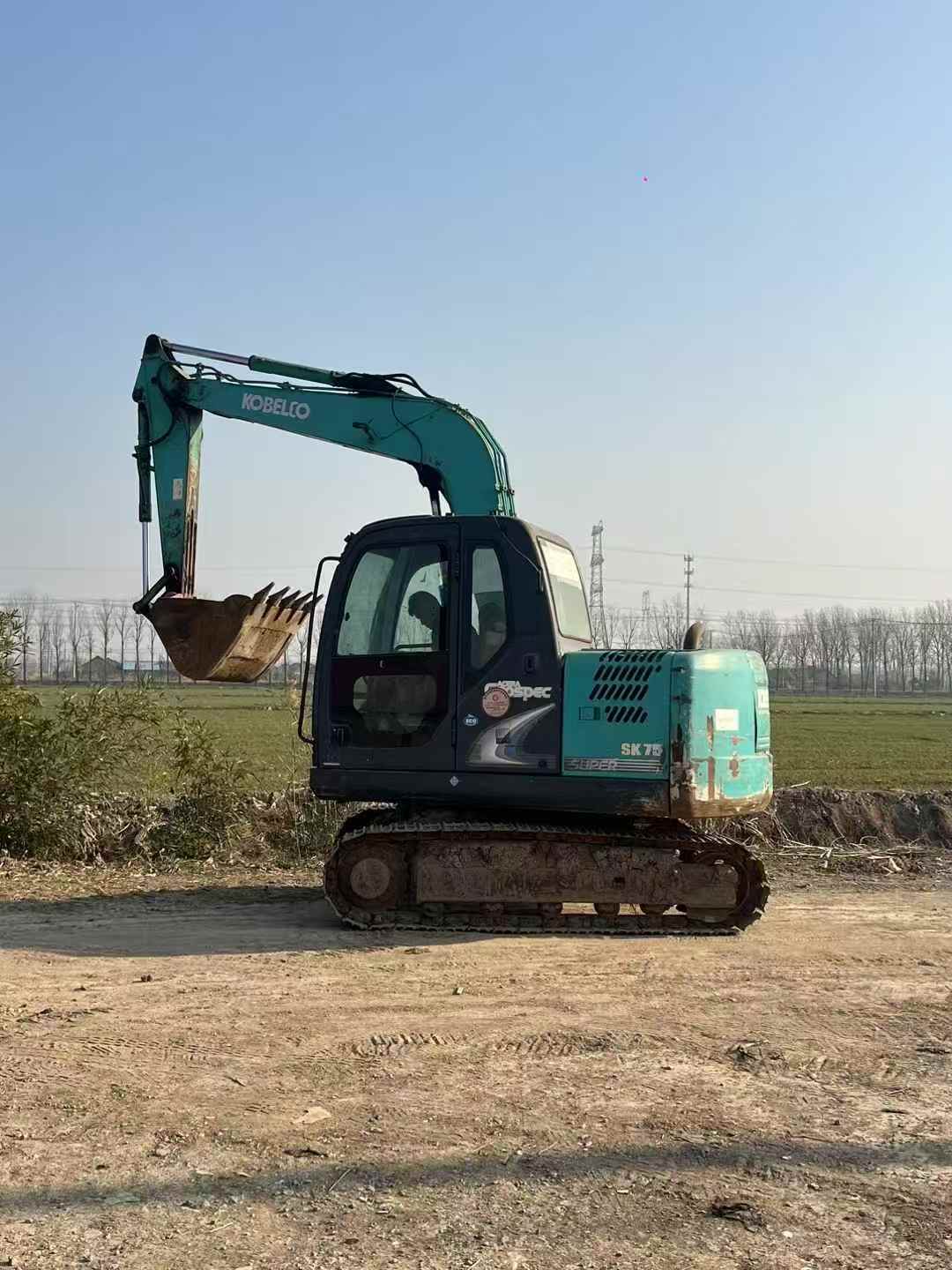

Featuring a robust ISUZU AU4LE2X engine, this 2014 Kobelco SK75 excavator delivers a rated power of 41 kW at 2200 rpm. Equipped with a water-cooled 4-cylinder engine boasting a displacement of 2.179 L, it ensures reliable performance and durability. The excavator's hydraulic system is powered by a double variable displacement axial piston pump and a pilot gear pump, providing efficient operation across various tasks.
- Working weight: 7000 kg (approx.)
- Rotary hydraulic motor: Axial piston motor
- Traveling Hydraulic Circuit: 27.5 Mpa
- Rotary Hydraulic Circuit: 14.5 Mpa
- Control Hydraulic Circuit: 3.5 Mpa
- Working Hydraulic Circuit: 29.4 Mpa
- Fuel Tank: 120 L
- Hydraulic Tank: 72 L
- Total transport height: 2630 mm
- Maximum digging depth: 4160 mm
- Maximum excavation height: 7390 mm
- Travel speed: 2.8/5.3 km/h
Engineered in Chengdu and built through a joint venture/import model, the SK75 stands out for its precision and reliability. Its advanced hydraulics and powerful engine make it a preferred choice for demanding construction projects. Located in Jiangsu, China, this used excavator is ready to meet your project needs with
| Specifications | Value |
|---|---|
| No. | 962566 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
