Product Description
Skip the factory lead times with this reliable 2015 Kobelco SK75 excavator, available now in 浙江杭州 for immediate deployment to your construction site. Built with proven ISUZU AU4LE2X engine technology, this 7-ton compact excavator delivers 41kW of power through a water-cooled 4-cylinder system, ensuring consistent performance across demanding job sites.
Engineered for versatility, this machine features a maximum digging depth of 4,160mm and excavation radius of 6,460mm, making it ideal for urban construction, utility work, and landscaping projects. Advanced hydraulic systems operate at 29.4 Mpa working pressure with dual variable displacement pumps, providing precise control and efficient operation.
- Compact 2,630mm transport height for easy site mobility
- Dual travel speeds (2.8/5.3 km/h) optimize productivity
- 120L fuel capacity reduces downtime between refueling
- Fast deployment from 浙江杭州 location
Ready for immediate operation with comprehensive hydraulic and engine specifications verified. Contact us today for rapid site delivery and bypass lengthy manufacturing delays.
| Specifications | Value |
|---|---|
| No. | 989285 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

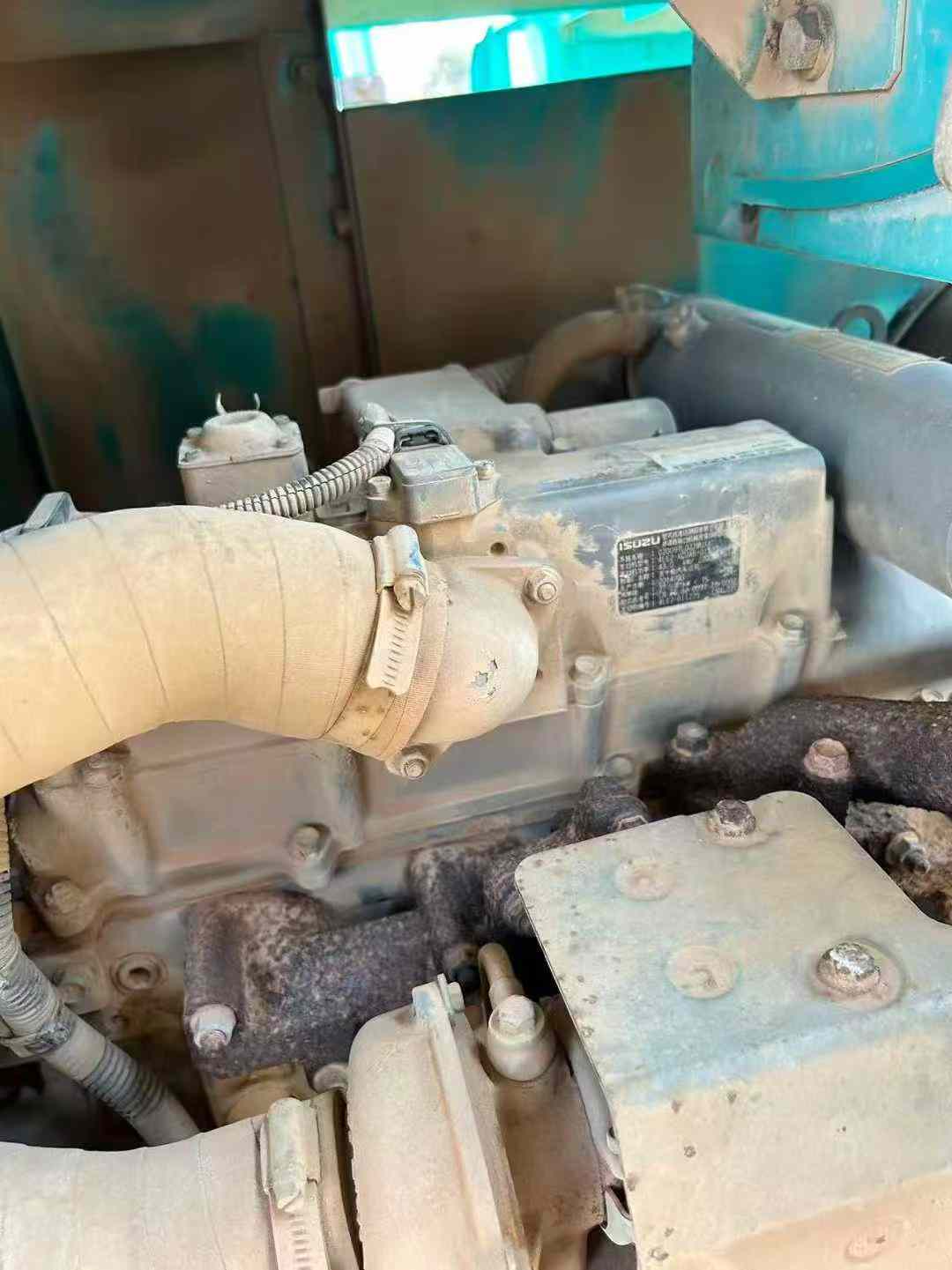

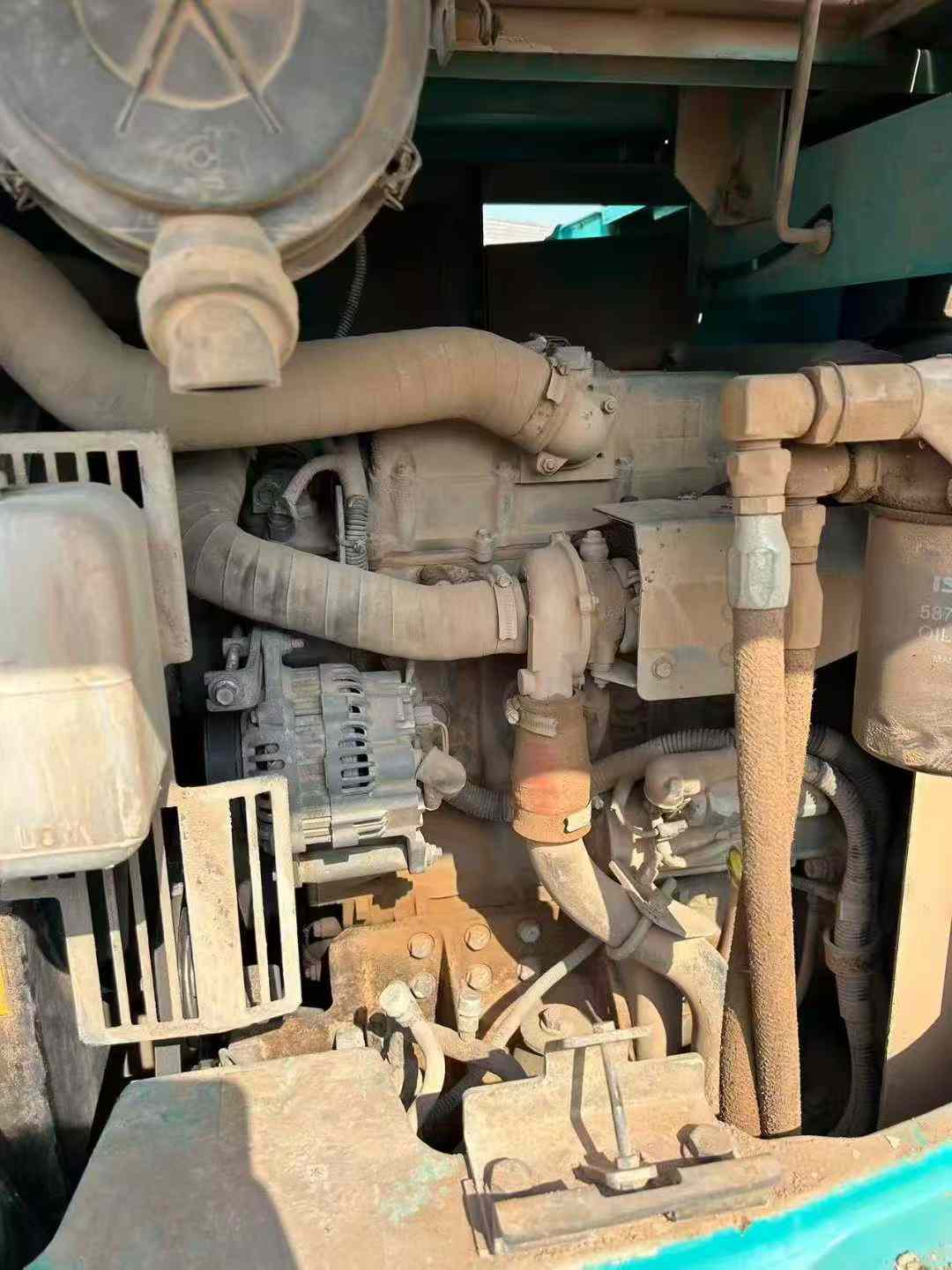

| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |

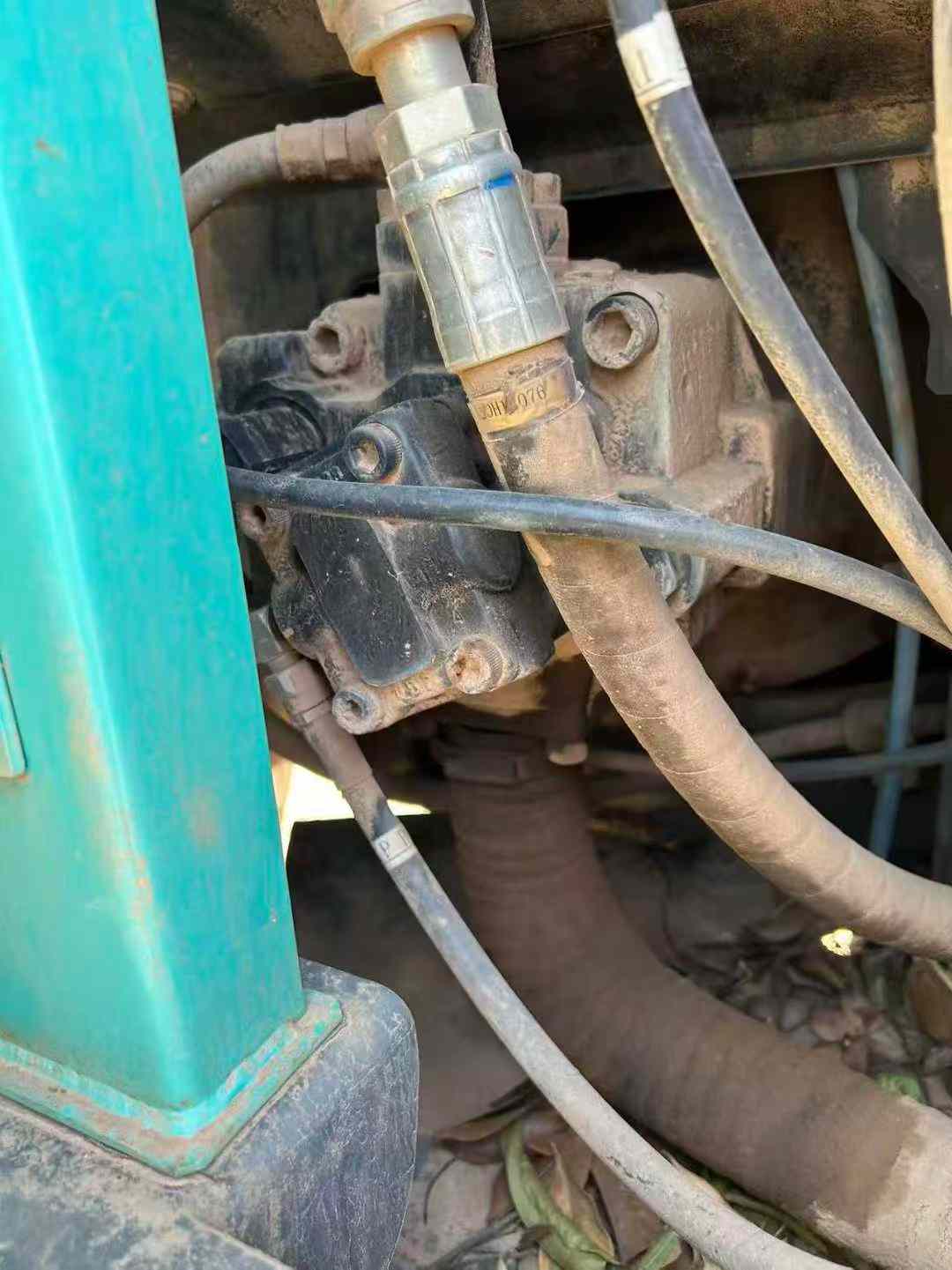

| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
