Product Description

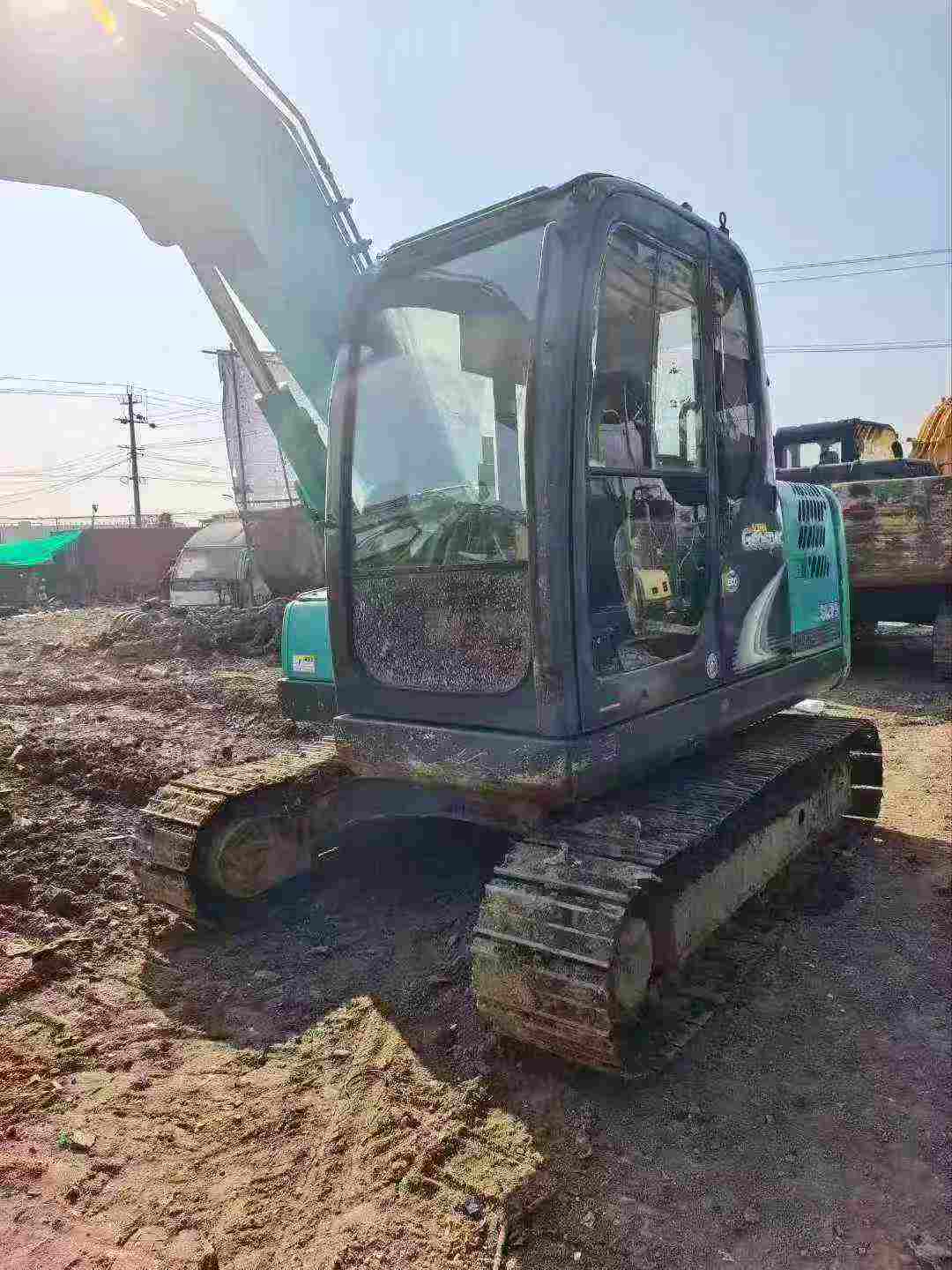

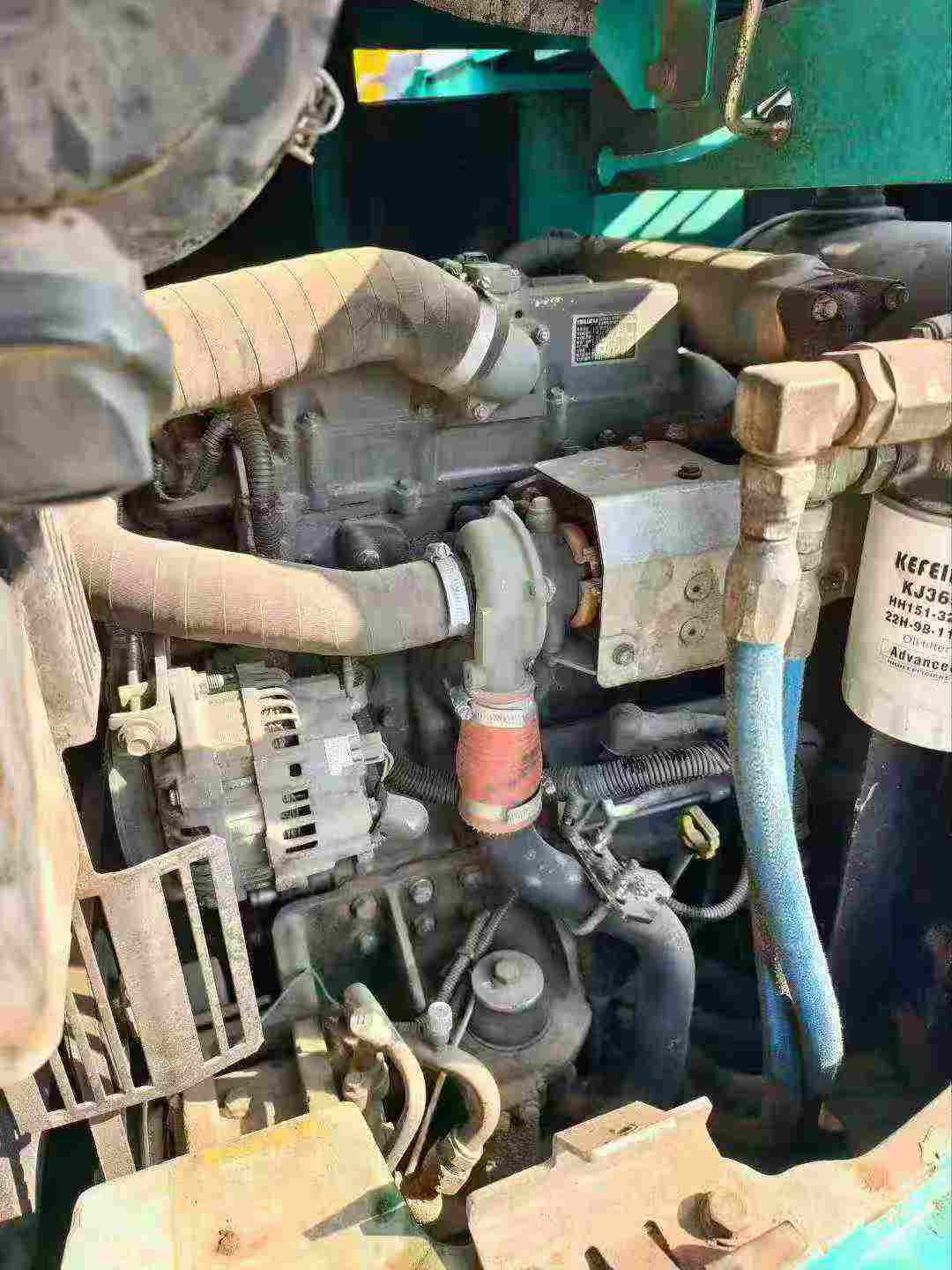

Built for endurance, this 2017 Kobelco SK75 compact excavator delivers proven performance with 7 tons of reliable digging power. Equipped with a robust ISUZU AU4LE2X engine producing 41kW at 2200 RPM, this workhorse has demonstrated its durability through years of dependable operation in demanding conditions.
Key specifications showcase its industrial-grade construction:
- 7,000kg working weight with maximum digging depth of 4,160mm

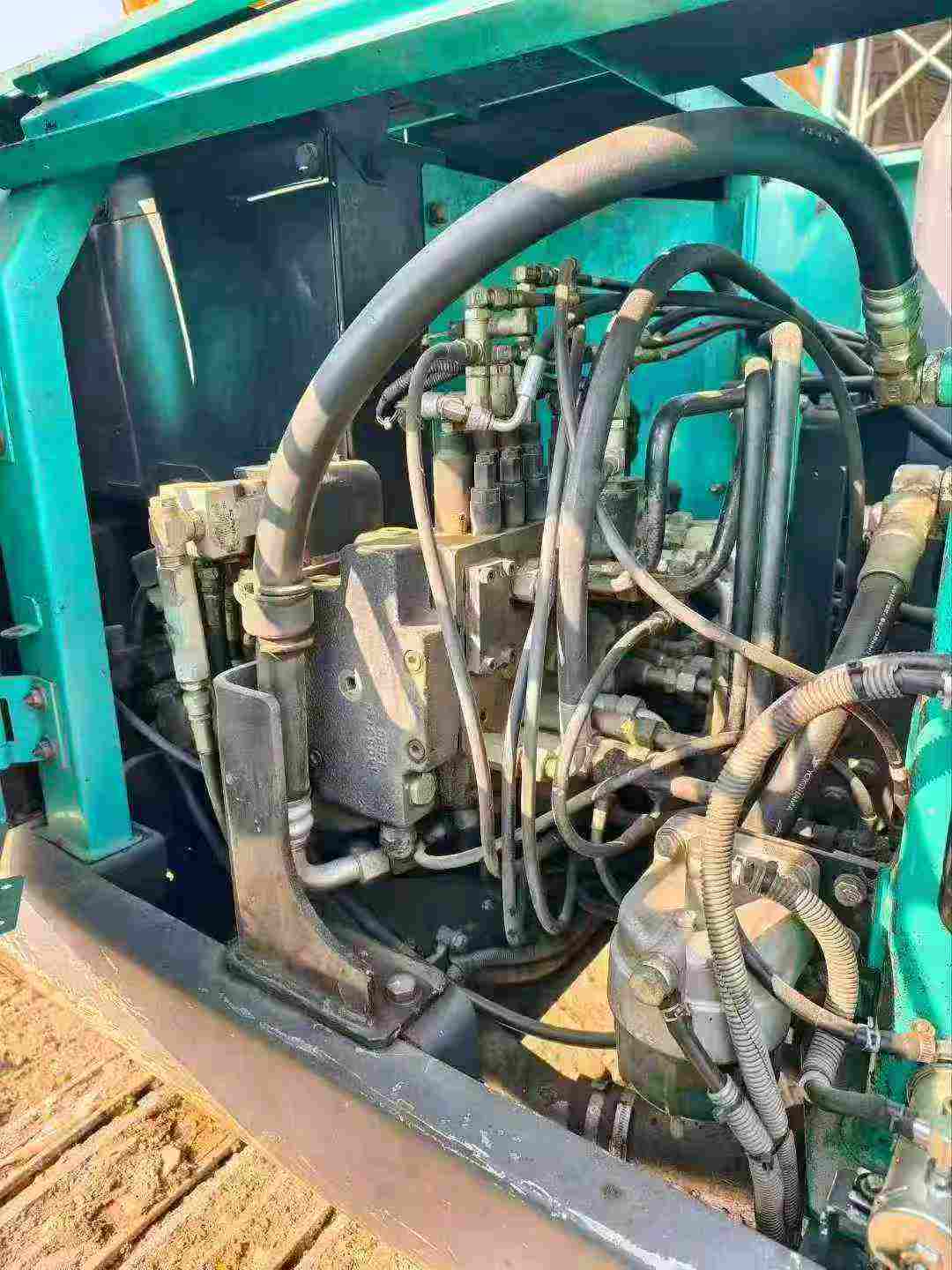

- Advanced double variable displacement hydraulic system operating at 29.4 MPa
- Impressive 6,460mm maximum digging radius for versatile job site coverage
- Dual travel speeds (2.8/5.3 km/h) for efficient positioning and transport
- Compact 2,630mm transport height for easy trailer loading
Currently located in Luzhou, Sichuan, this proven excavator represents solid value for contractors seeking reliable mid-size equipment. With its track record of consistent performance and Kobelco's reputation for longevity, this SK75 continues to deliver the productivity and dependability that built its reputation over nearly a decade of service.
| Specifications | Value |
|---|---|
| No. | 989024 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
