Product Description

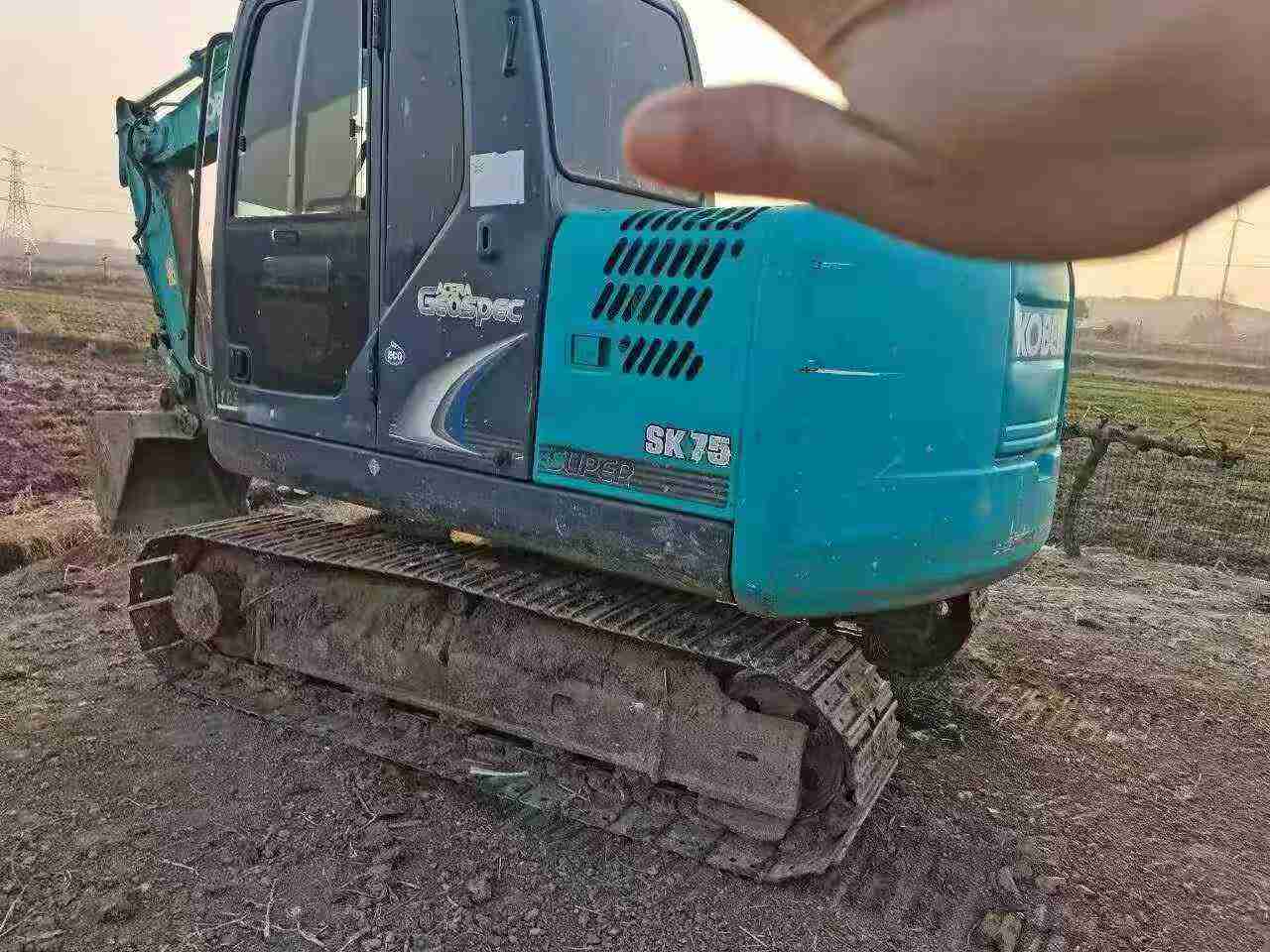

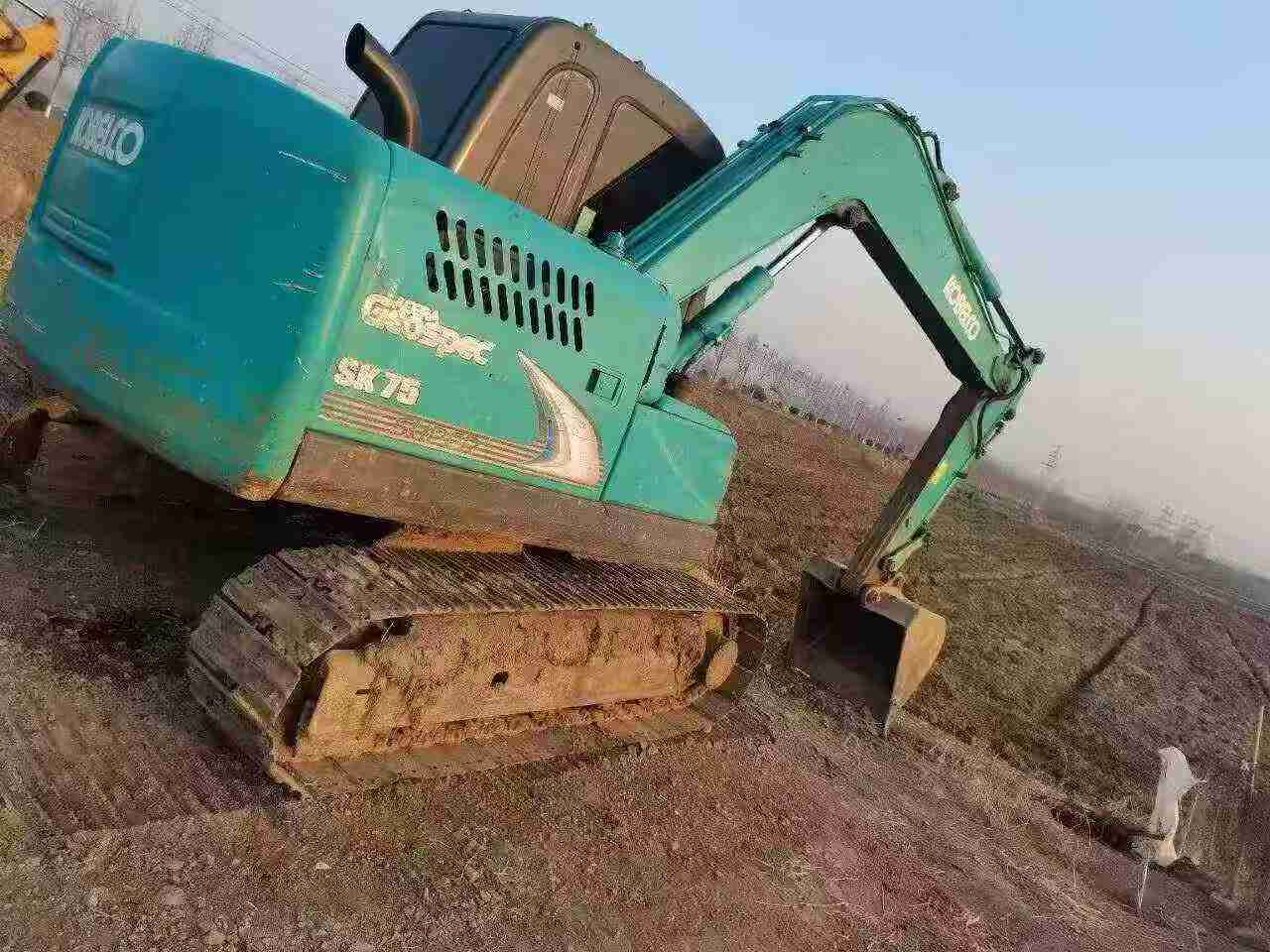

Built for precision and reliability, this 2018 Kobelco SK75 excavator delivers exceptional performance in a compact 7-ton package. Powered by a robust ISUZU AU4LE2X engine producing 41kW at 2200 RPM, this machine combines efficient fuel consumption with dependable operation across demanding job sites.
Operators benefit from superior cabin visibility and intuitive controls, ensuring accurate positioning during critical excavation tasks. The hydraulic system operates at 29.4 MPa working pressure, providing responsive digging force with a maximum reach of 6.46 meters and digging depth of 4.16 meters. Water-cooled engine technology maintains optimal operating temperatures during extended work cycles.
- Compact design with 1.76m minimum turning radius for tight spaces
- Dual travel speeds (2.8/5.3 km/h) for versatile site mobility
- 120L fuel capacity reduces downtime between refueling
- Proven ISUZU 4-cylinder engine with 2.179L displacement
- Located in Luzhou, Sichuan for immediate inspection
This well-maintained unit represents solid value for contractors requiring reliable mid-size excavation capability with proven Japanese engineering standards.
| Specifications | Value |
|---|---|
| No. | 989019 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |

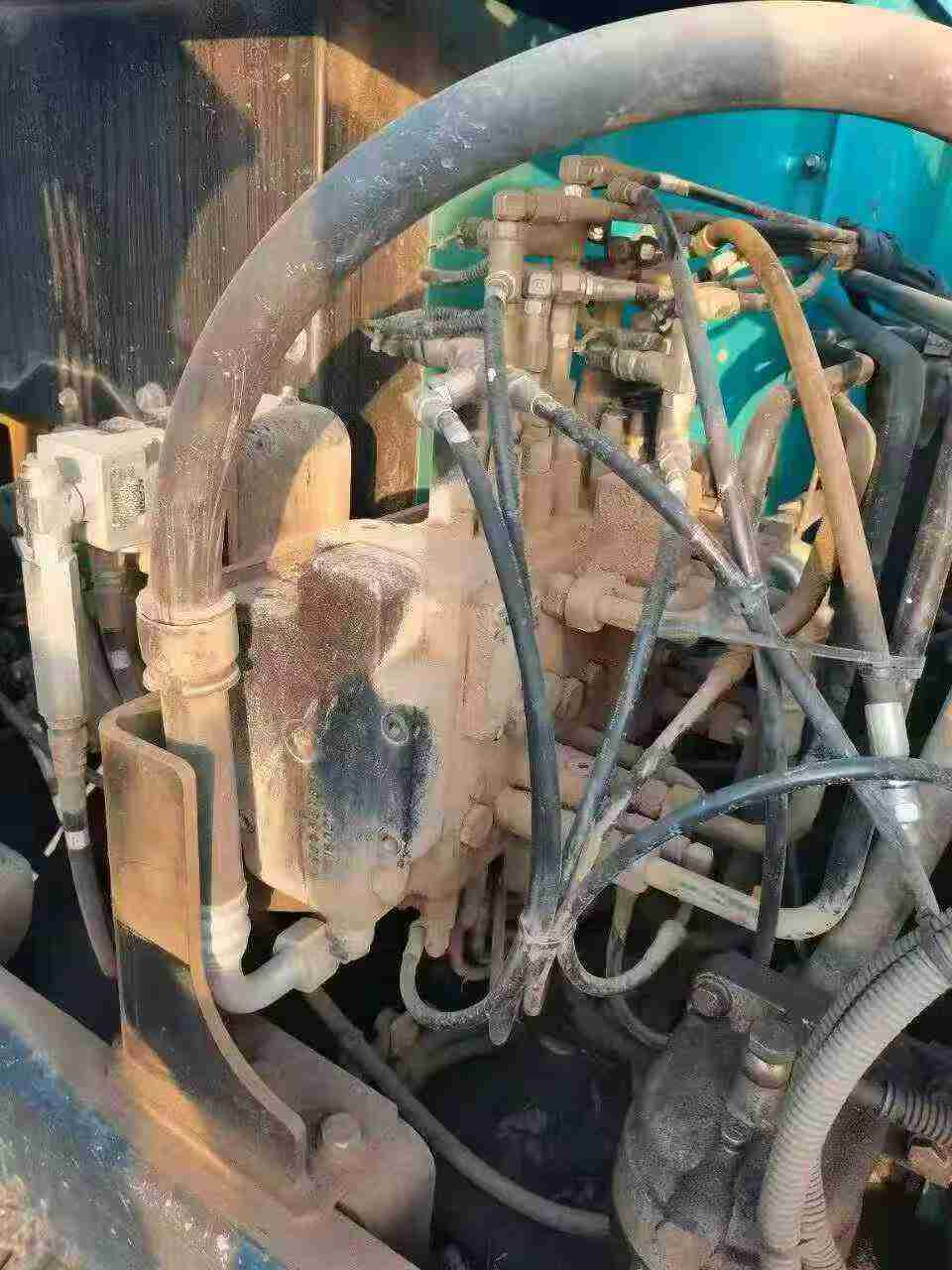

| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
