Product Description

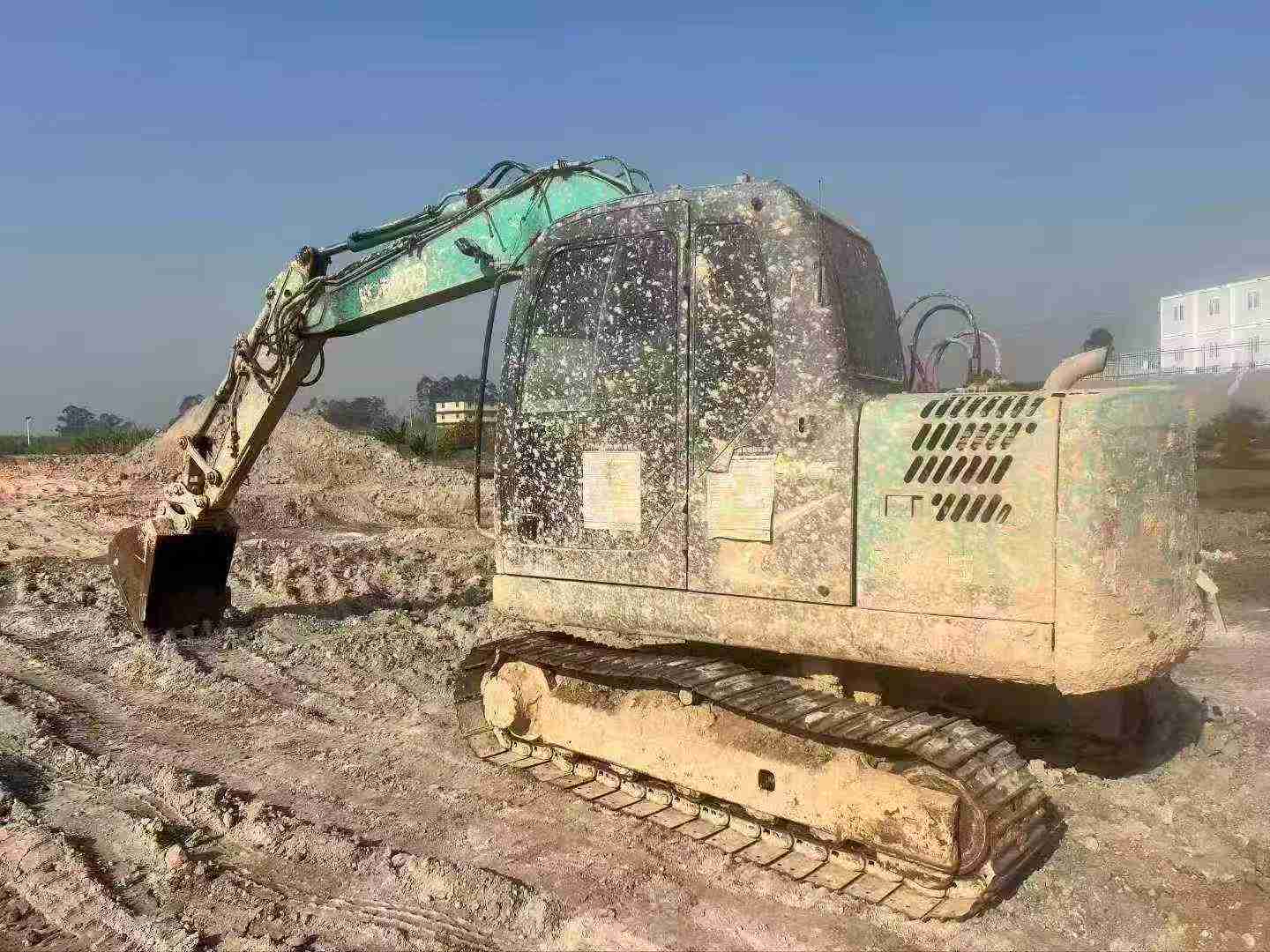

Maximize your construction budget with this proven 2019 Kobelco SK75 excavator from Sichuan Luzhou. Built for mid-range projects, this 7-ton machine delivers reliable ISUZU AU4LE2X engine performance at 41kW, offering exceptional value compared to new equipment costs.
Key specifications include:
- Maximum digging reach: 6,460mm with 4,160mm depth capability
- Compact 2,630mm transport height for easy site mobility
- Dual-speed travel system (2.8/5.3 km/h) for versatility
- Advanced hydraulic system with 29.4 MPa working pressure
- 120L fuel capacity for extended operation cycles
With approximately 7,000kg working weight and proven Japanese engineering, this SK75 handles demanding excavation, trenching, and material handling tasks efficiently. Smart contractors choose quality used equipment like this to reduce capital expenditure while maintaining productivity standards. Ready for immediate deployment on your next project.
| Specifications | Value |
|---|---|
| No. | 987675 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
